Powerful 12V Recovery Winch for Heavy Vehicles and Equipment

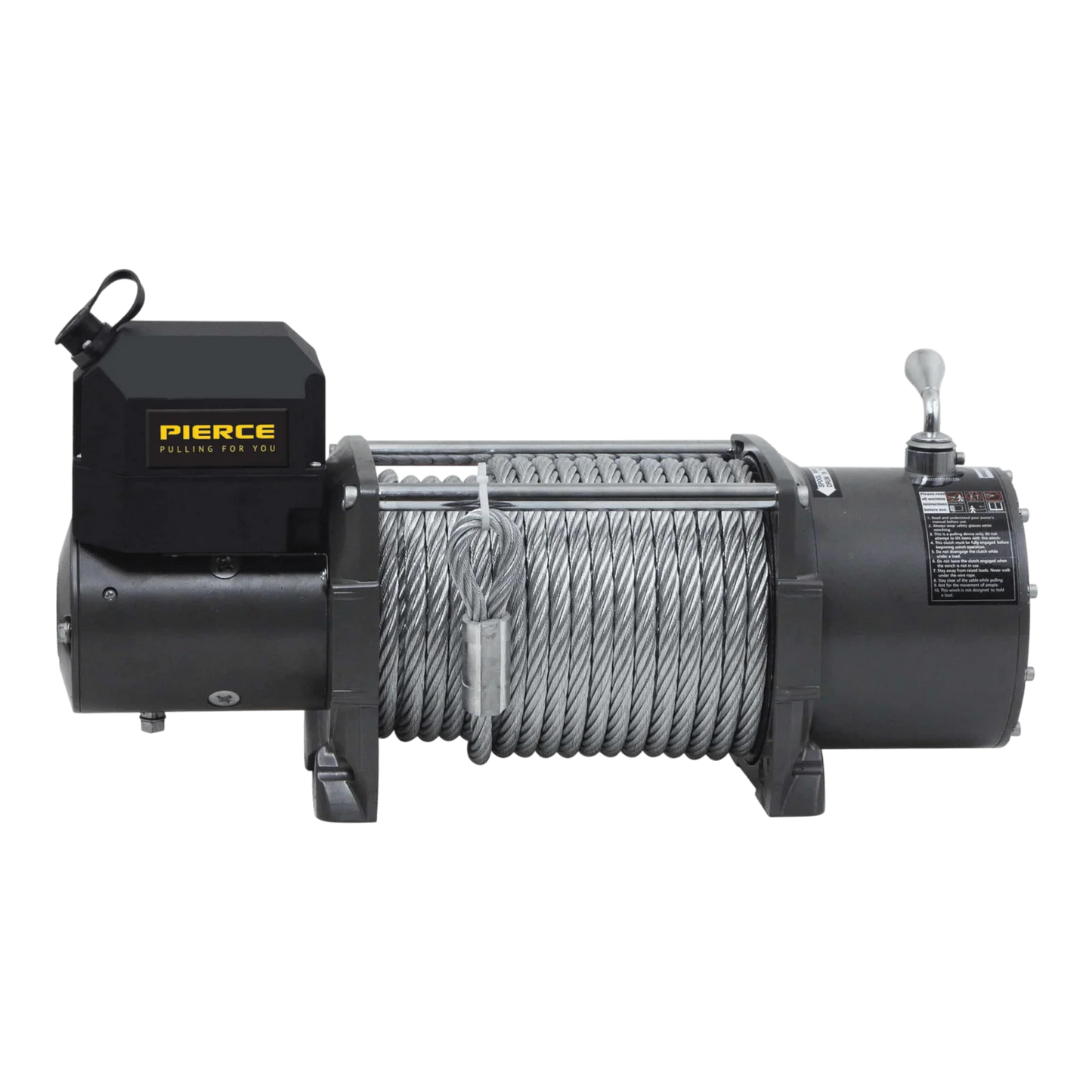

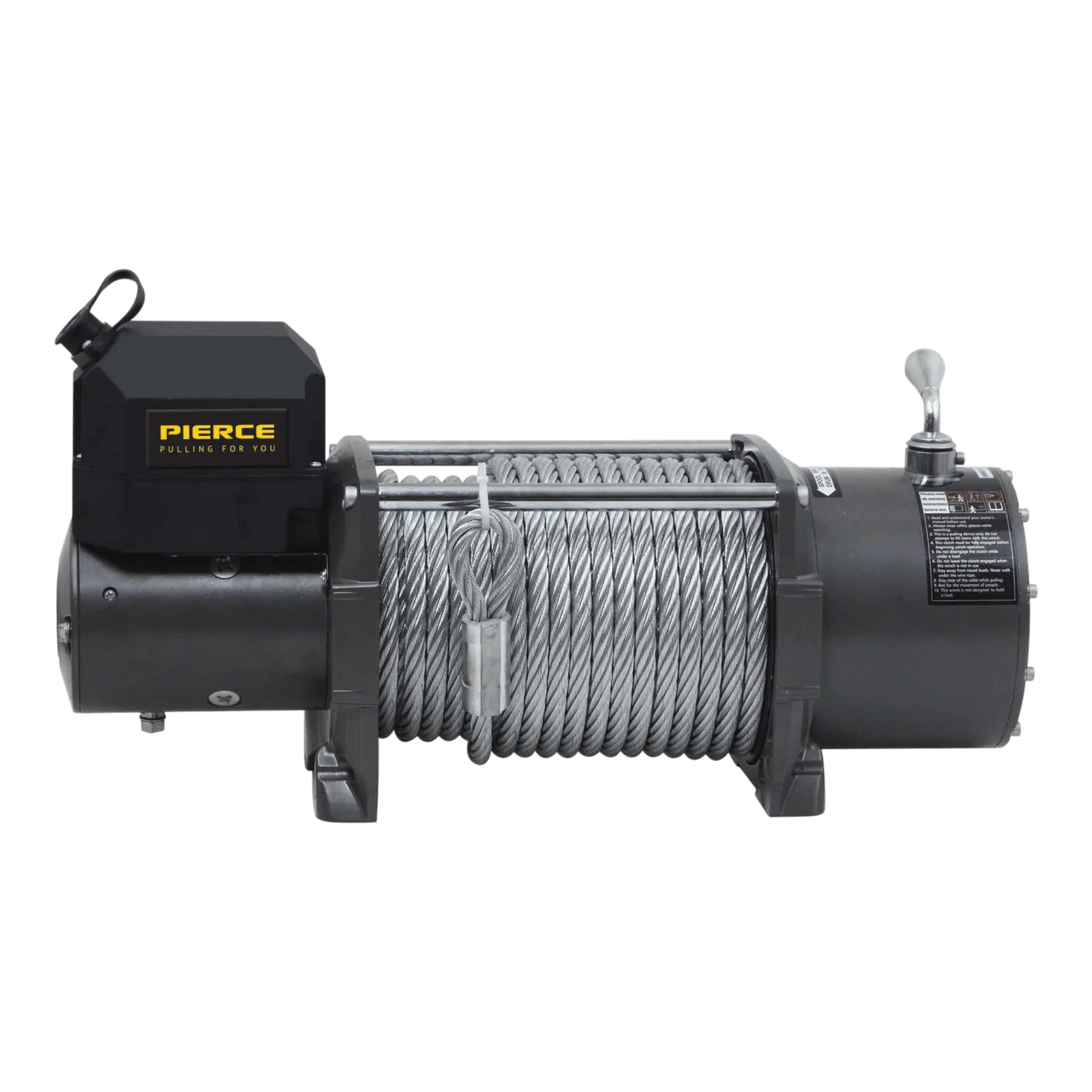

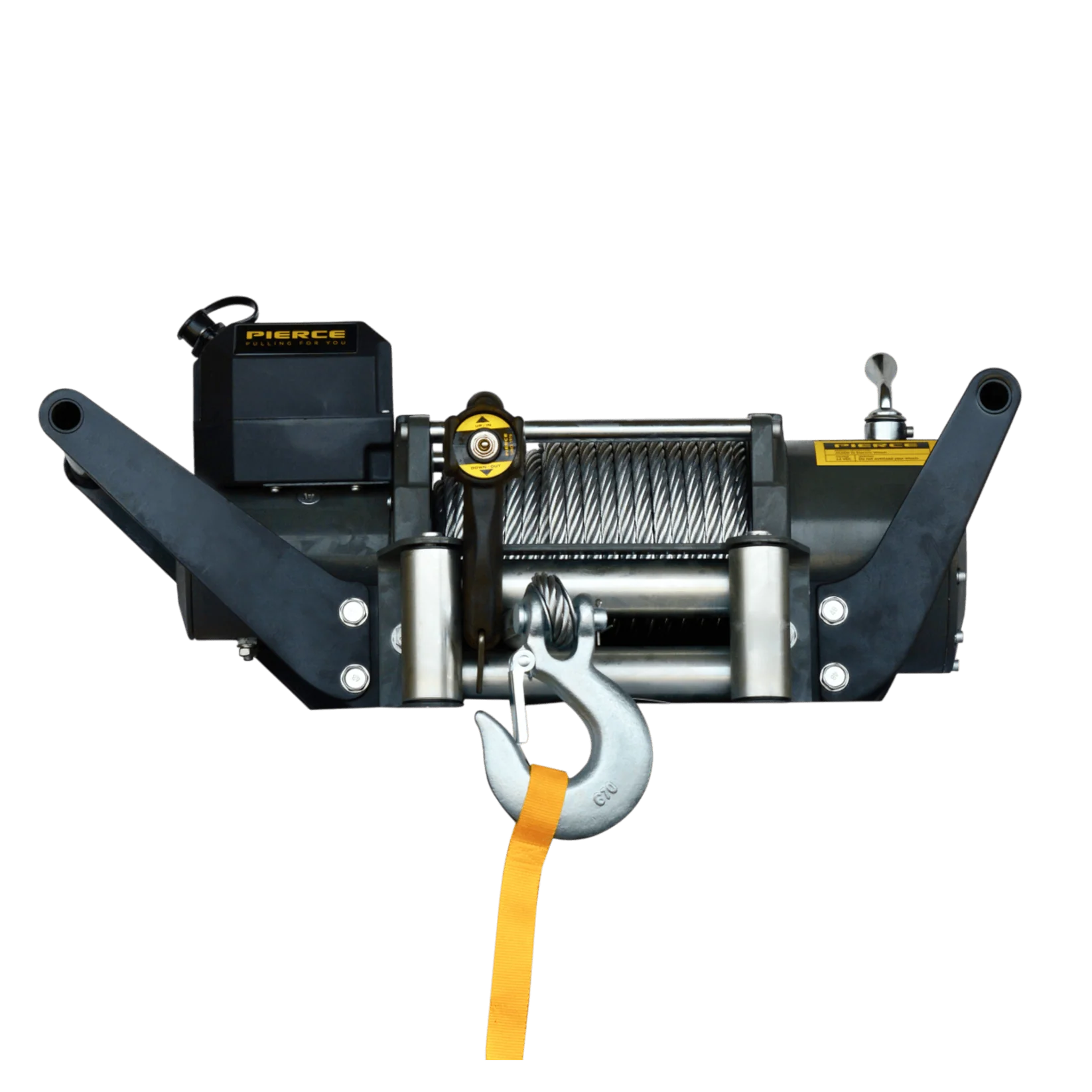

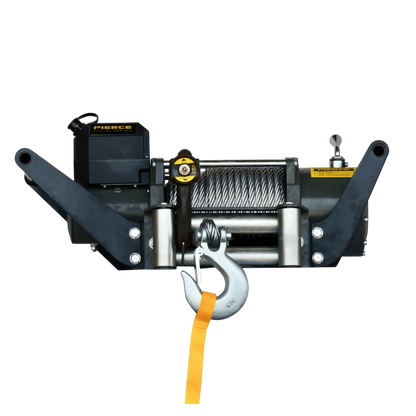

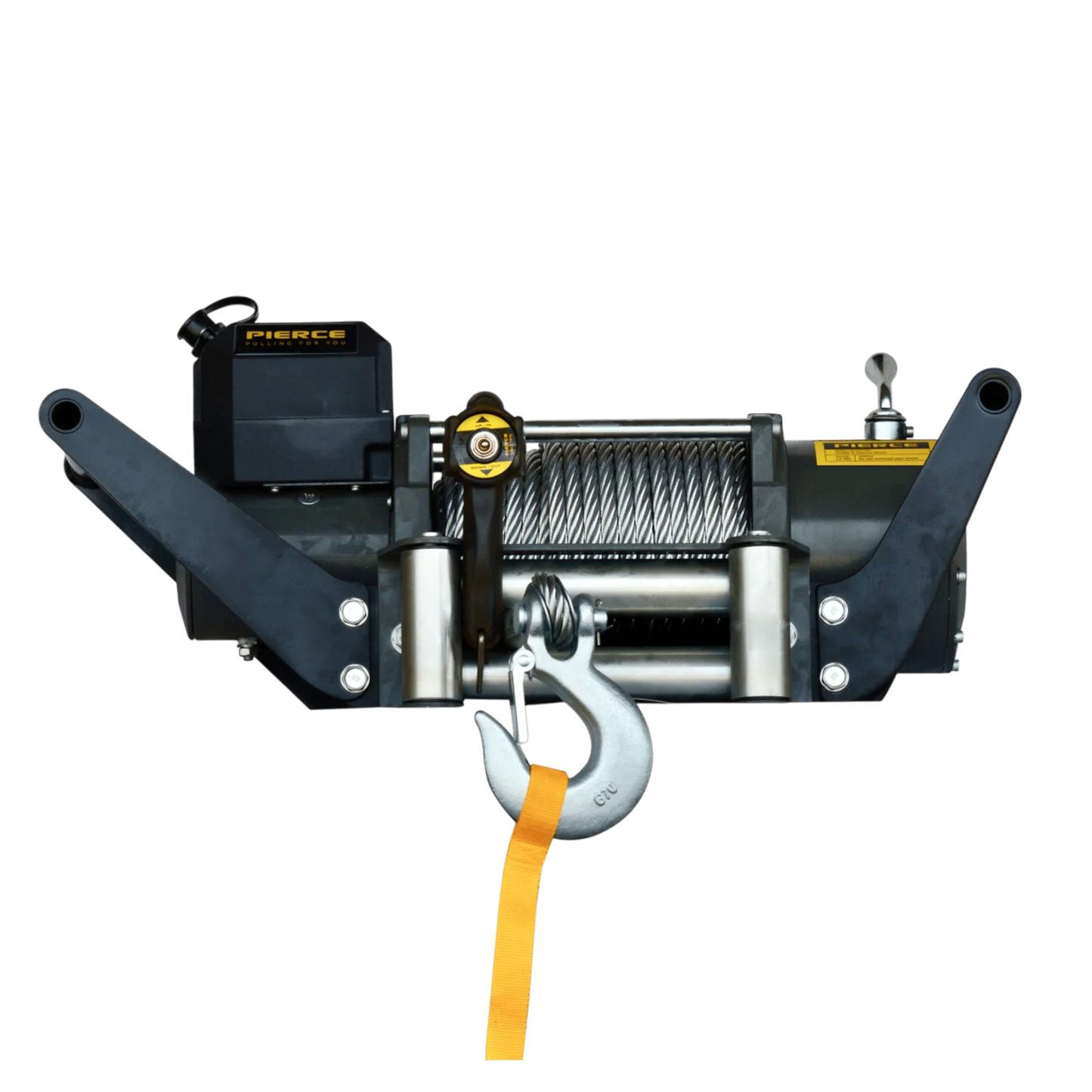

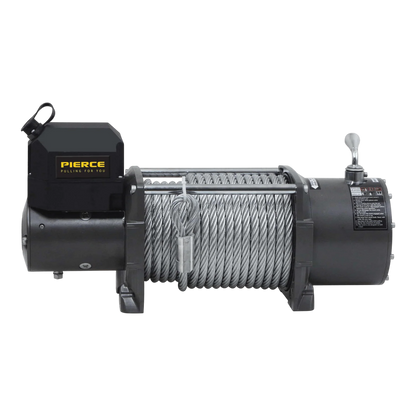

The PIERCE PS20000 Recovery Winch delivers unmatched 12V pulling power for demanding vehicle recovery and equipment transport. Designed with a heavy-duty three-stage planetary gear system, it provides efficient torque, fast line speed, and smooth, consistent performance under load. The automatic load-holding brake offers precise control and safety on every pull, while the rugged steel construction stands up to daily use in towing, recovery, and trailer operations. Trusted by professionals, the PS20000 is built to perform in the toughest recovery conditions.
- 20,000 lb pulling capacity for recovery trucks and heavy equipment trailers
- 12V DC operation delivers powerful and consistent performance under load
- Three-stage planetary gear system provides efficient torque and faster line speed
- Automatic load-holding brake ensures safe, controlled recovery operations
- Rugged steel construction built for long-term durability and professional use

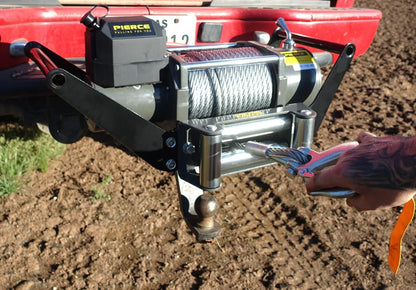

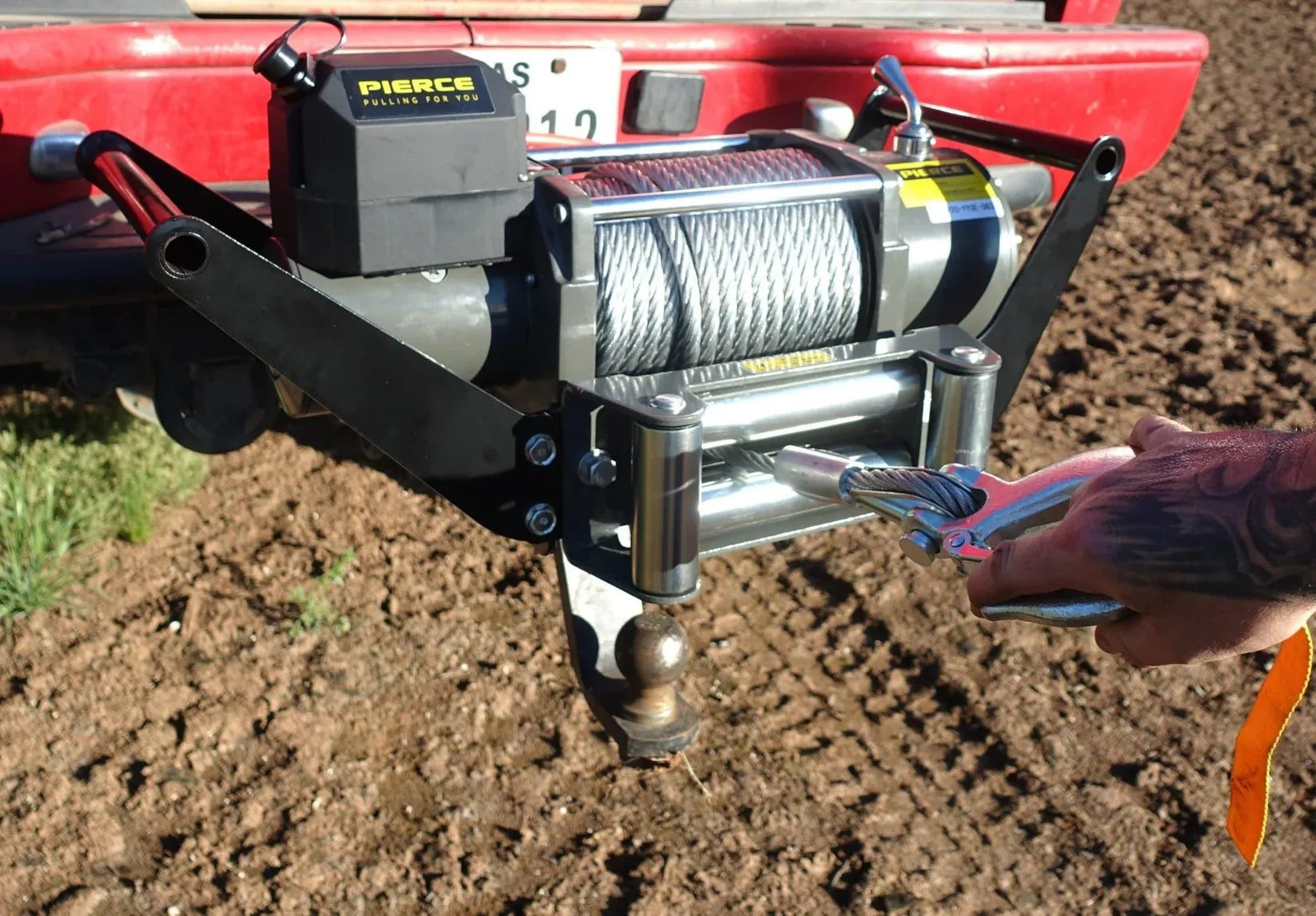

Applications: Ideal for heavy recovery, towing, and trailer loading of vehicles and machinery requiring dependable 12V pulling strength.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

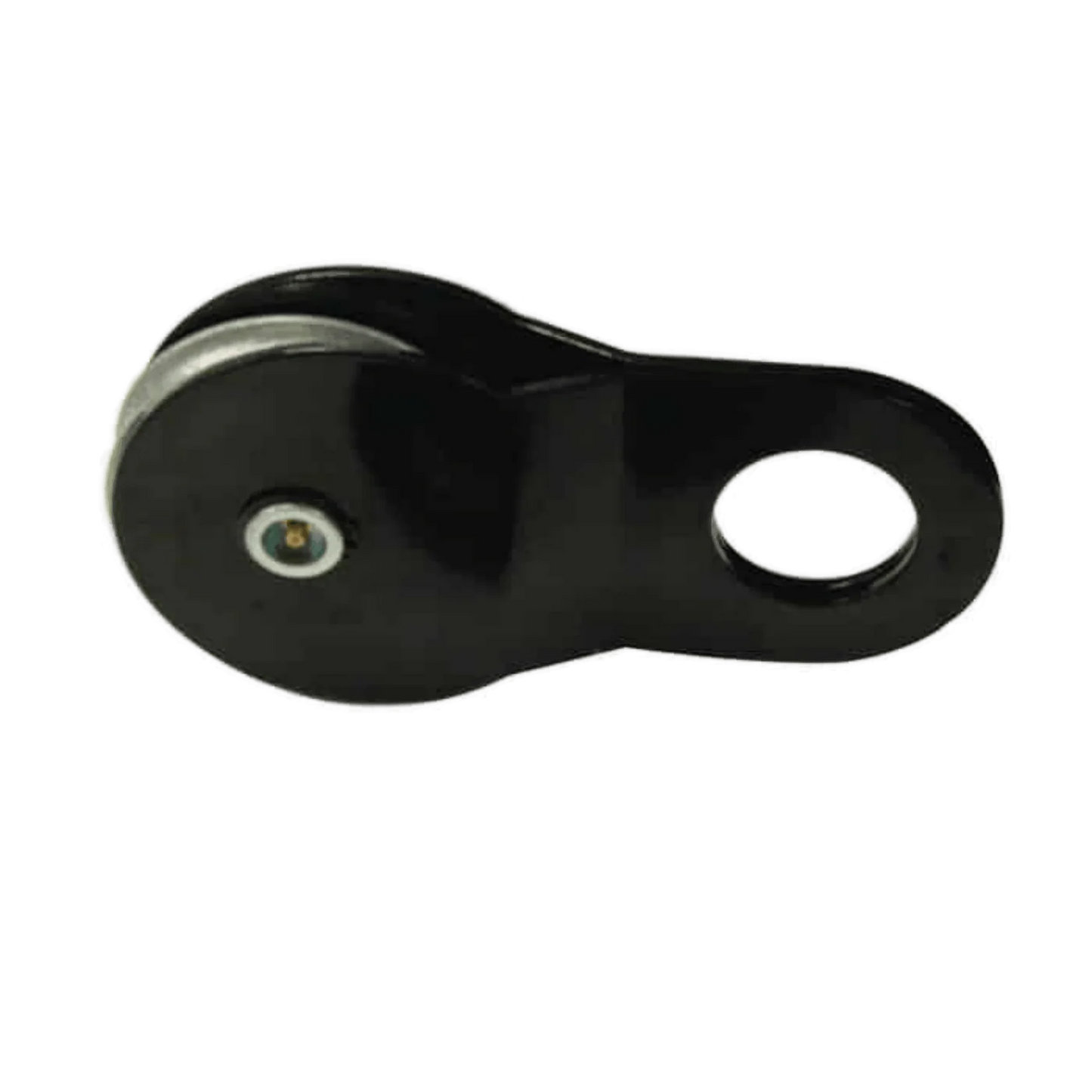

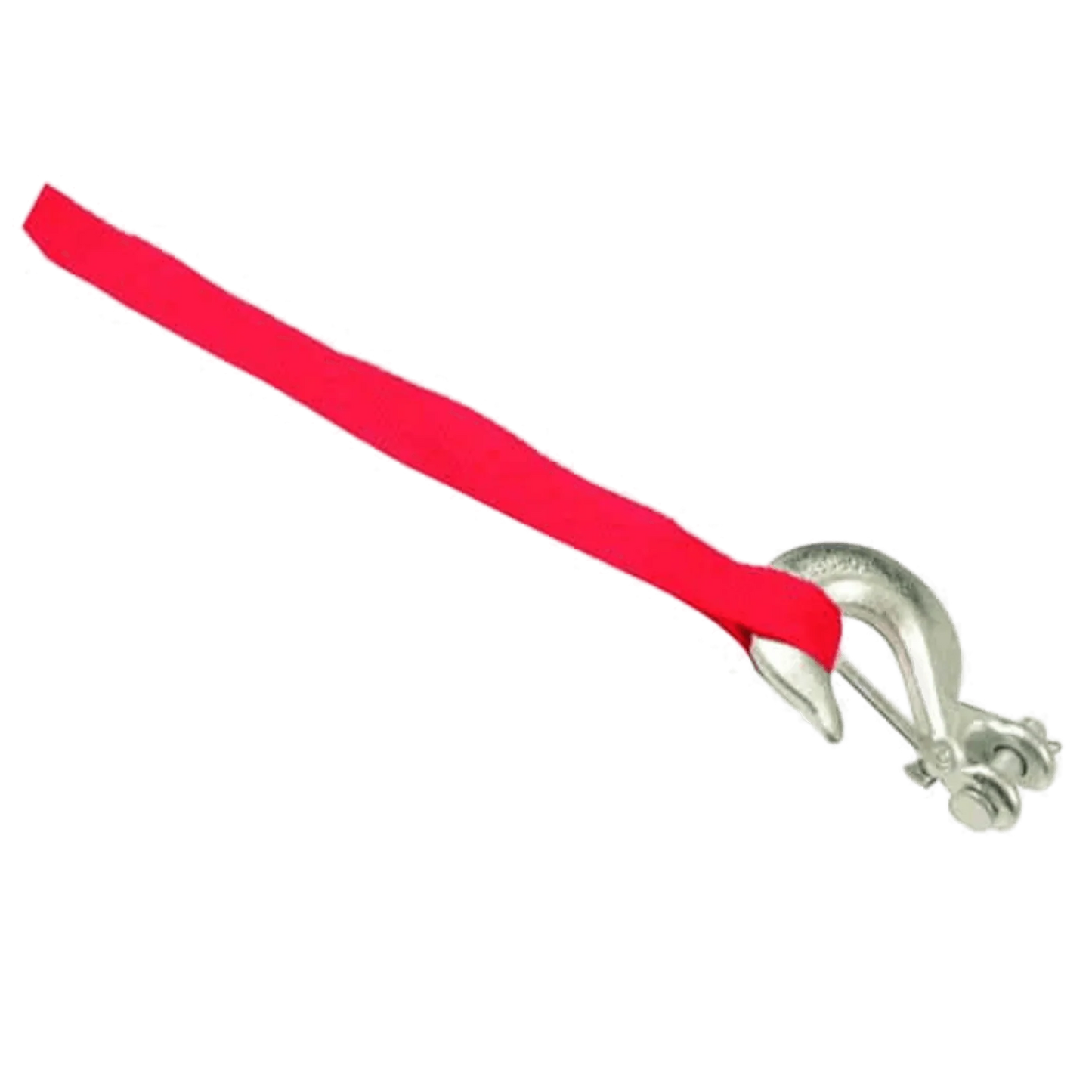

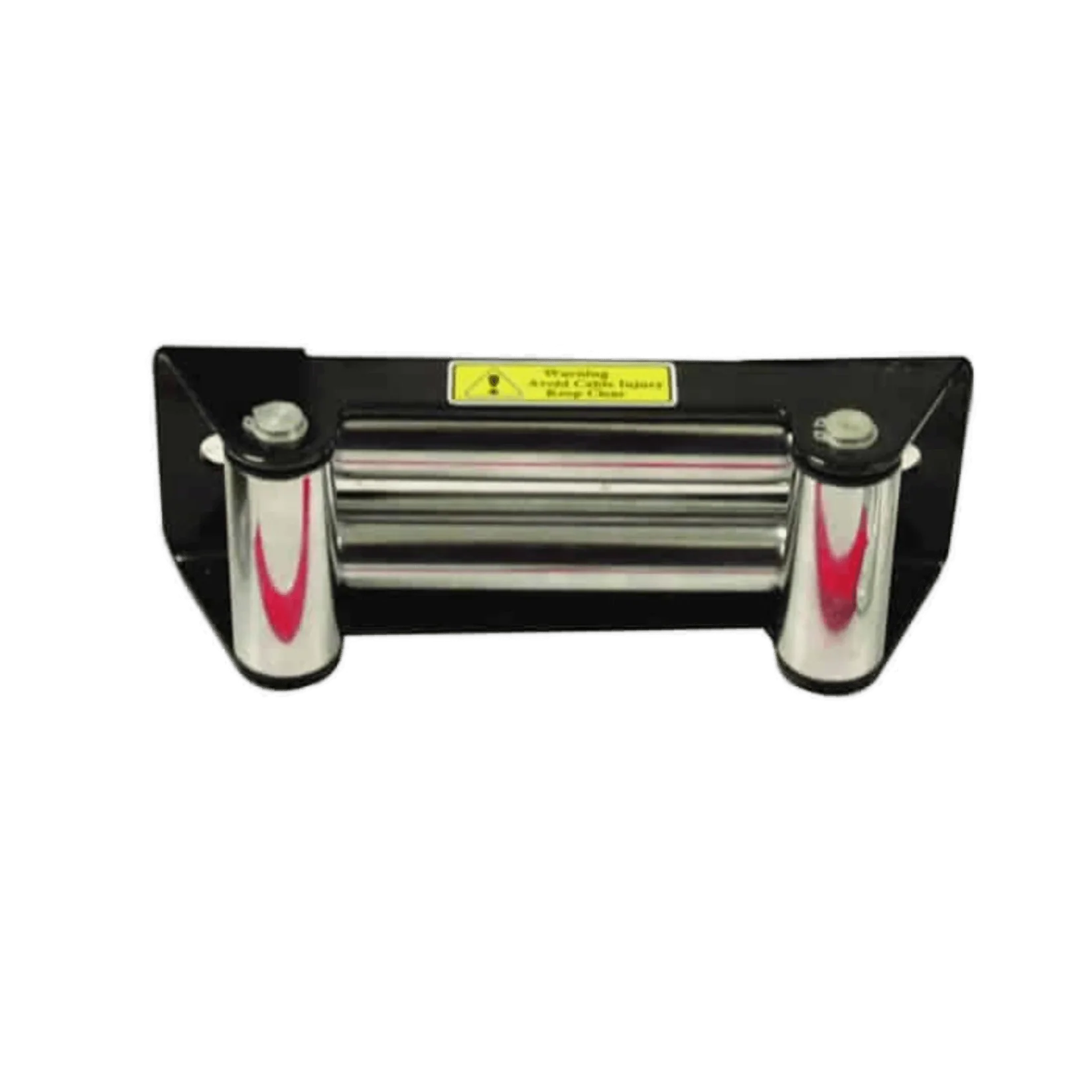

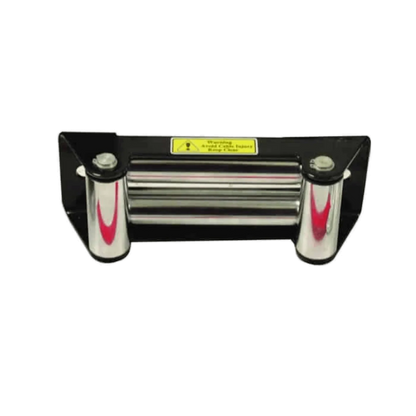

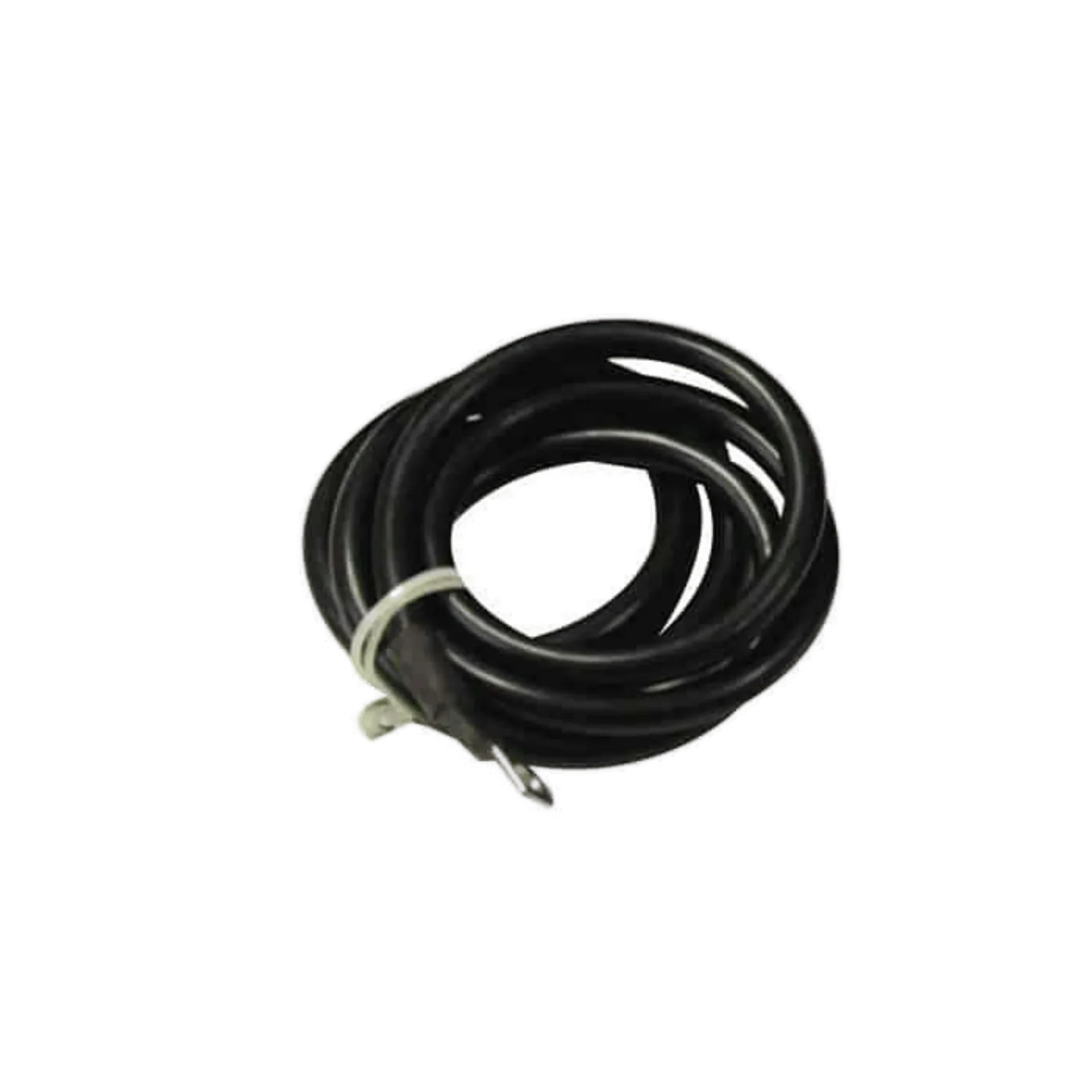

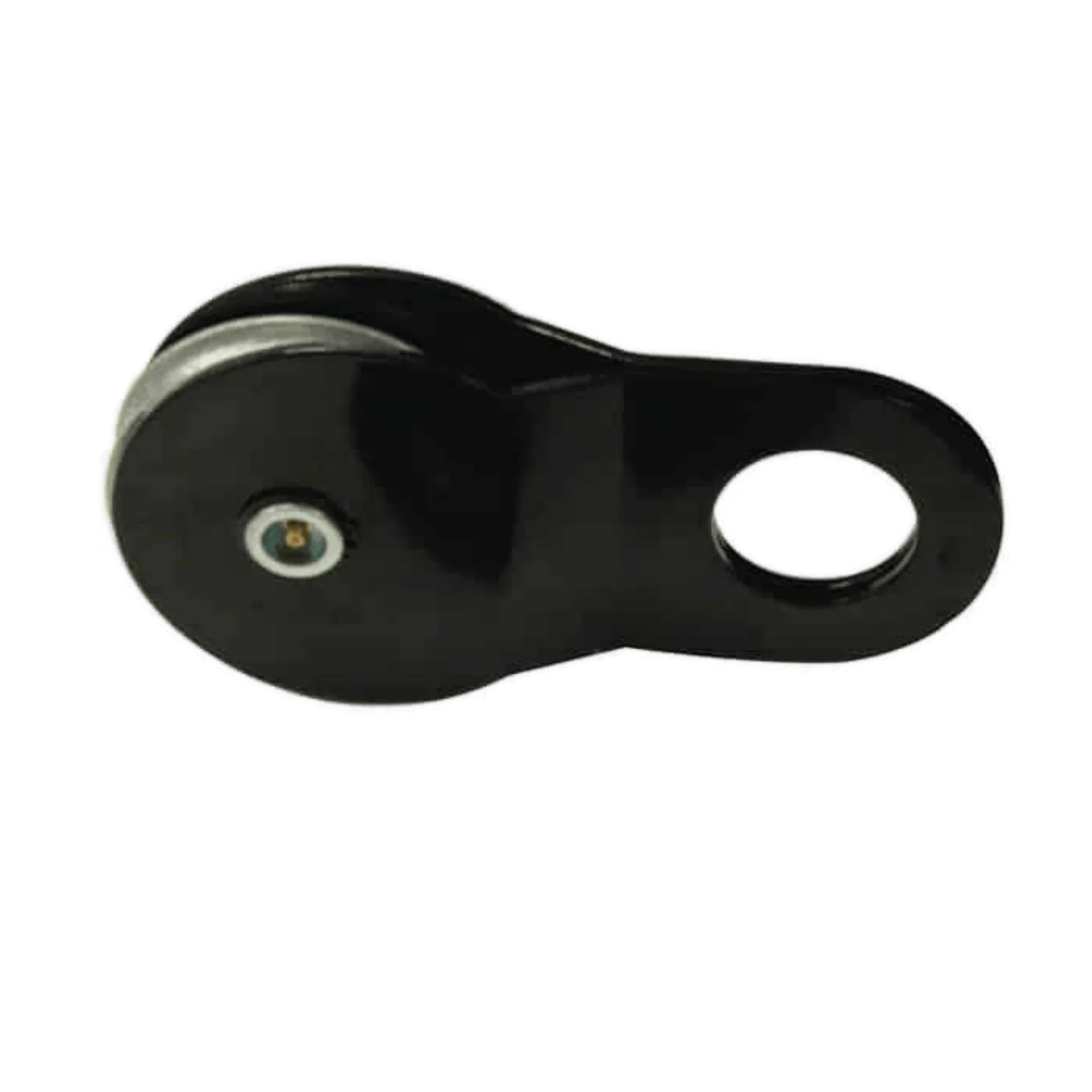

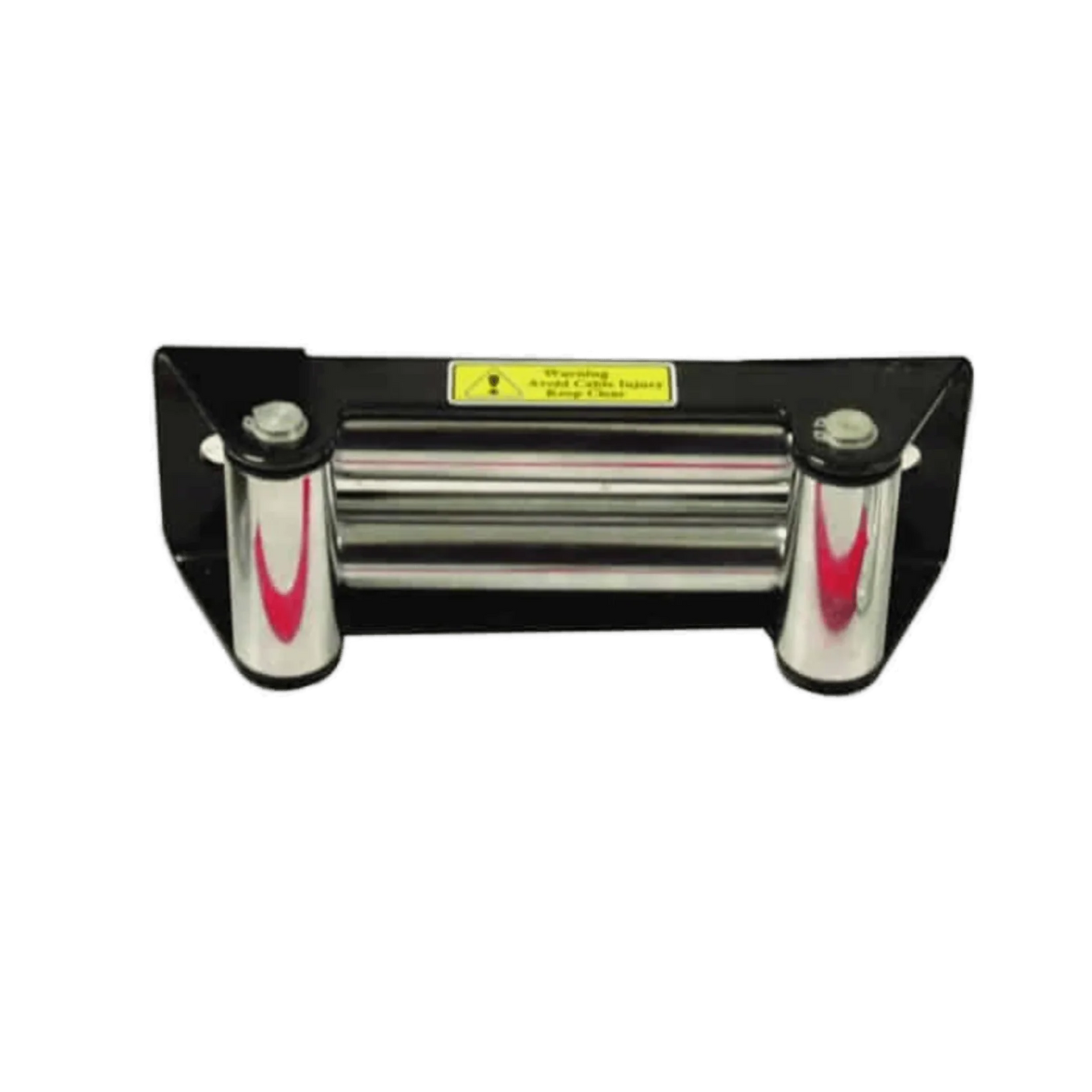

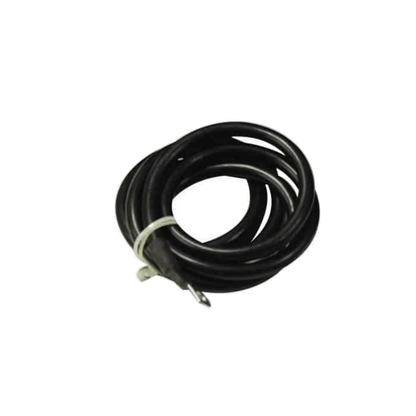

Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Automatic Built-in Drum Brake |
| CLUTCH TYPE | Sliding Ring Gear |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 420:1 |
| GEAR TYPE | 3-Stage Planetary Gear |
| INCLUDED WIRE ROPE | ½" x 72' |
| MAX AMPS | 520 |
| MAX CAPACITY (LBS.) | 20000 |
| MAX LINE SPEED | 20.4 fpm |
| MOTOR (HP) | 6.8 |
| OPERATING VOLTAGE | 12 Volts DC |
| POWER SOURCE | Electric, DC |
| RECOMMENDED BATTERY | 650 CCA |
| RECOMMENDED WIRE | 2 gauge |
Manual: https://www.piercearrowinc.com/pages/docs/ps-series-winch-manual
Assembly wiring: https://www.piercearrowinc.com/pages/docs/ps-528-n-compact-solenoid-assembly-wiring
Wiring Diagram: https://www.piercearrowinc.com/pages/docs/ps-002-ps-528-n-wiring-diagram
3 Post Motor Test: https://www.piercearrowinc.com/pages/docs/3-post-motor-test
Spec sheet: https://www.piercearrowinc.com/pages/docs/ps-20000-spec-sheet
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
