PIERCE 12,000 lb Recovery Winch. Pre-Order.
PIERCE 12,000 lb Recovery Winch. Pre-Order.
Couldn't load pickup availability
Low stock: 7 left
Powerful 12V Recovery Winch for Heavy-Duty Trailers and Towing. Pre-Order.

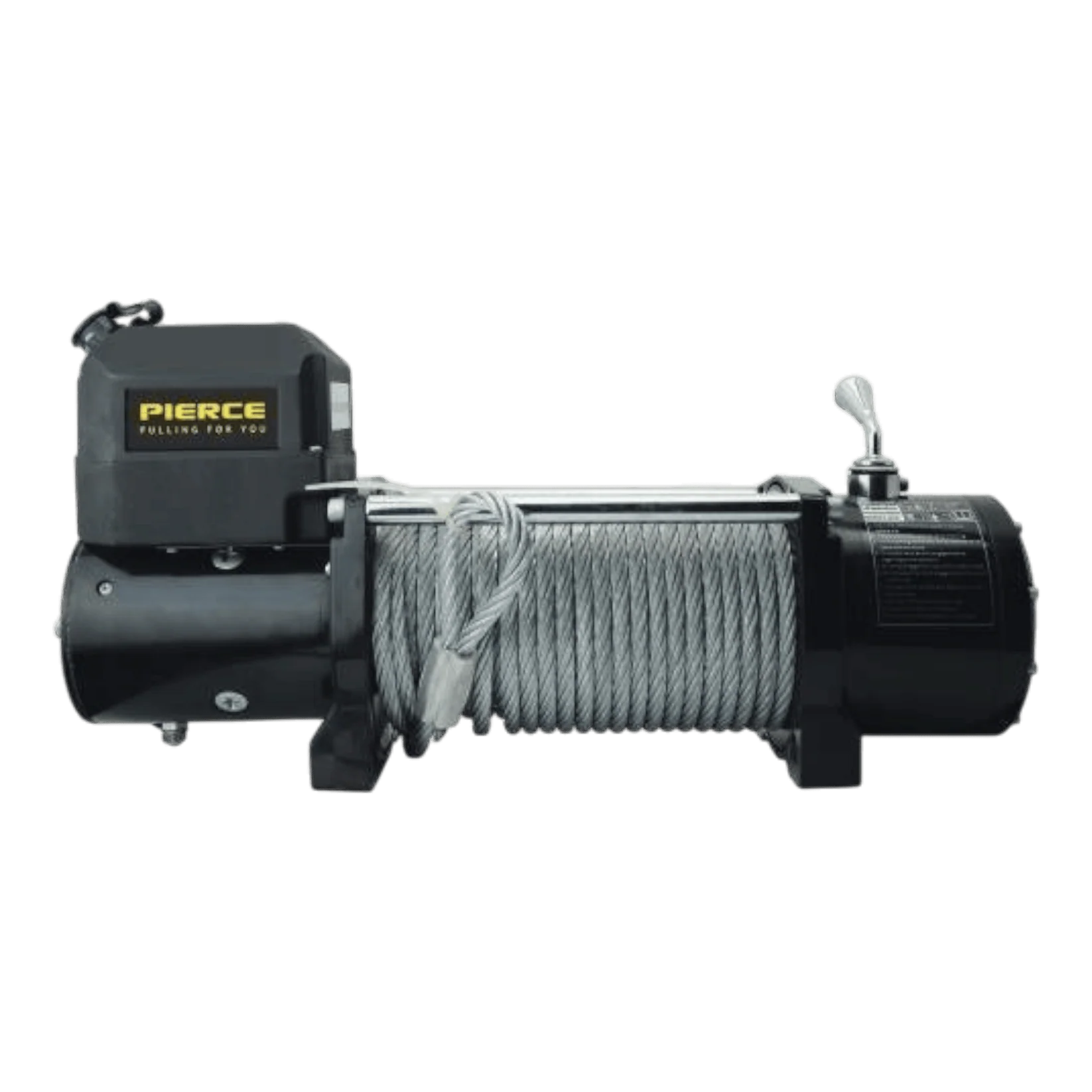

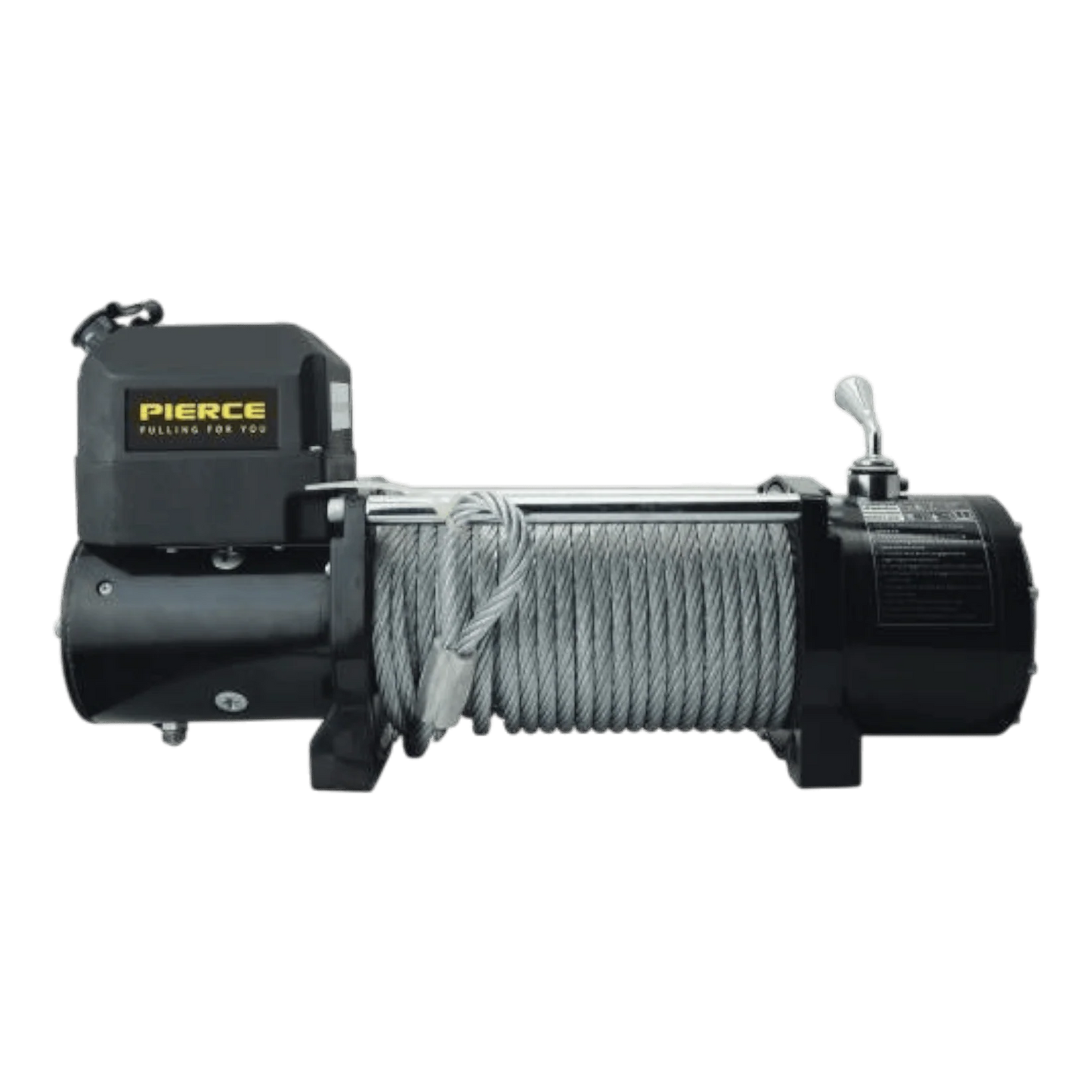

The PIERCE PS12000 Recovery Winch delivers dependable 12V pulling power for professional recovery and equipment transport. Engineered with a robust three-stage planetary gear system, it provides fast line speed, smooth torque, and reliable performance under heavy load. The automatic load-holding brake ensures safe, precise control during every pull, while the rugged steel housing stands up to years of demanding field use. Designed for trailer and recovery work, the PS12000 is a proven performer trusted by operators who need consistent strength and reliability.
- 12,000 lb pulling capacity for heavy vehicles and recovery operations
- 12V DC power delivers consistent torque and smooth performance
- Three-stage planetary gear system provides efficient, reliable power transfer
- Automatic load-holding brake ensures safe, secure operation
- Heavy-duty steel construction built for long-term recovery and trailer use
Applications: Ideal for car haulers, recovery trucks, and industrial trailers that demand reliable 12V pulling power and controlled operation.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.

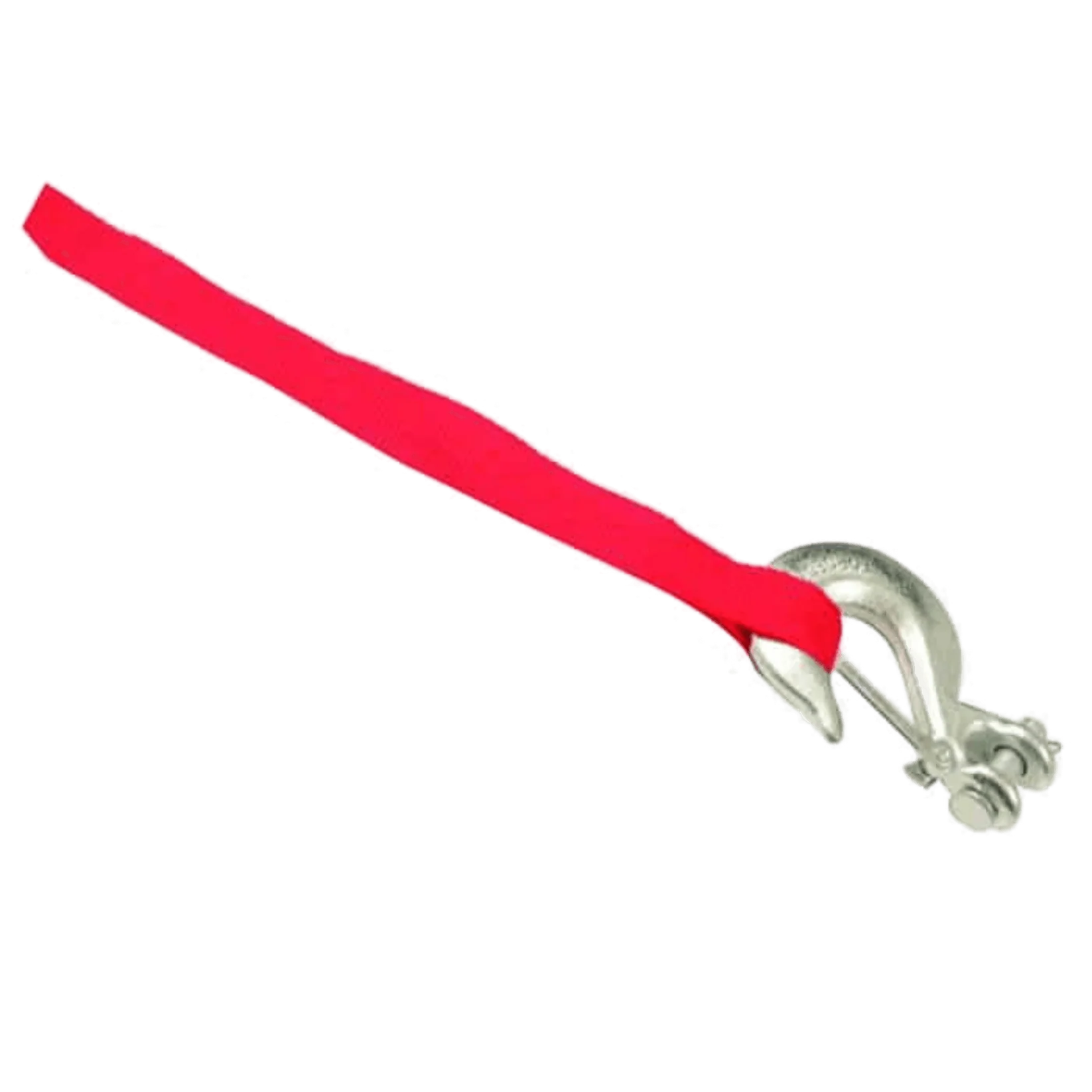

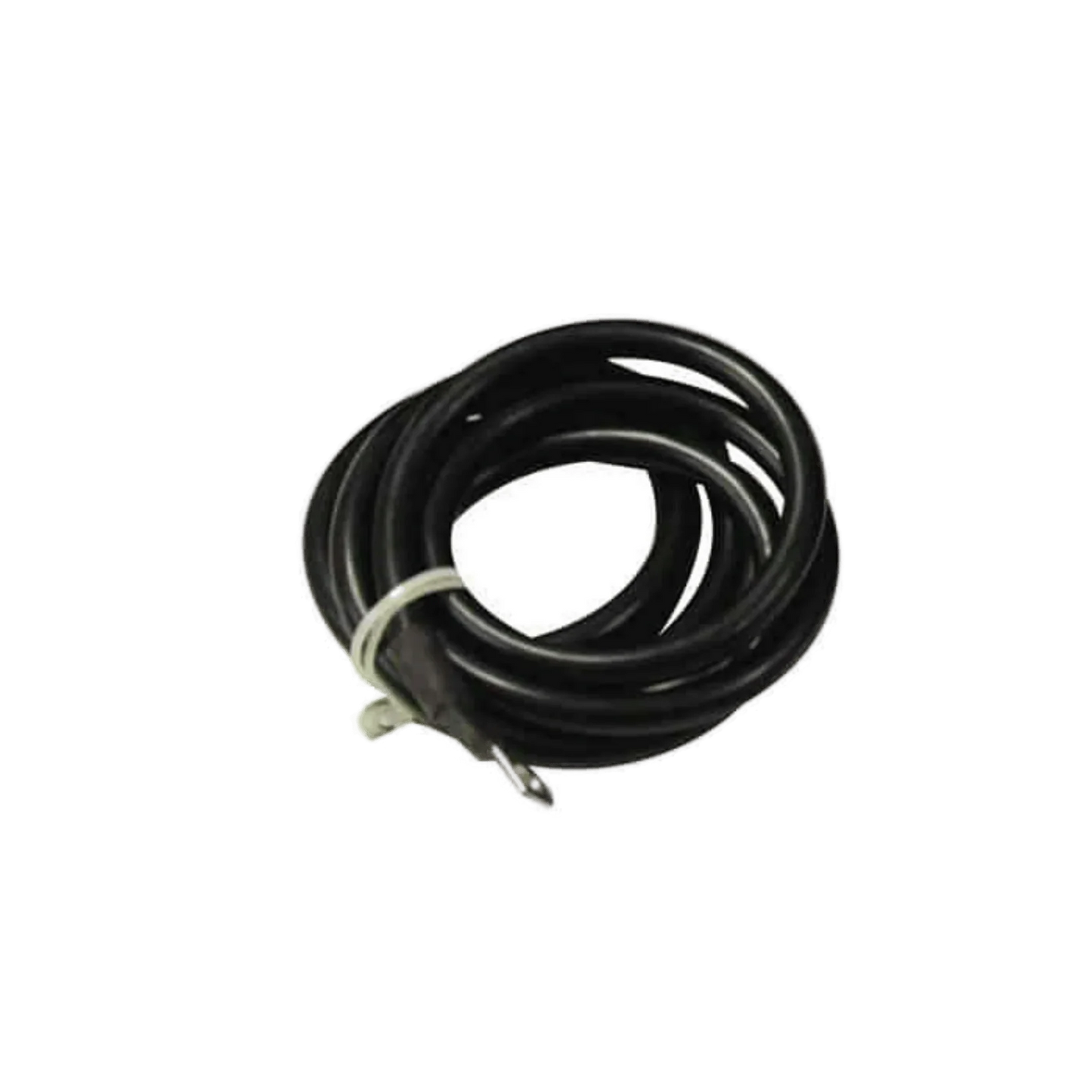

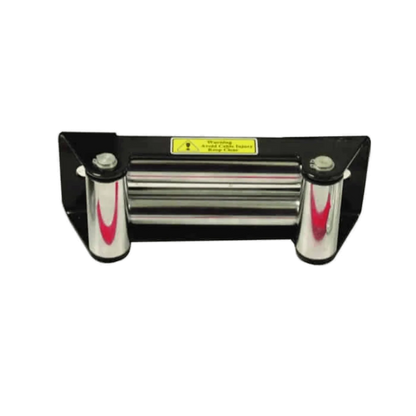

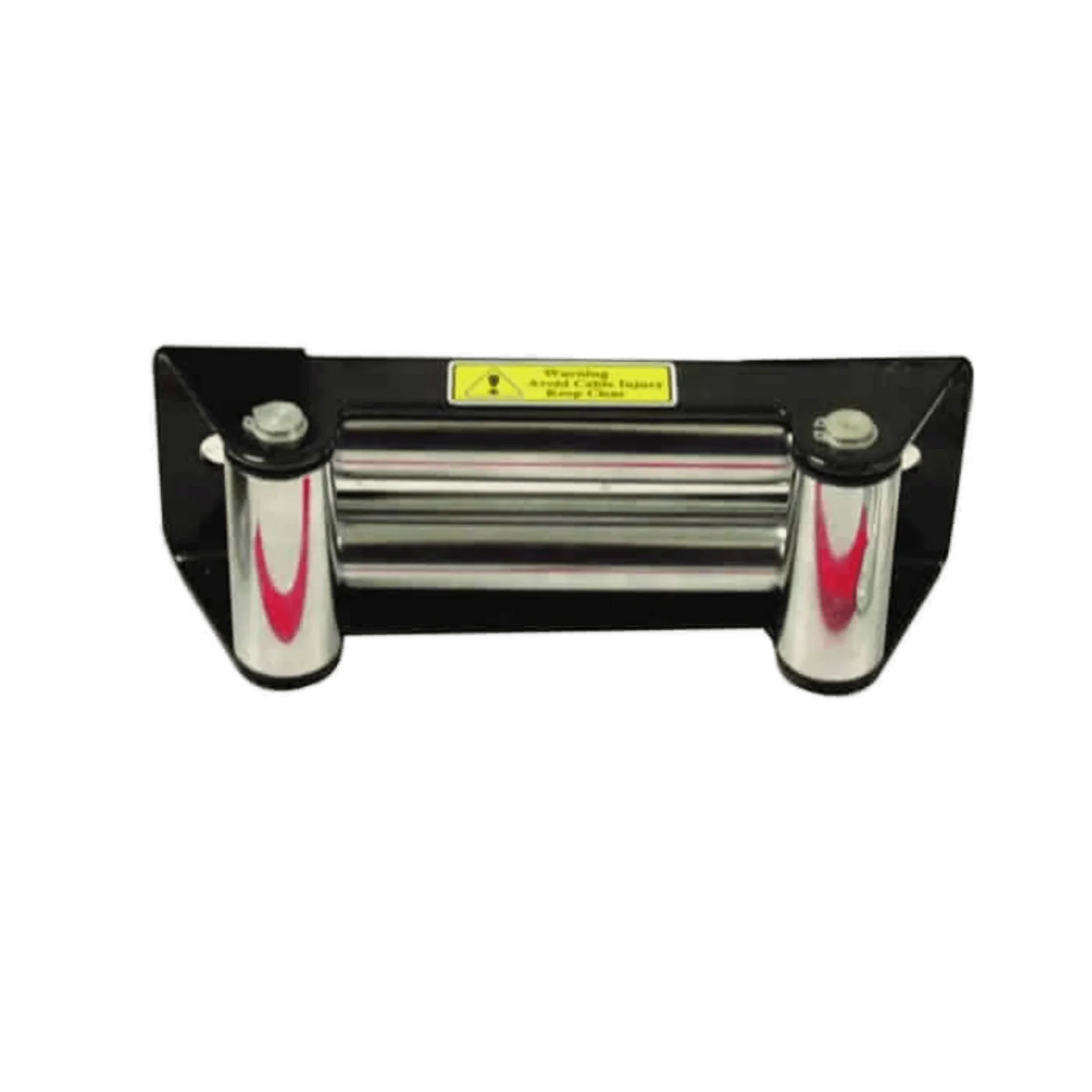

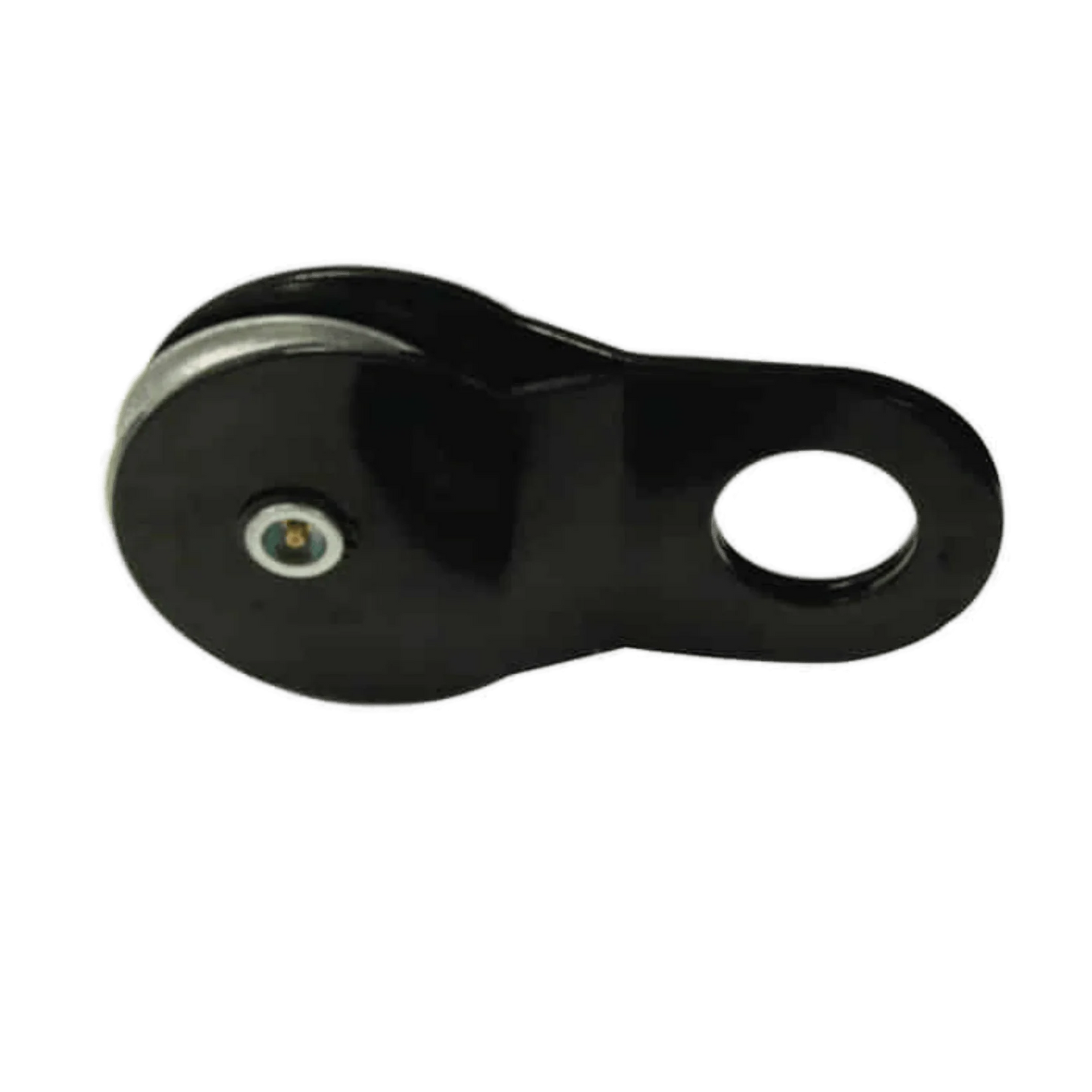

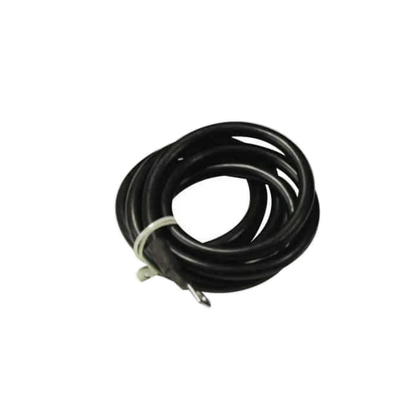

Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Automatic Built-in Drum Brake |
| CLUTCH TYPE | Sliding Ring Gear |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 265:1 |
| GEAR TYPE | 3-Stage Planetary Gear |
| INCLUDED WIRE ROPE | ⅜" x 94' |
| MAX AMPS | 390 |
| MAX CAPACITY (LBS.) | 12000 |
| MAX LINE SPEED | 21.3 fpm |
| MOTOR (HP) | 5.5 |
| OPERATING VOLTAGE | 12 Volts DC |
| POWER SOURCE | Electric, DC |
| RECOMMENDED BATTERY | 650 CCA |
| RECOMMENDED WIRE | 2 gauge |
Manual: https://www.piercearrowinc.com/pages/docs/ps-series-winch-manual
Assembly wiring: https://www.piercearrowinc.com/pages/docs/ps-528-n-compact-solenoid-assembly-wiring
Wiring diagram: https://www.piercearrowinc.com/pages/docs/ps-002-ps-528-n-wiring-diagram
3 Post motor test: https://www.piercearrowinc.com/pages/docs/3-post-motor-test
Spec sheet: https://www.piercearrowinc.com/pages/docs/ps-12000-spec-sheet
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
