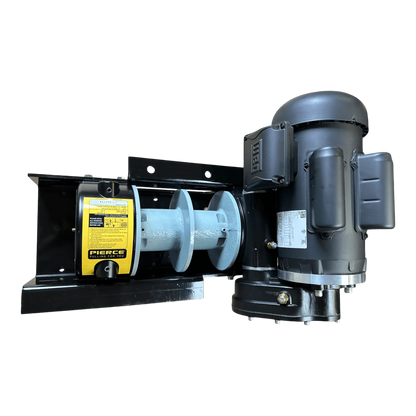

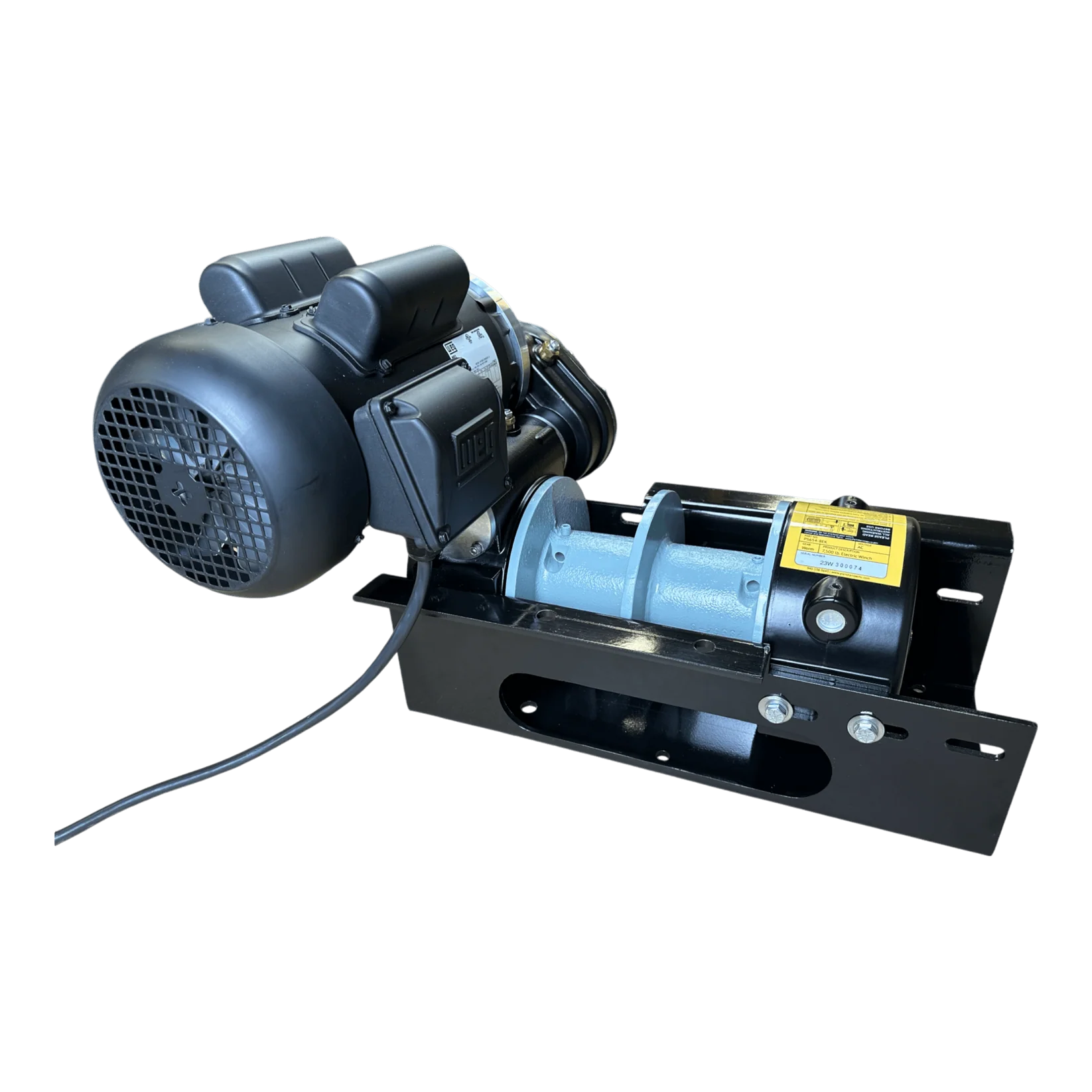

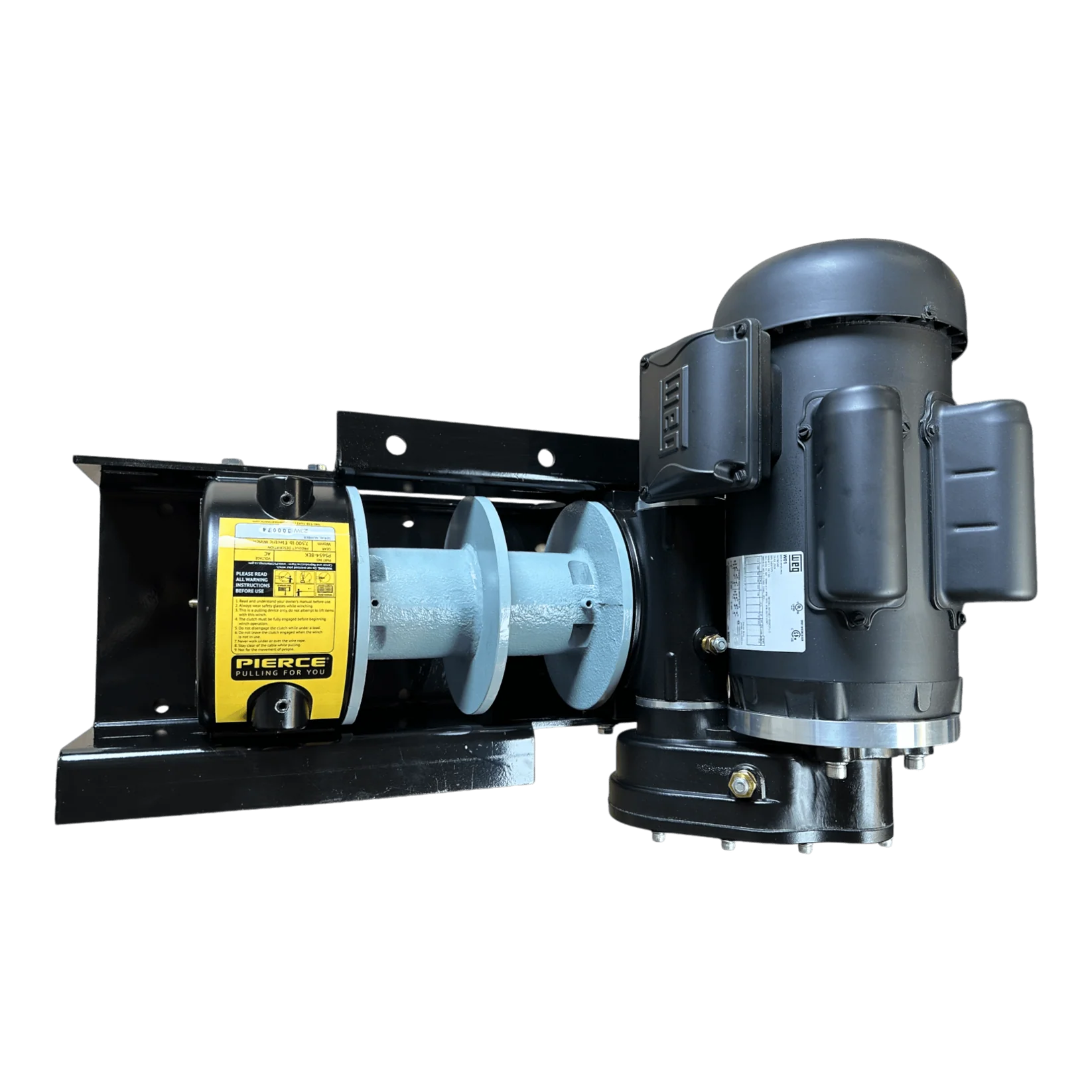

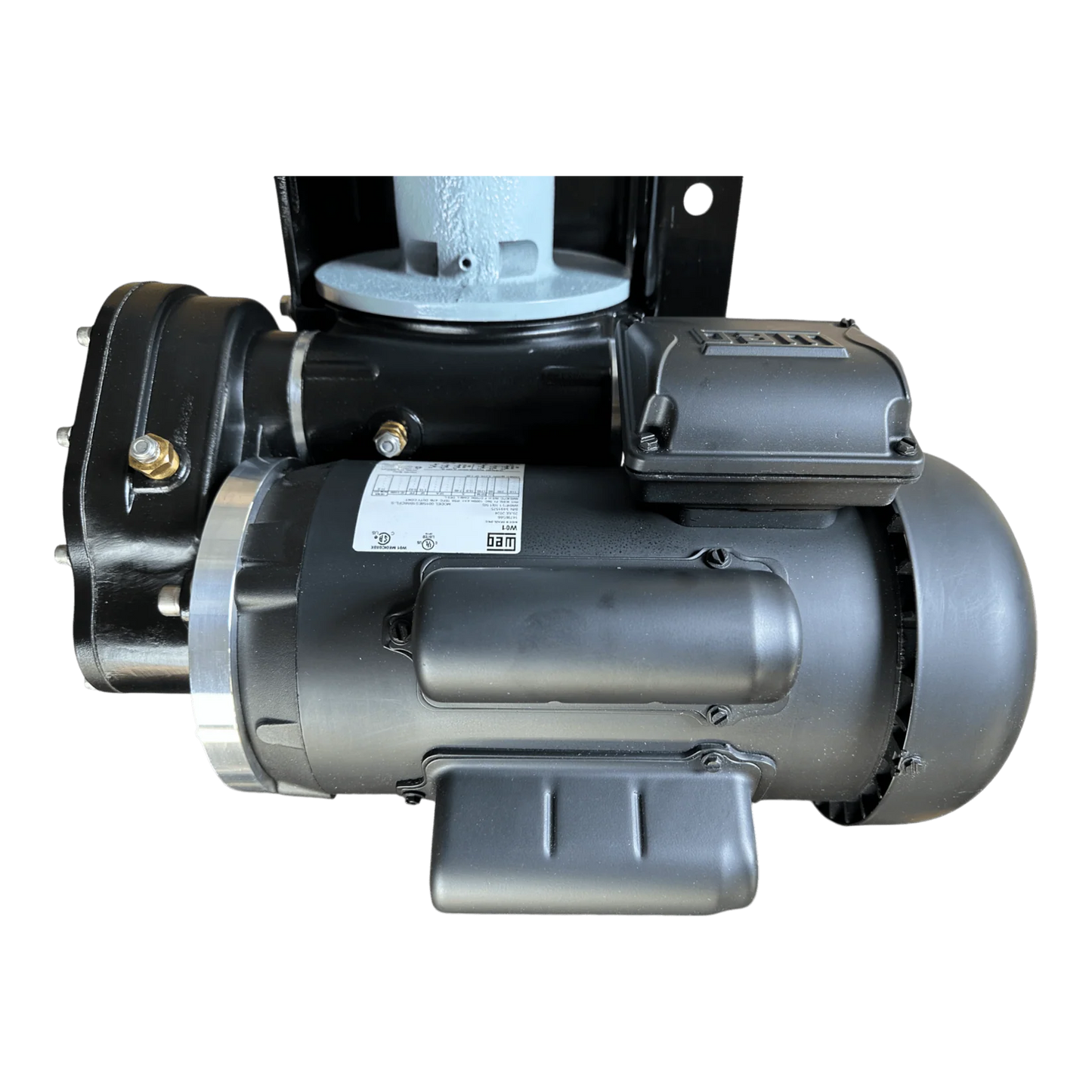

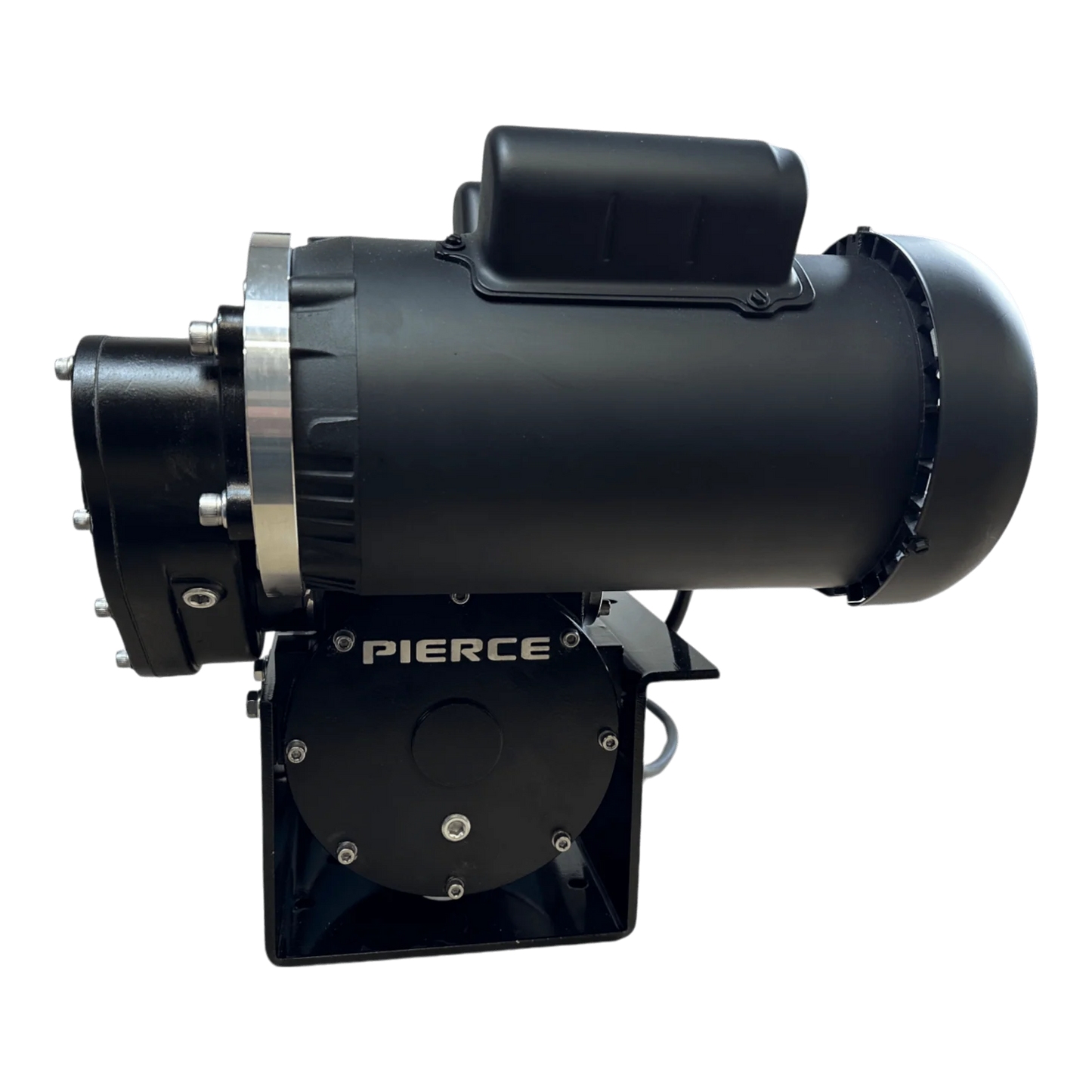

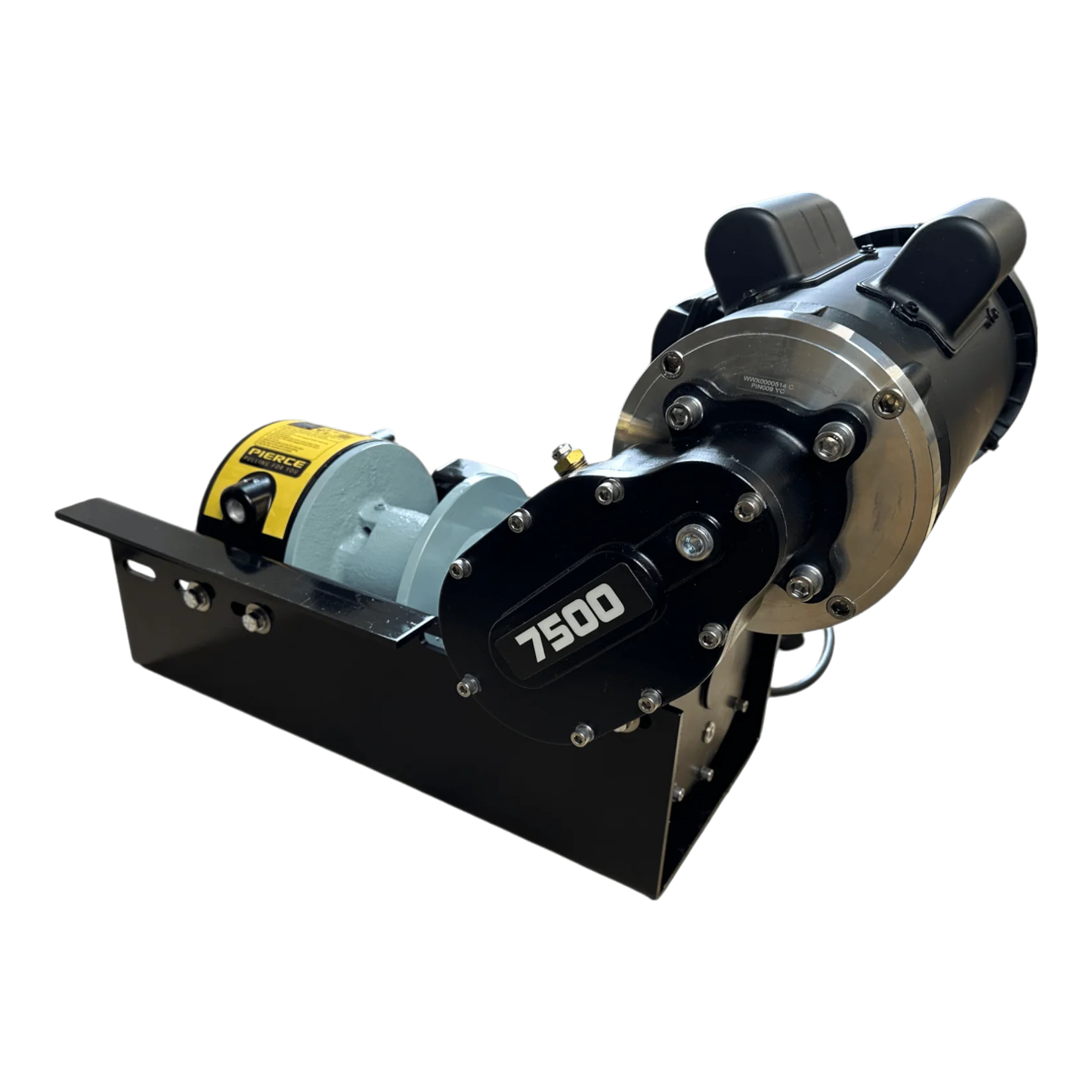

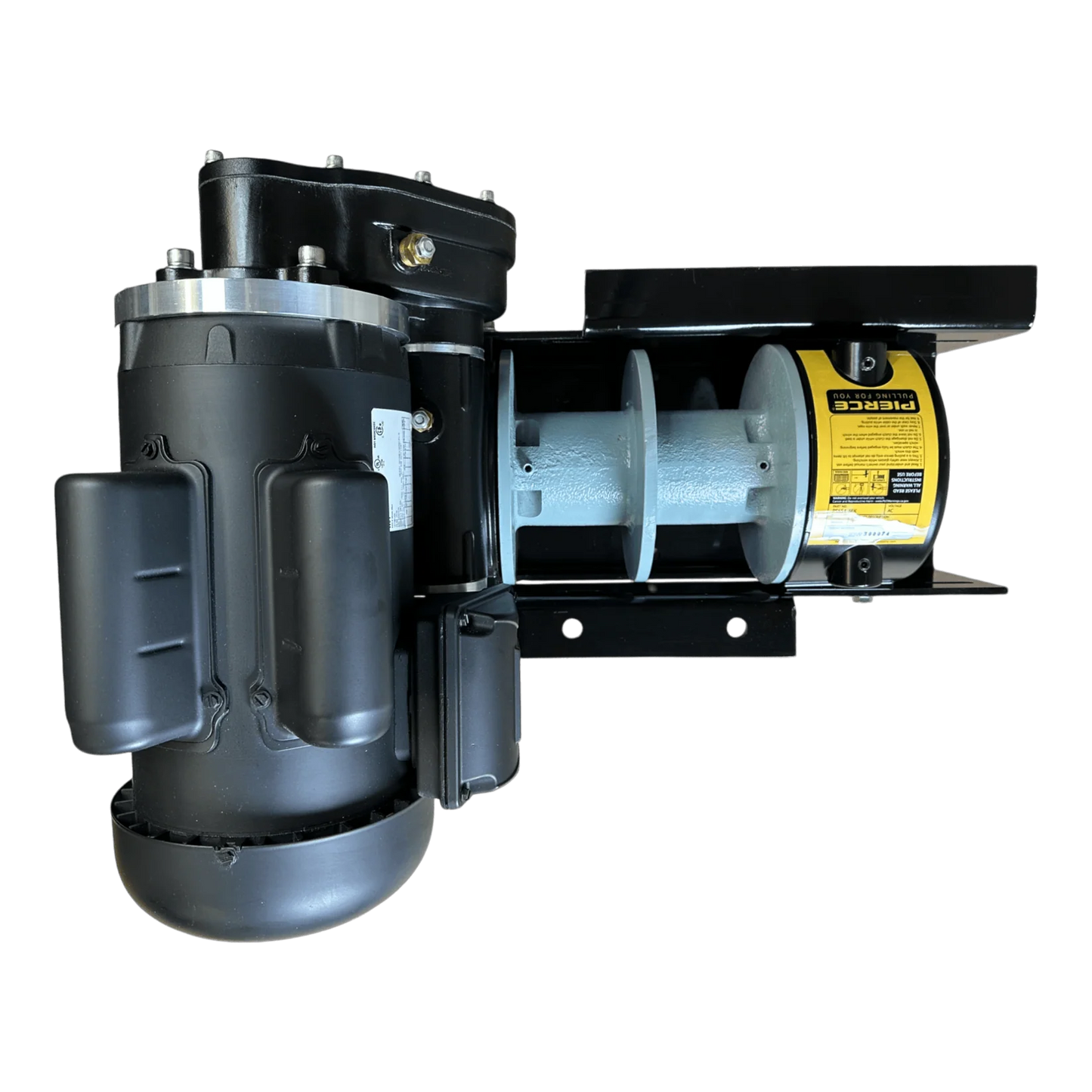

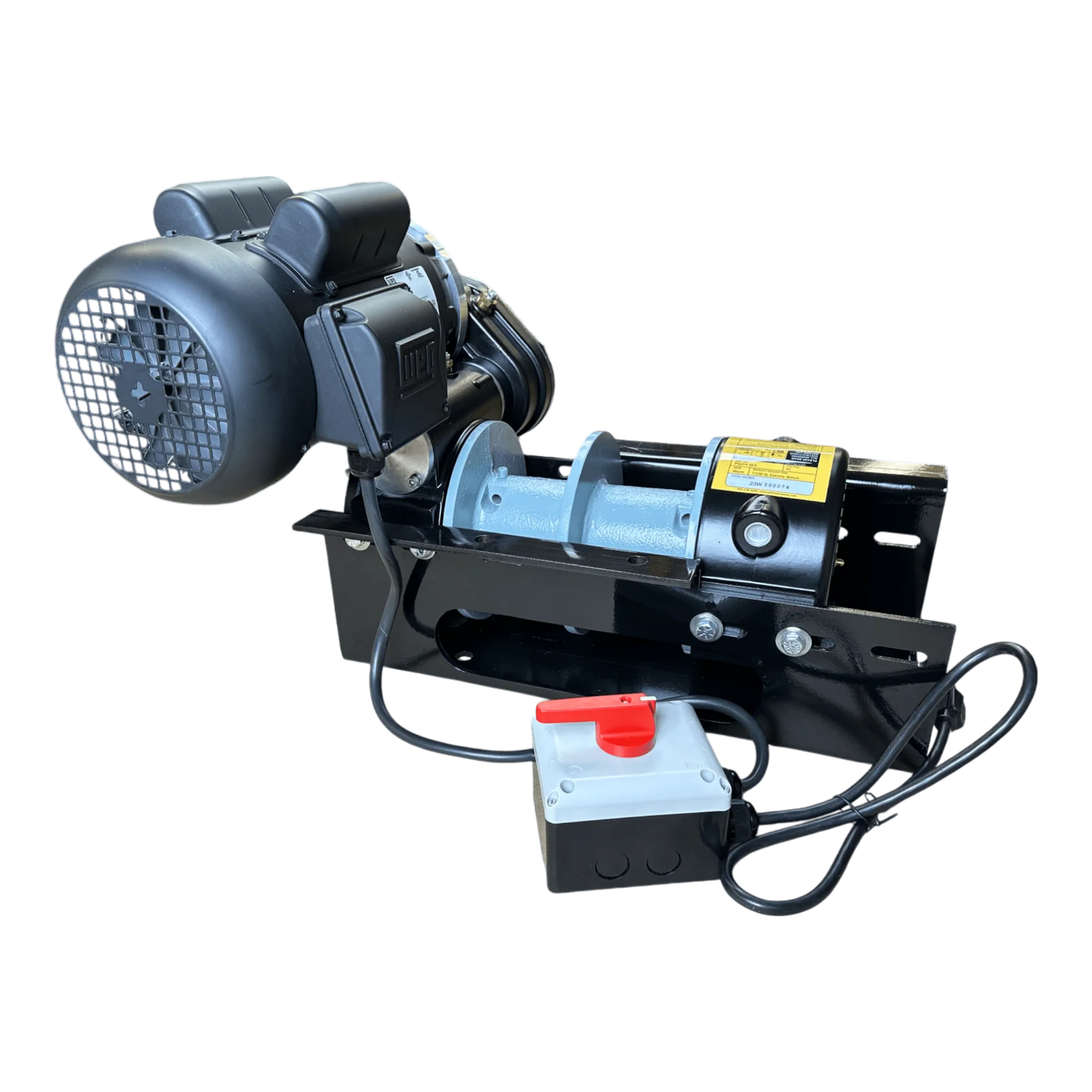

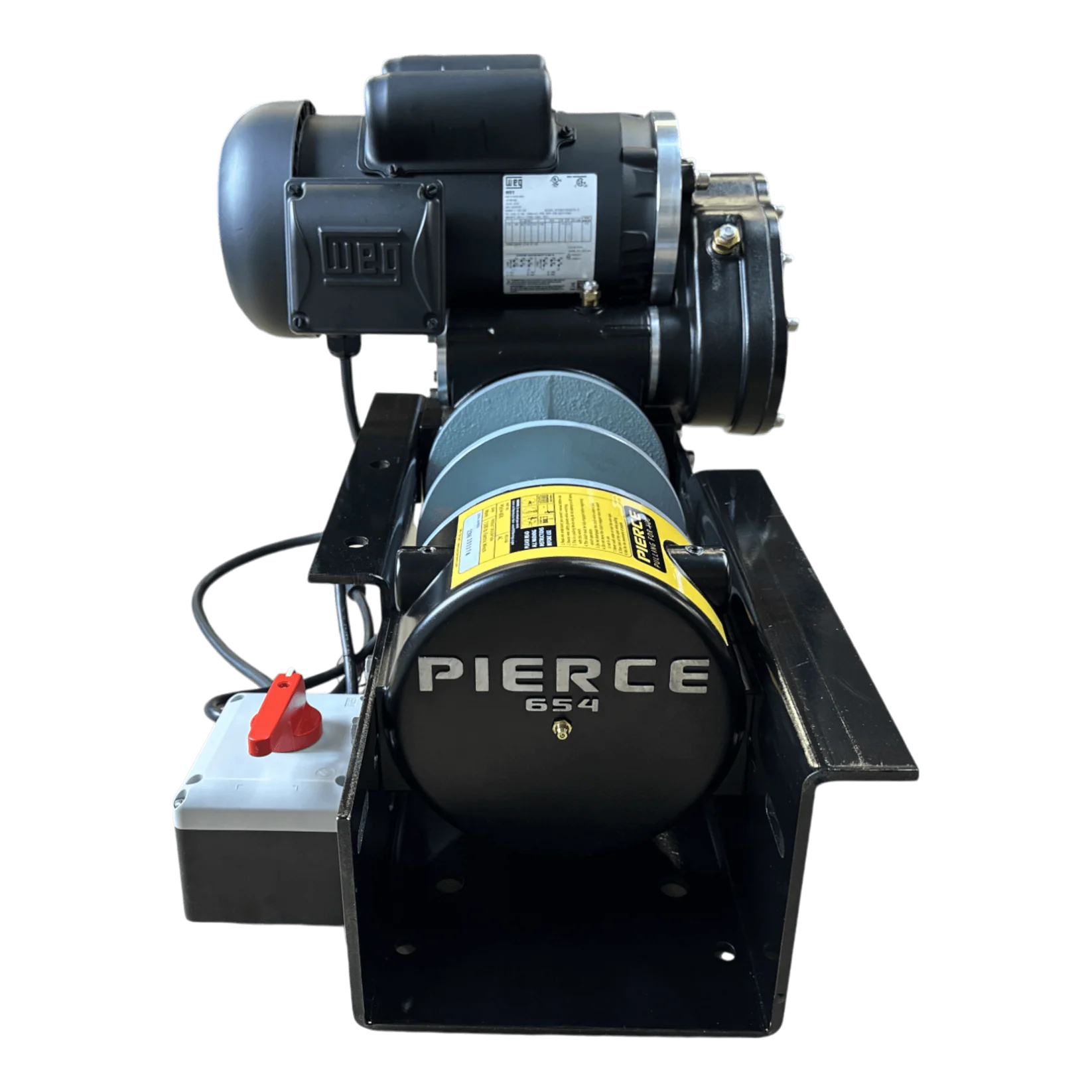

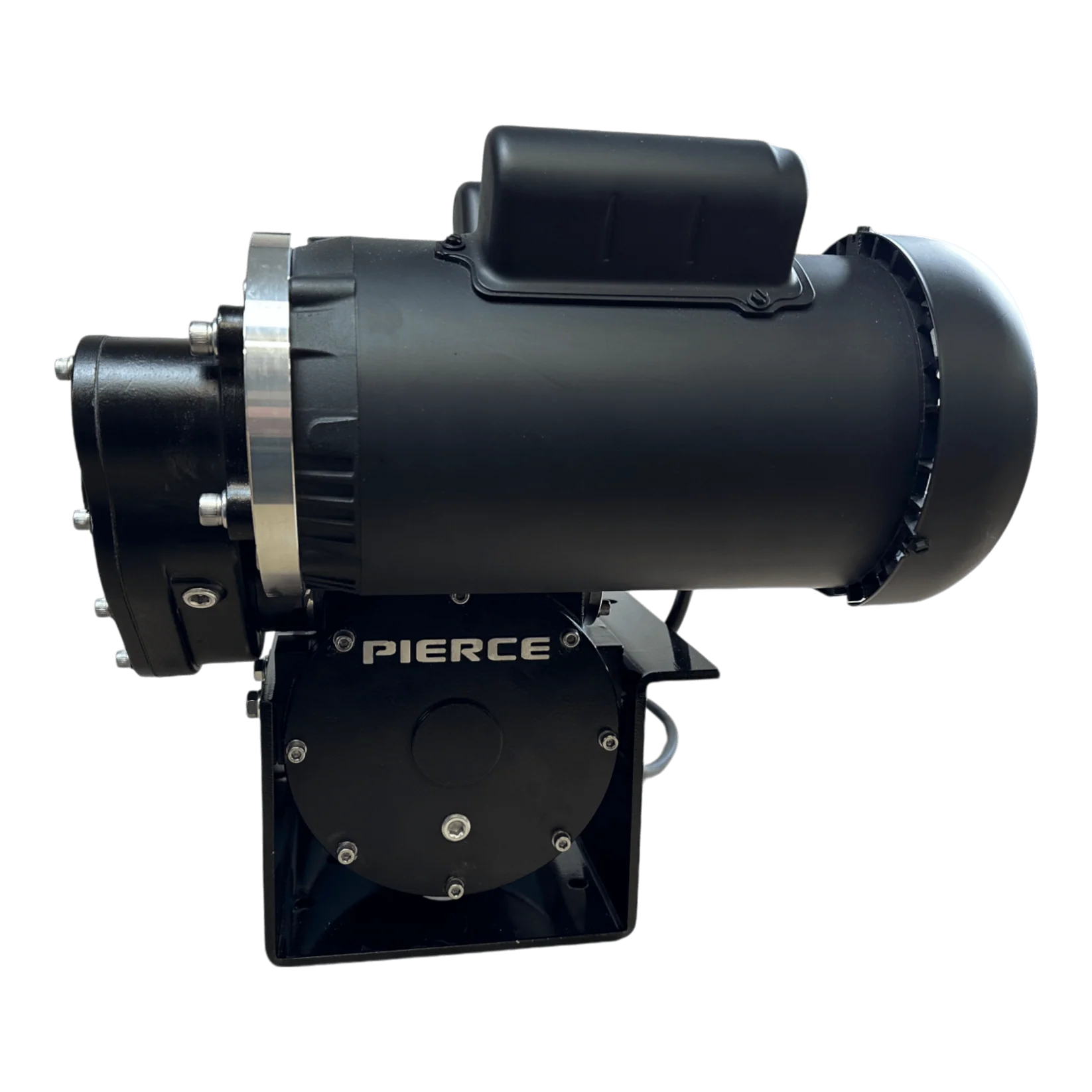

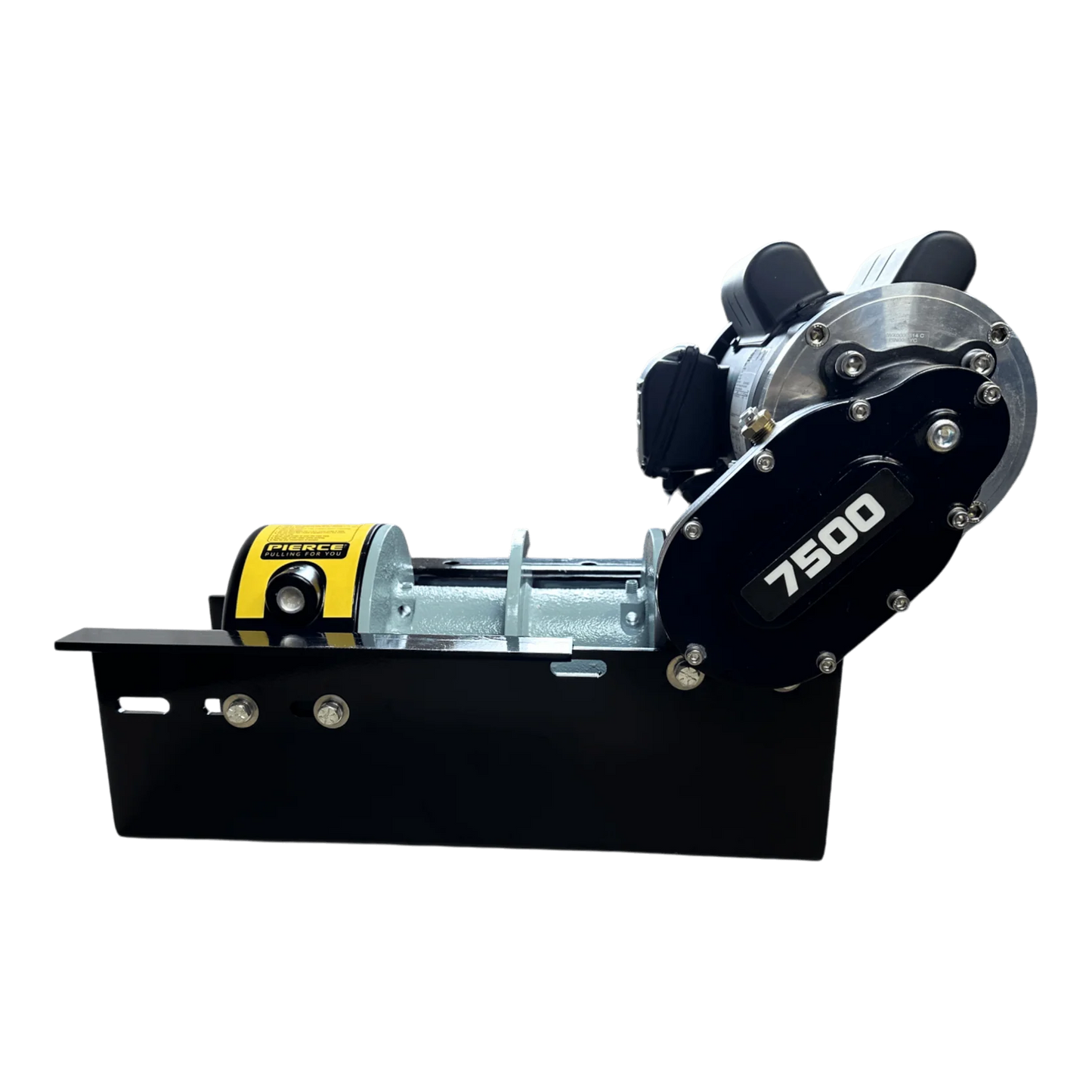

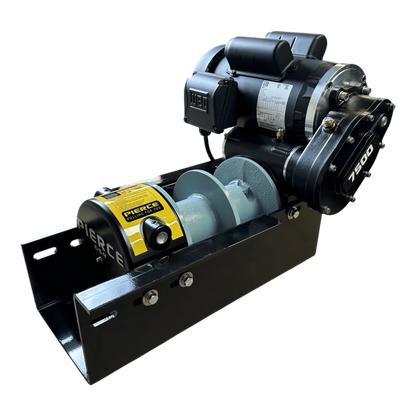

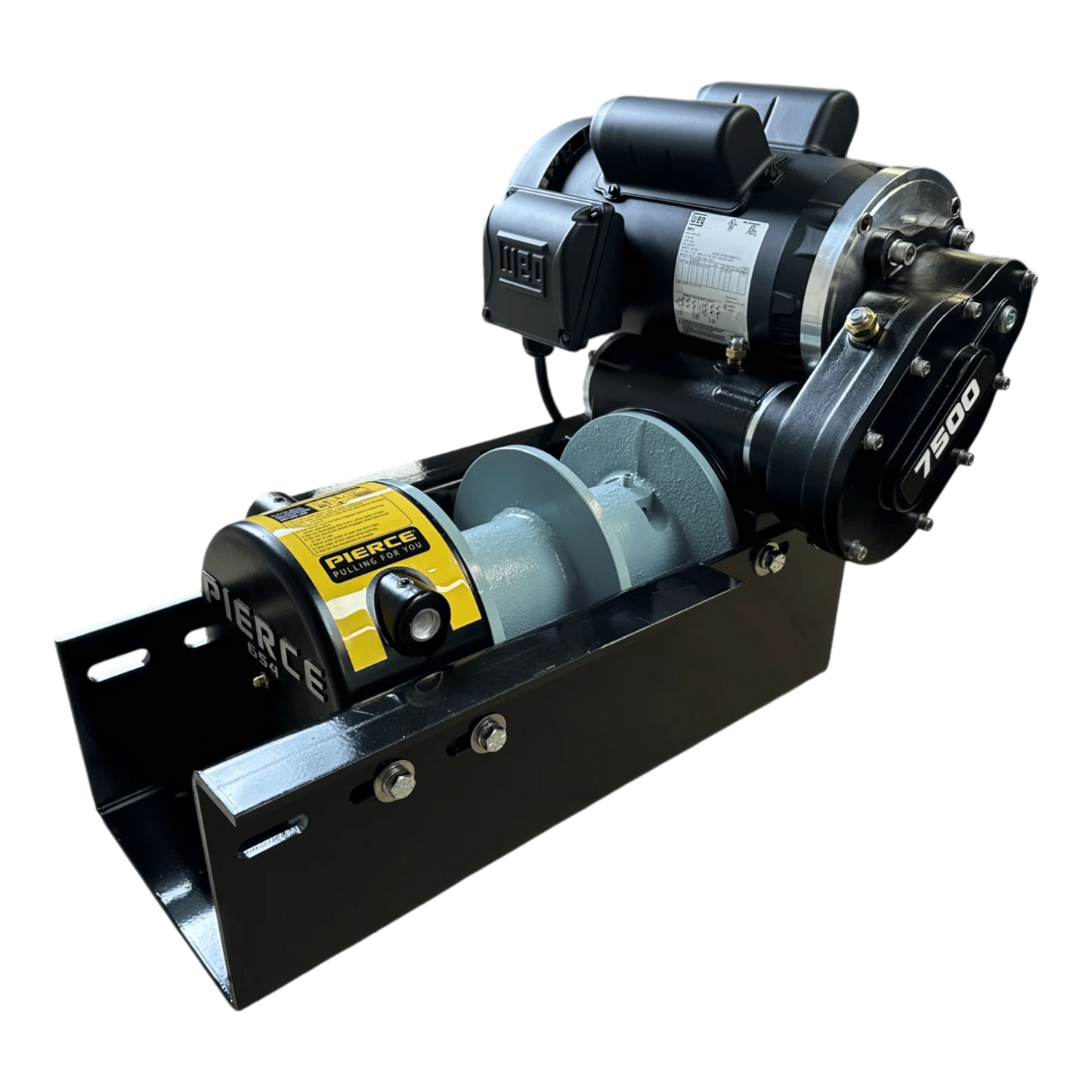

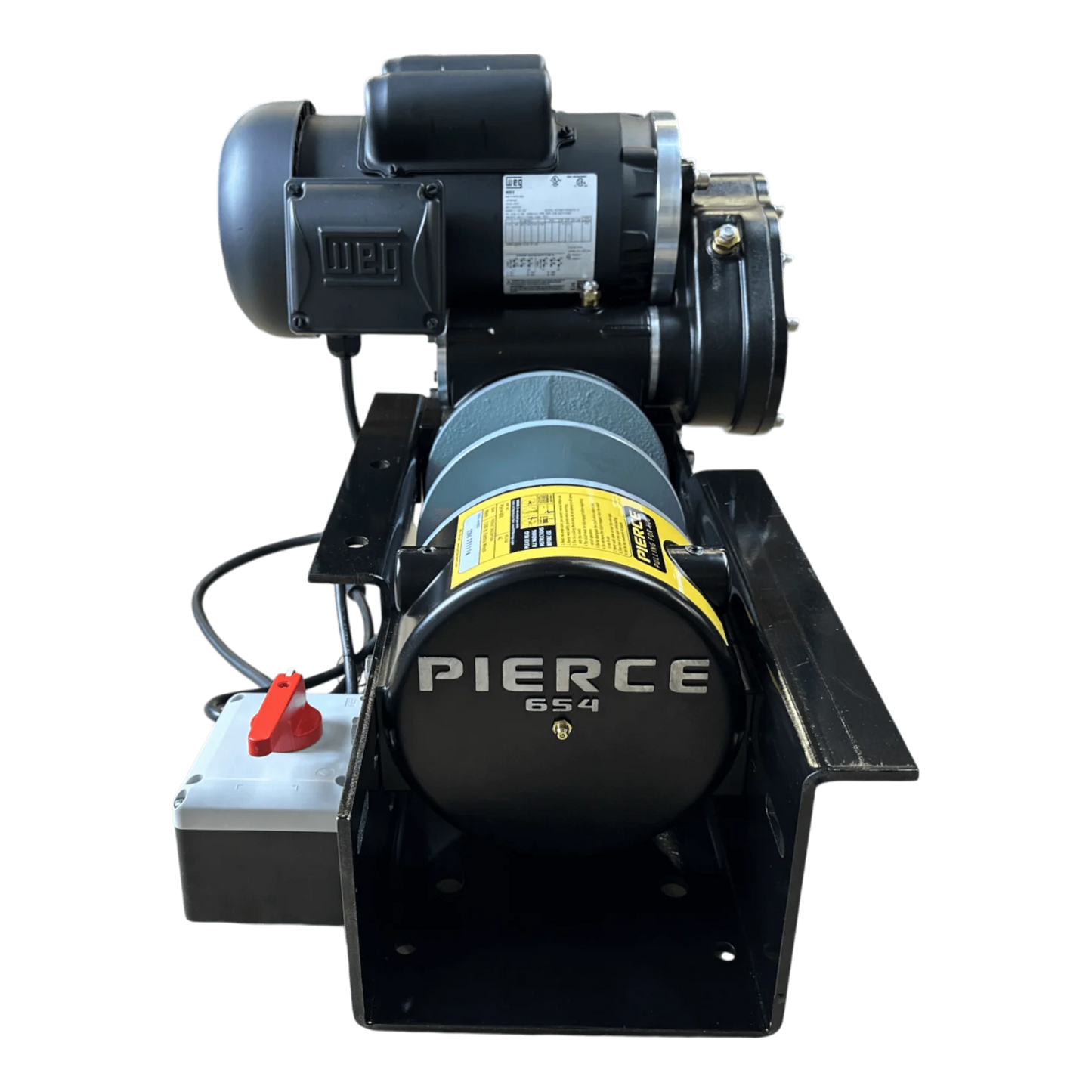

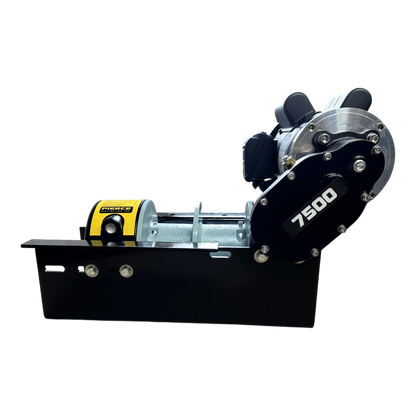

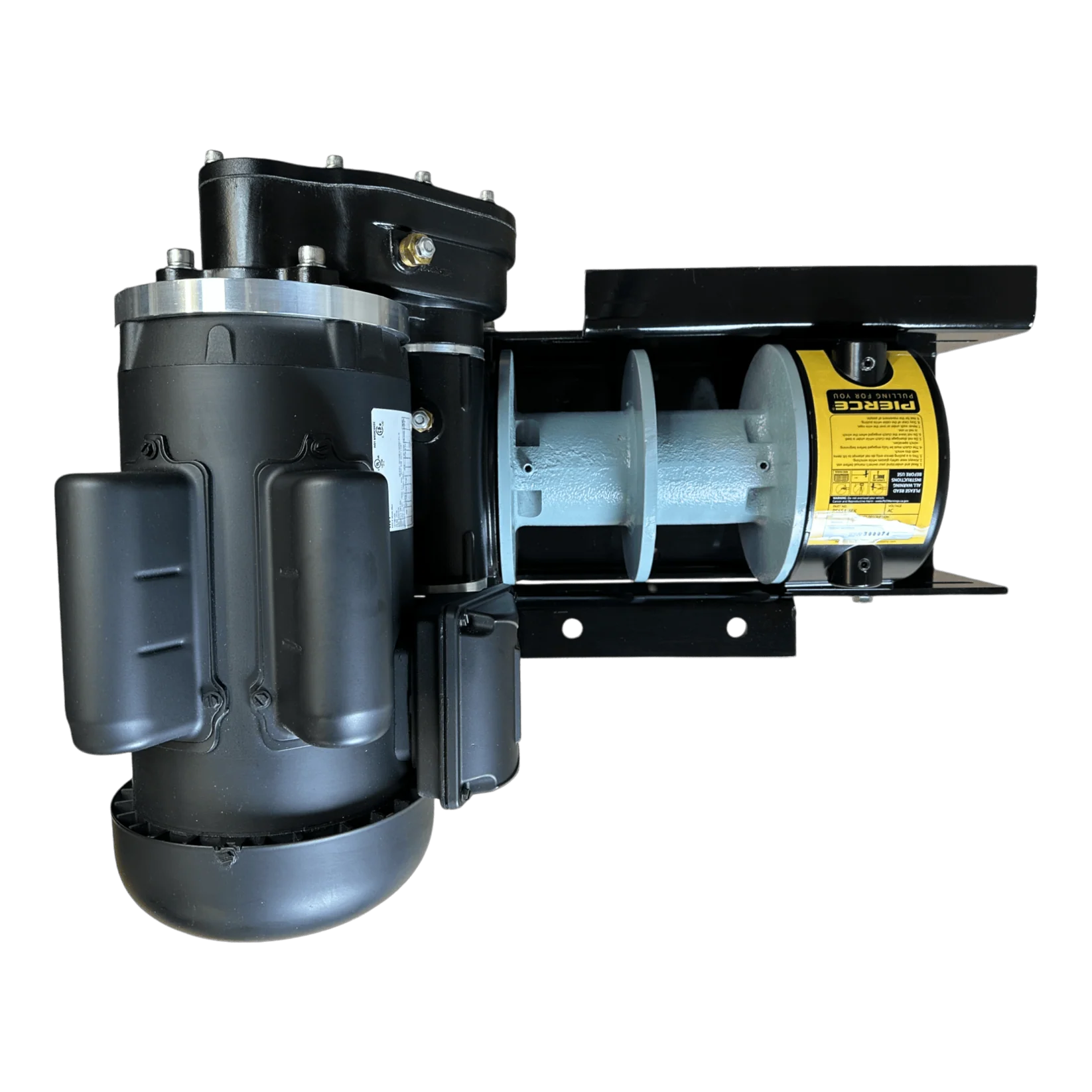

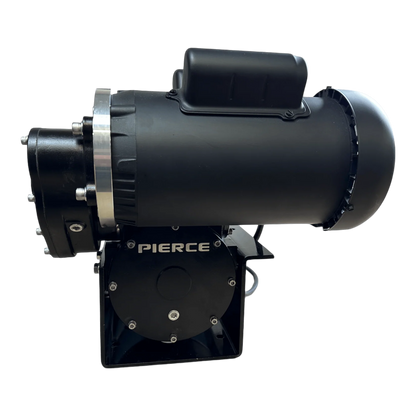

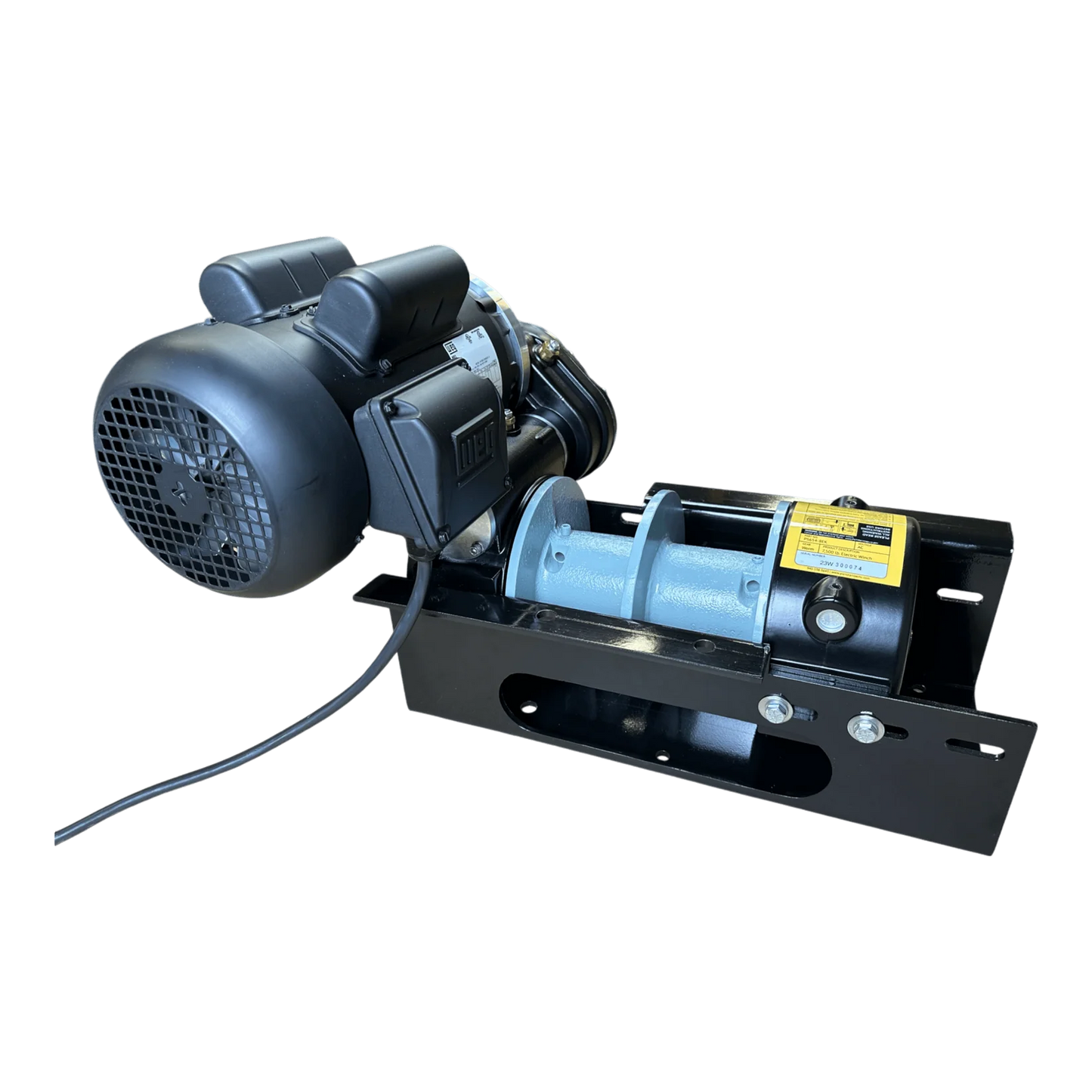

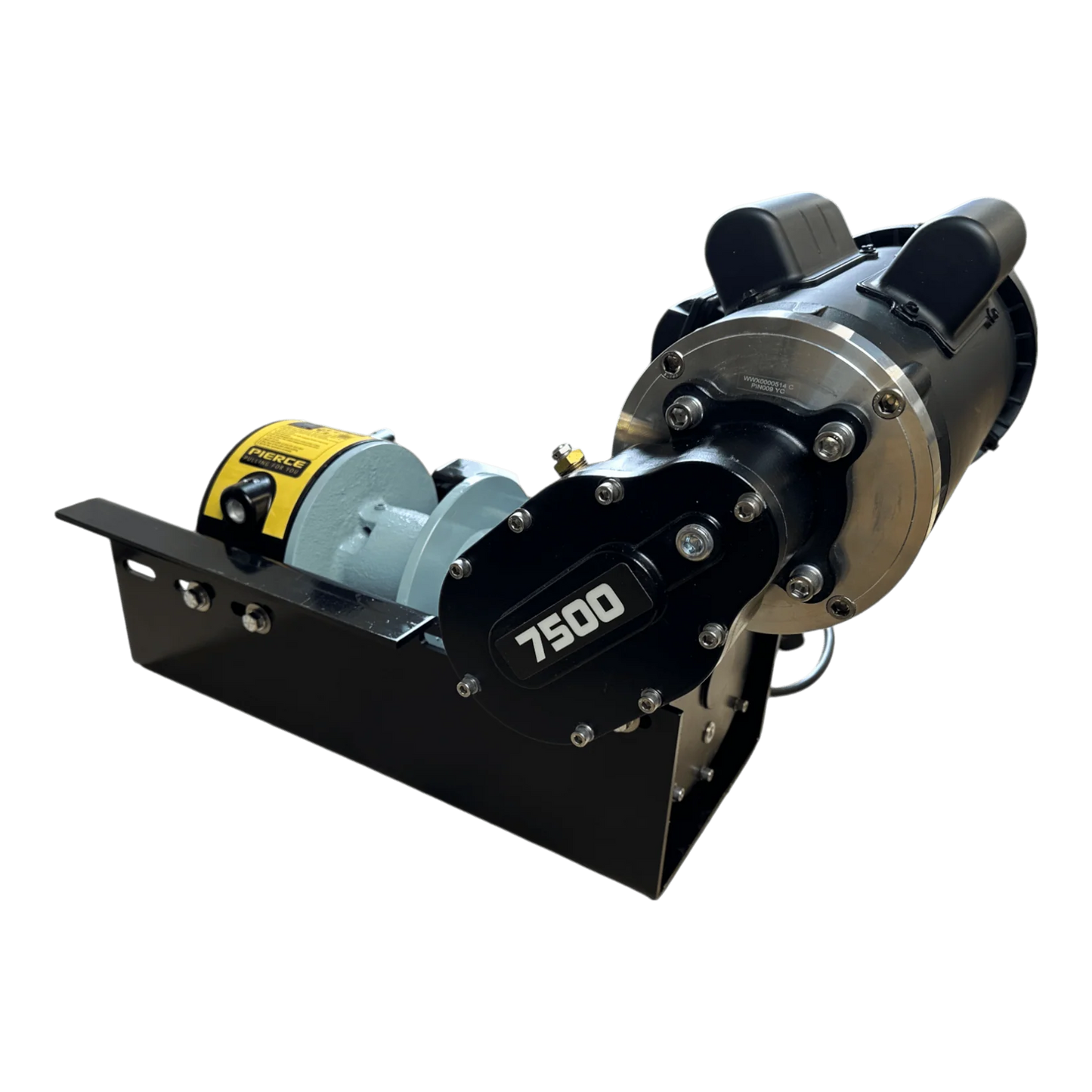

PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum - Pre-Order.
PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum - Pre-Order.
Regular price
$1,839.00 USD
Regular price
$1,930.50 USD
Sale price
$1,839.00 USD
Shipping calculated at checkout.
Request for Tax Exemptions
Quantity
Couldn't load pickup availability
Low stock: 7 left
PS654-8EKSD
Compact Split-Drum Winch for Dual Pull Points. Pre-Order.
The PIERCE PS654-8EKSD delivers 7,500 lb of pulling capacity in a compact 8" split-drum configuration. Designed for docks and industrial setups requiring two separate cables, each side supports half the drum length for balanced control. Its slow, deliberate worm-gear motion enhances operator safety and precision. Built to order and ships in 1–2 business days.
- 7,500 lb rated capacity (split drum halves cable length per side)
- 8" split drum for compact dual-anchor setups
- 110V AC worm-gear drive with strong load-holding brake

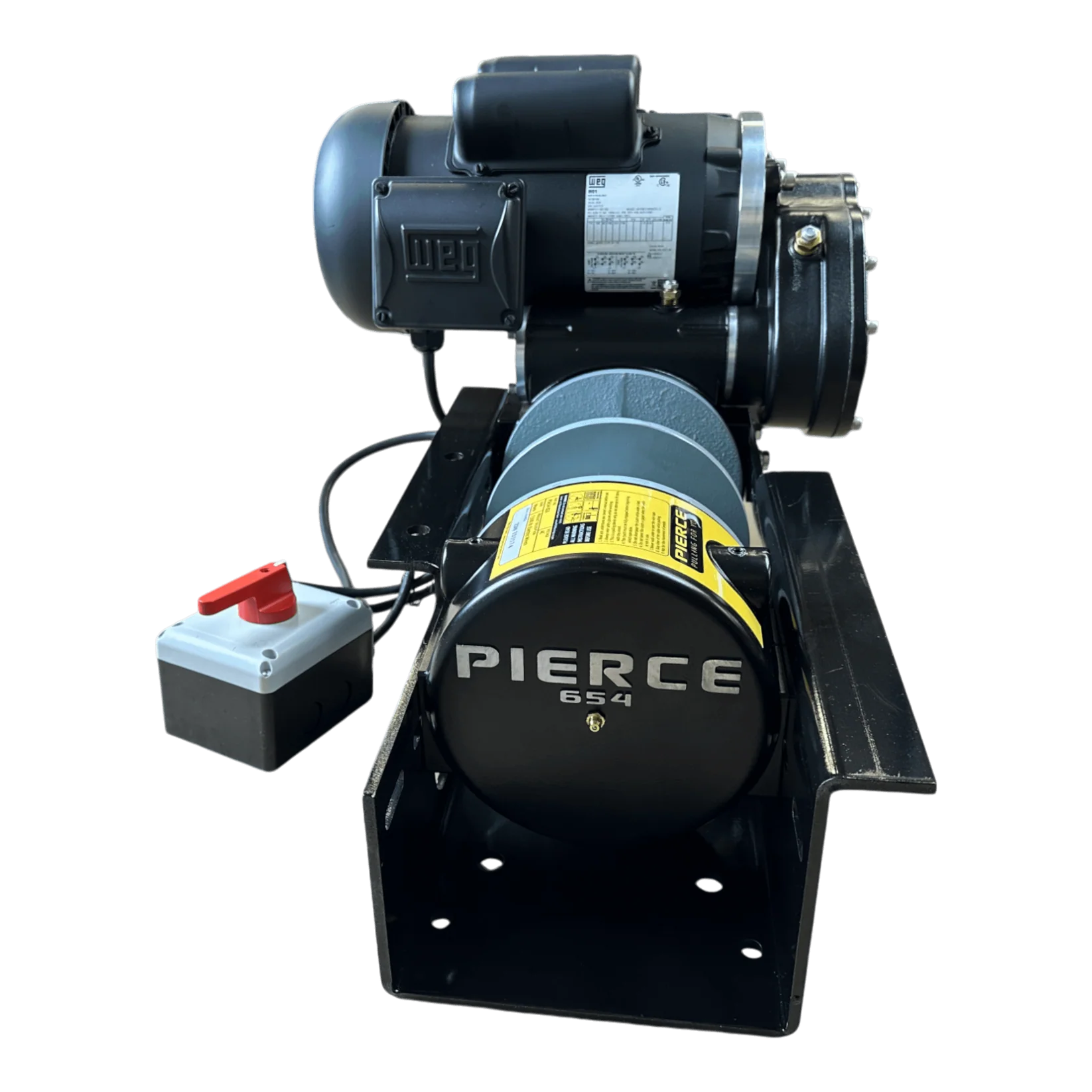

- Includes PBM1 cradle mount and wired control
Applications: Boat docks, maintenance lifts, marine equipment positioning, and shop pulling stations.
⚠️ A certified electrician is required to install this product. Do not attempt installation without proper certification or training.
Included:
1 x [PBM1] - Standard Winch Mount 654 Series
1 x [P003NSK] - Wired Control for 110V PIERCE 654 Series Single Phase Winch
1 x Instructions
1 x [PS654-8EKSD] - PIERCE 110V Electric Winch – 7,500 lb, 8" Split Drum
| Specification | Details |
|---|---|
| AMP DRAW | 17.4 |
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 8 in. Split |
| GEAR RATIO | 460:1 |
| GEAR TYPE | Worm Gear |
| MAX CAPACITY (LBS.) | 7500 |
| MAX LINE SPEED | 4 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 110 Volts AC |
| POWER SOURCE | Electric, AC |
| RECOMMENDED WIRE | 12-14 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 50 ft. (2) |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
