Safe, Steady 7,500 lb 110V Electric Winch. Pre-Order.

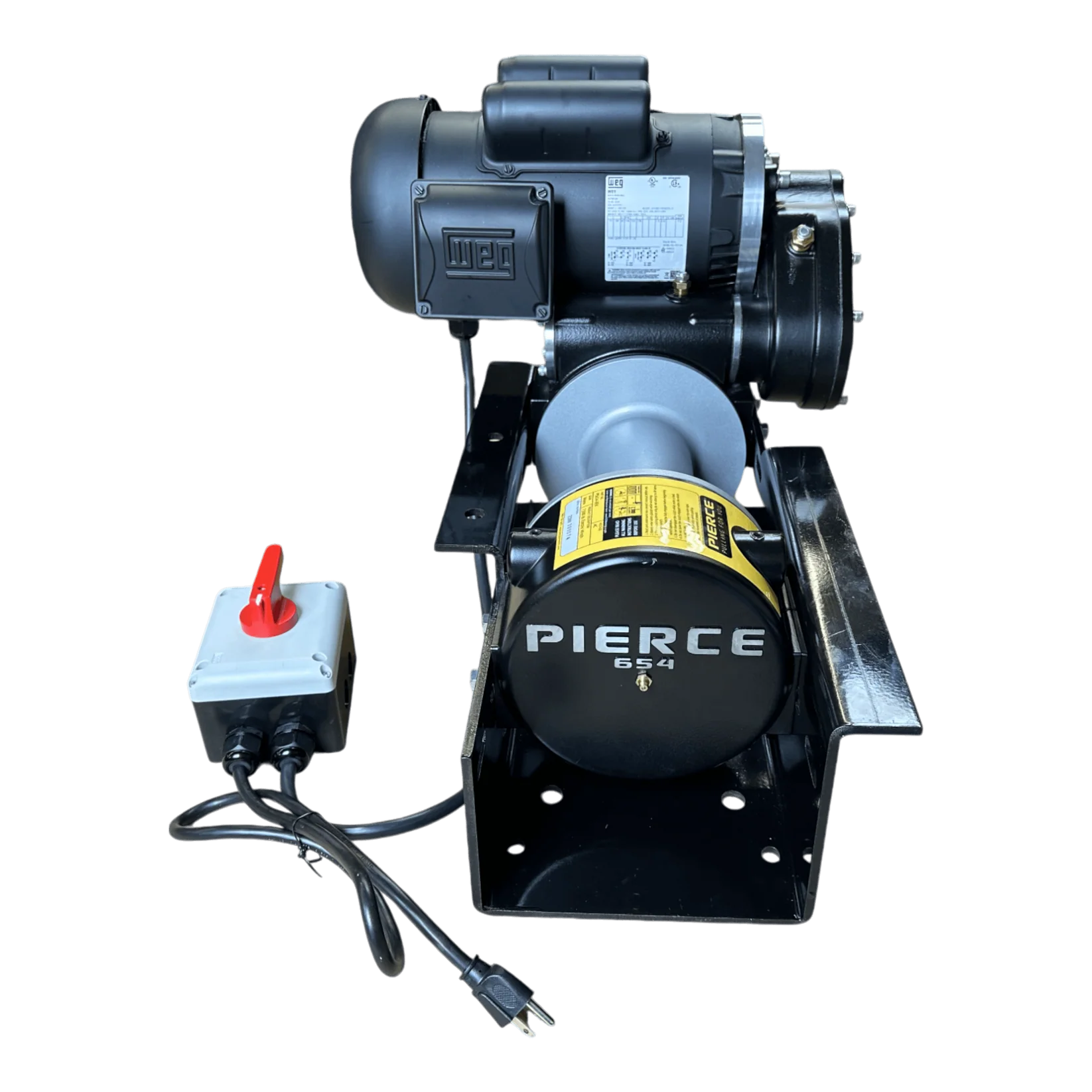

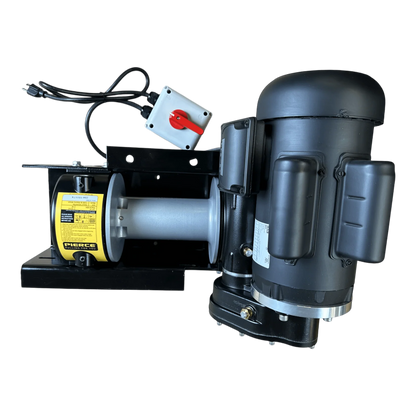

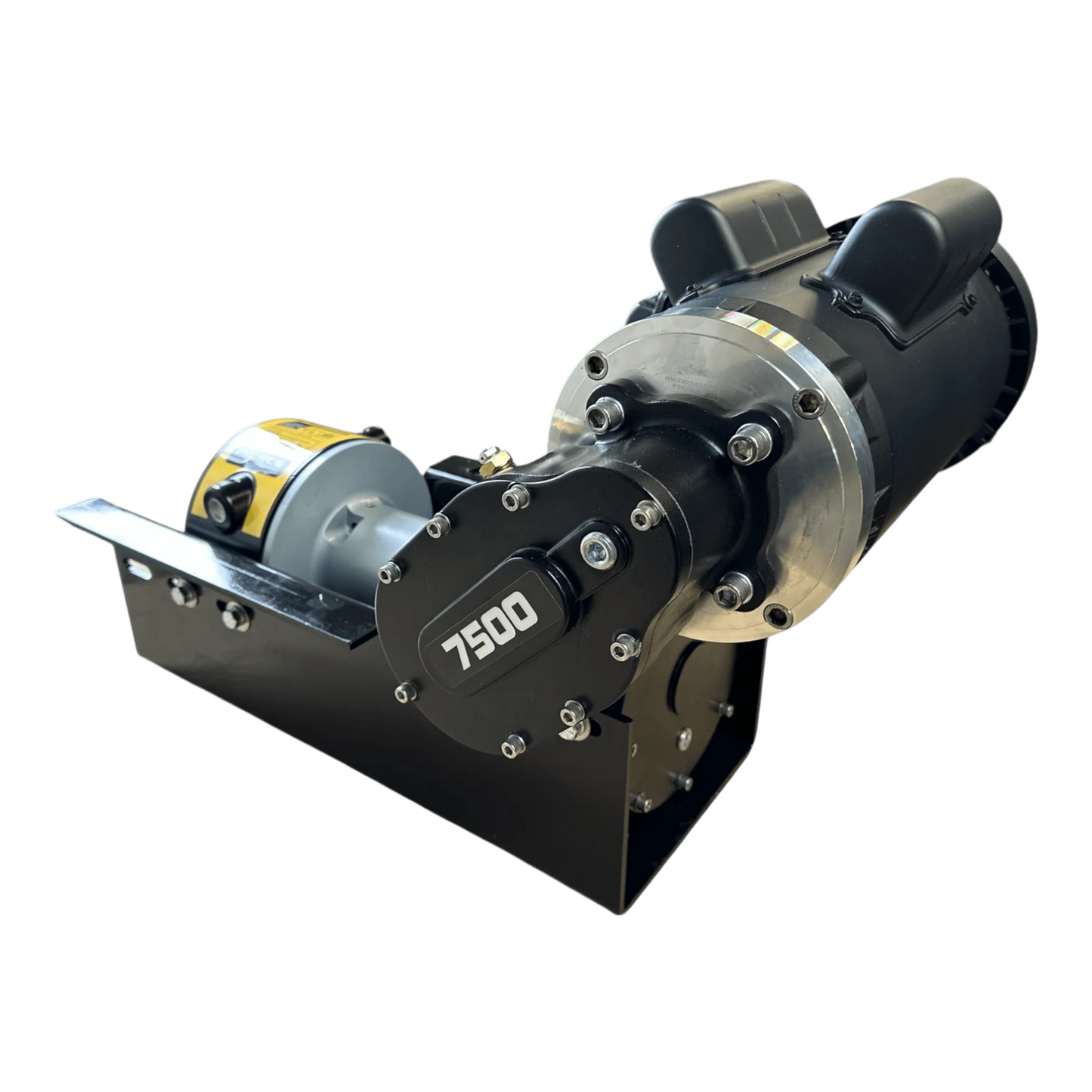

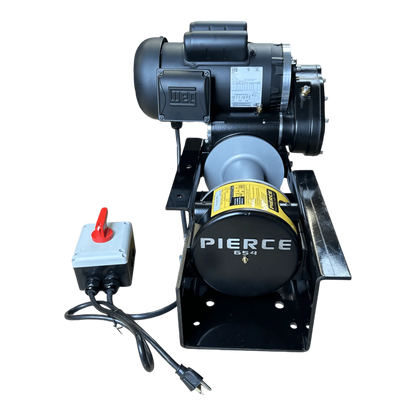

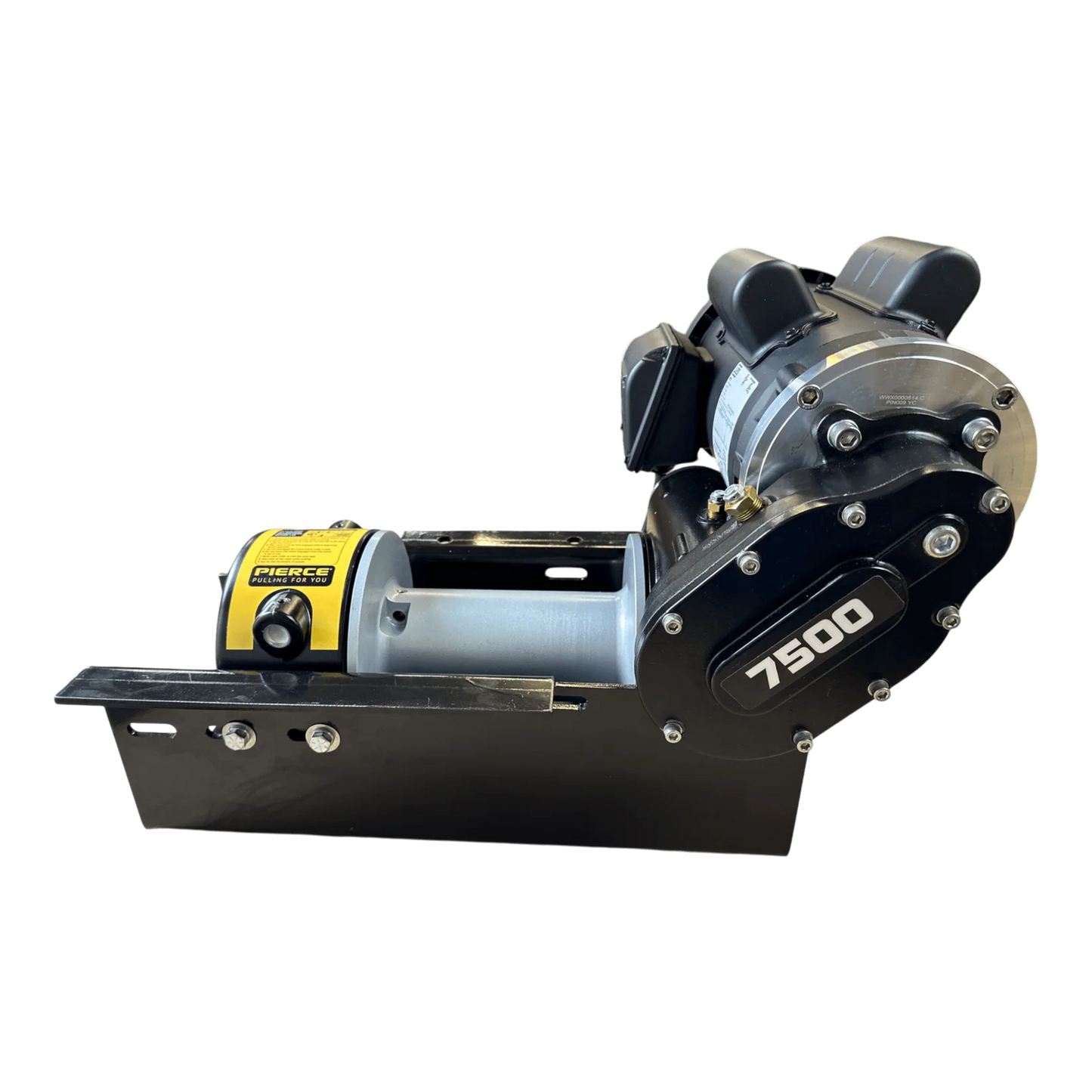

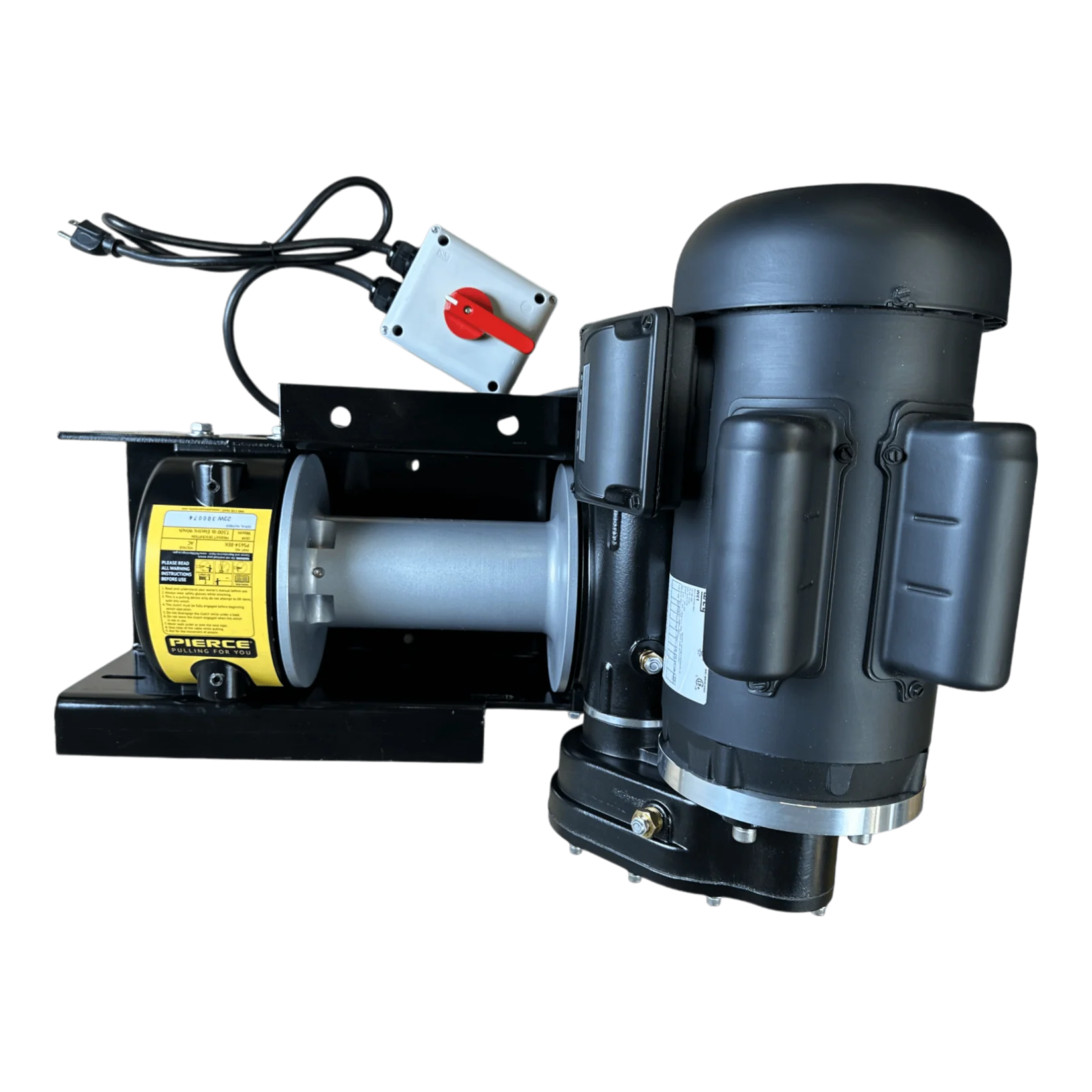

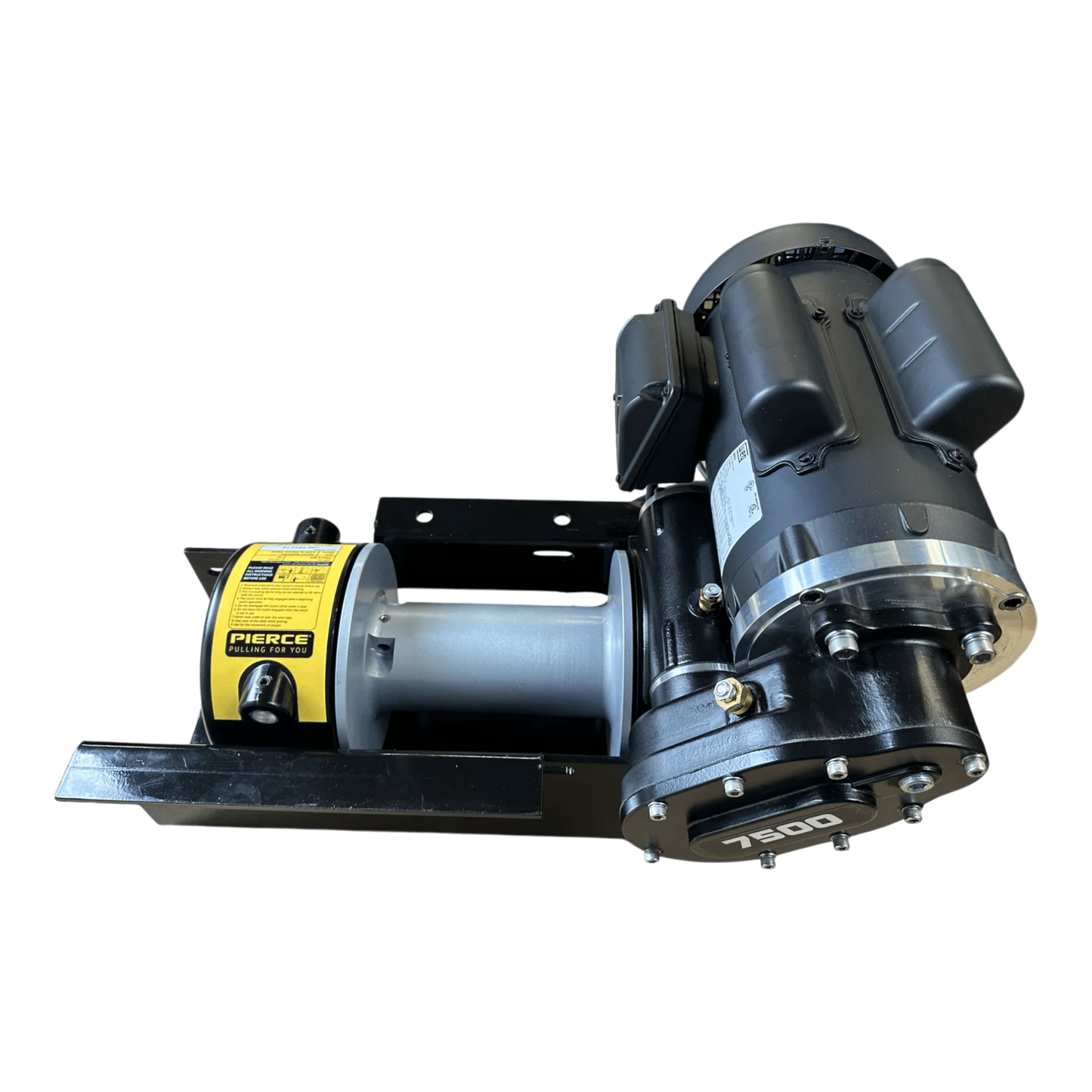

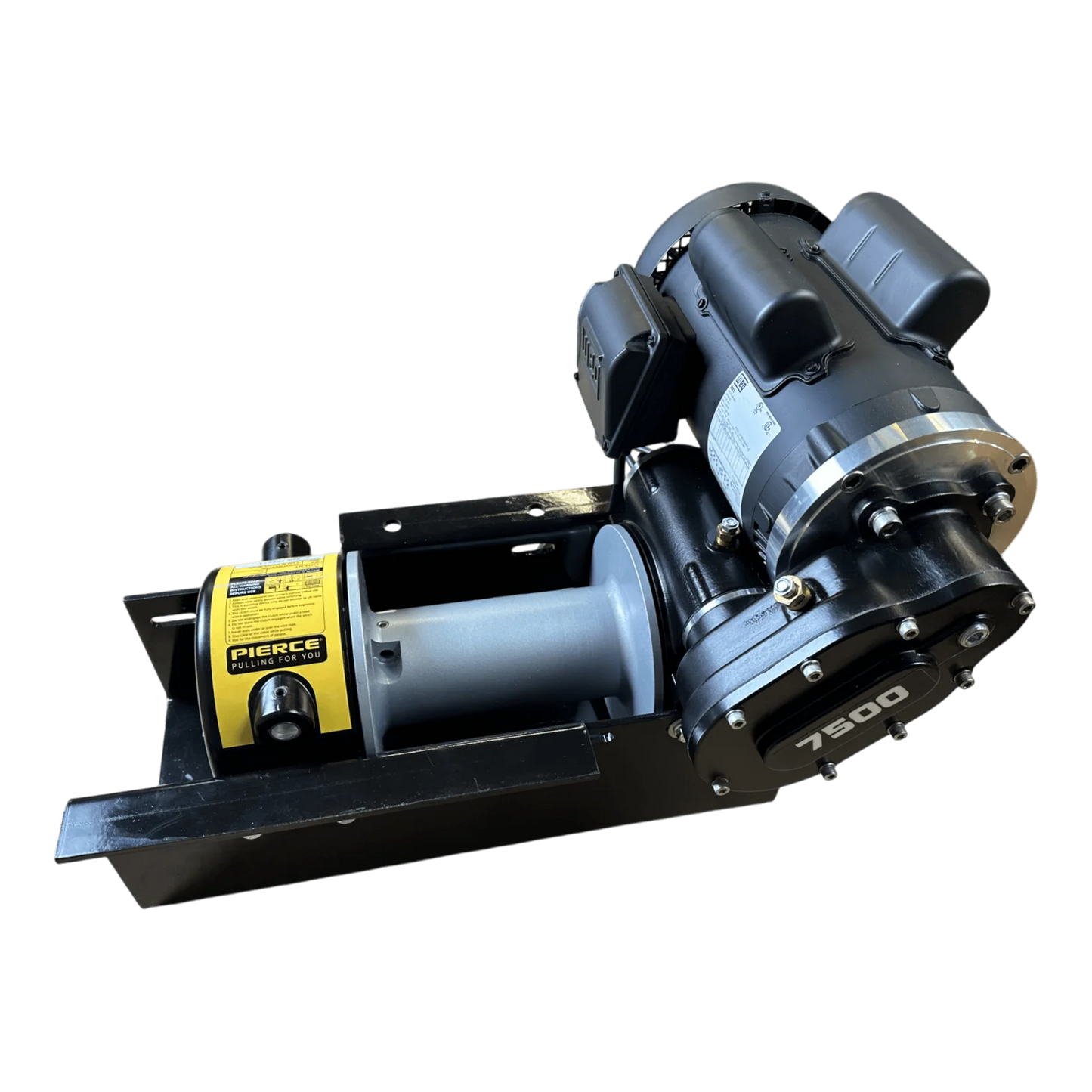

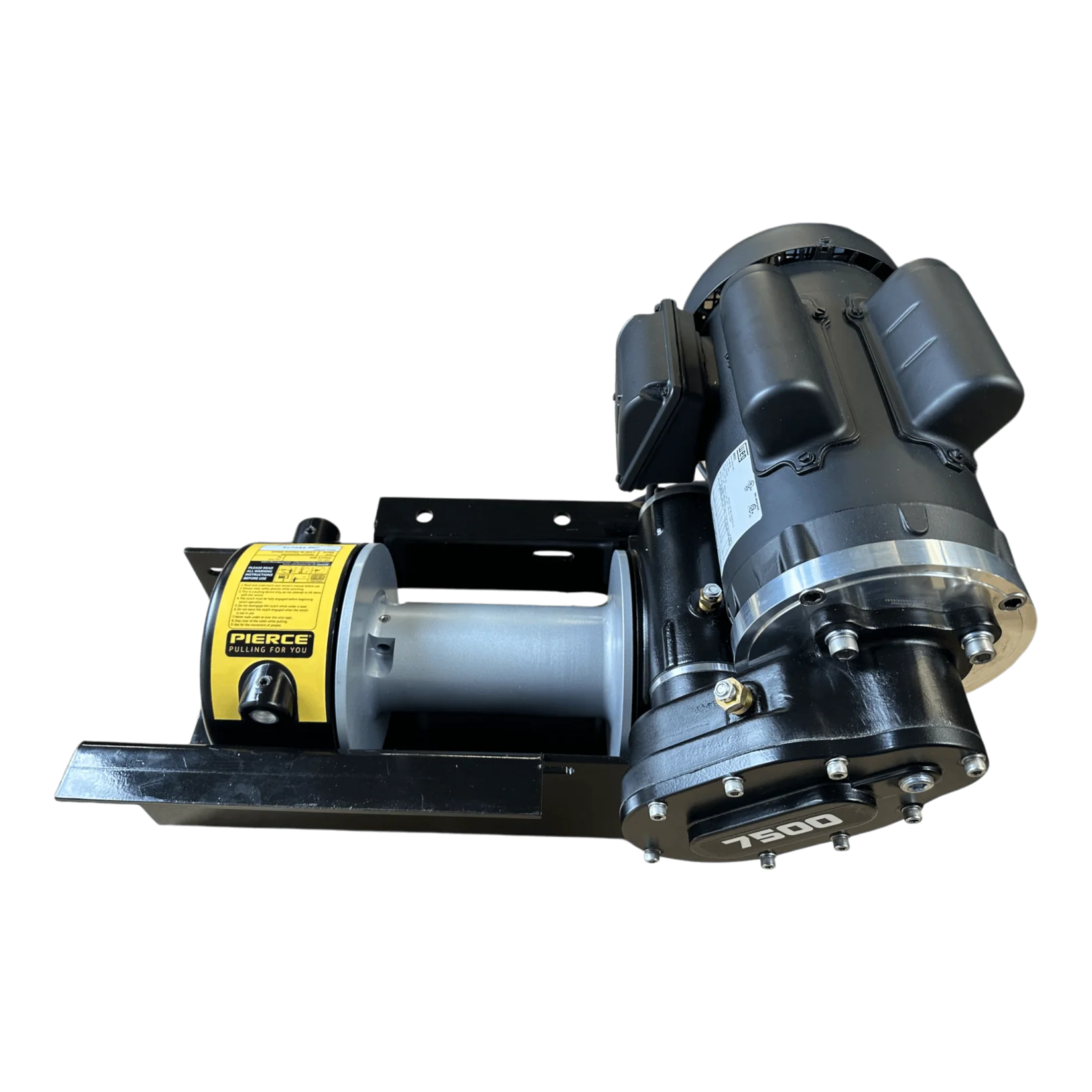

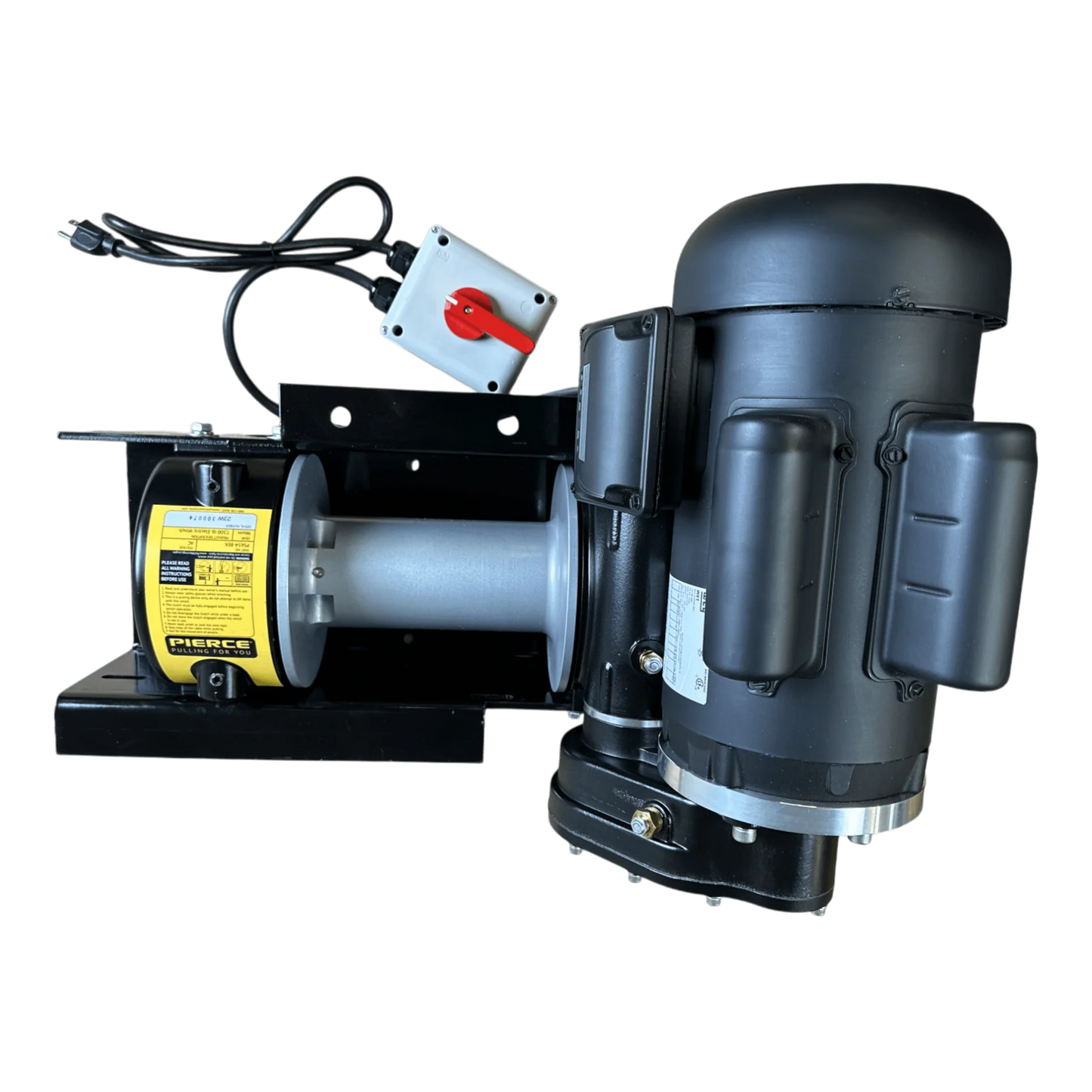

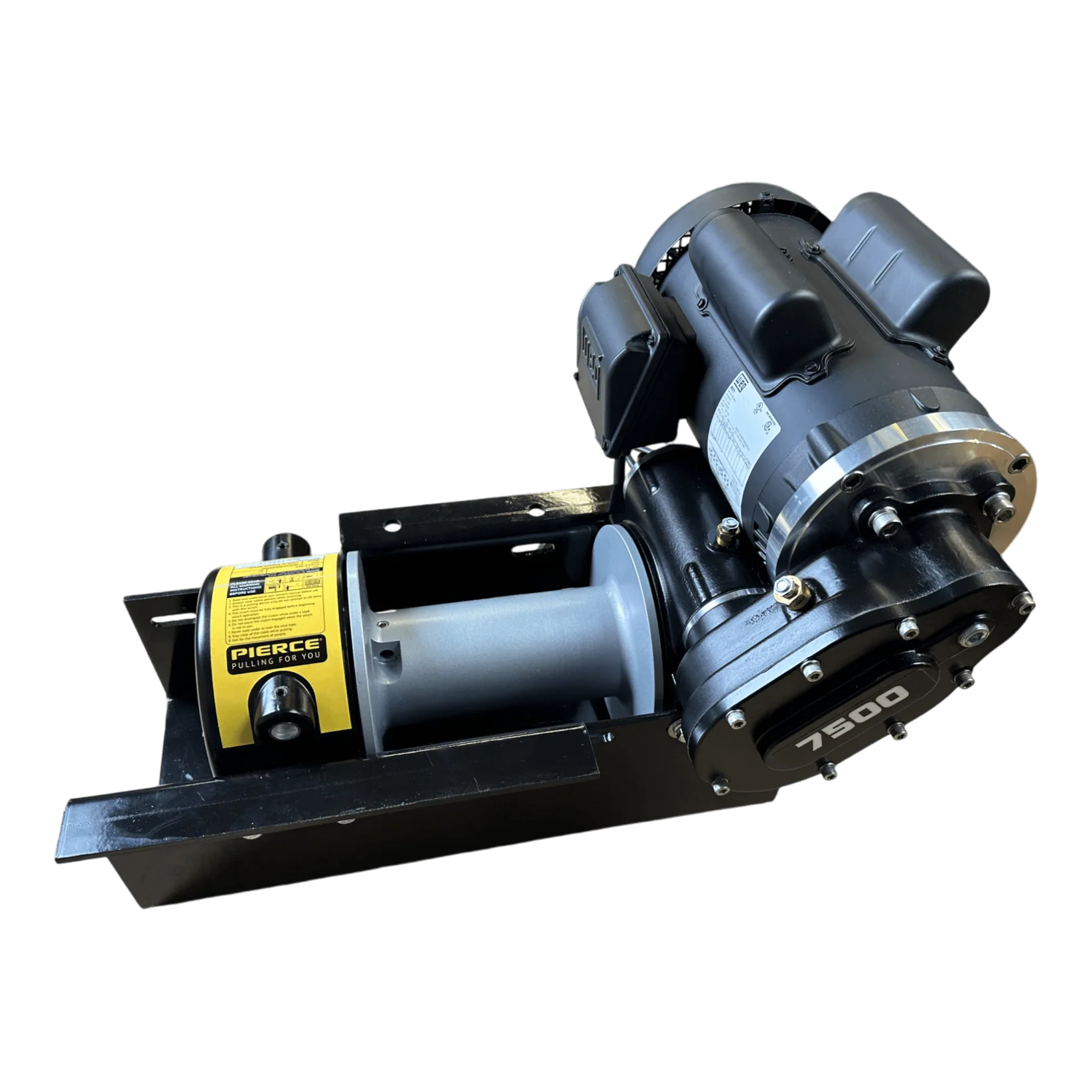

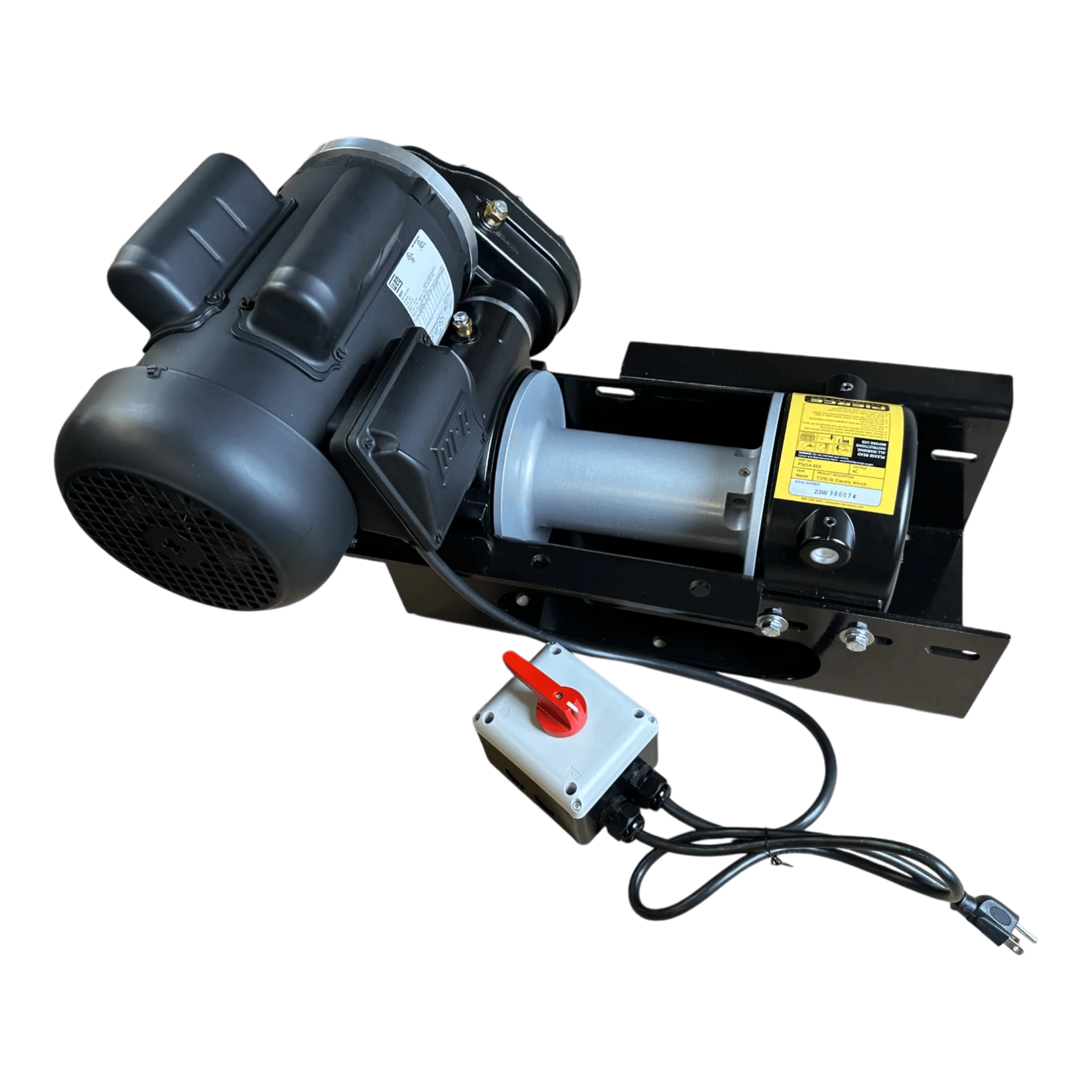

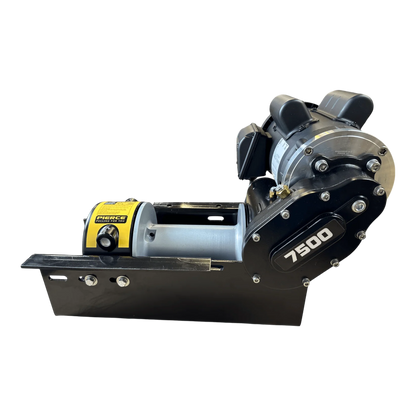

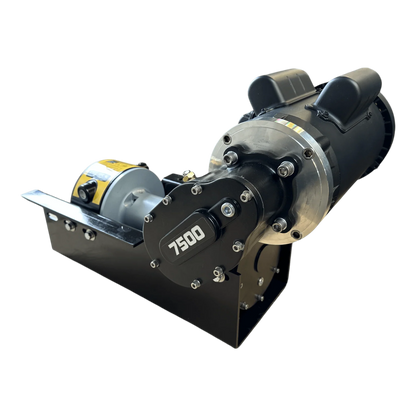

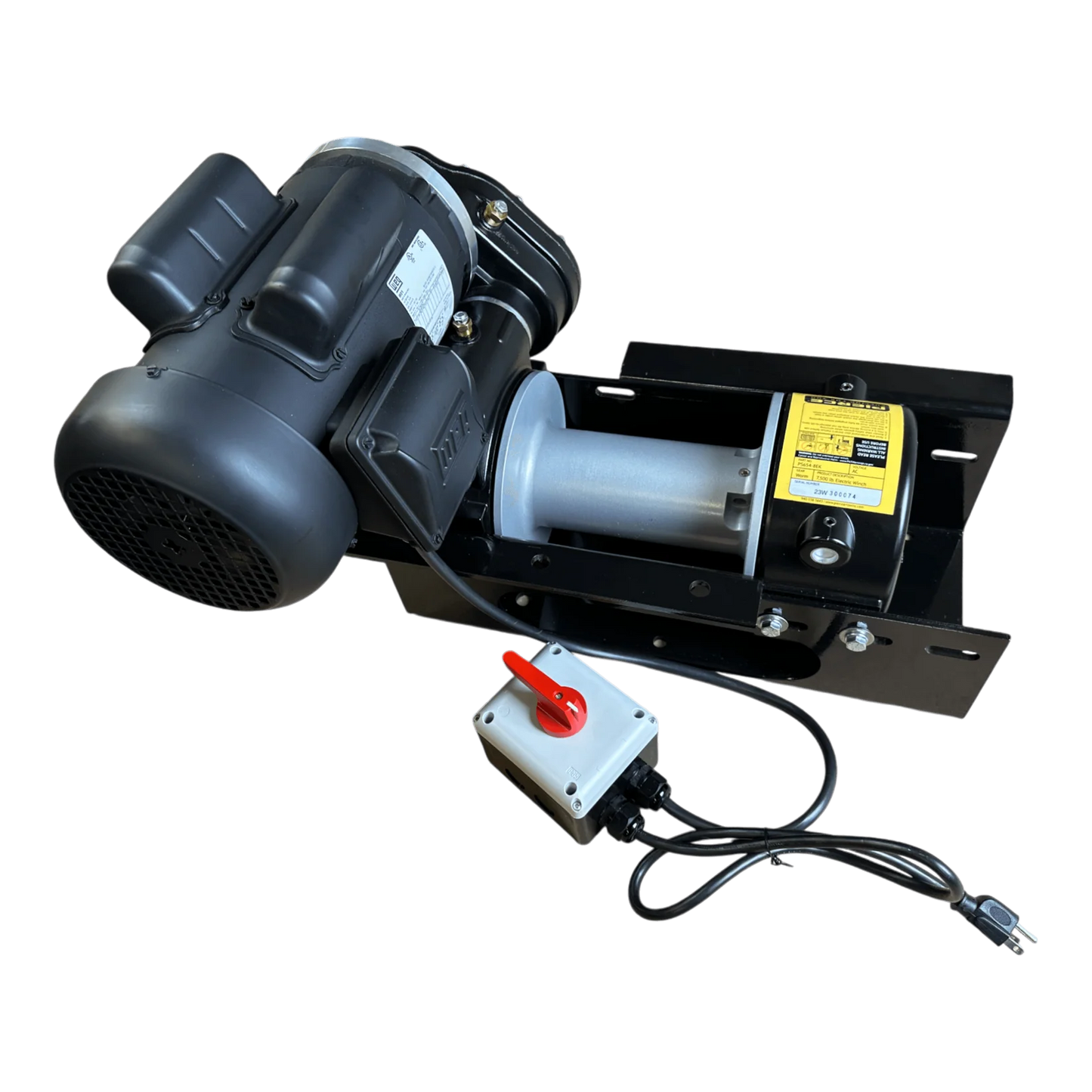

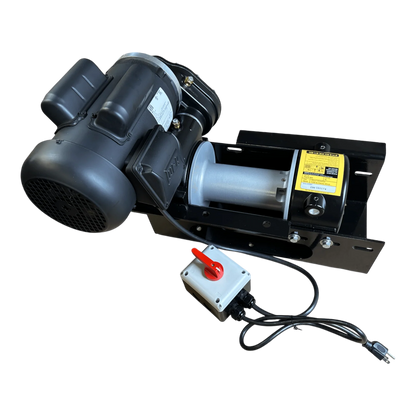

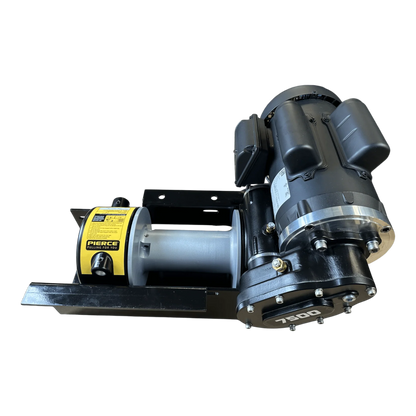

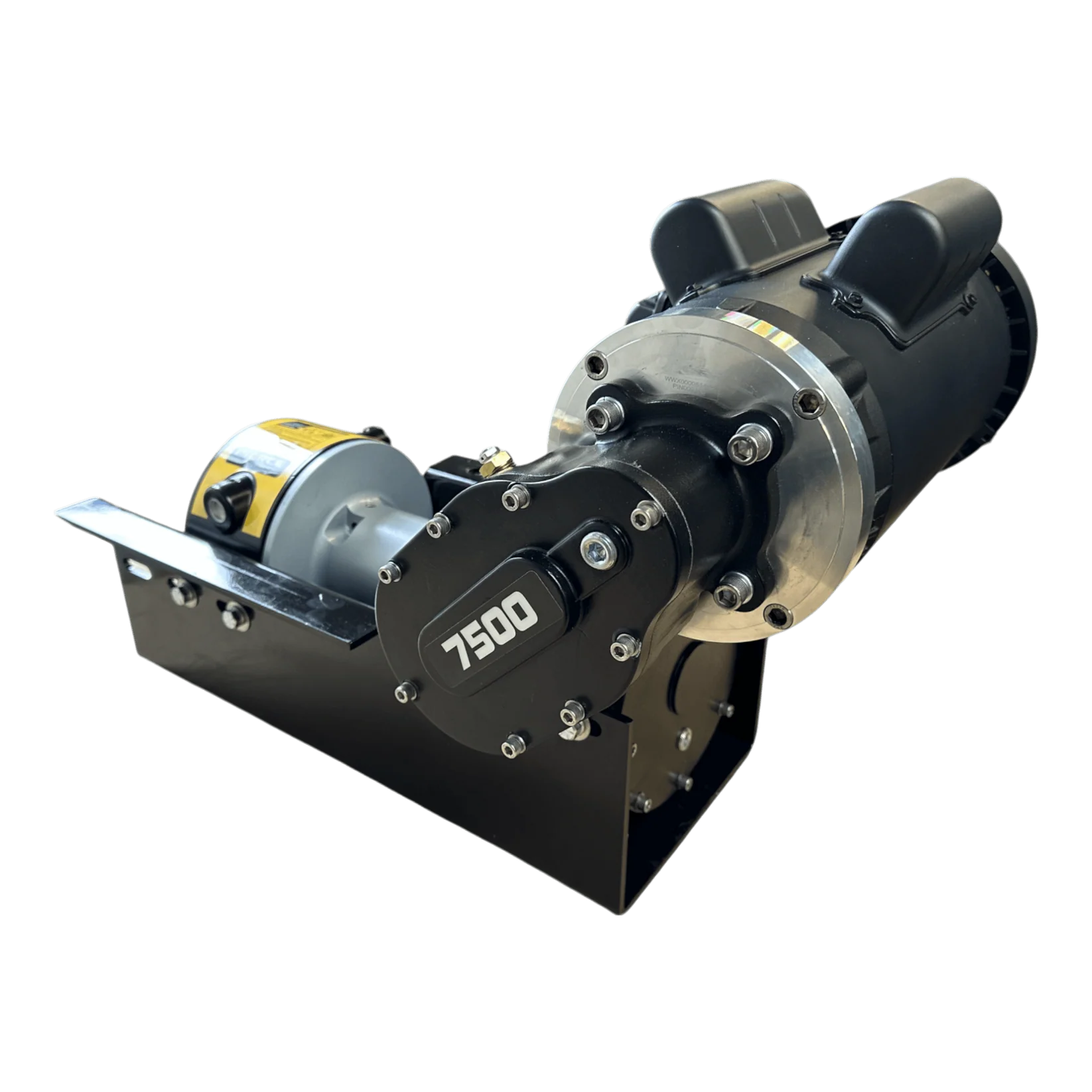

The PIERCE PS654-8EK 110V worm-gear winch delivers 7,500 lb of reliable pulling power with smooth, controlled operation. Ideal for docks, hoists, and industrial setups, its slow line speed enhances safety while maintaining excellent holding strength. Built to order with the PBM1 cradle included and ships in 1–2 business days.
- 7,500 lb rated pulling capacity
- 8" drum holds up to 100' of 3/8" wire rope
- 110V AC operation for stationary pulling applications

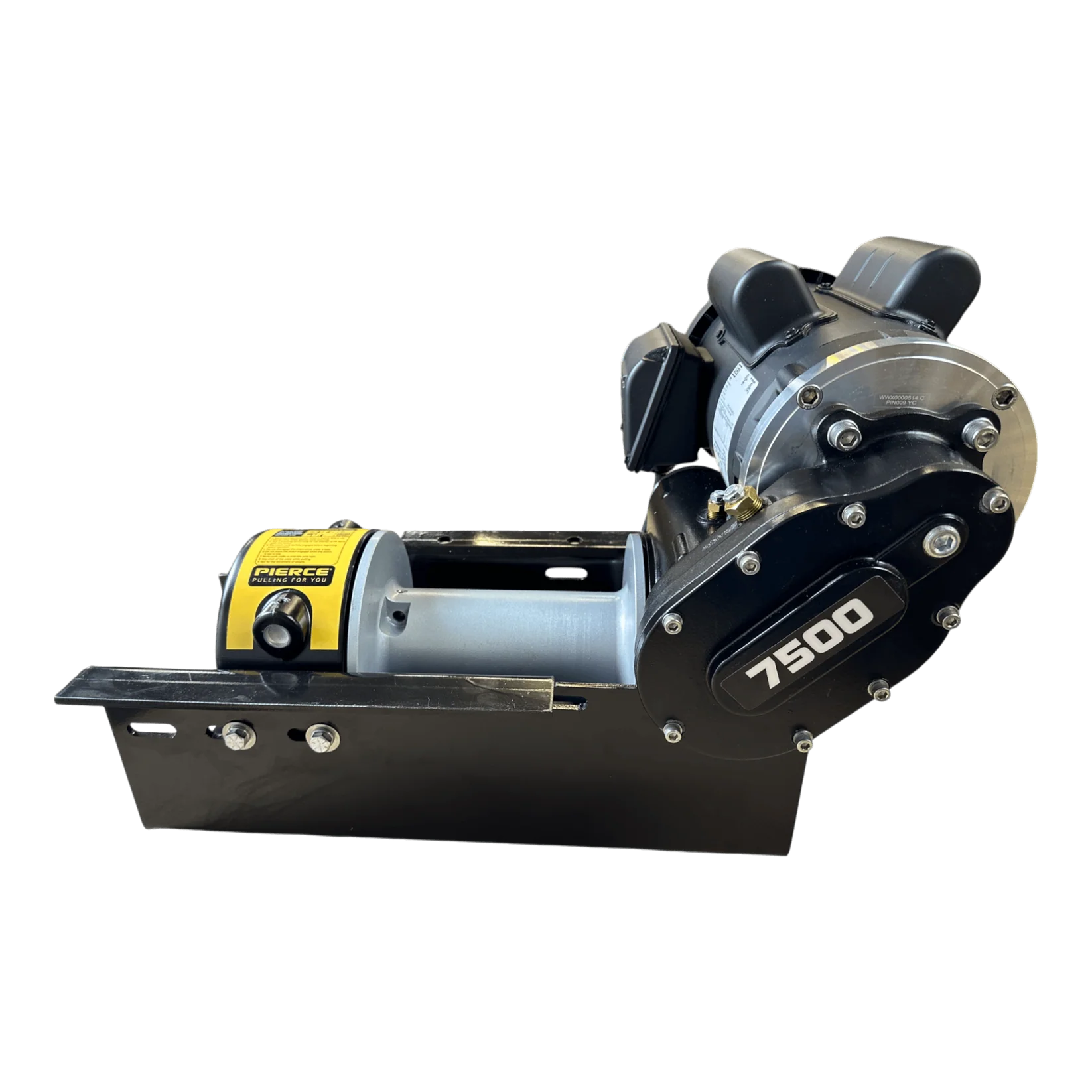

- Includes PBM1 cradle mount and wired control pendant
Applications: Boat docks, small lifts, shop hoists, and fixed equipment pull systems.
⚠️ A certified electrician is required to install this product. Do not attempt to install without proper certification or training.
Included:
| Specification | Details |
|---|---|
| AMP DRAW | 17.4 |
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 11 in. |
| GEAR RATIO | 460:1 |
| GEAR TYPE | Worm Gear |
| MAX CAPACITY (LBS.) | 7500 |
| MAX LINE SPEED | 4 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 110 Volts AC |
| POWER SOURCE | Electric, AC |
| RECOMMENDED WIRE | 12-14 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 125 ft. |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Spec sheet: https://www.piercearrowinc.com/pages/docs/psw-654-ek-spec-sheet
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
