PIERCE 110V Electric Winch – 7,500 lb, 11" Split Drum. Pre-Order.
PIERCE 110V Electric Winch – 7,500 lb, 11" Split Drum. Pre-Order.
Couldn't load pickup availability
11 in stock
Dual-Cable Control for Safe, Stationary Pulling. Pre-Order.

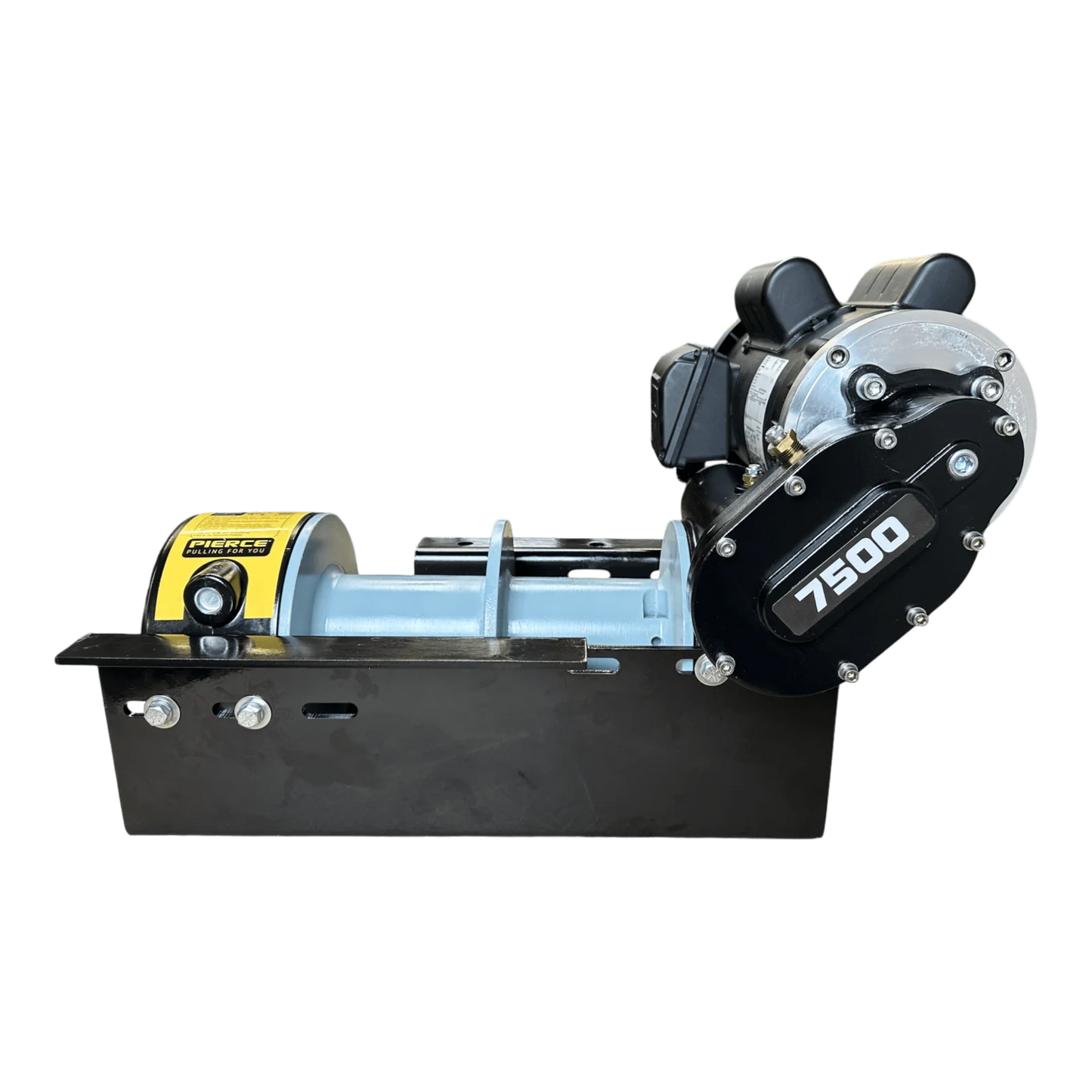

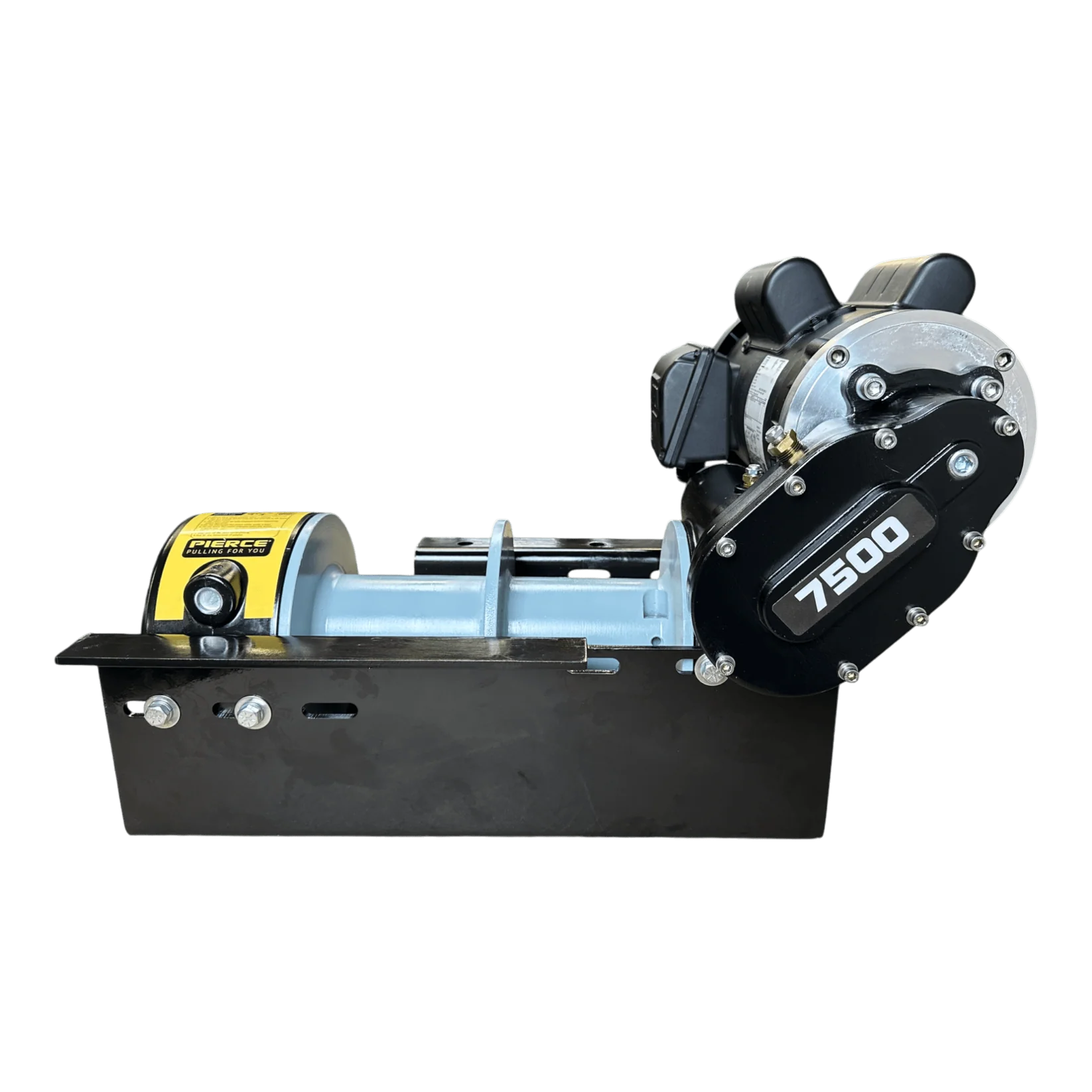

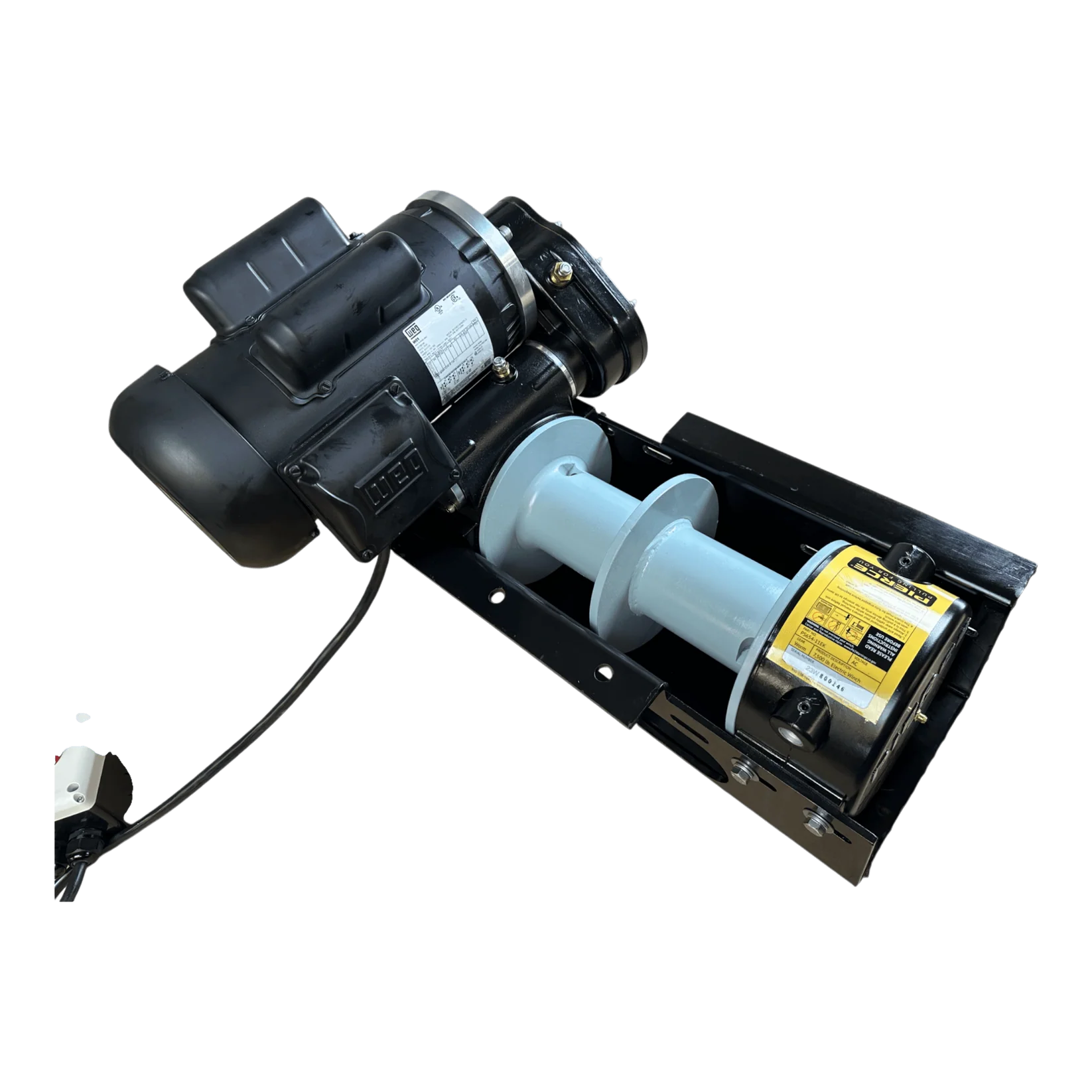

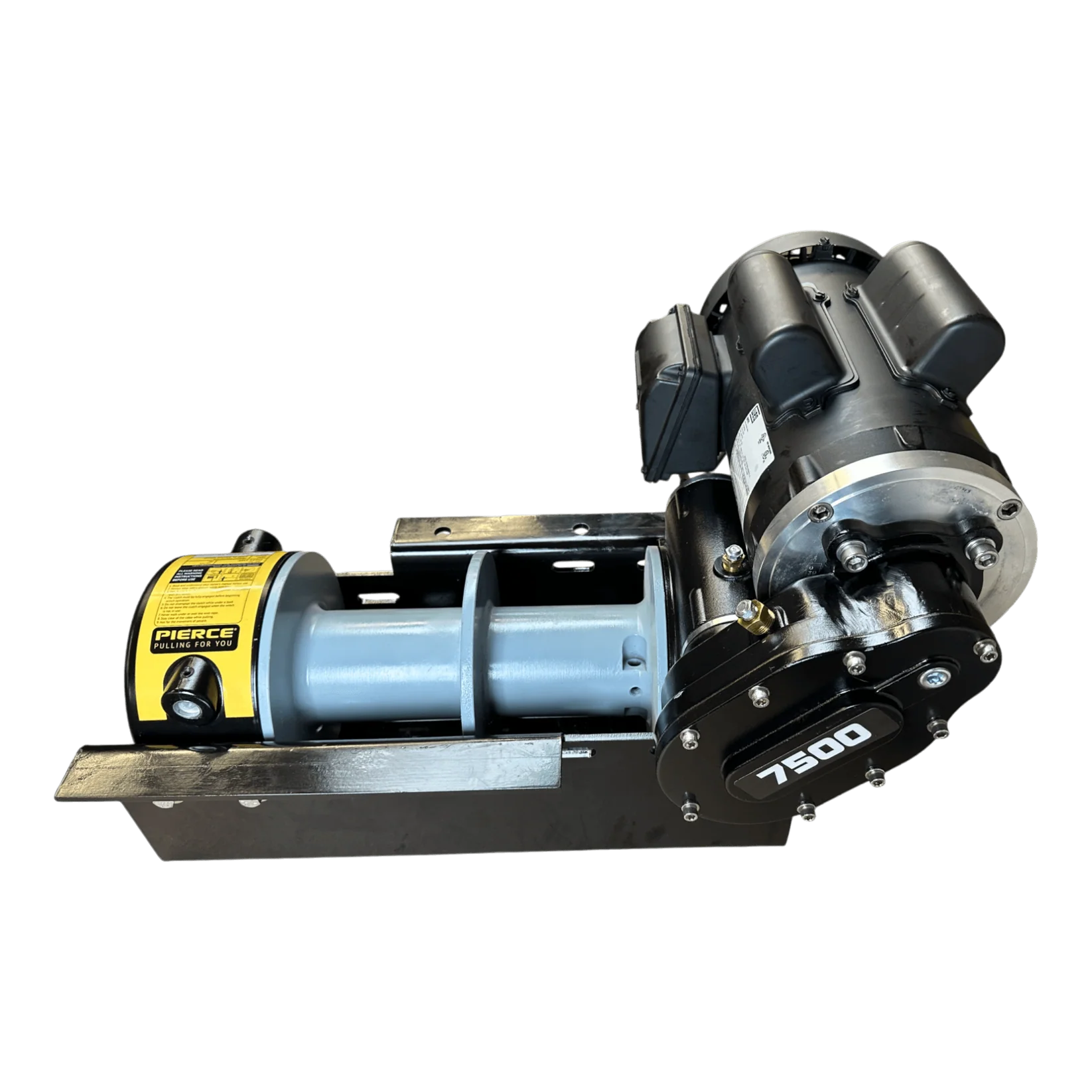

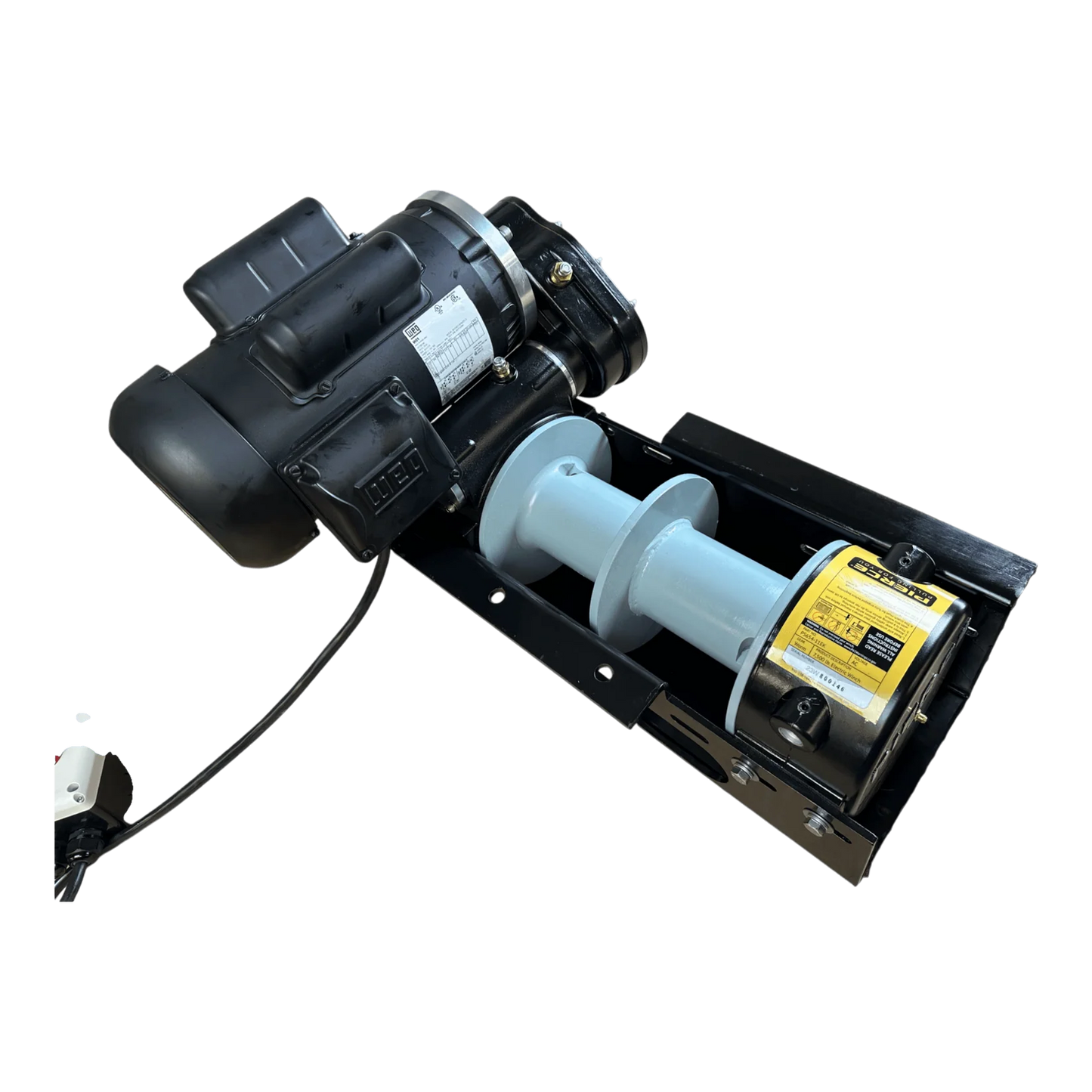

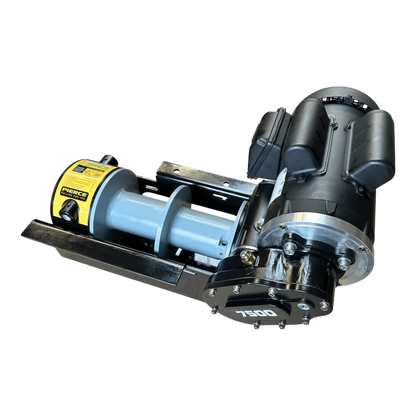

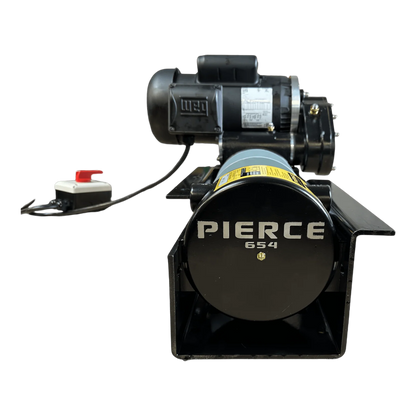

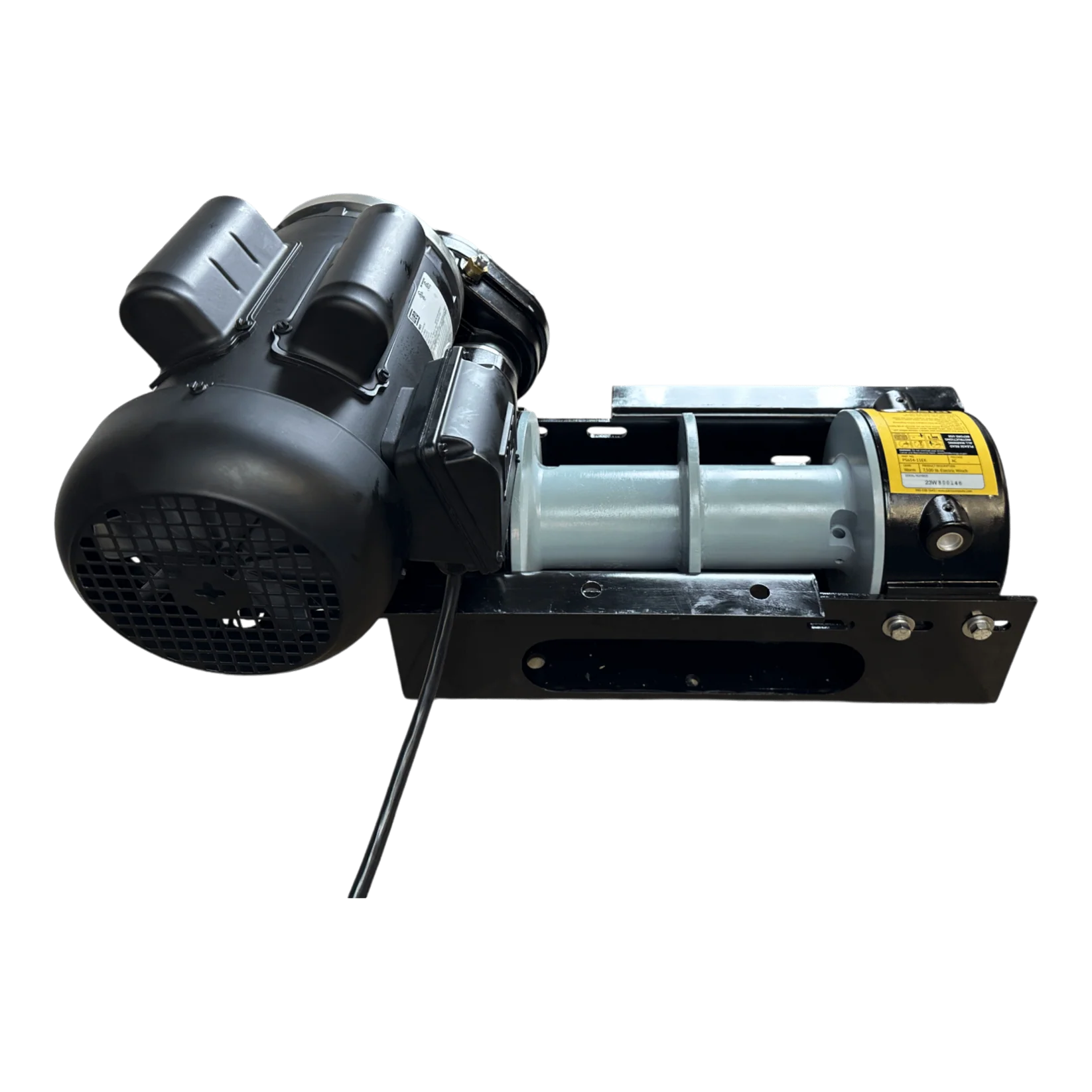

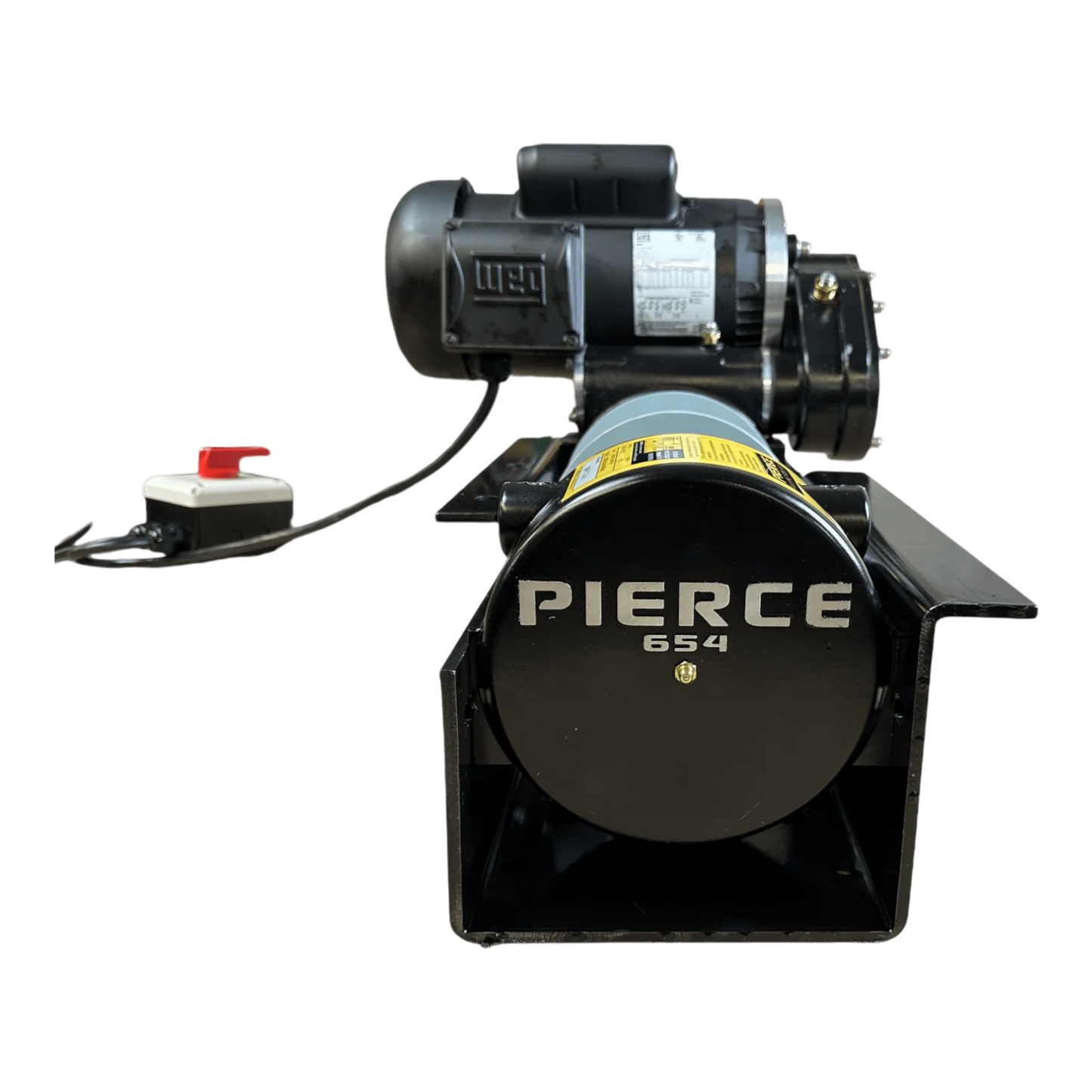

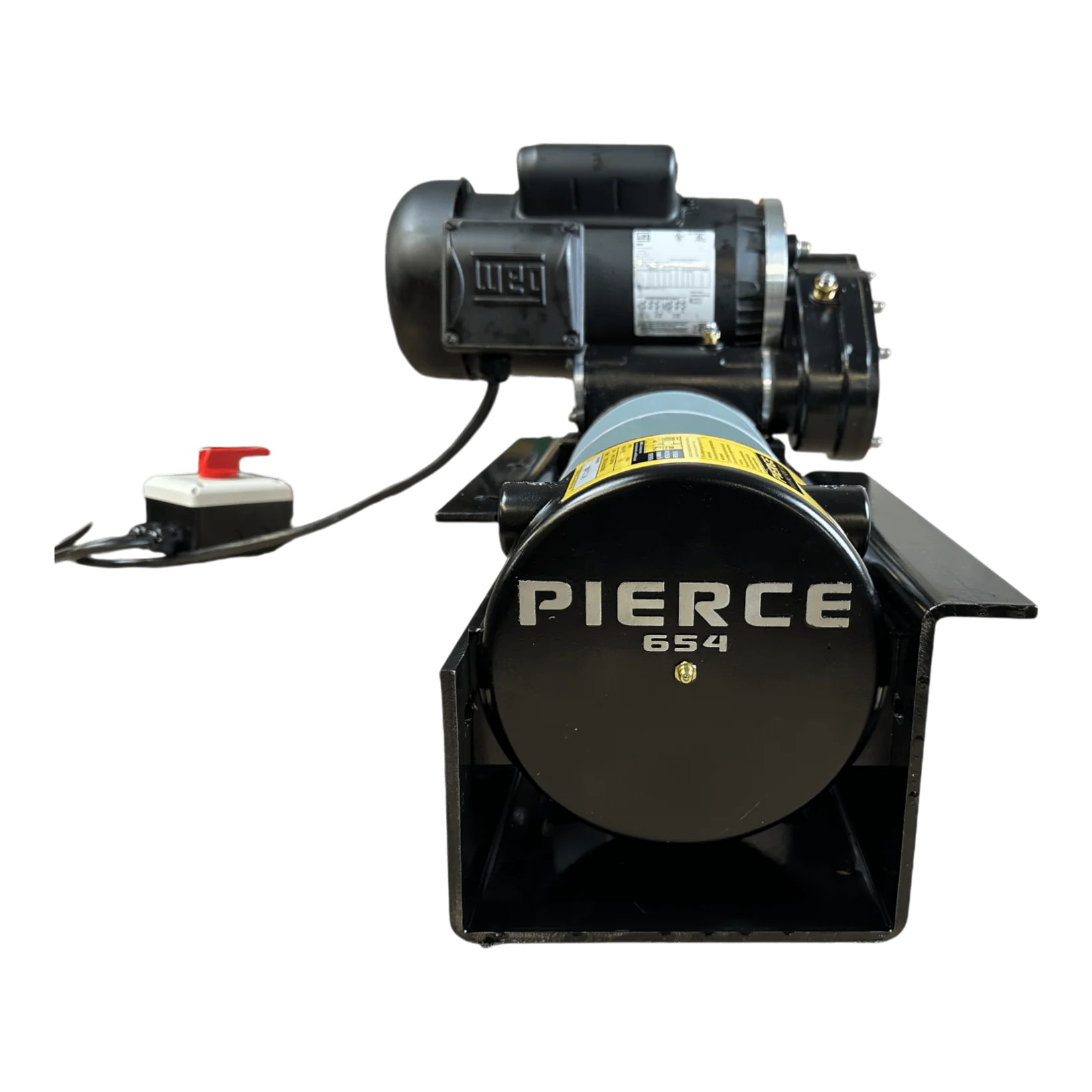

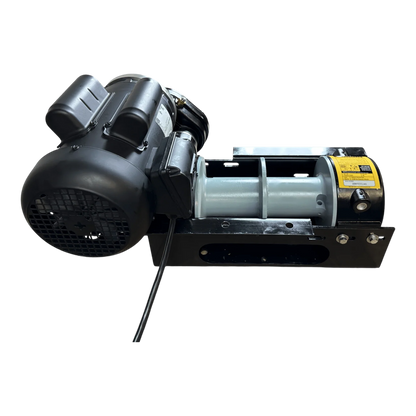

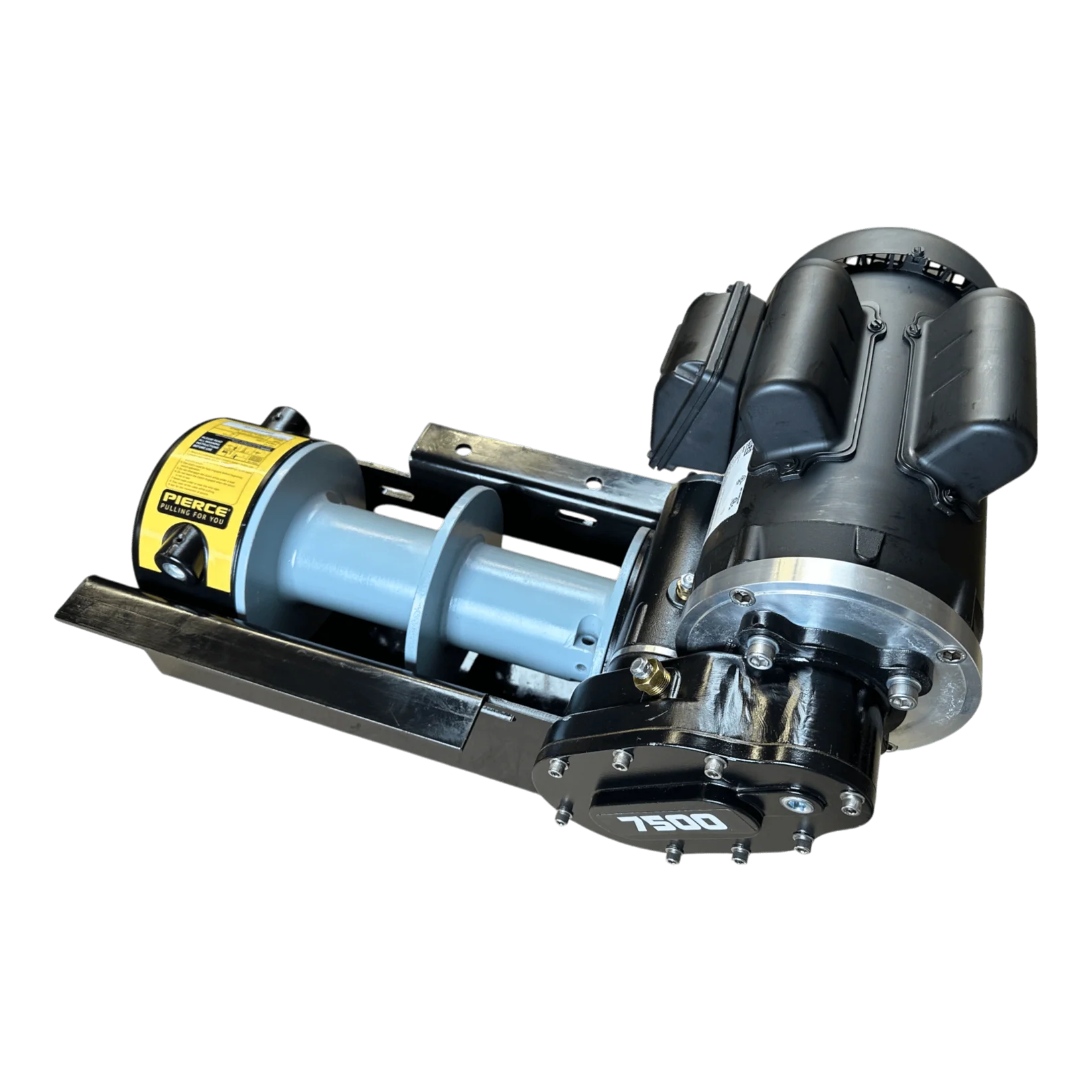

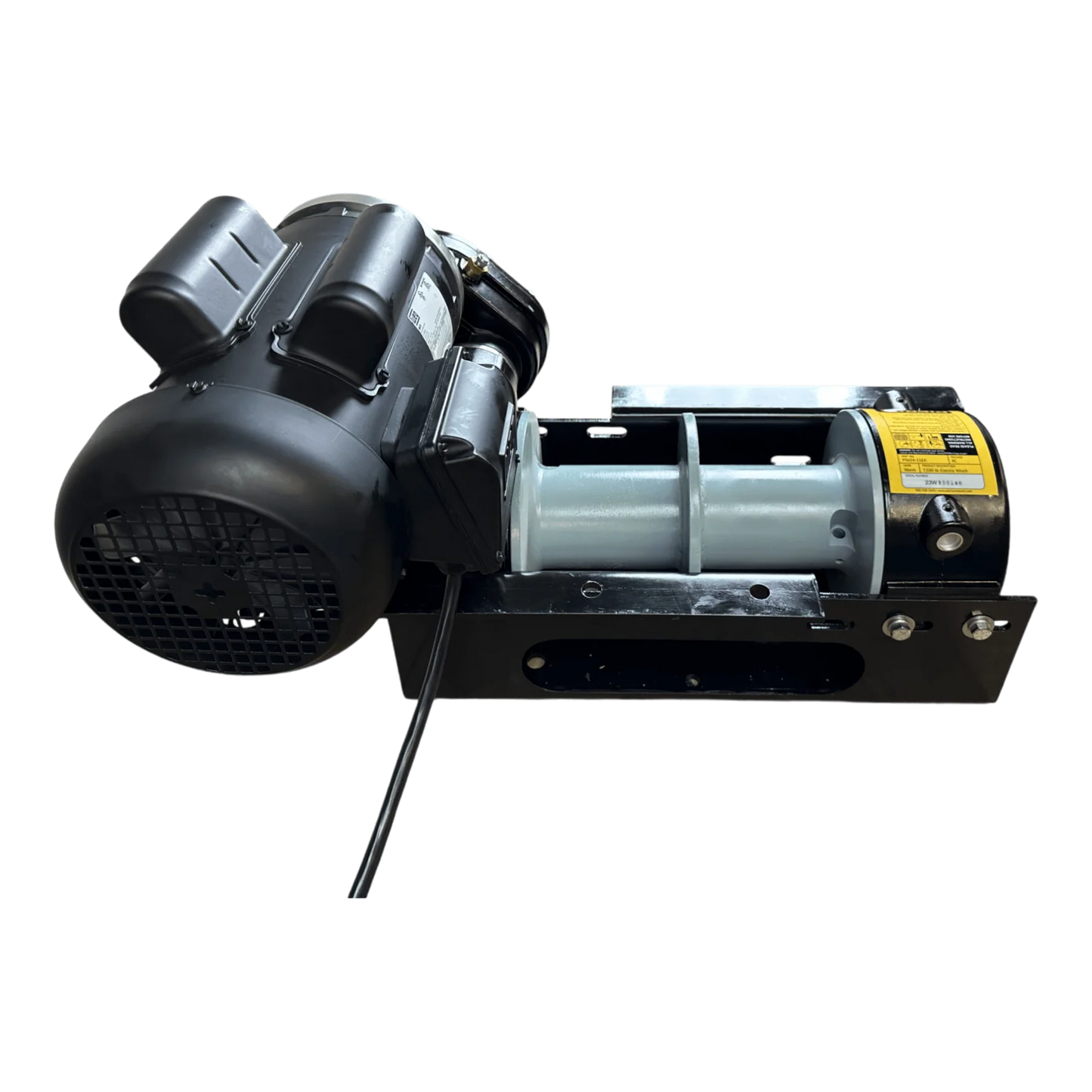

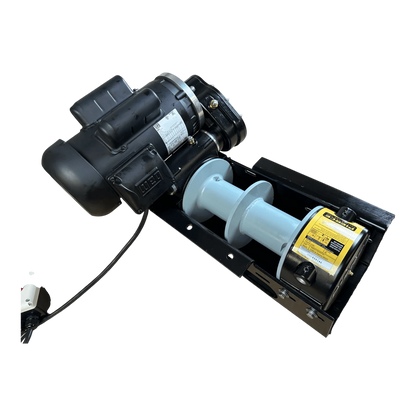

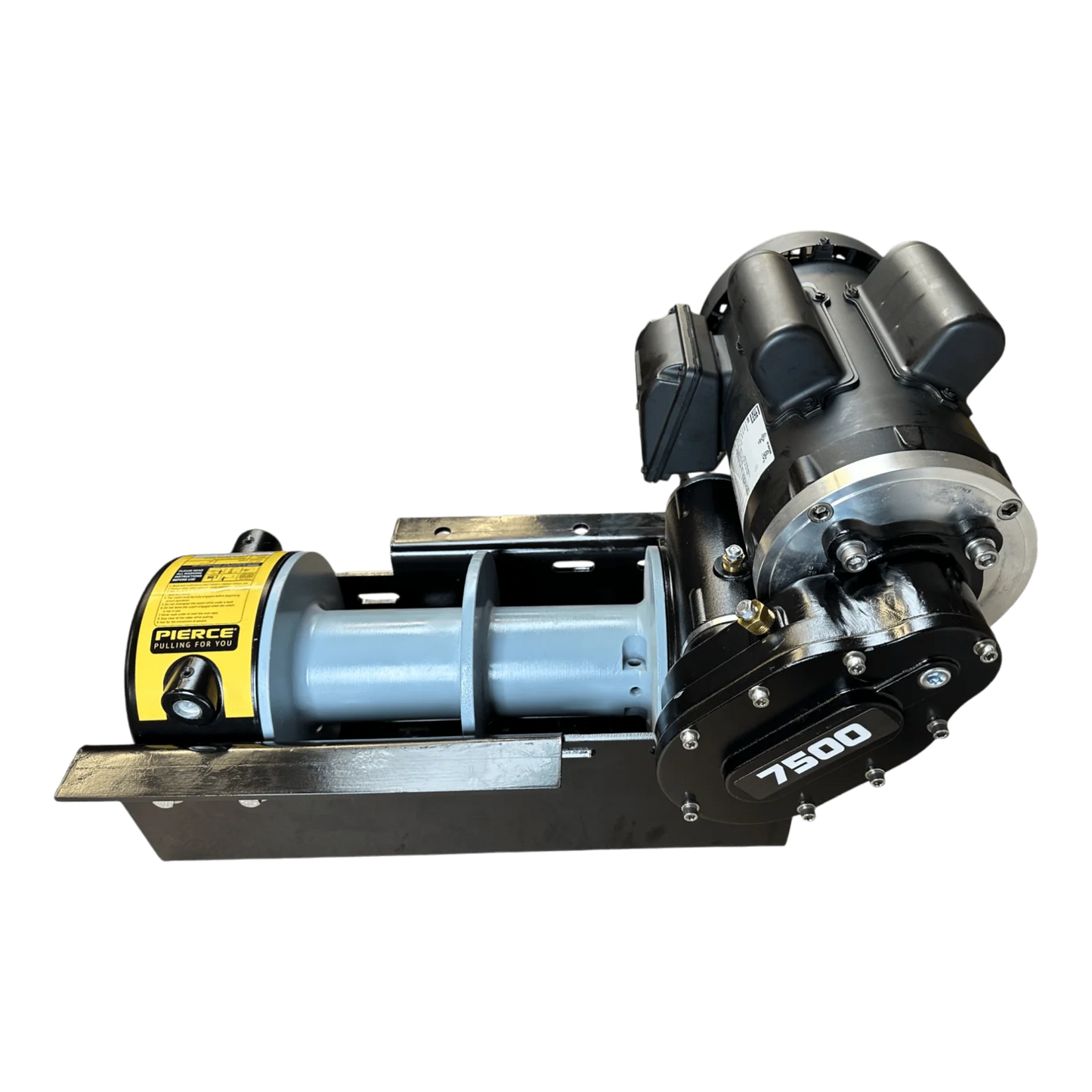

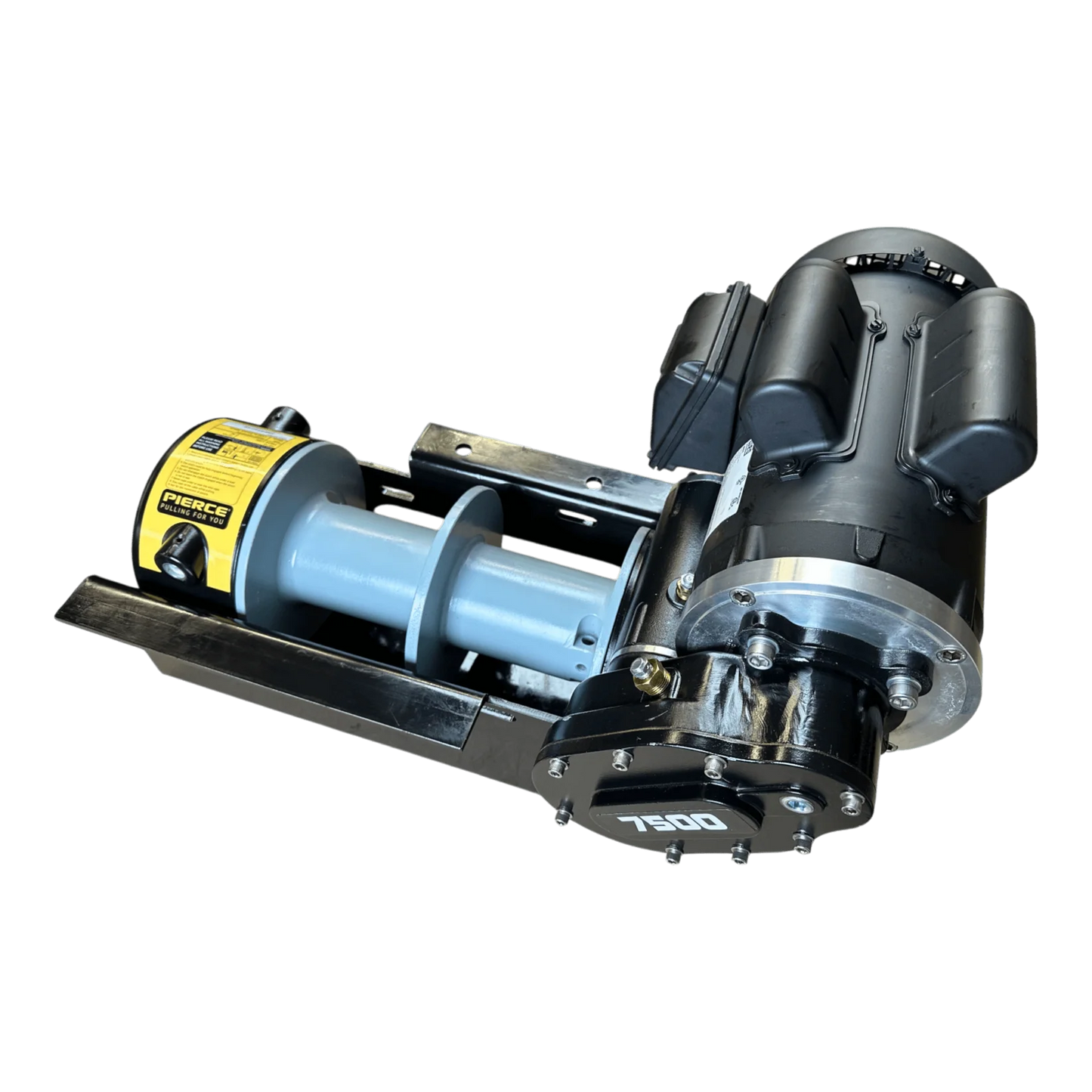

The PIERCE PS654-11EKSD is a 110V electric worm-gear winch rated for 7,500 lb of total pulling capacity. Its 11" split drum allows two independent cable pulls—ideal for balanced lifting or dual anchor points. Built for slow, controlled operation, the PS654-11EKSD is pre-mounted in the PBM1 cradle for quick installation and dependable, stationary performance. Each unit is built to order and ships within 1–2 business days.
- 7,500 lb rated capacity (split drum halves cable length per side)

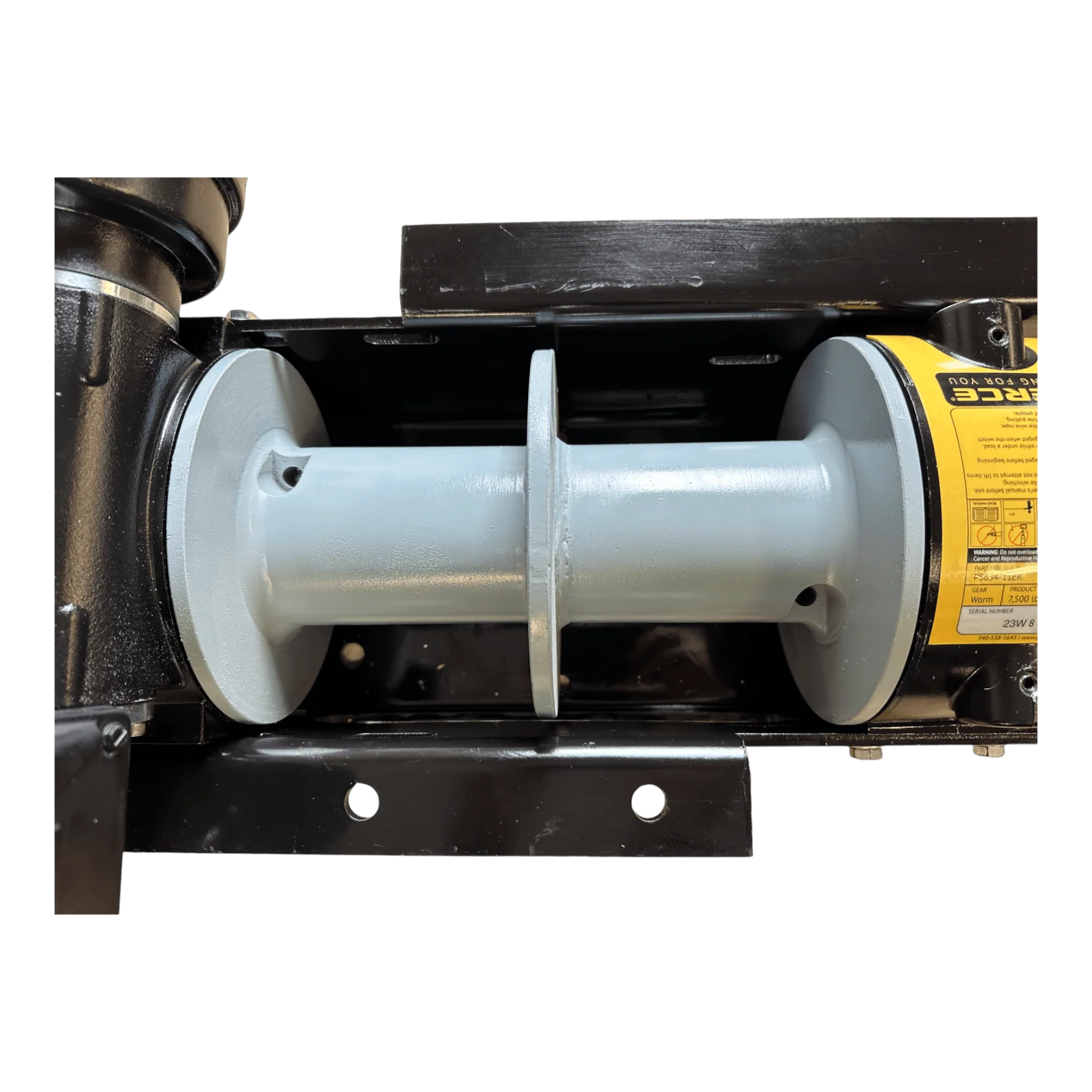

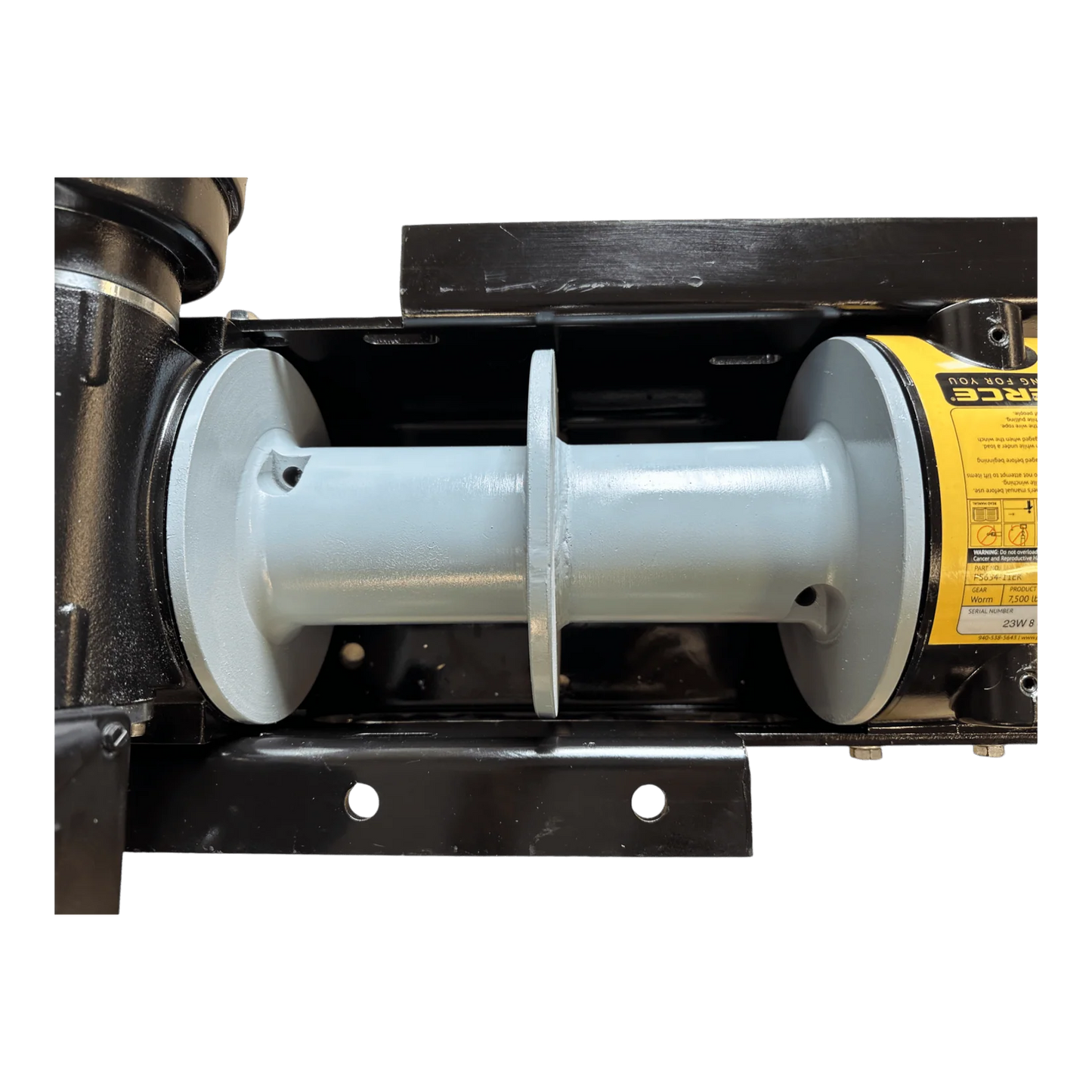

- 11" split drum for dual cable operation and balanced loads
- 110V AC worm-gear drive provides safe, controlled movement
- Includes PBM1 cradle mount and wired control
Applications: Boat docks, barge positioning, industrial load control, and equipment staging.
⚠️ A certified electrician is required to install this product. Do not attempt installation without proper certification or training. Severe injury or death can result when working with 110V AC power.
Included:
| Specification | Details |
|---|---|
| AMP DRAW | 17.4 |
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 11 in. Split |
| GEAR RATIO | 460:1 |
| GEAR TYPE | Worm Gear |
| MAX CAPACITY (LBS.) | 7500 |
| MAX LINE SPEED | 4 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 110 Volts AC |
| POWER SOURCE | Electric, AC |
| RECOMMENDED WIRE | 12-14 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 75 ft. (2) |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
