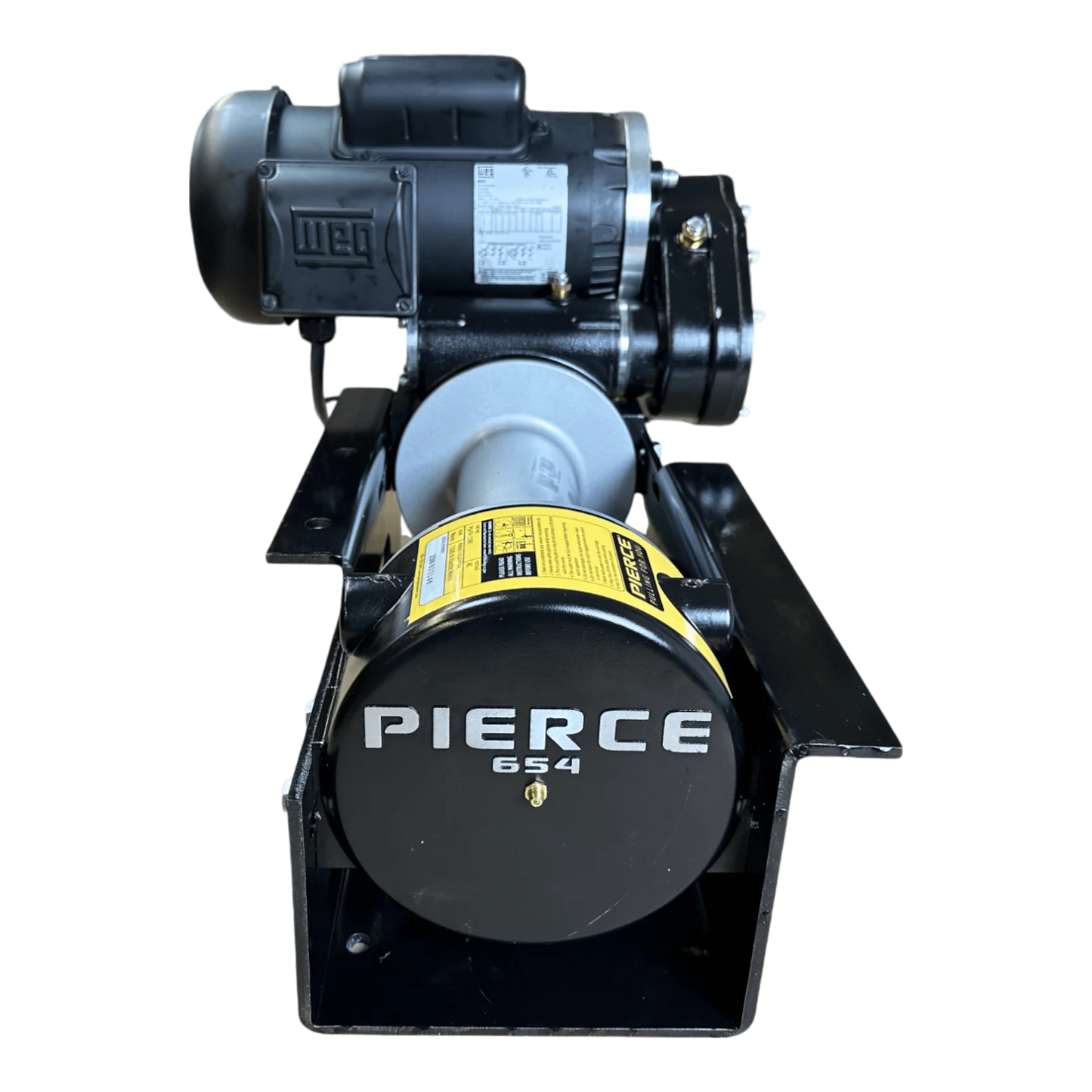

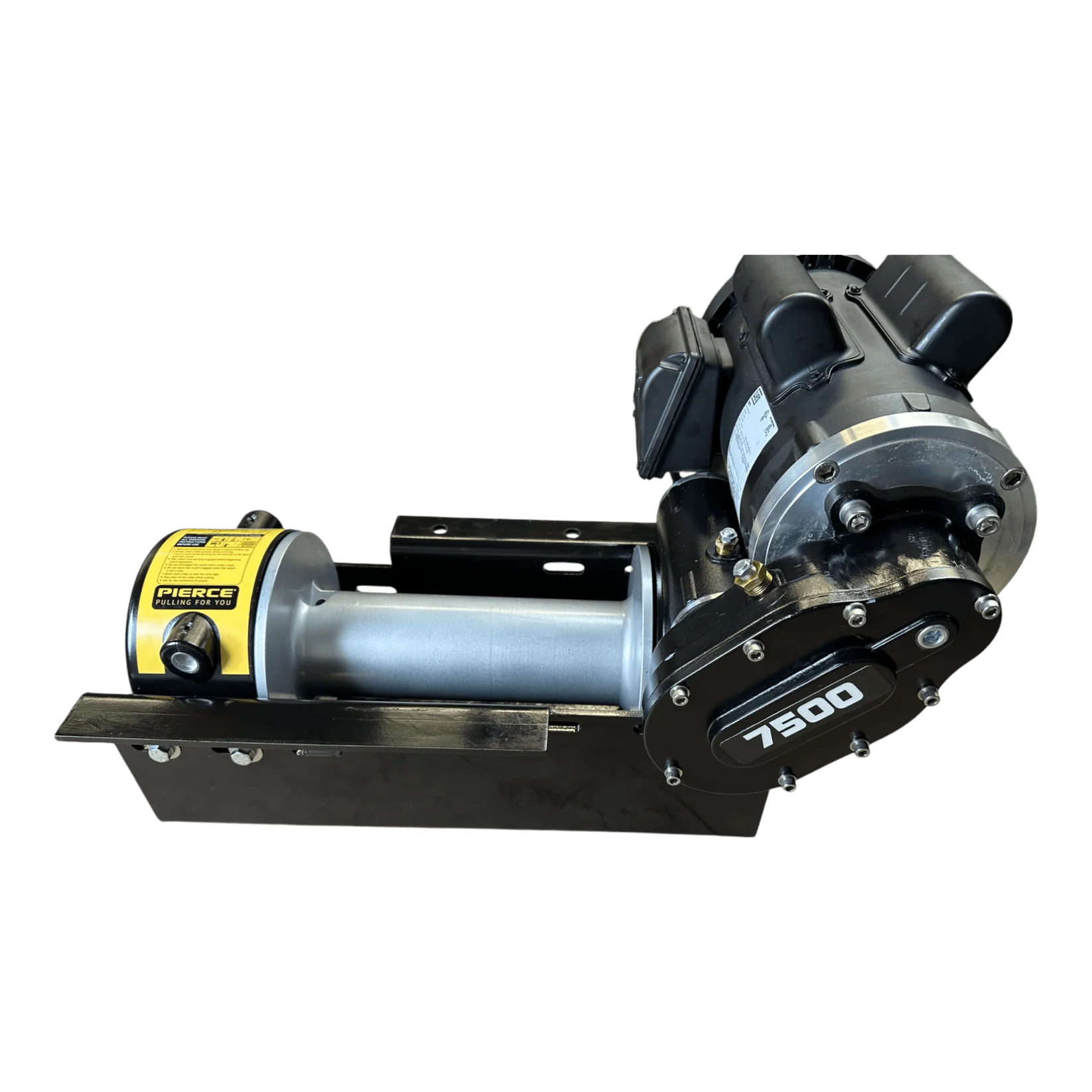

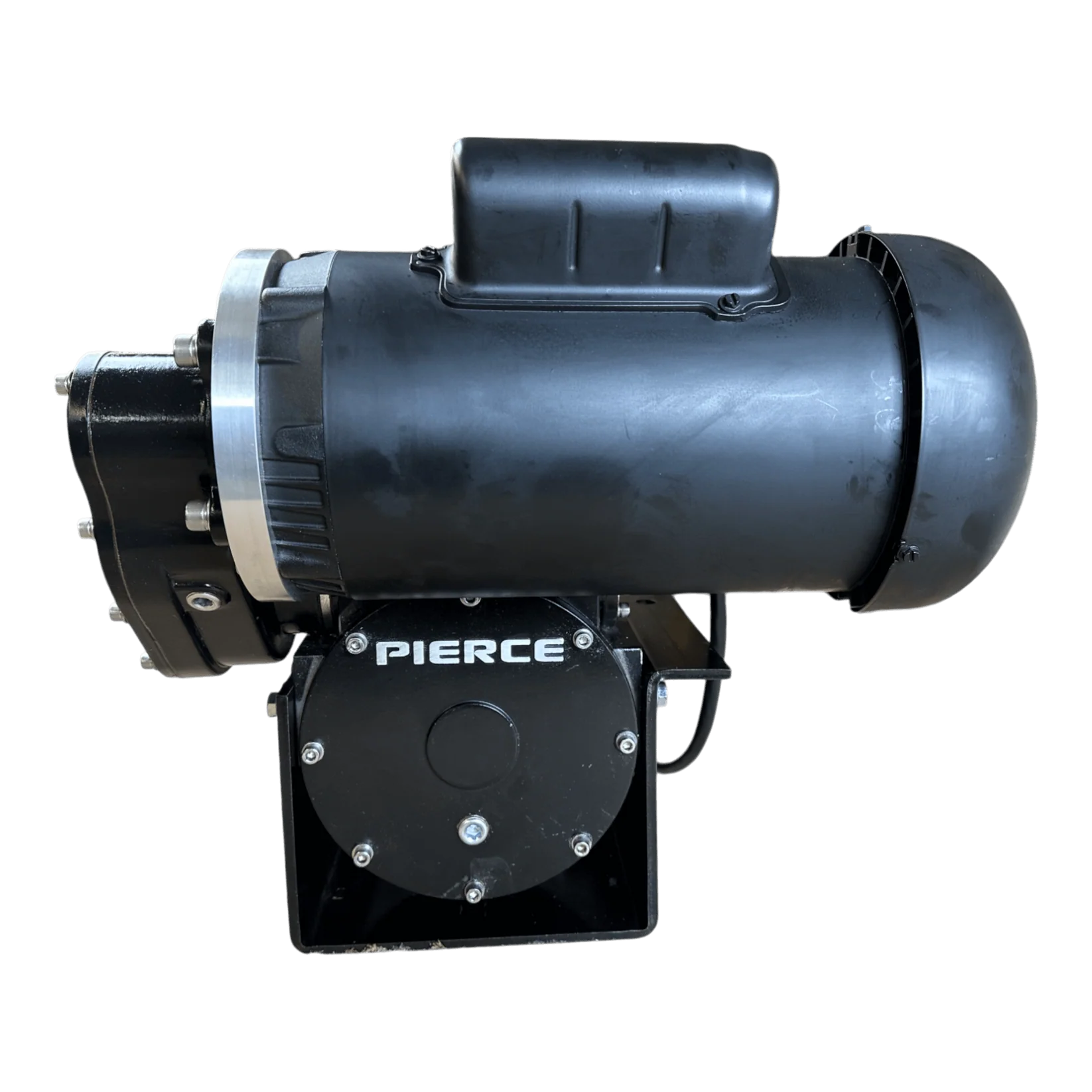

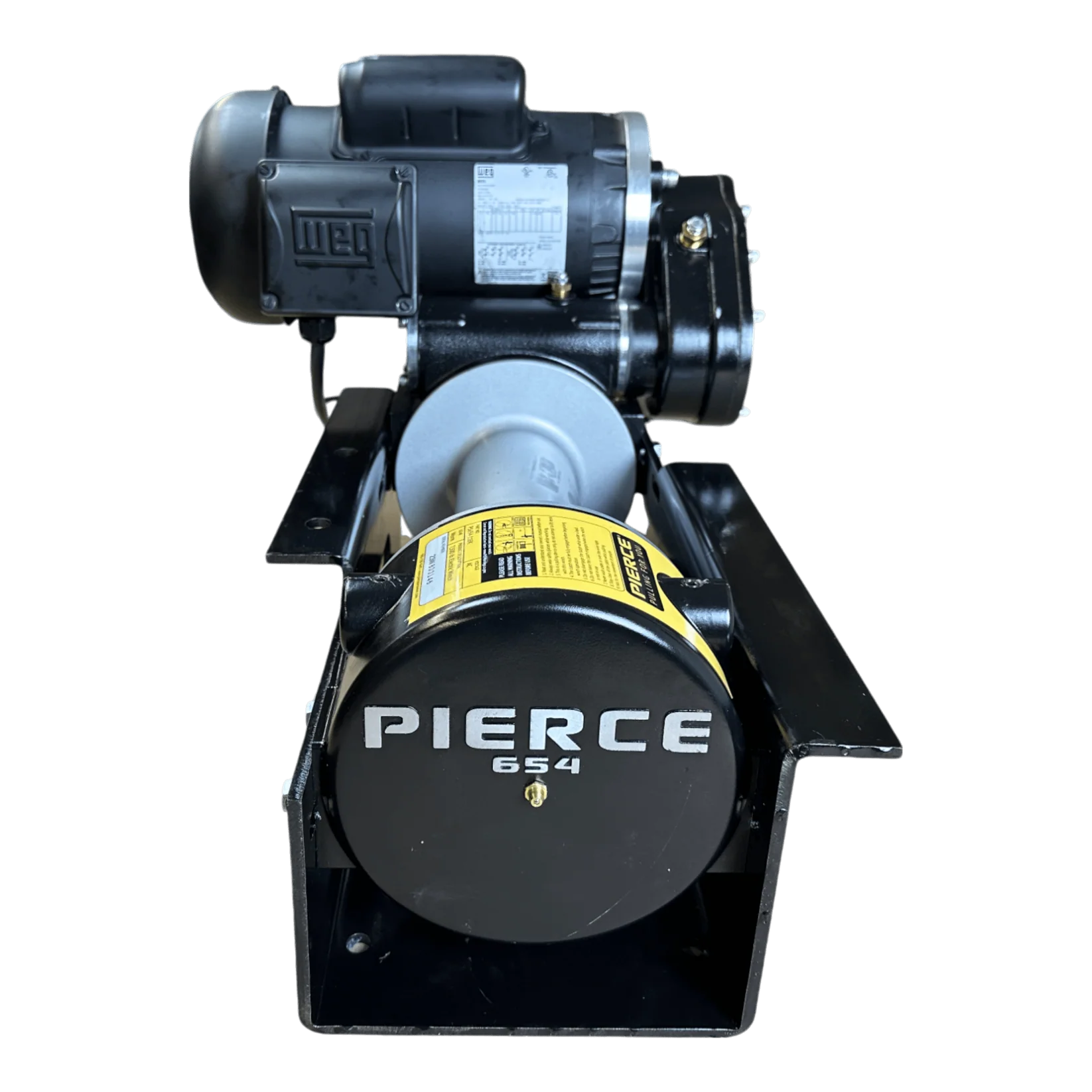

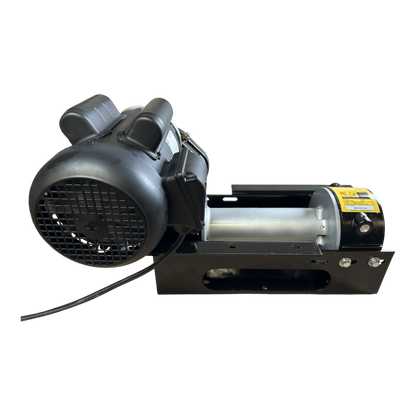

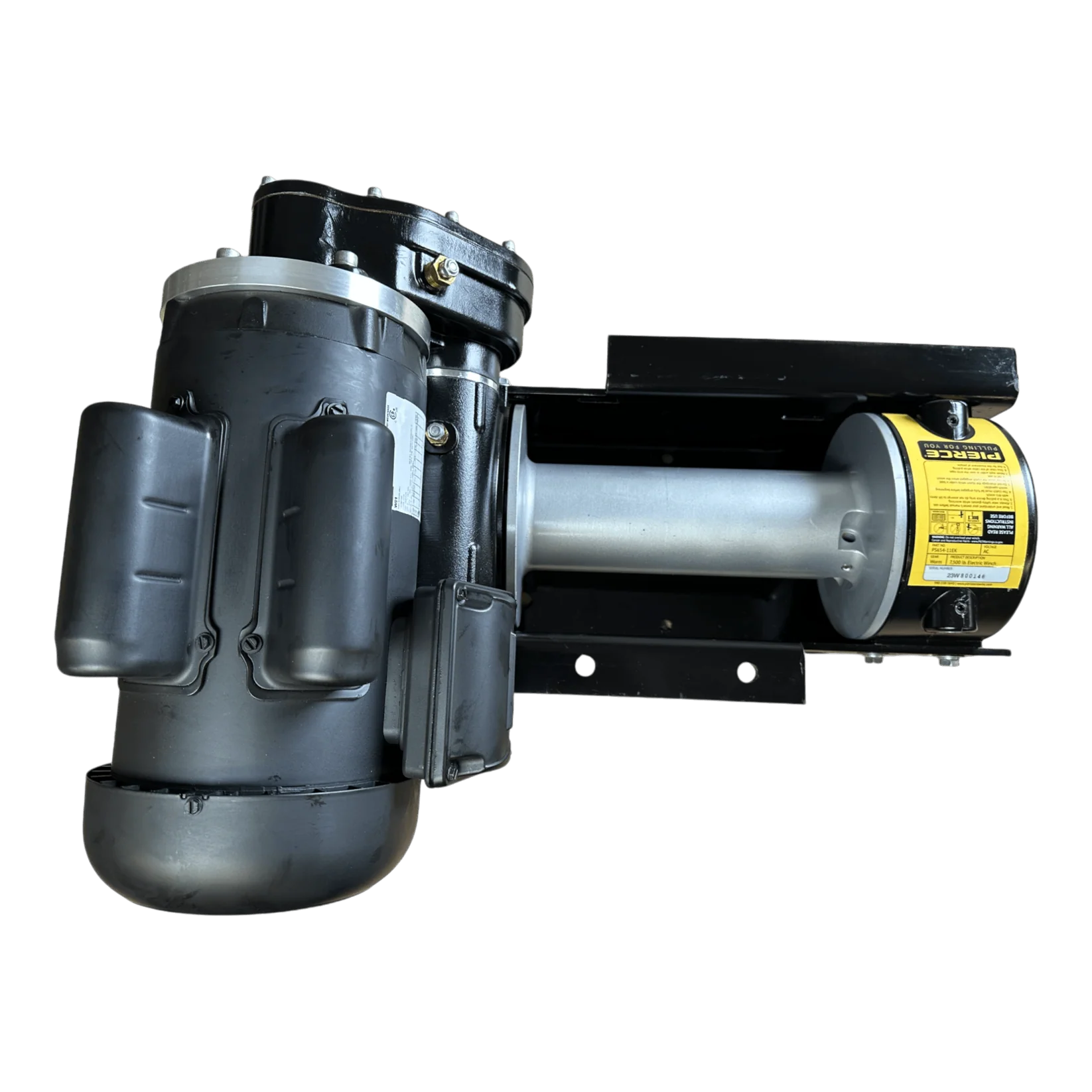

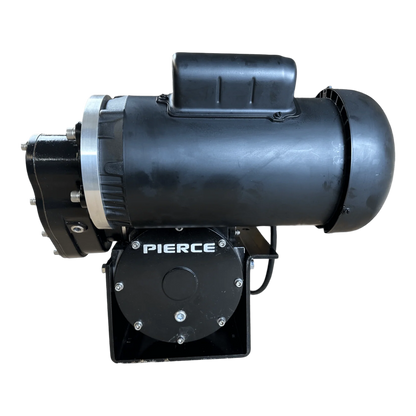

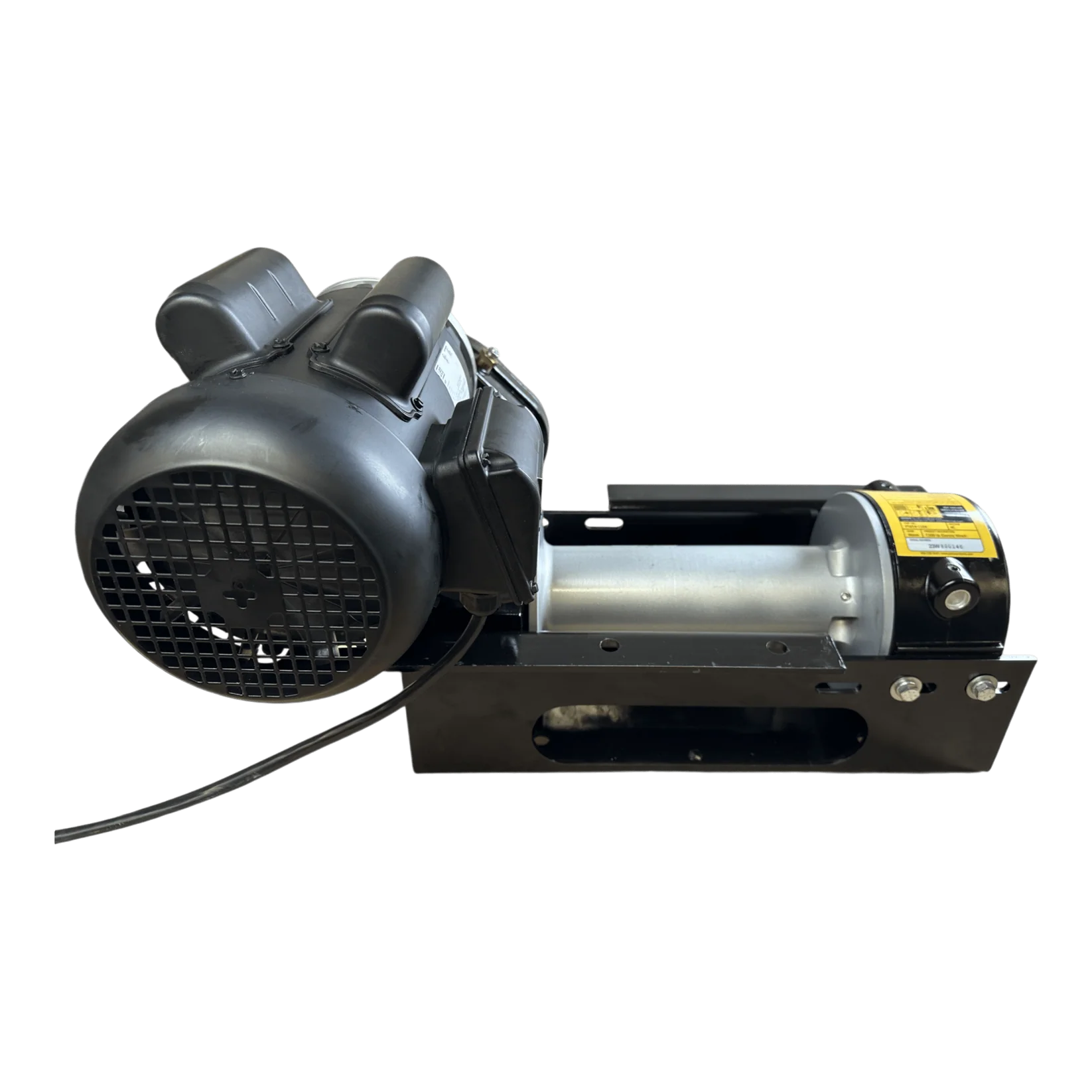

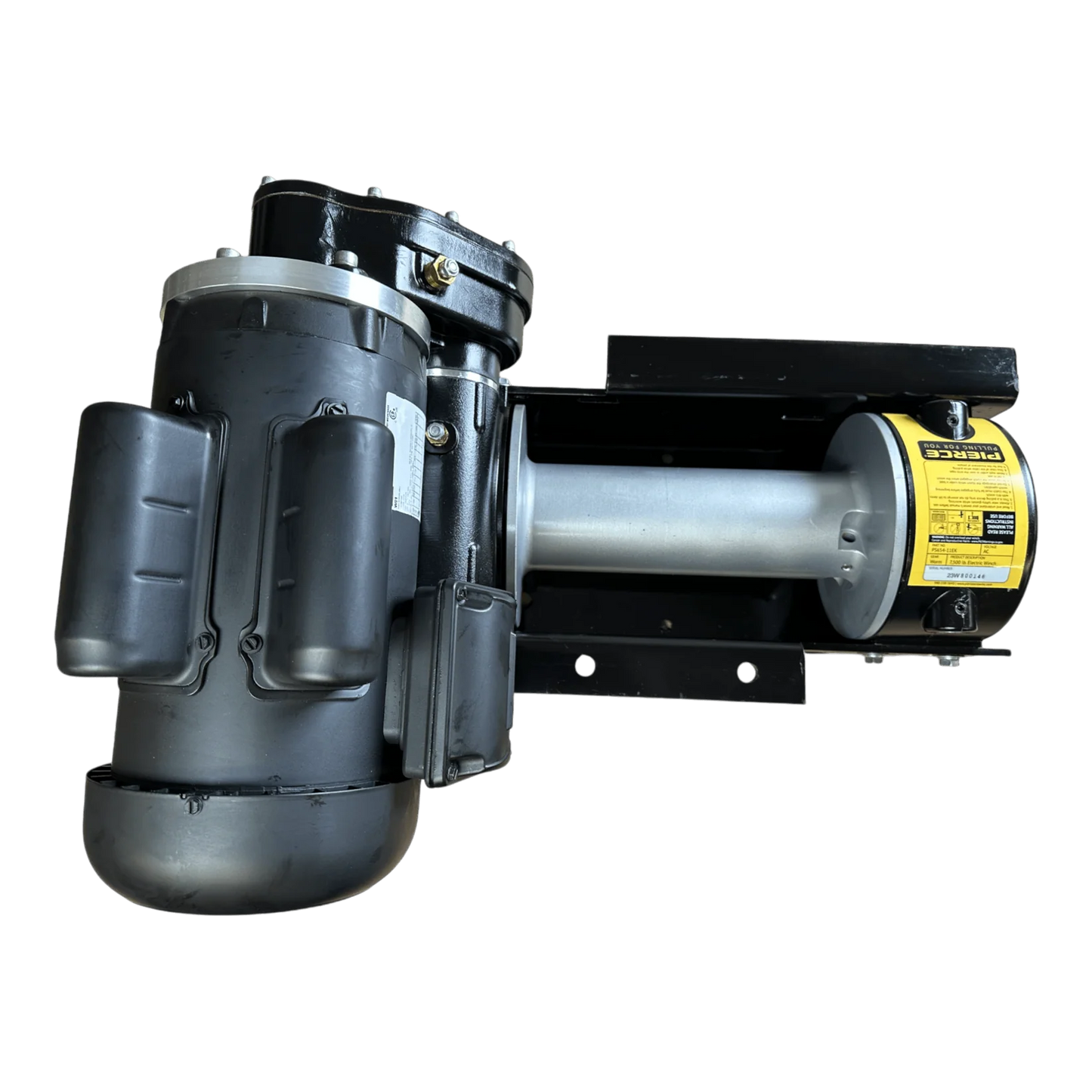

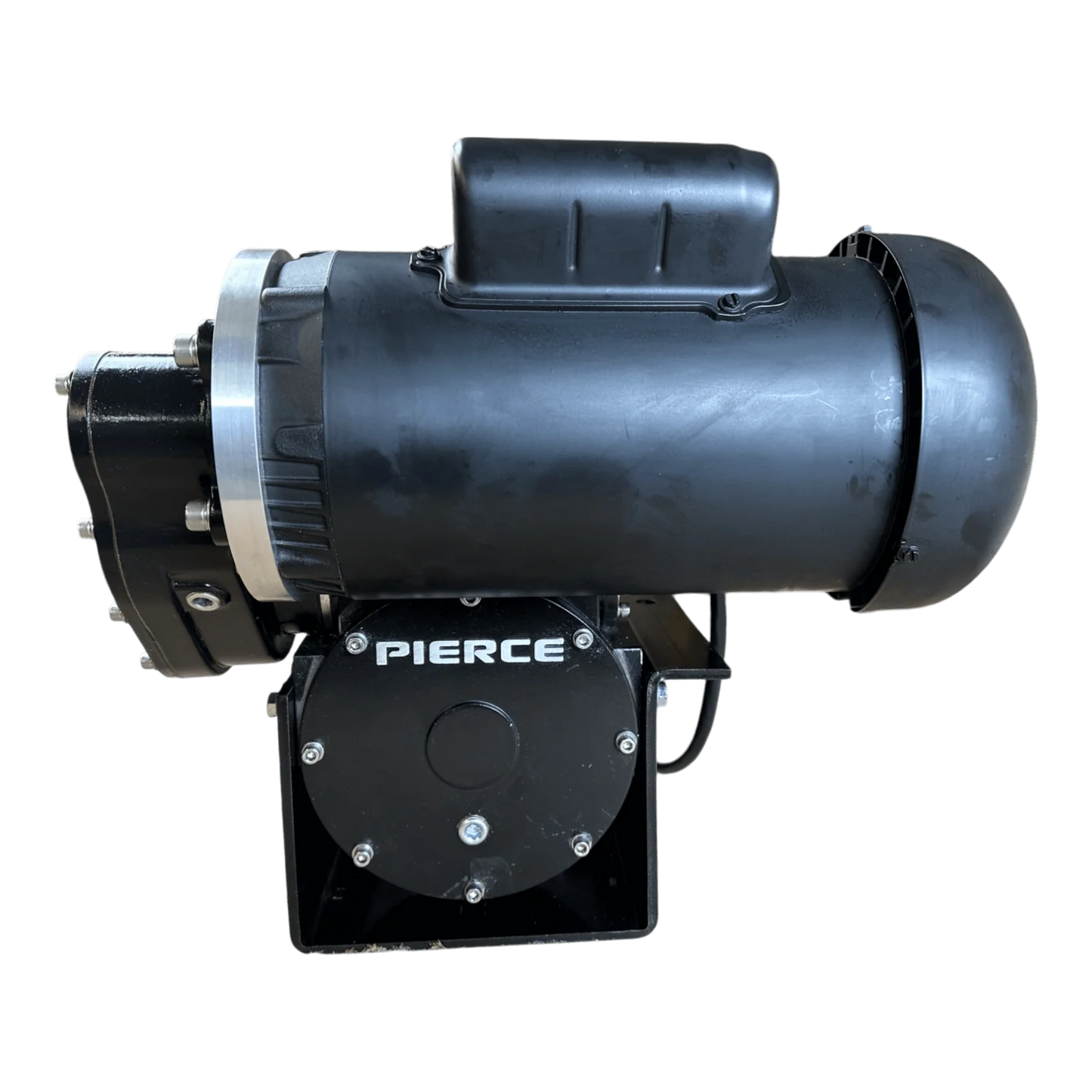

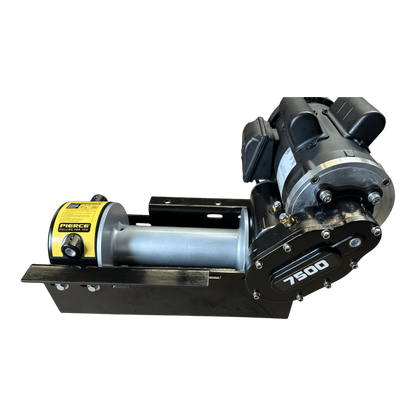

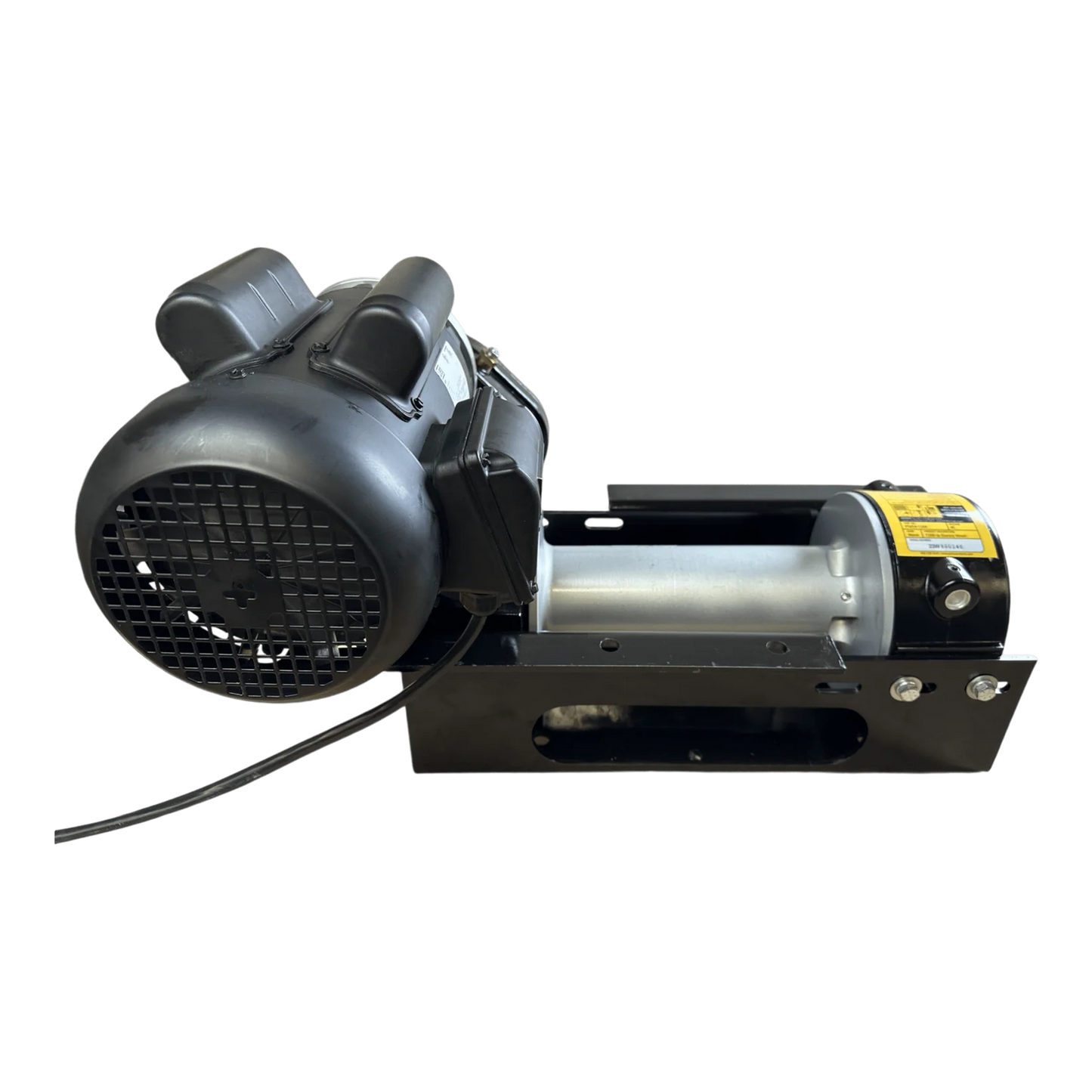

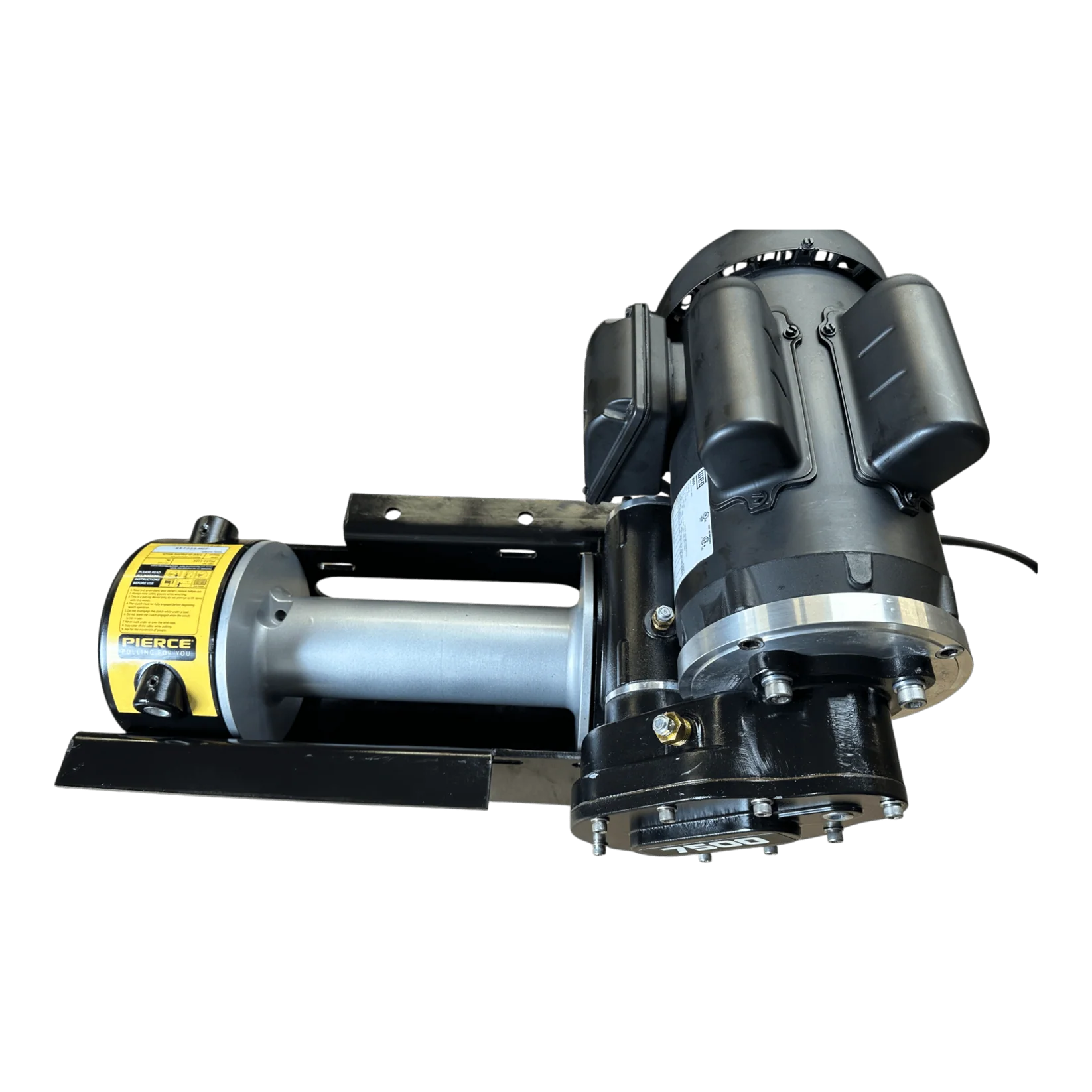

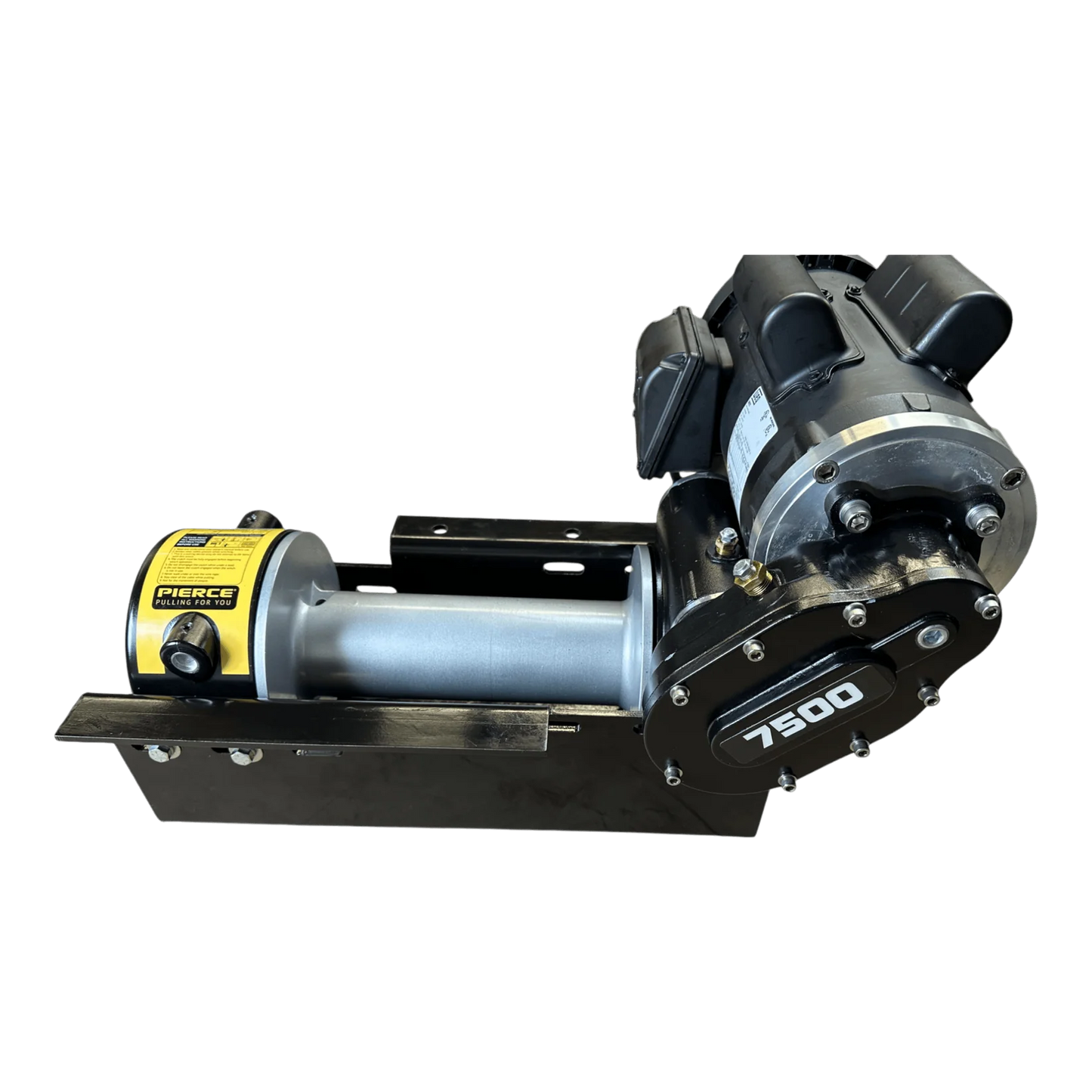

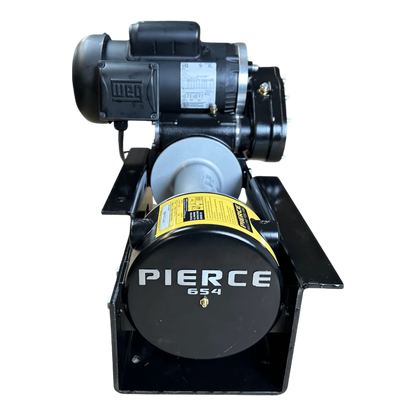

PIERCE 110V Electric Winch – 7,500 lb, 11" Drum. Pre-Order.
PIERCE 110V Electric Winch – 7,500 lb, 11" Drum. Pre-Order.
Regular price
$1,803.00 USD
Regular price
$1,893.15 USD
Sale price
$1,803.00 USD
Shipping calculated at checkout.
Request for Tax Exemptions
Quantity
Couldn't load pickup availability
14 in stock
PS654-11EK
Reliable 7,500 lb 110V Winch for Extended Line Pulls. Pre-Order.
The PS654-11EK 110V electric winch offers 7,500 lb of controlled pulling capacity with an 11" drum for longer cable runs. Built around the proven PIERCE worm-gear design, it delivers quiet, consistent performance and excellent load-holding power. Pre-mounted in the PBM1 cradle and built to order for quick turnaround.
- 7,500 lb rated pulling capacity
- 11" drum accommodates up to 125' of 3/8" wire rope
- 110V AC motor with safe, slow line speed
- Includes PBM1 cradle mount and wired control
Applications: Dock lifts, boat hoists, industrial pull systems, and stationary equipment.
⚠️ A certified electrician is required to install this product. Do not attempt installation without proper certification or training.
Included:
1 x [PS654-11EK] - PIERCE 110V Electric Winch – 7,500 lb, 11" Drum
1 x [PBM1] - Standard Winch Mount 654 Series
1 x [P003NSK] - Wired Control for 110V PIERCE 654 Series Single Phase Winch
1 x Instructions
| Specification | Details |
|---|---|
| AMP DRAW | 17.4 |
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 11 in. |
| GEAR RATIO | 460:1 |
| GEAR TYPE | Worm Gear |
| MAX CAPACITY (LBS.) | 7500 |
| MAX LINE SPEED | 4 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 110 Volts AC |
| POWER SOURCE | Electric, AC |
| RECOMMENDED WIRE | 12-14 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 125 ft. |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Spec Sheet: https://www.piercearrowinc.com/pages/docs/psw-654-ek-spec-sheet
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
