PIERCE 110V Electric Winch – 11,000 lb, 11" Drum (Planetary Drive) - Pre Order
PIERCE 110V Electric Winch – 11,000 lb, 11" Drum (Planetary Drive) - Pre Order
Couldn't load pickup availability
Low stock: 7 left
High-Torque 11,000 lb 110V Winch with Planetary Drive. Pre-Order.

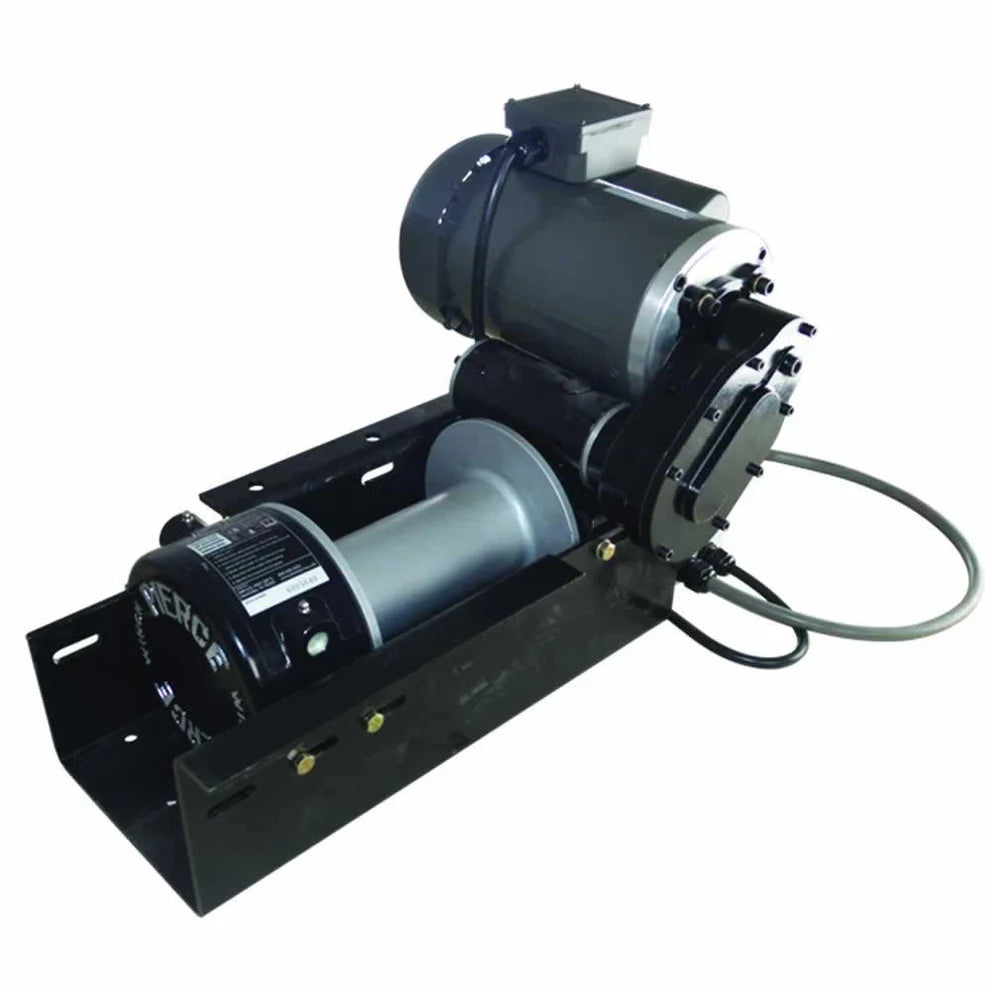

The PIERCE PS654-11EMK combines a worm-gear base with a built-in planetary reduction for greater torque and smoother control. Rated for 11,000 lb, it’s the most powerful 110V model in the PS654 line. Designed for stationary pulling where strength and precision matter most, it arrives pre-mounted in the PBM1 cradle and ships within 1–2 business days.
- 11,000 lb rated pulling capacity with planetary gear assist
- 11" drum holds up to 125' of 3/8" wire rope
- Slow, deliberate line speed for maximum control and safety
- Includes PBM1 cradle mount and wired control
Applications: Heavy dock lifts, industrial pull stations, marine hoists, and barge positioning.
⚠️ A certified electrician is required to install this product. Do not attempt installation without proper certification or training.
Included:
| Specification | Details |
|---|---|
| AMP DRAW | 17.4 |
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 11 in. |
| GEAR RATIO | 728.5:1 |
| GEAR TYPE | Worm Gear |
| MAX CAPACITY (LBS.) | 11000 |
| MAX LINE SPEED | 4 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 110 Volts AC |
| POWER SOURCE | Electric, AC |
| RECOMMENDED WIRE | 12-14 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 125 ft. |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Spec Sheet: https://www.piercearrowinc.com/pages/docs/psw-654-emk-spec-sheet
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
