PIERCE 9,000 lbs. 11" Drum Industrial Hydraulic Winch
PIERCE 9,000 lbs. 11" Drum Industrial Hydraulic Winch
Couldn't load pickup availability
12 in stock
Hydraulic Power and Control for Professional Industrial Use

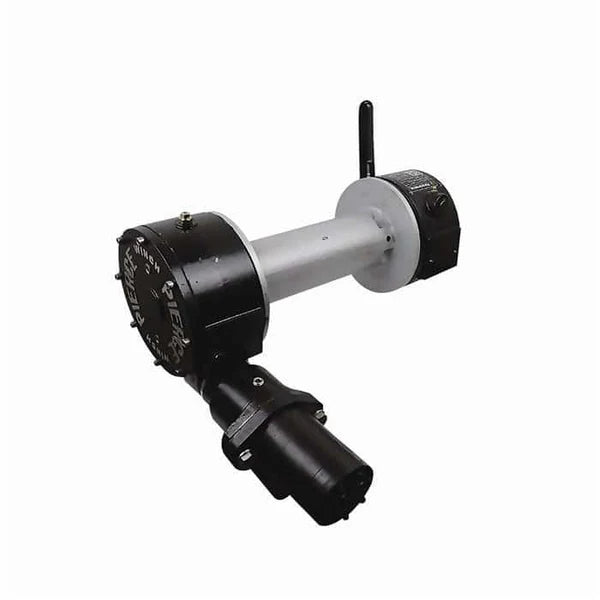

The PIERCE 9,000 lb Industrial Hydraulic Winch – 11" Drum combines smooth hydraulic performance with dependable pulling strength for demanding work environments. Featuring a precision planetary gear system and a spring-applied multi-disc brake, it delivers consistent torque and secure load holding under pressure. The 11" drum design increases cable capacity for longer pulls, while the rugged hydraulic motor ensures continuous-duty reliability. Built to perform in the field or in-plant, this winch is a proven solution for operators who need reliable, high-output control.
- 9,000 lb hydraulic pulling capacity for industrial and recovery applications
- Three-stage planetary gear system ensures smooth, high-torque output
- Spring-applied multi-disc brake provides secure and responsive load holding
- 11" drum allows greater cable length for extended pulling distance
- Durable hydraulic construction supports continuous-duty performance
Applications: Ideal for industrial equipment, recovery, and transport operations requiring smooth, controlled hydraulic power.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 11 in. |
| GEAR RATIO | 60:1 |
| GEAR TYPE | Worm Gear |
| HYDRAULIC MOTOR | 4.8 in³ in/rev |
| MAX CAPACITY (LBS.) | 9000 |
| MAX LINE SPEED | 12 fpm |
| MAX OIL FLOW (GPM) | 15 |
| OPERATIONAL PRESSURE (PSI) | 2500 |
| POWER SOURCE | Hydraulic |
| RECOMMENDED WIRE ROPE | ⅜ in. x 125 ft. |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Specs: https://www.piercearrowinc.com/pages/docs/psw-654-hk-spec-sheet
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
