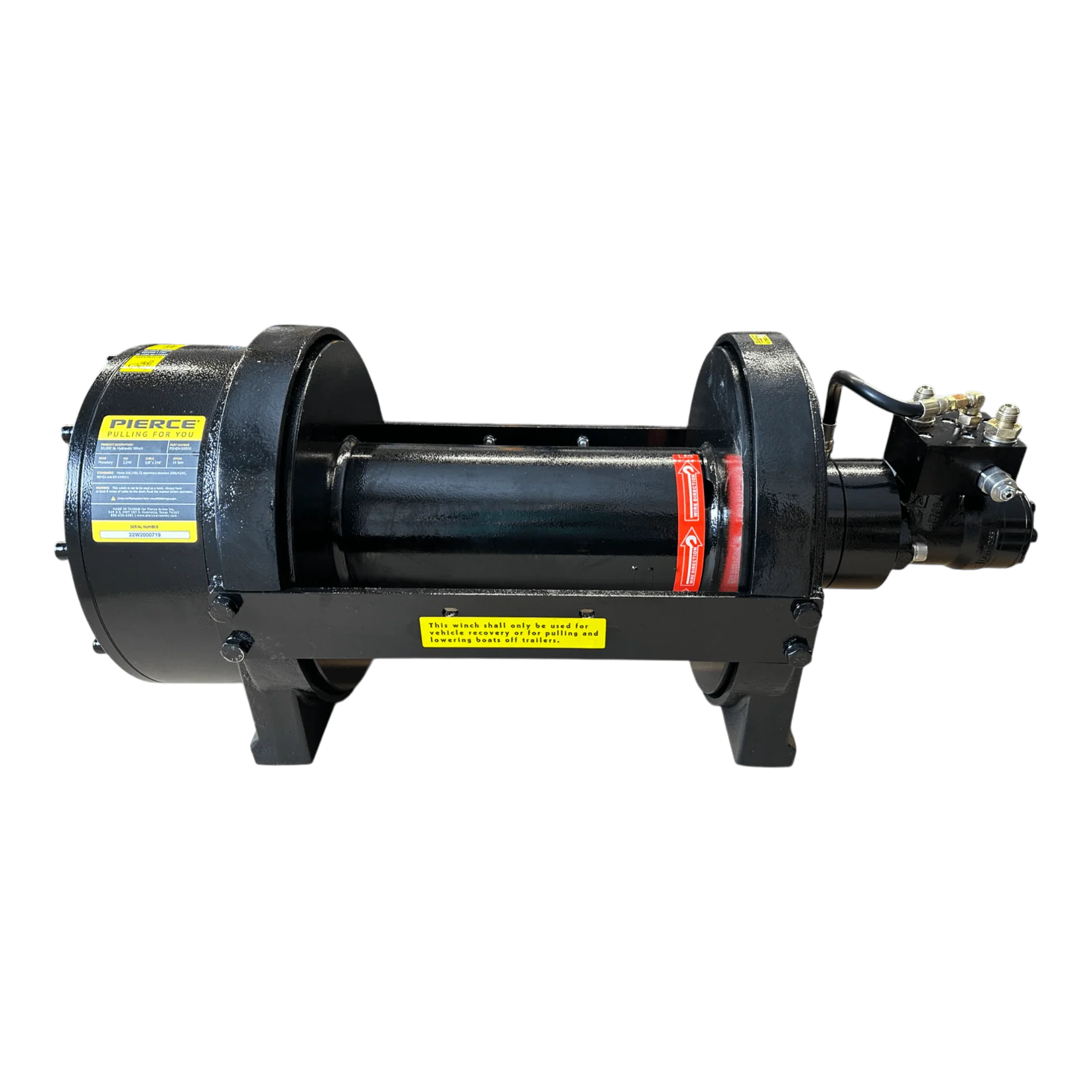

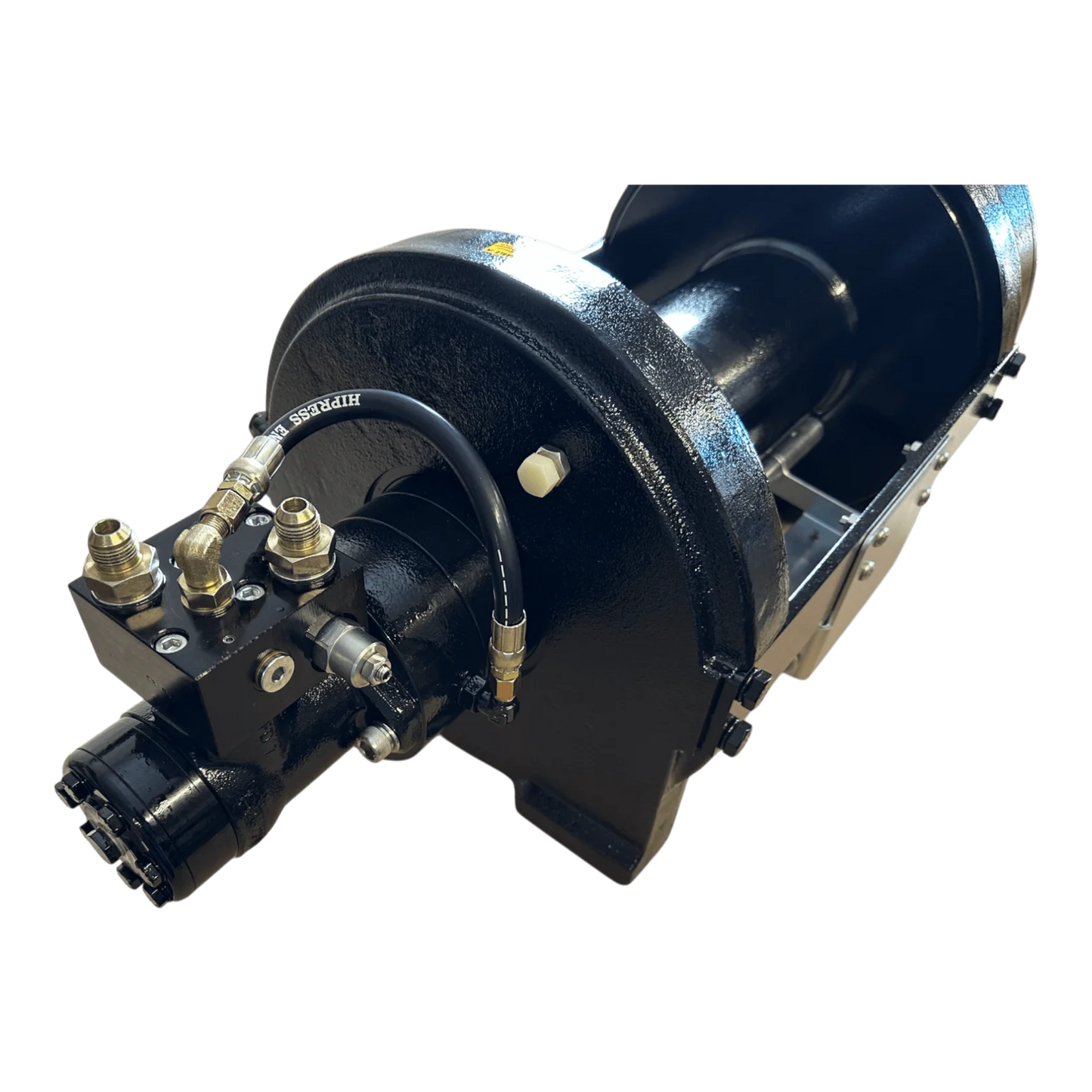

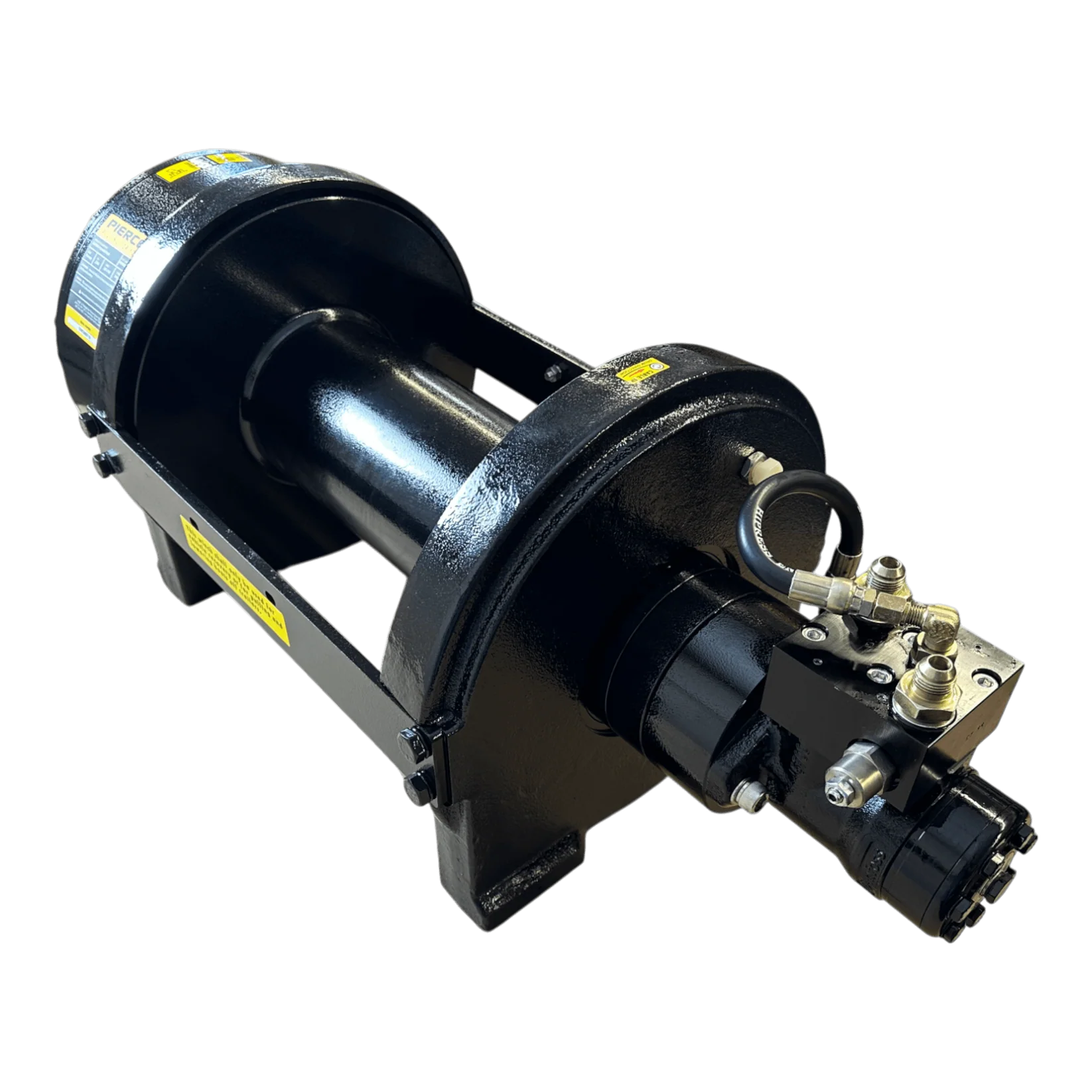

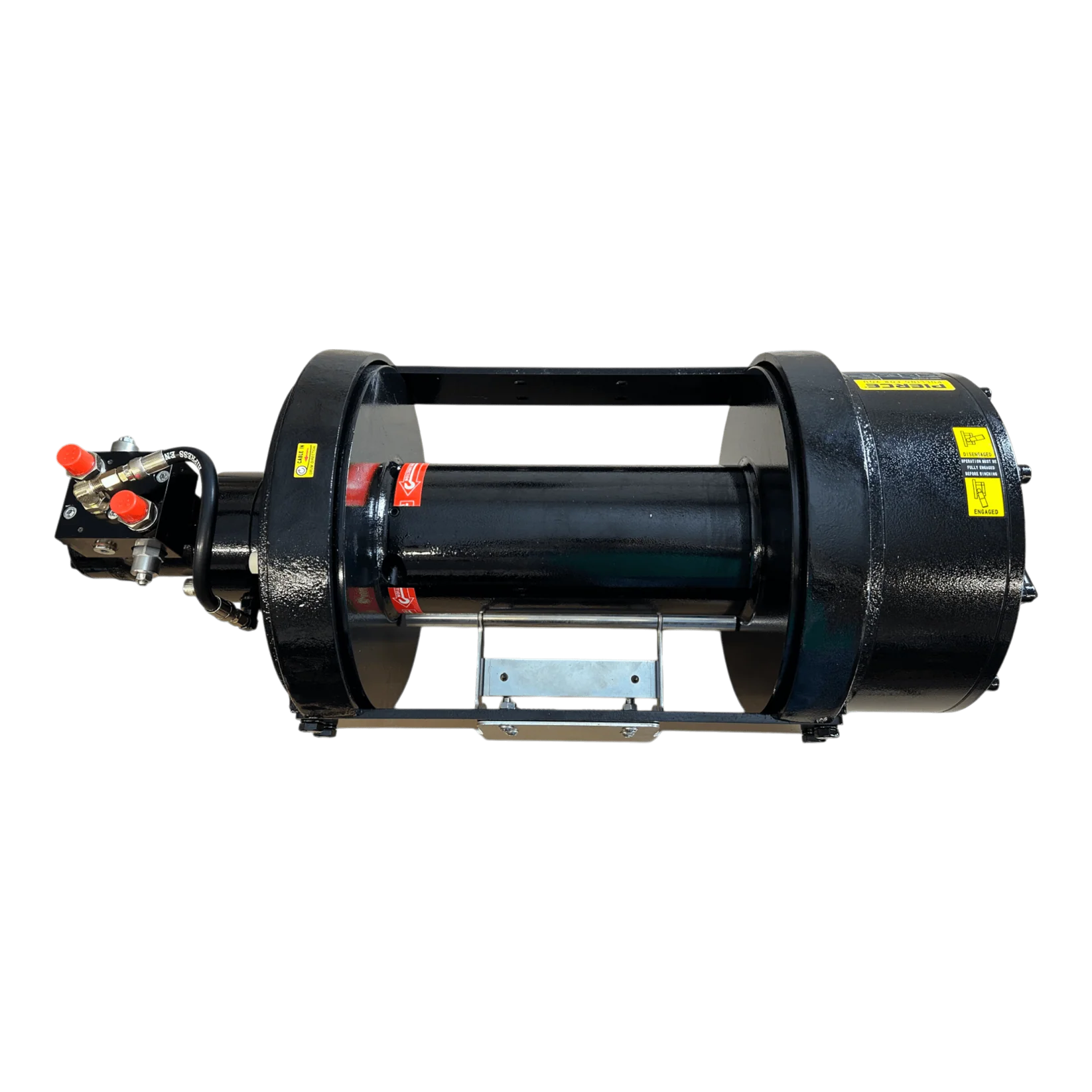

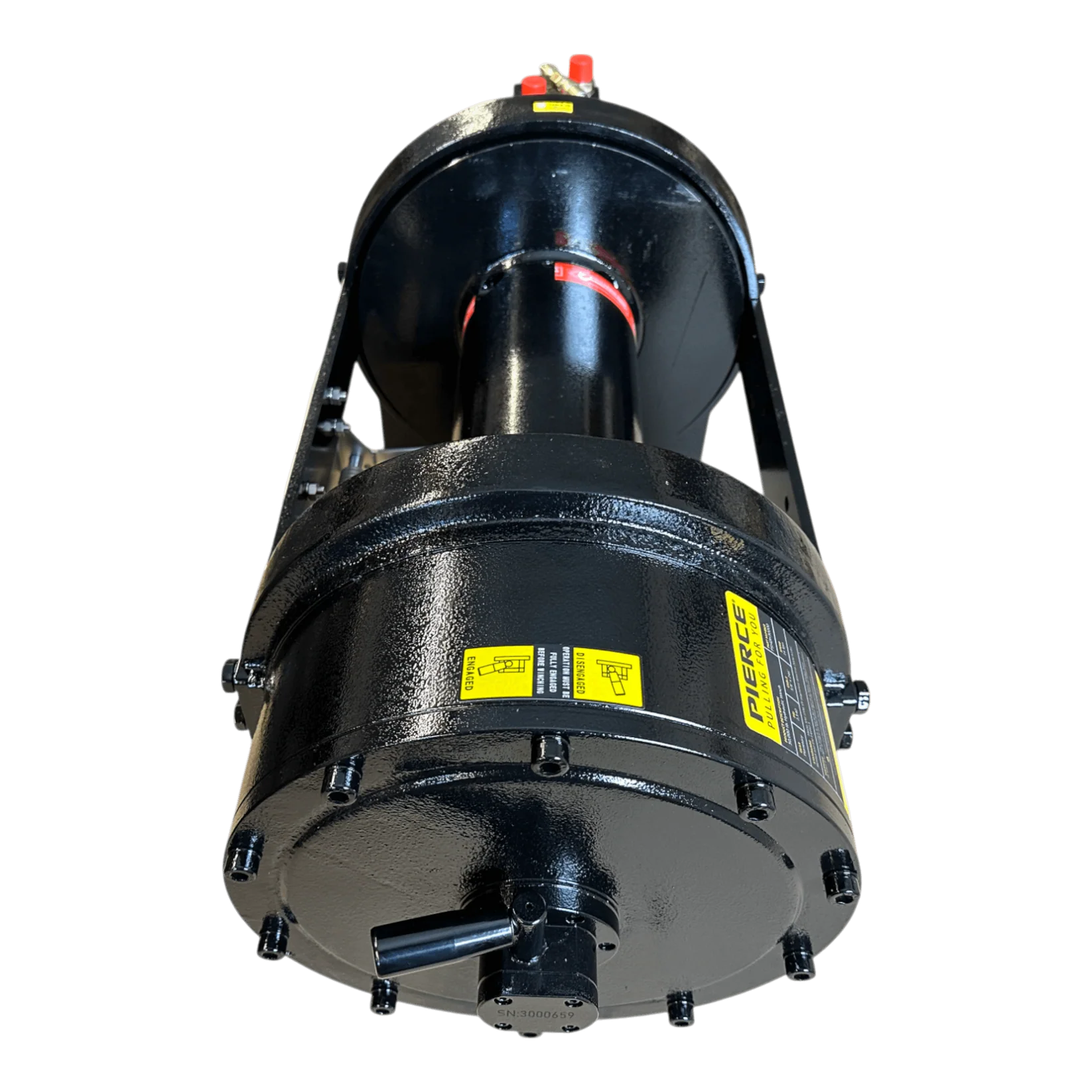

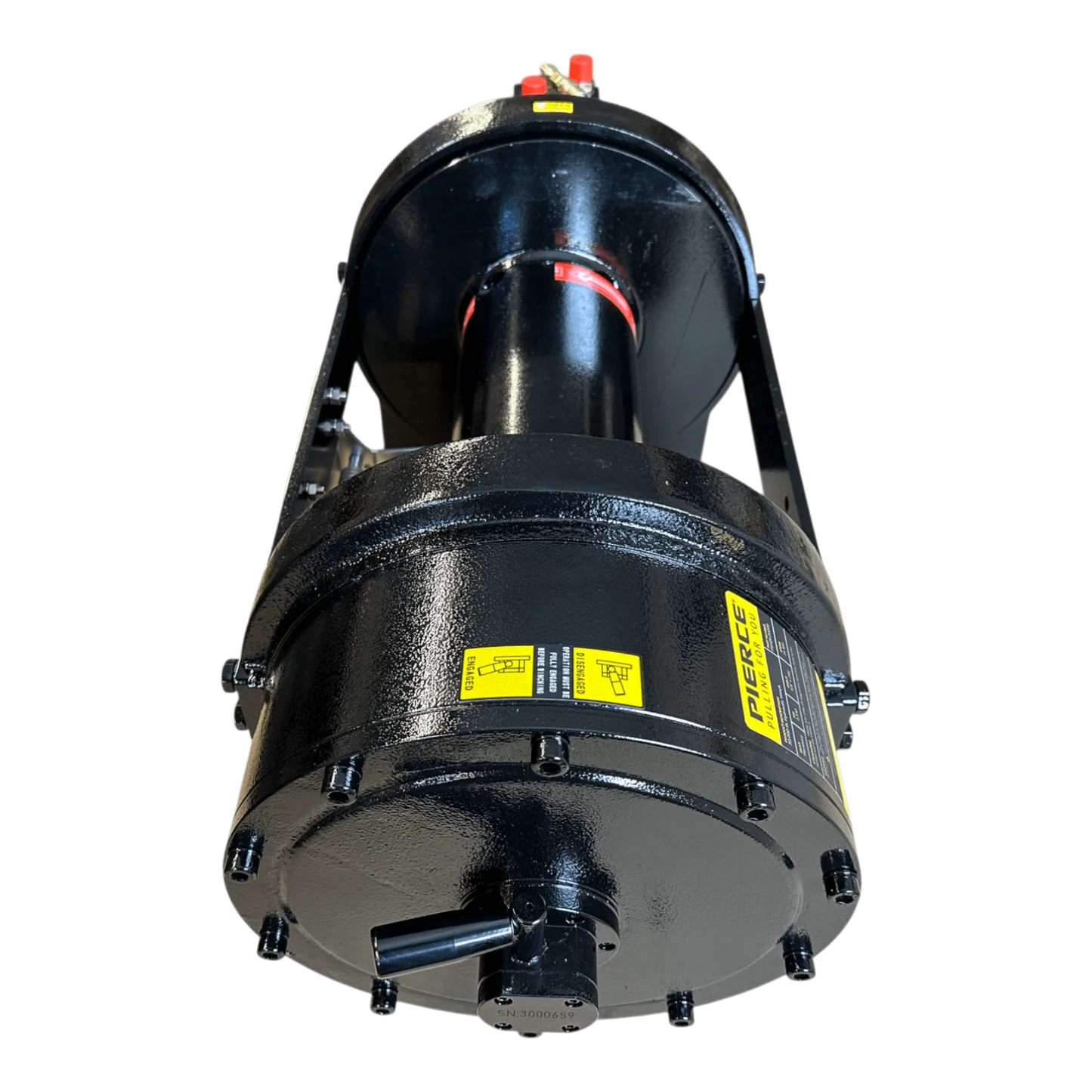

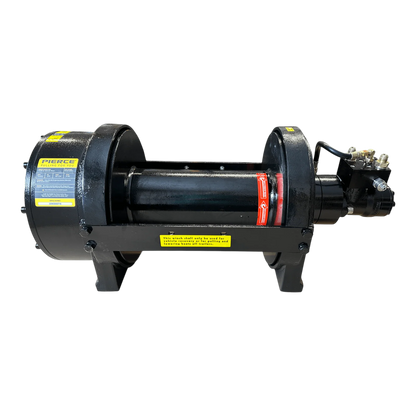

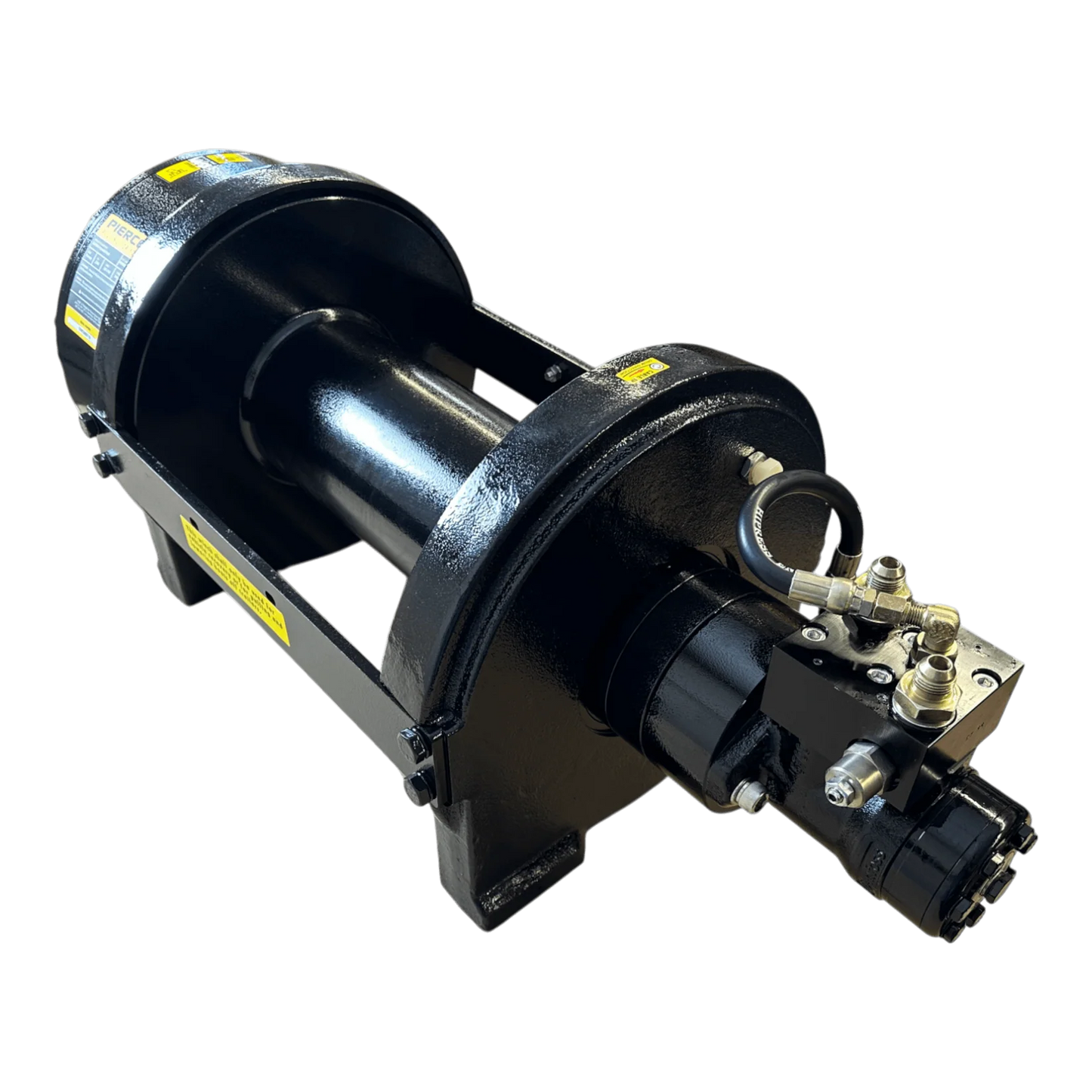

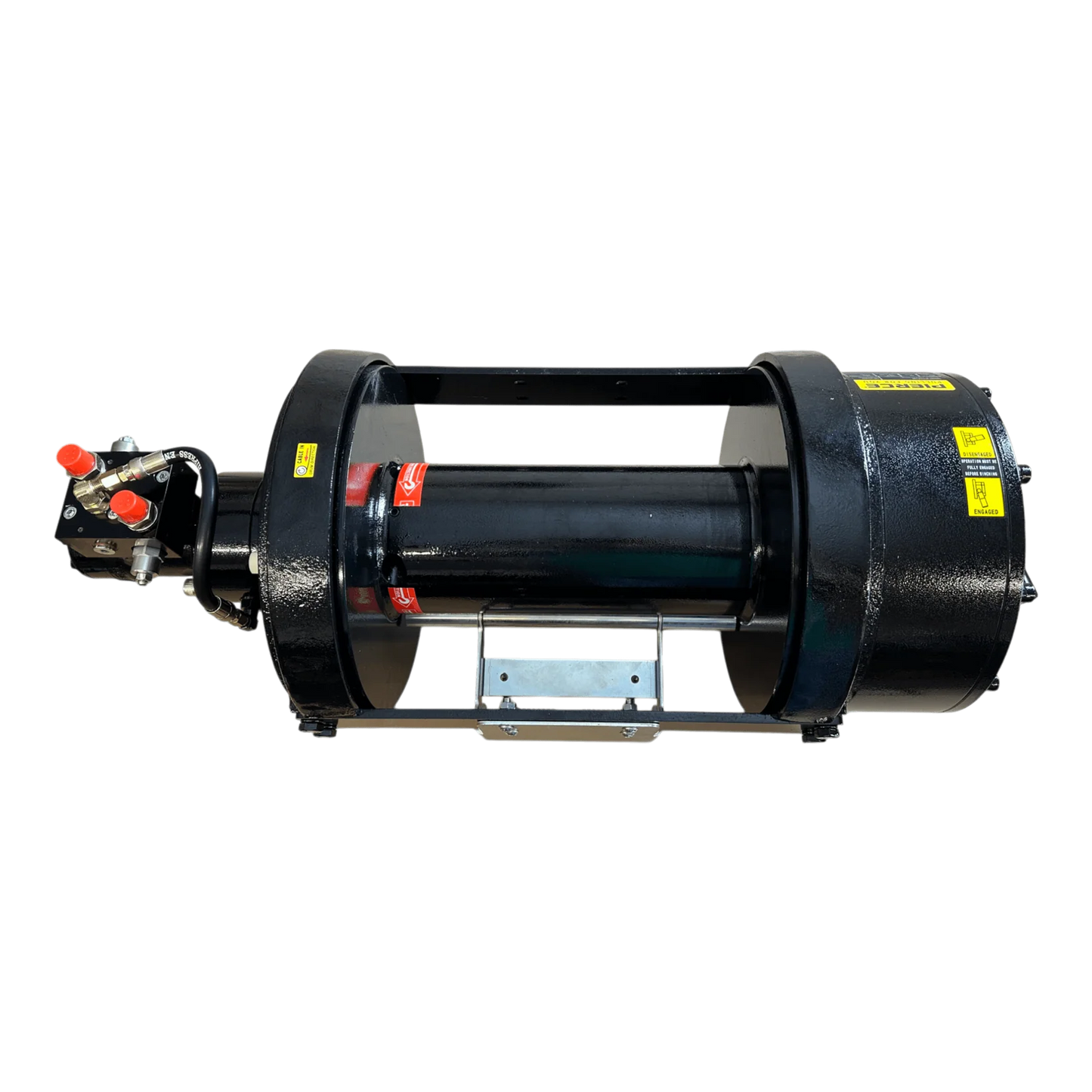

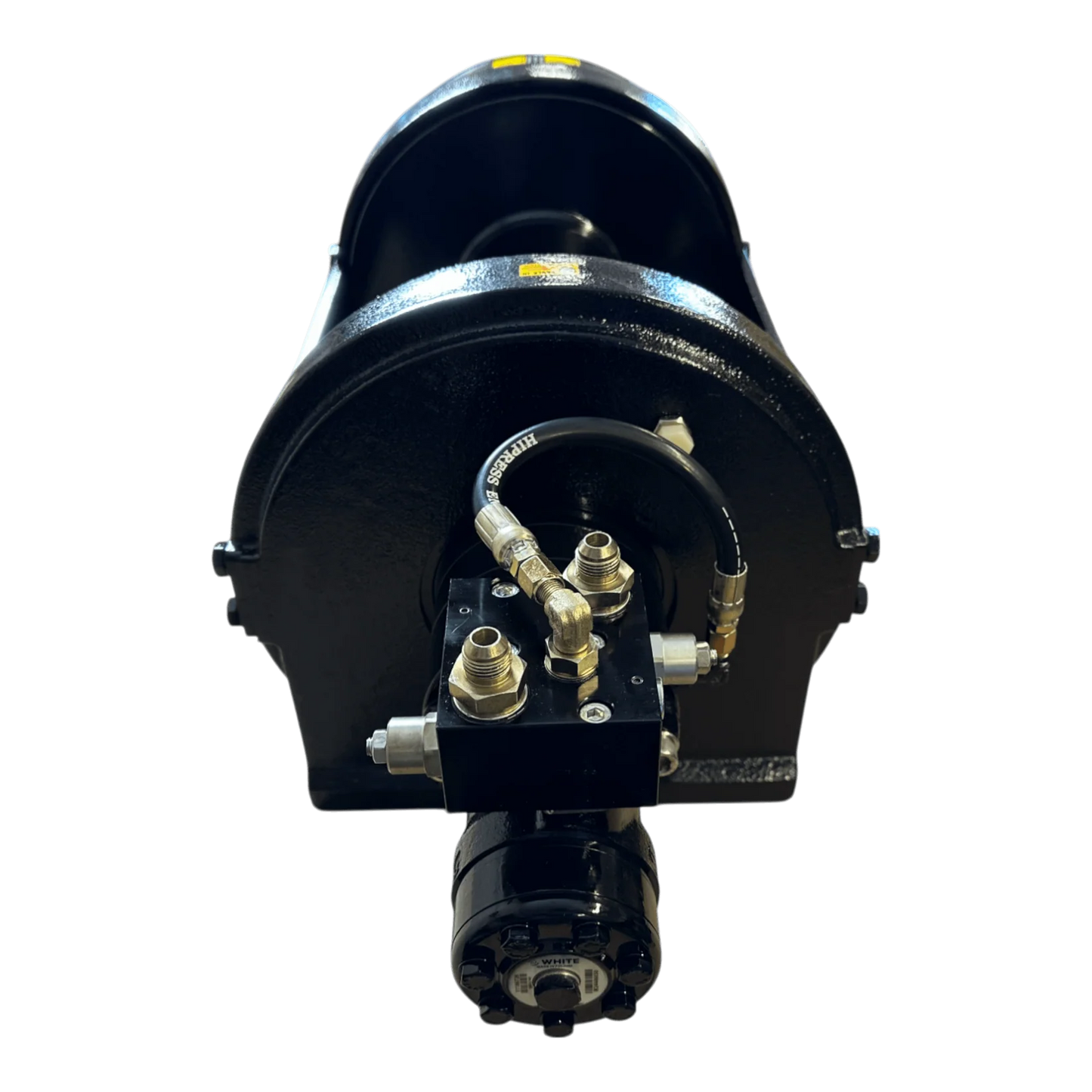

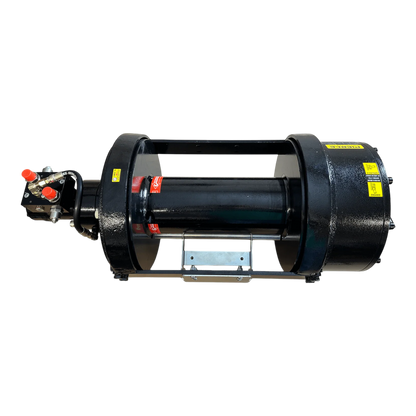

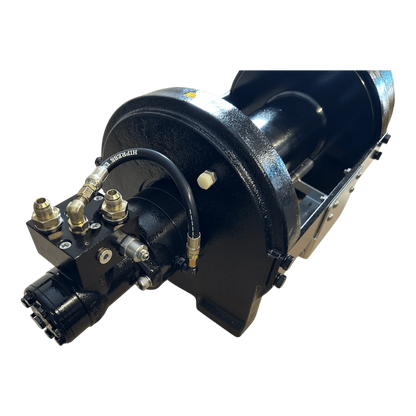

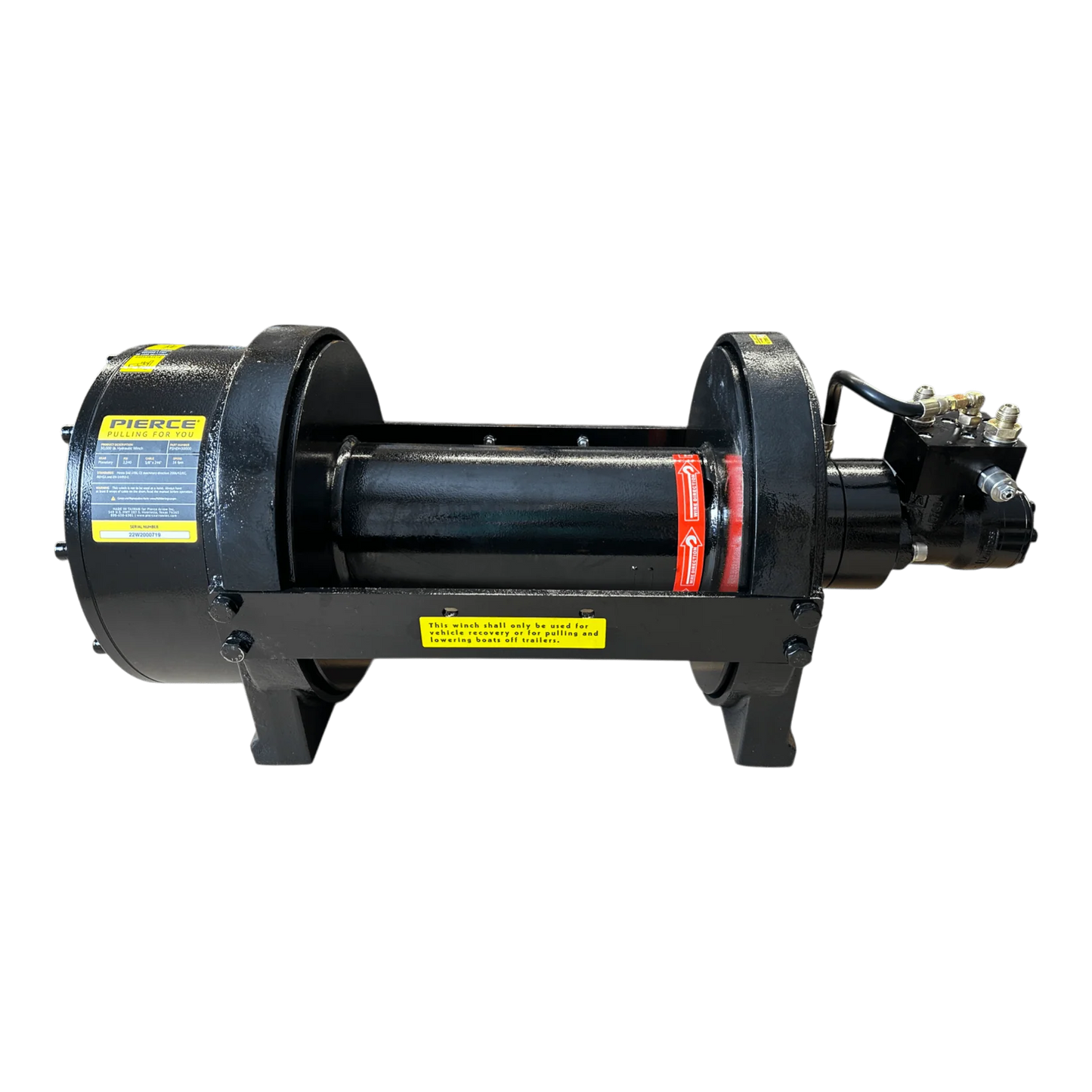

PIERCE 30,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch - Pre Order
PIERCE 30,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch - Pre Order
Couldn't load pickup availability
Low stock: 6 left
Pre Order - Reliable Hydraulic Strength for Heavy Recovery Operations
The PIERCE 30,000 lb Hydraulic Winch delivers dependable performance for operators who need serious pulling power and control. Designed with a proven three-stage planetary gear system and spring-applied multi-disc brake, it ensures steady torque and smooth, controlled load handling. The hydraulic drive provides consistent pulling force for long-duty cycles, making it a trusted choice for professional recovery fleets, oilfield operations, and heavy transport applications where uptime and reliability are essential.
- 30,000 lb pulling capacity for heavy industrial and recovery operations
- Three-stage planetary gear system provides smooth torque transfer and durability
- Spring-applied multi-disc brake ensures safe, reliable load holding
- Hydraulic power system built for consistent, high-load performance
- Durable steel housing withstands harsh jobsite conditions
Applications: Ideal for recovery trucks, oilfield service, heavy equipment trailers, and industrial machinery handling.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Multidisc Brake |

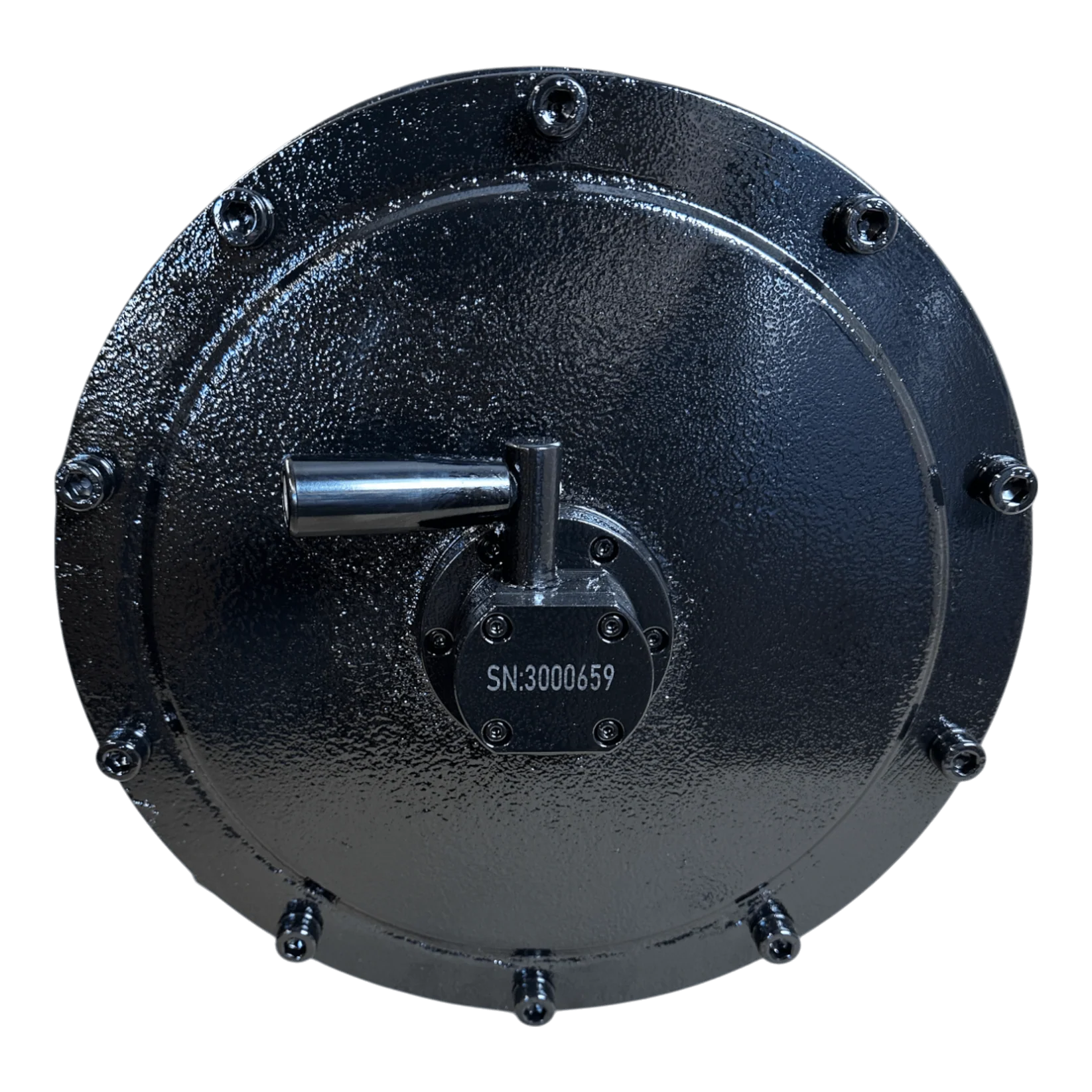

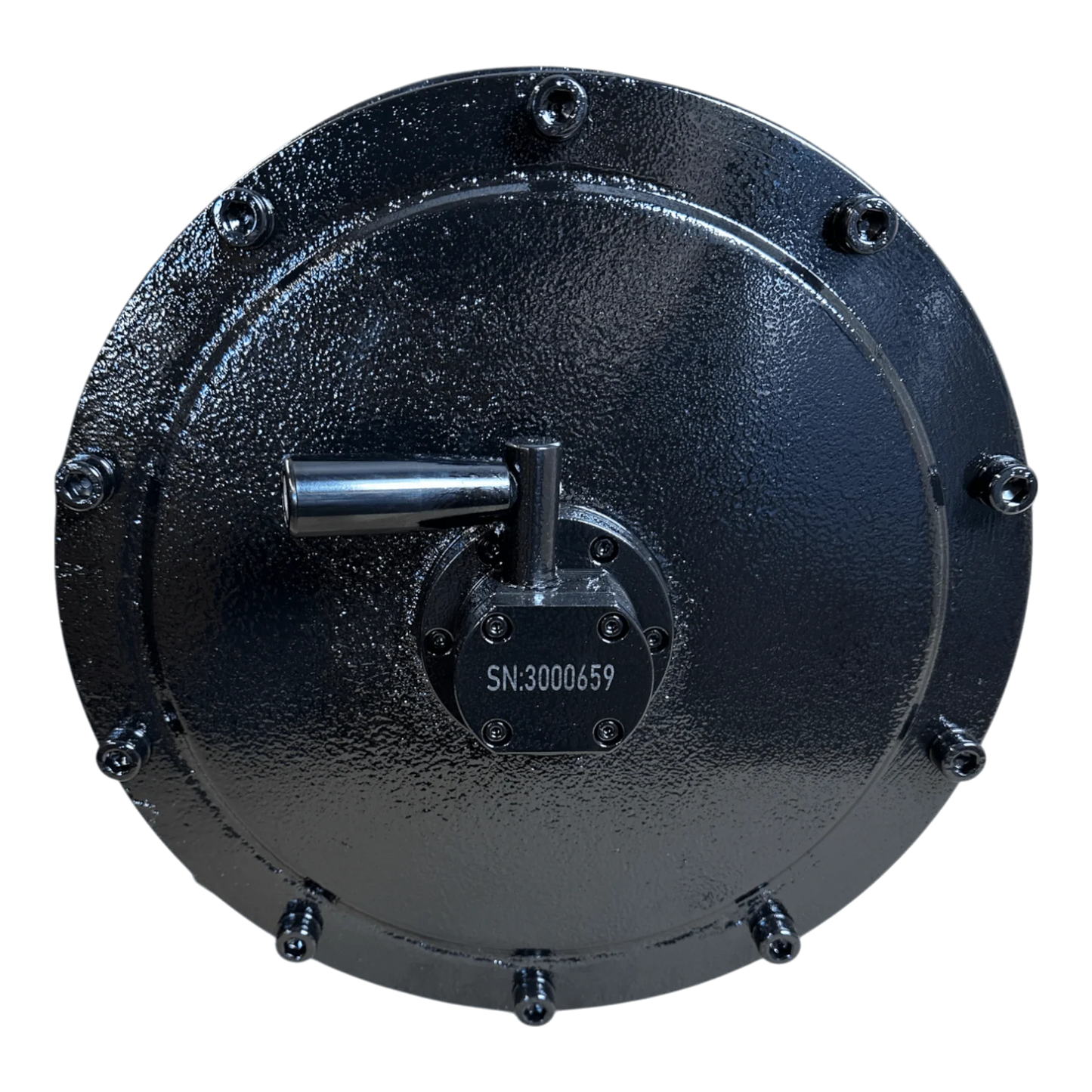

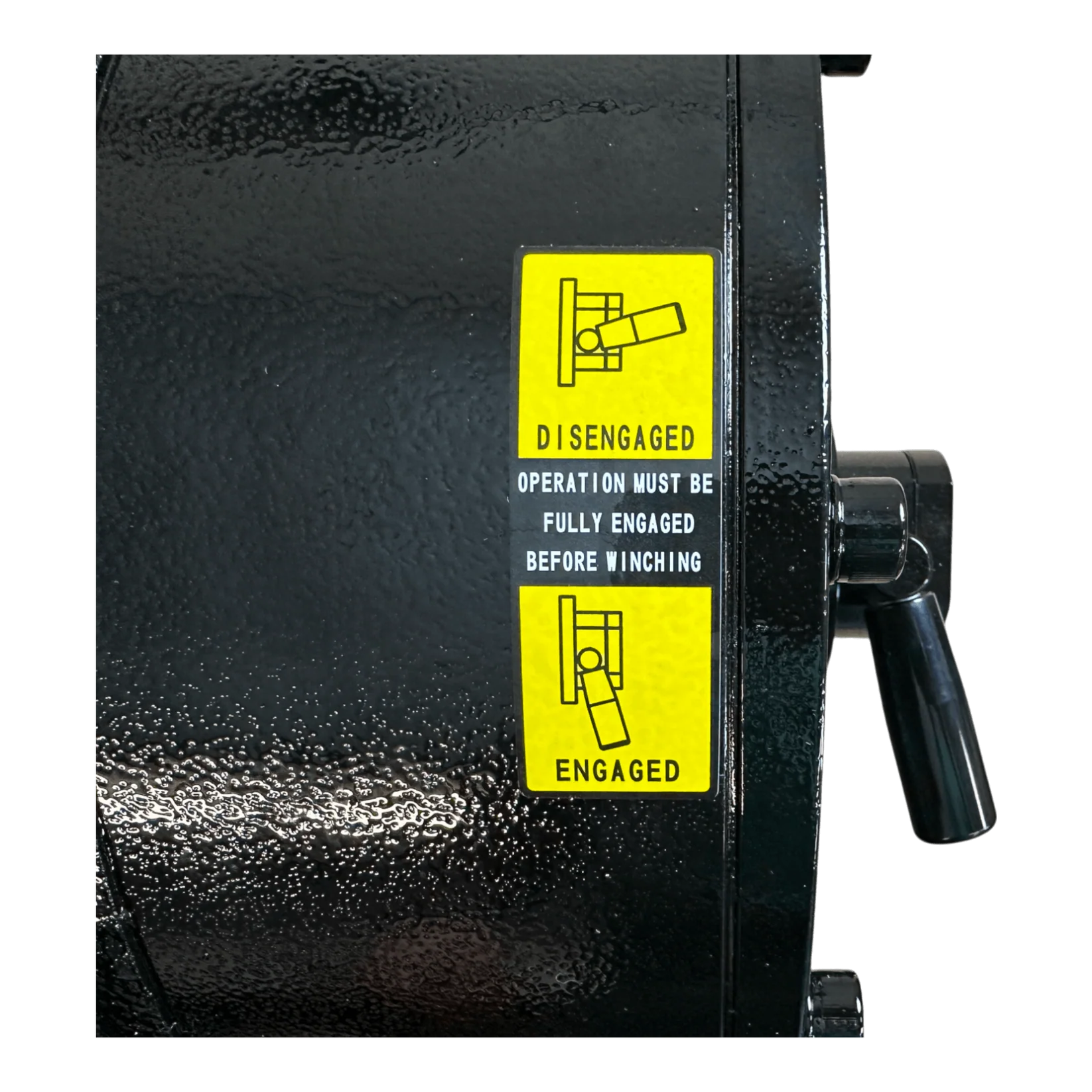

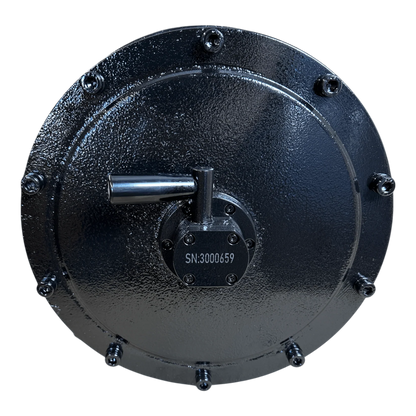

| CLUTCH TYPE | Output Shaft Disengaged |
| CONSTRUCTION | Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 41:1 |
| GEAR TYPE | 2-Stage Planetary Gear |

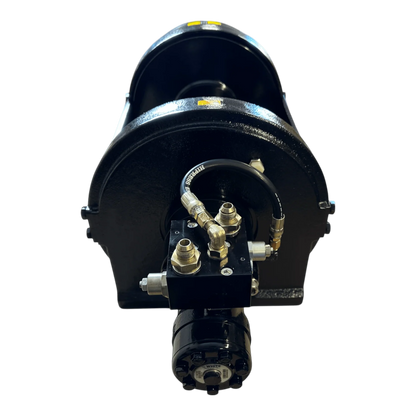

| HYDRAULIC MOTOR | 9.5 in³ / rev |
| MAX CAPACITY (LBS.) | 30000 |
| MAX LINE SPEED | 16 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| MOUNTING BOLT PATTERN | 7.5” x 18” ; 10.5” x 18” |
| OPERATIONAL PRESSURE (PSI) | 2540 |
| POWER SOURCE | Hydraulic |
| RECOMMENDED WIRE ROPE | ⅝" x 246' (1,960 N/mm2grade a minimum breaking strength of 179 KN required) |
PSHDH30000 Line Pull and Rope Layer
| Layer of Wire Rope | Pull by Layer (lbs.) | Total Rope on the Drum (ft.) | Line Speed (@ 15.9 gpm) fpm |
|---|---|---|---|
| 1st | 30,000 | 36 | 16 |
| 2nd | 25,216 | 82 | 19 |
| 3rd | 21,745 | 131 | 23 |
| 4th | 19,115 | 190 | 26 |
| 5th | 17,052 | 246 | 29 |
1 Year Warranty
All Parts guaranteed free of Defects.
- Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
