Pre-Order. High-Capacity Hydraulic Power with Air Clutch Control

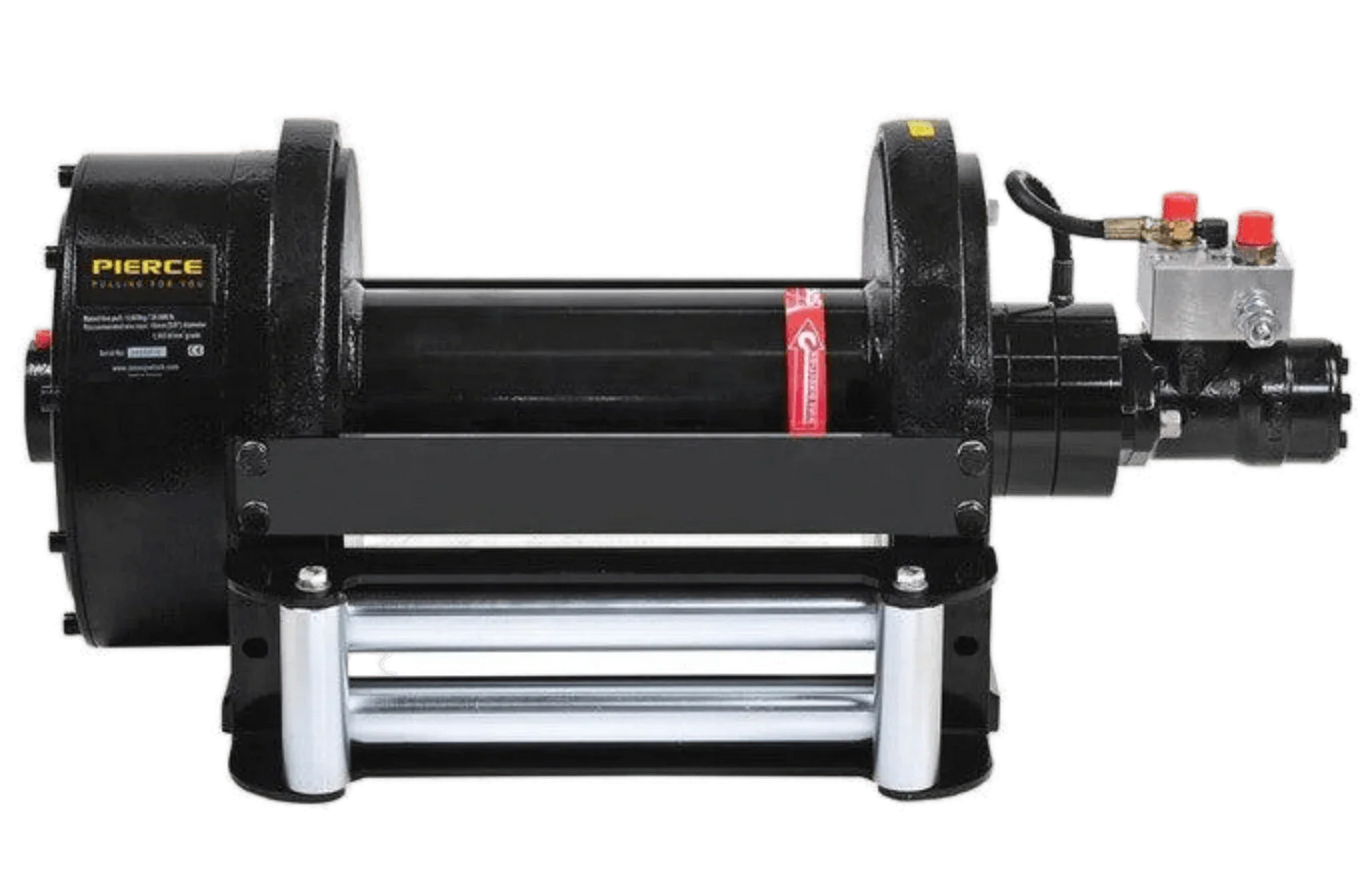

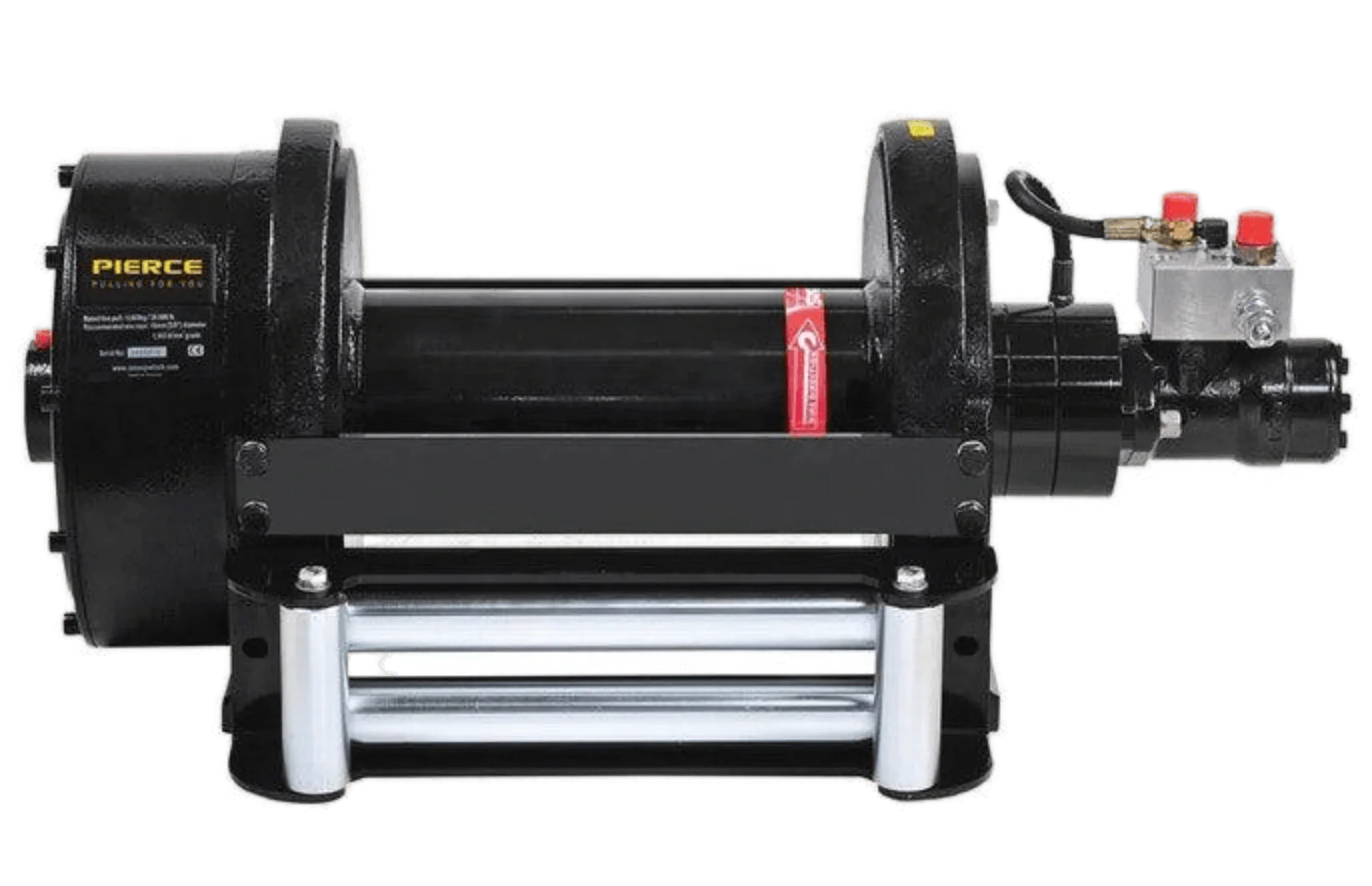

The PIERCE 30,000 lb Hydraulic Recovery Winch – Long Drum with Air Clutch delivers extreme pulling strength and dependable control for professional recovery and industrial operations. Designed for continuous-duty hydraulic performance, this winch combines a powerful hydraulic motor with a rugged three-stage planetary gear system and a spring-applied multi-disc brake for precise, steady operation. The air-actuated clutch allows quick cable engagement and release from the cab or control station, improving efficiency and operator safety. With its long drum design, this winch offers greater cable capacity for extended reach and heavier pulls.
- 30,000 lb hydraulic pulling capacity for demanding recovery and industrial applications
- Air clutch enables quick, remote free-spooling and re-engagement
- Long drum increases cable length for extended recovery reach
- Three-stage planetary gear system ensures smooth, efficient torque transfer
- Spring-applied multi-disc brake provides secure and reliable load holding
Applications: Perfect for heavy recovery vehicles, oilfield equipment, and industrial service applications requiring maximum pulling strength and control.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Multidisc Brake |
| CLUTCH TYPE | Output Shaft Disengaged - Air Spool |
| CONSTRUCTION | Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 41:1 |
| GEAR TYPE | 2-Stage Planetary Gear |
| HYDRAULIC MOTOR | 9.5 in³ / rev |
| MAX CAPACITY (LBS.) | 30000 |
| MAX LINE SPEED | 16 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| MOUNTING BOLT PATTERN | 7.5” x 18” ; 10.5” x 18” |
| OPERATIONAL PRESSURE (PSI) | 2540 |
| POWER SOURCE | Hydraulic |
| RECOMMENDED WIRE ROPE | ⅝" x 250' (1,960 N/mm2grade a minimum breaking strength of 179 KN required) |
PSHDH30000 Line Pull and Rope Layer
| Layer of Wire Rope | Pull by Layer (lbs.) | Total Rope on the Drum (ft.) | Line Speed (@ 15.9 gpm) fpm |
|---|---|---|---|
| 1st | 30,000 | 36 | 16 |
| 2nd | 25,216 | 82 | 19 |
| 3rd | 21,745 | 131 | 23 |
| 4th | 19,115 | 190 | 26 |
| 5th | 17,052 | 246 | 29 |
Spec Sheet: https://www.piercearrowinc.com/pages/docs/pshdh-30000
1 Year Warranty
All Parts guaranteed free of Defects.
- Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
