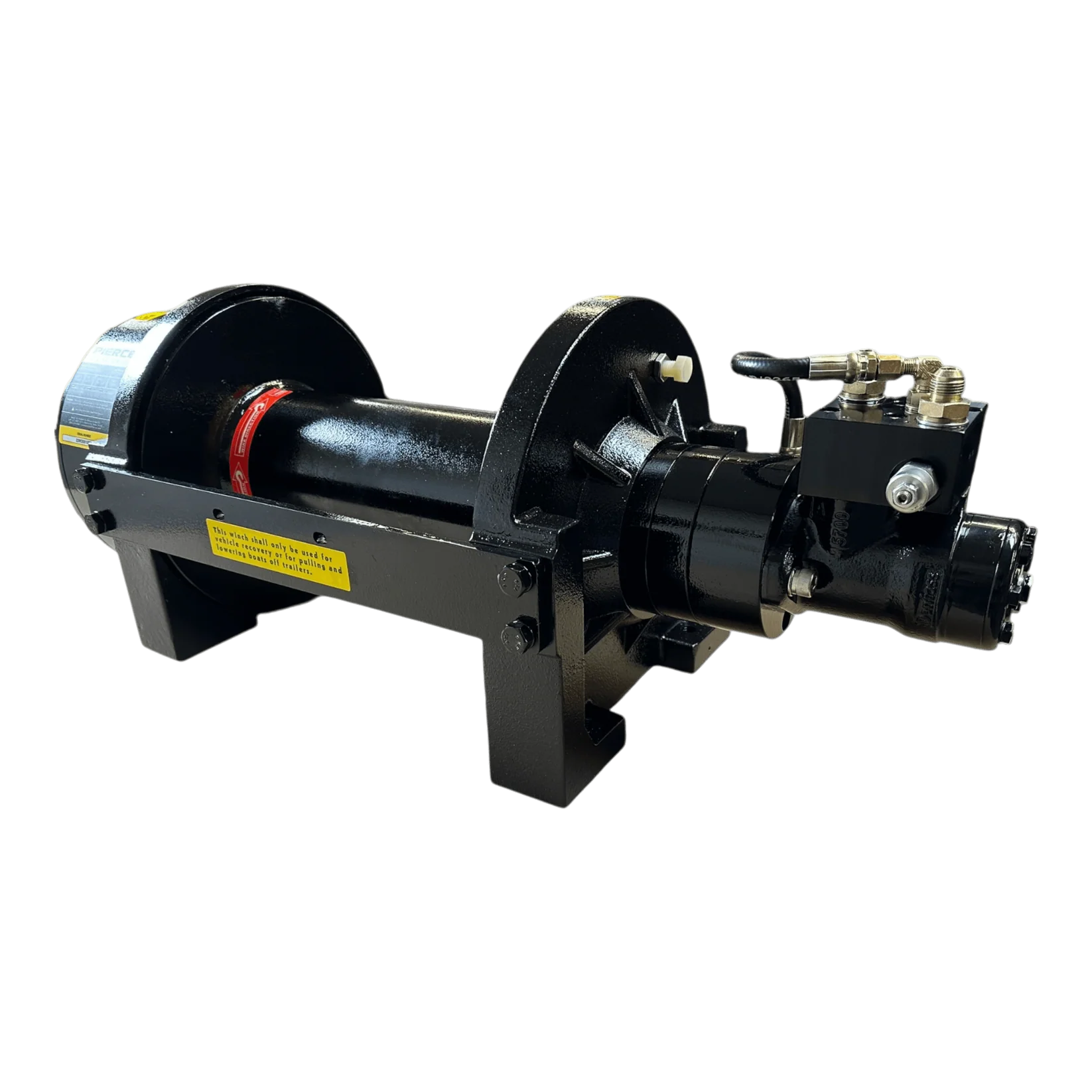

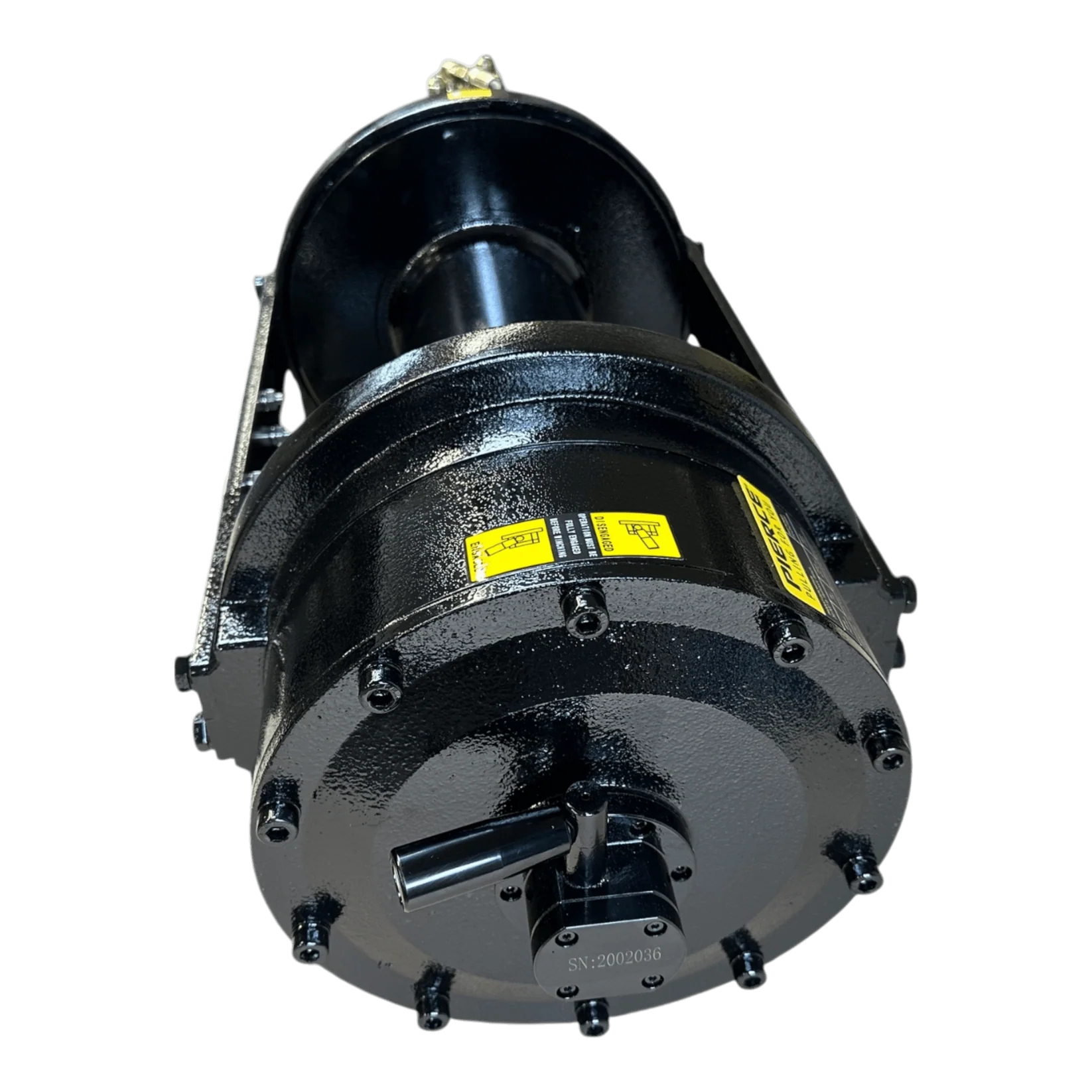

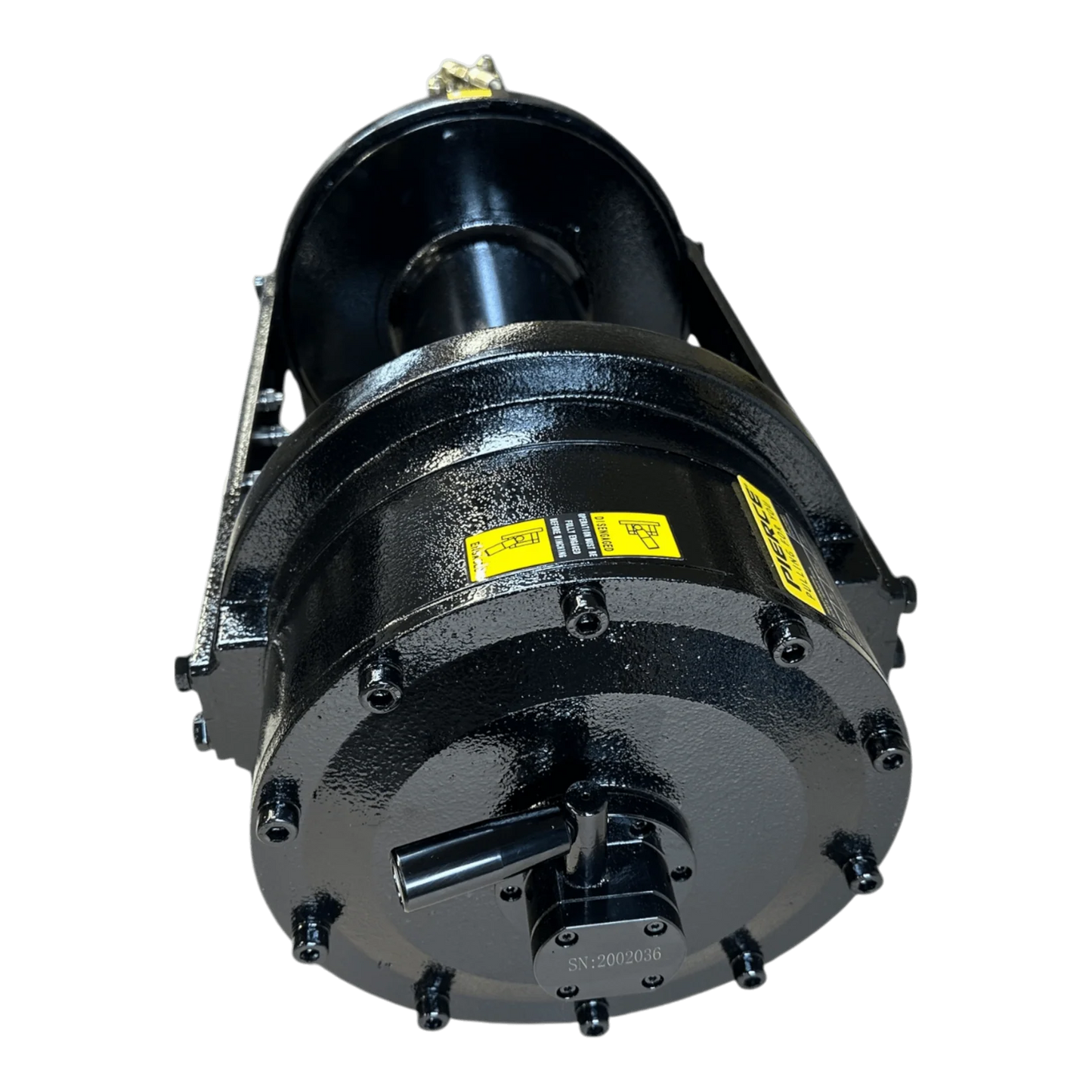

PIERCE 20,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch. Pre-Order
PIERCE 20,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch. Pre-Order
Couldn't load pickup availability
In stock
High-Capacity Hydraulic Winch with Manual Clutch Control. Pre-Order

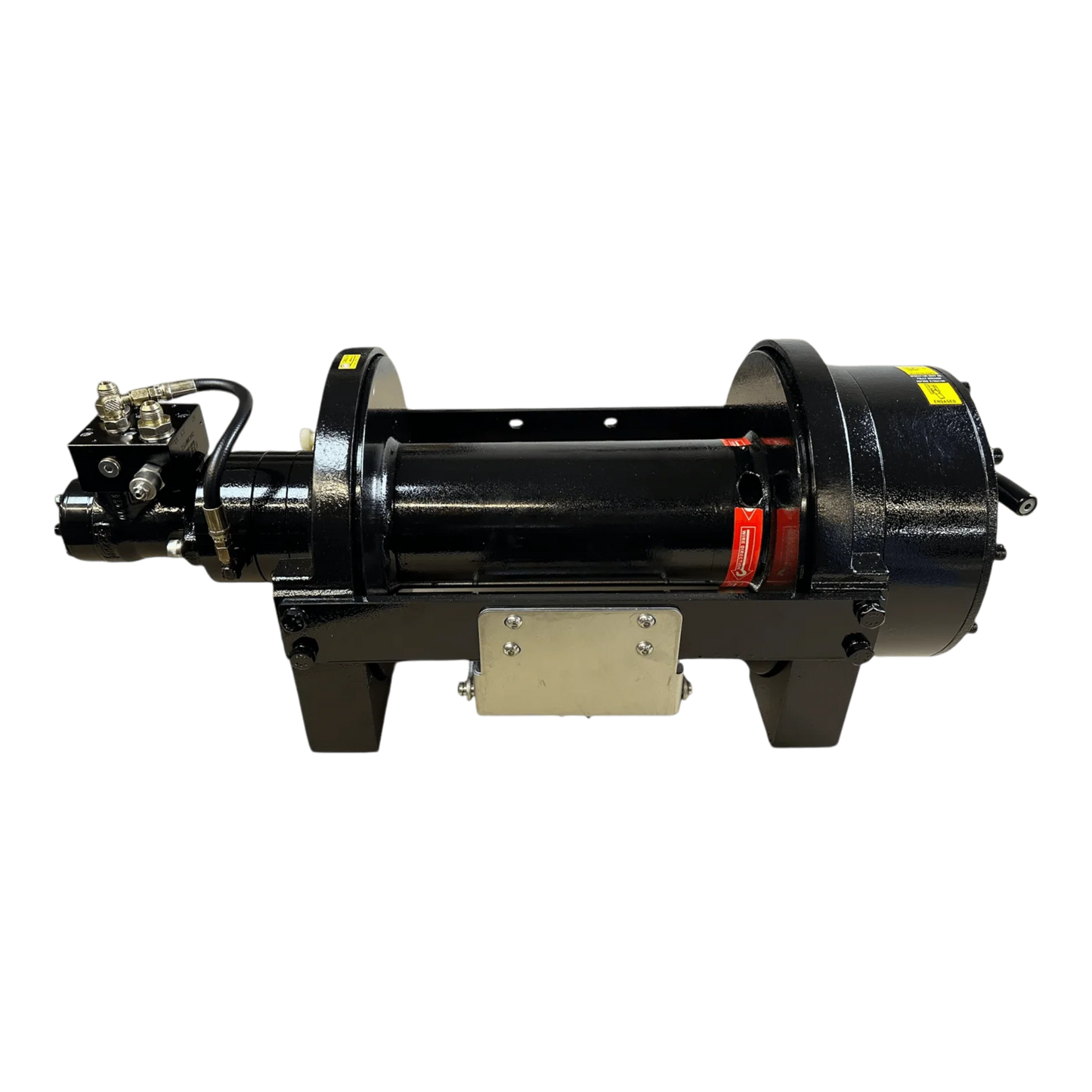

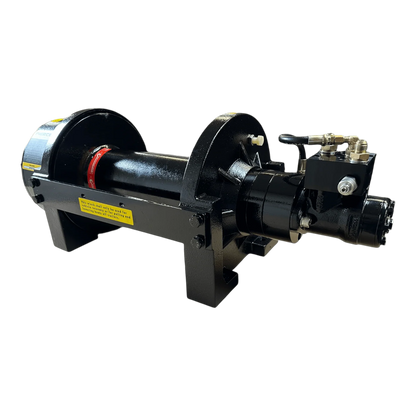

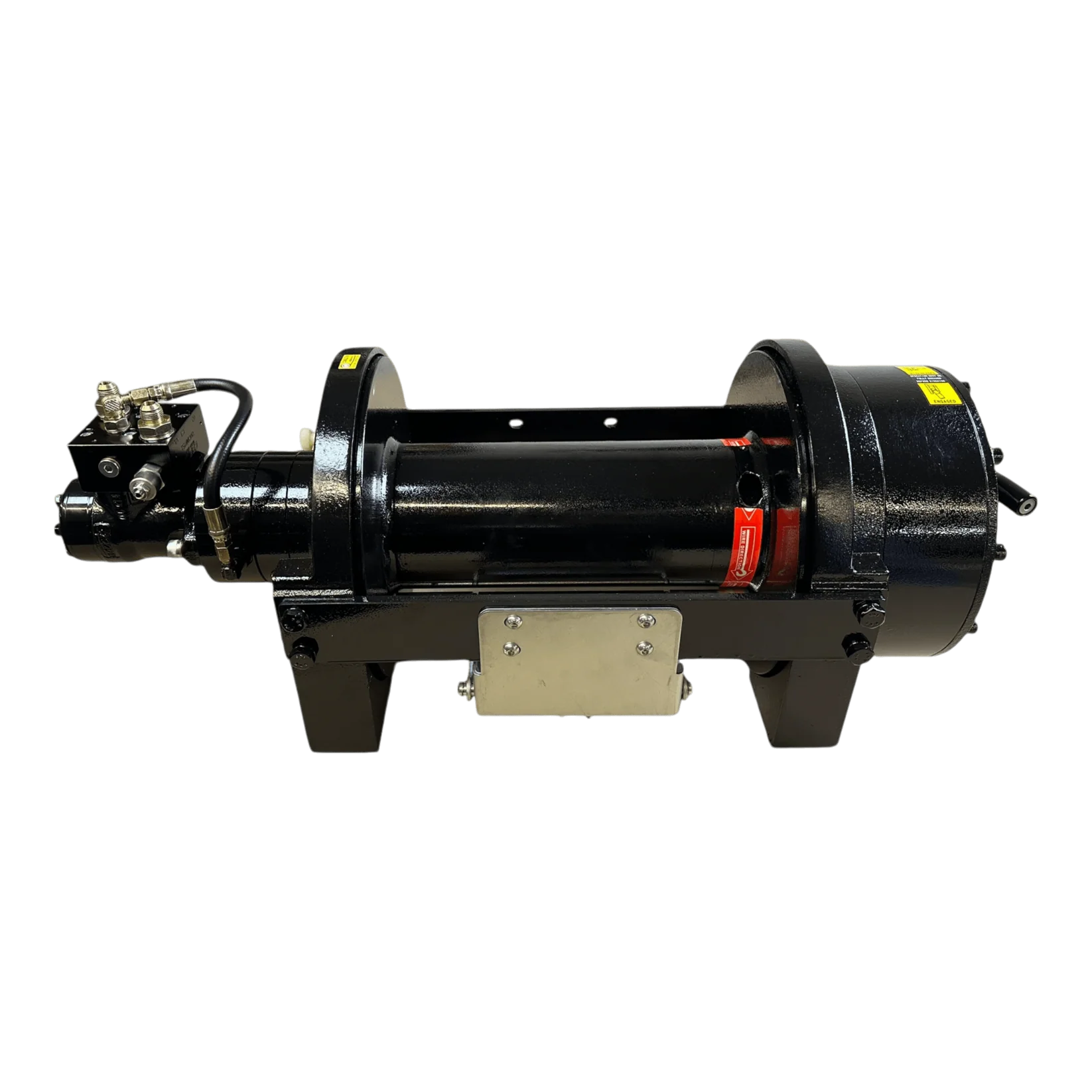

The PIERCE PSHDH20000M Hydraulic Winch provides 20,000 lb of reliable pulling strength for demanding recovery and industrial operations. Featuring a robust three-stage planetary gear system and a powerful hydraulic motor, it delivers smooth, consistent torque for heavy loads. The manual clutch allows quick, precise free-spooling and cable engagement, giving operators direct control when rigging or repositioning. Built for long-term use, this winch combines power, safety, and durability for professional towing, recovery, and equipment applications.
- 20,000 lb hydraulic pulling capacity for heavy-duty recovery and towing work

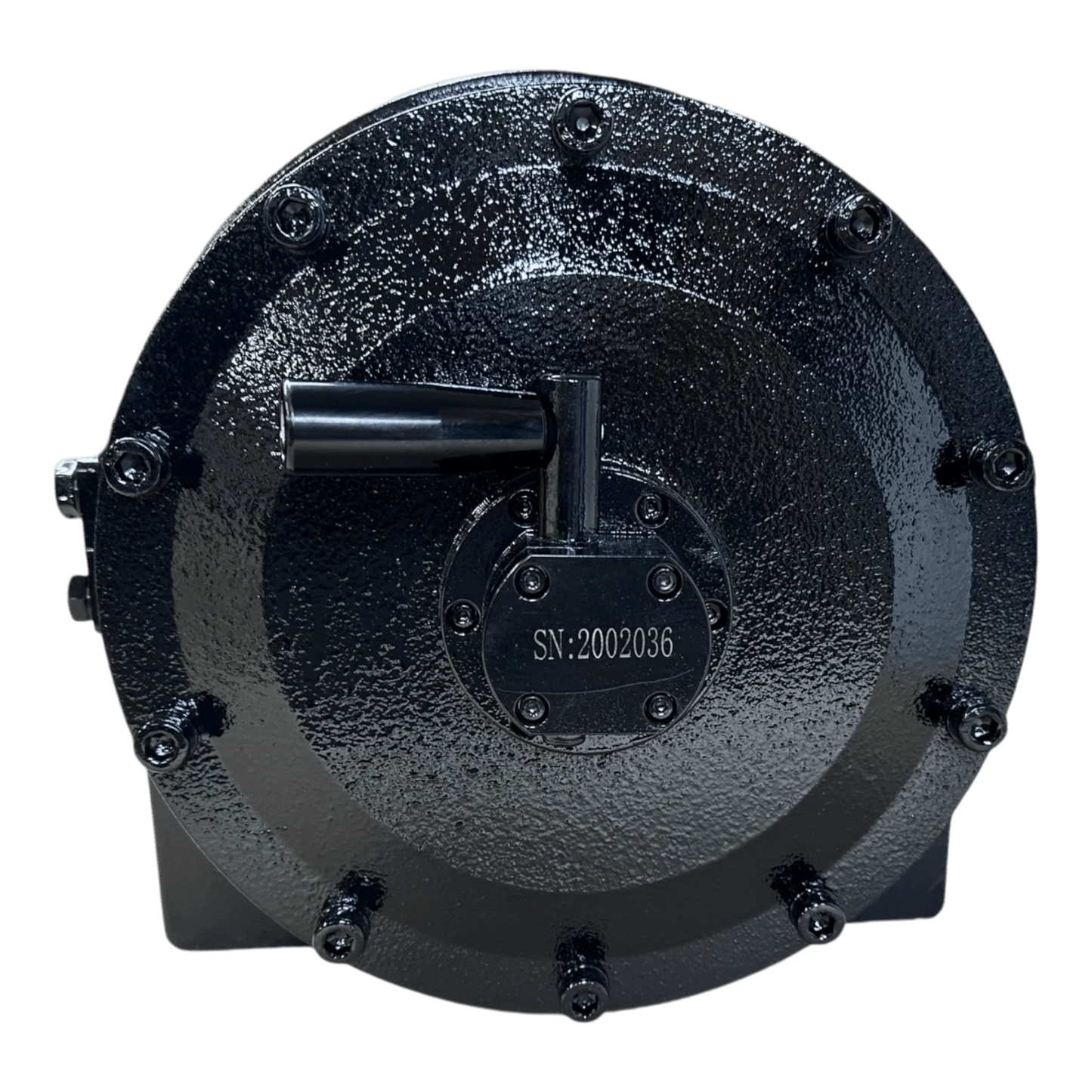

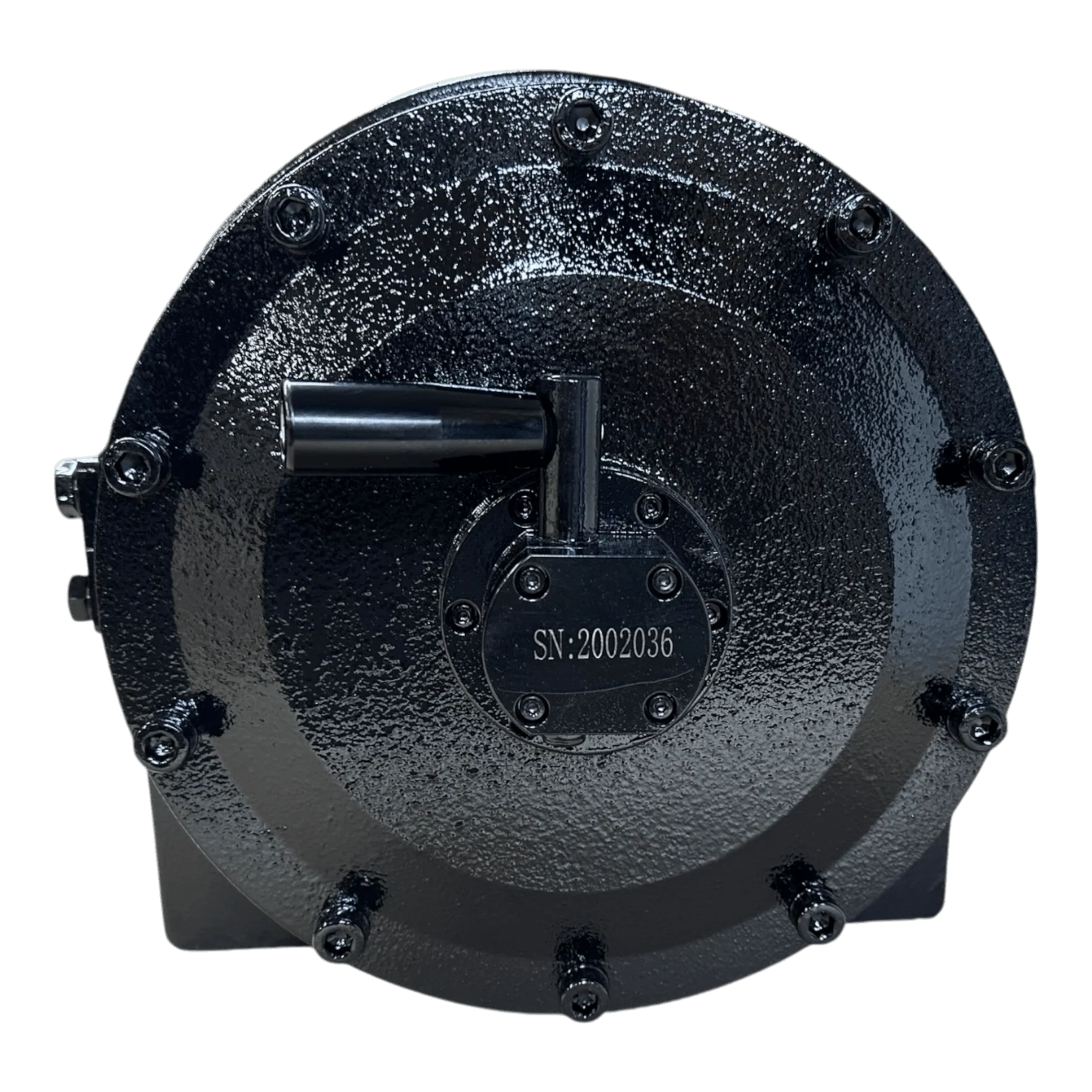

- Manual clutch provides quick, easy control for cable payout and engagement
- Three-stage planetary gear system delivers efficient, high-torque performance
- Spring-applied multi-disc brake ensures safe, reliable load holding

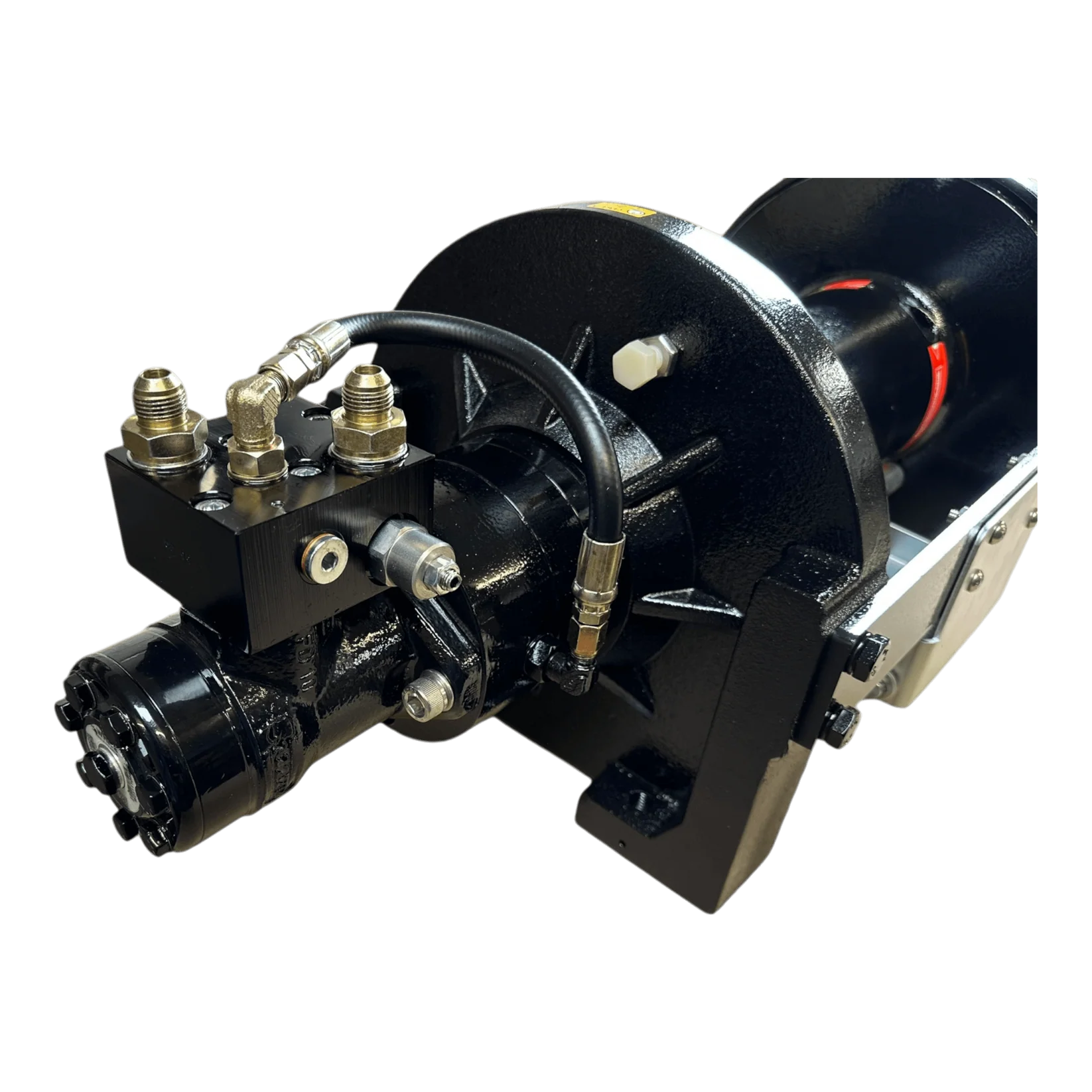

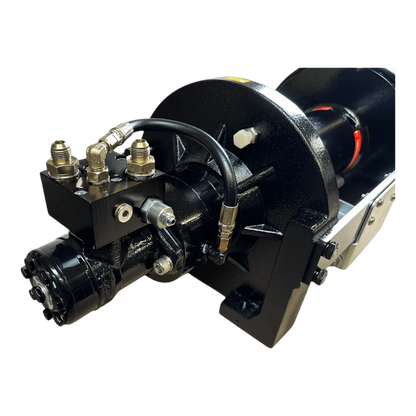

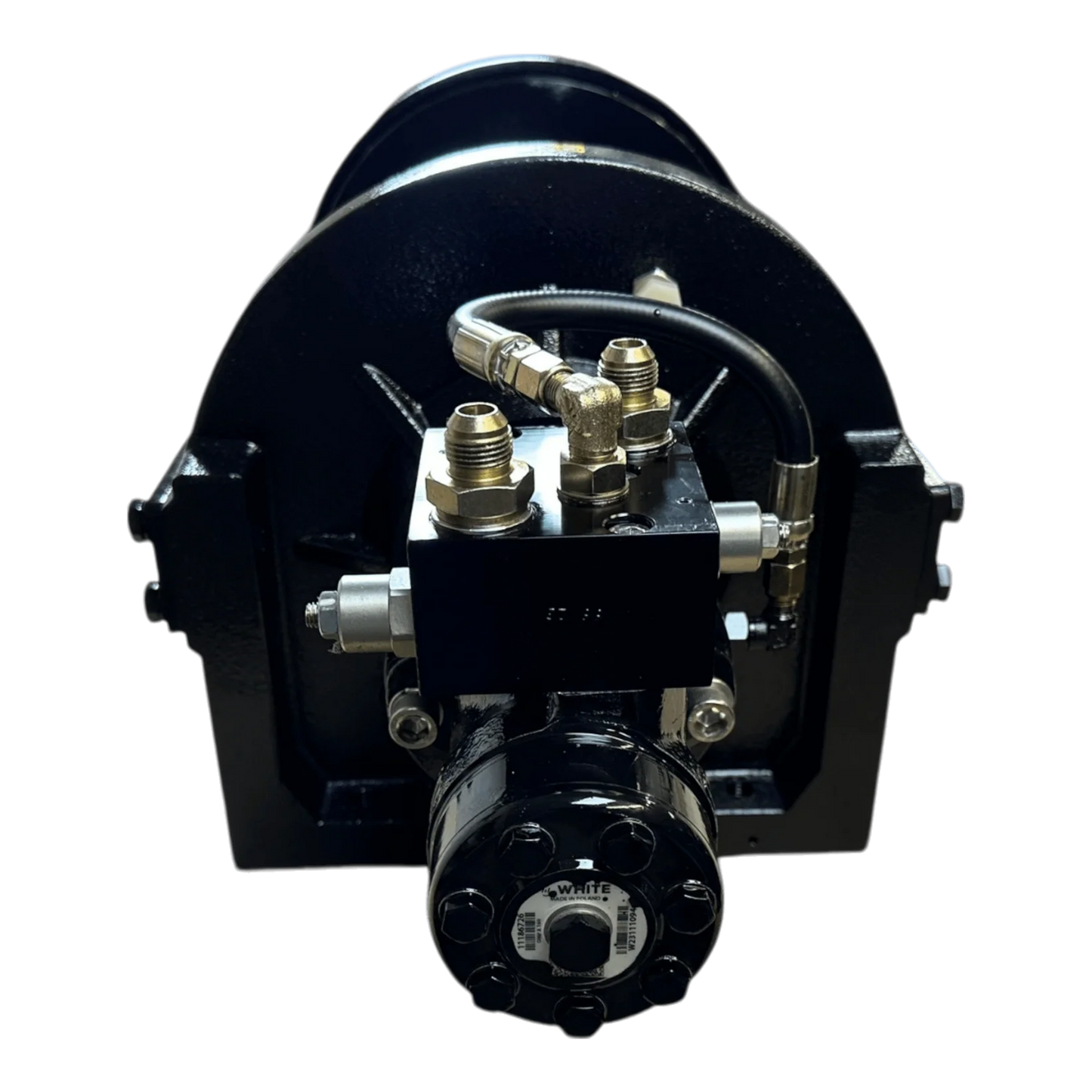

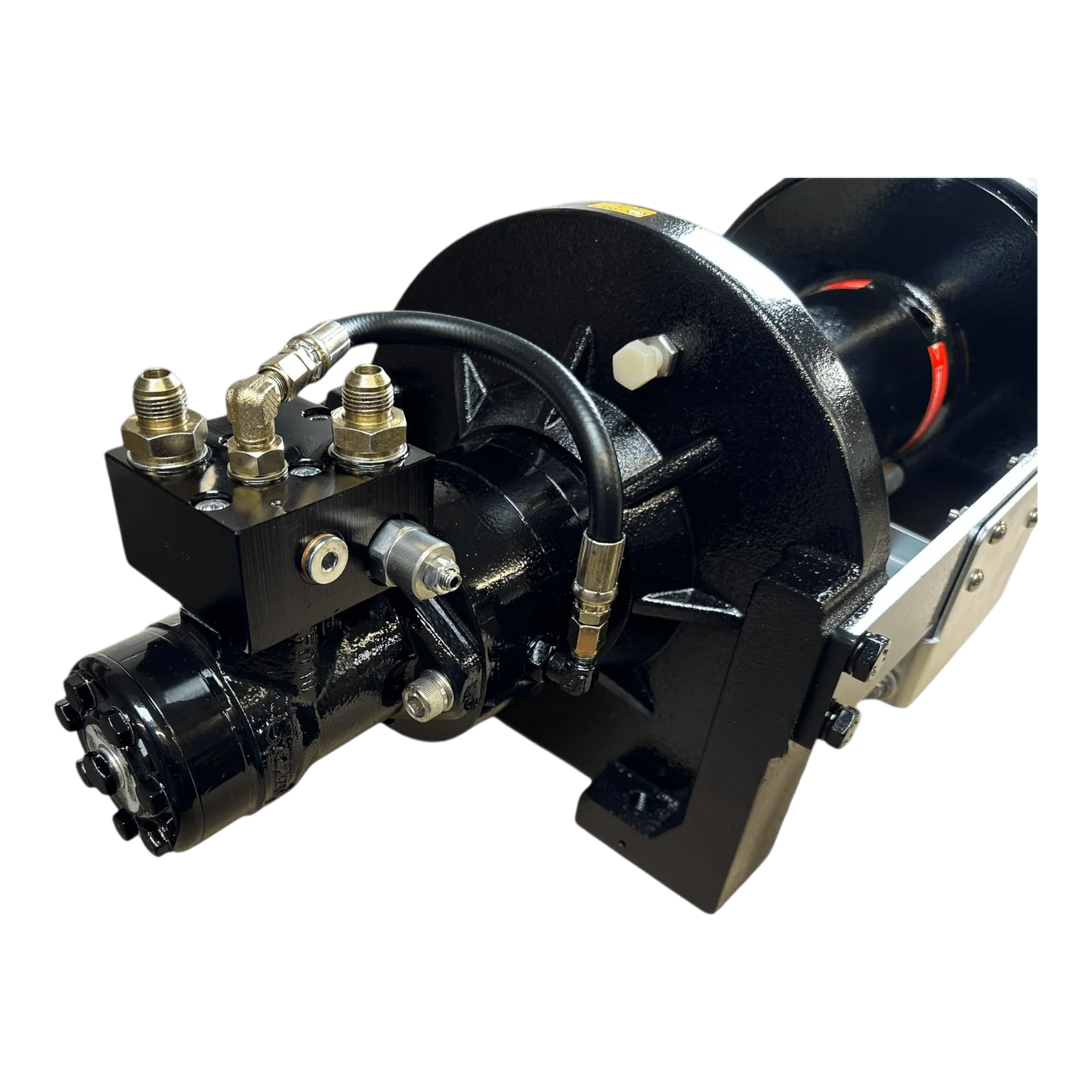

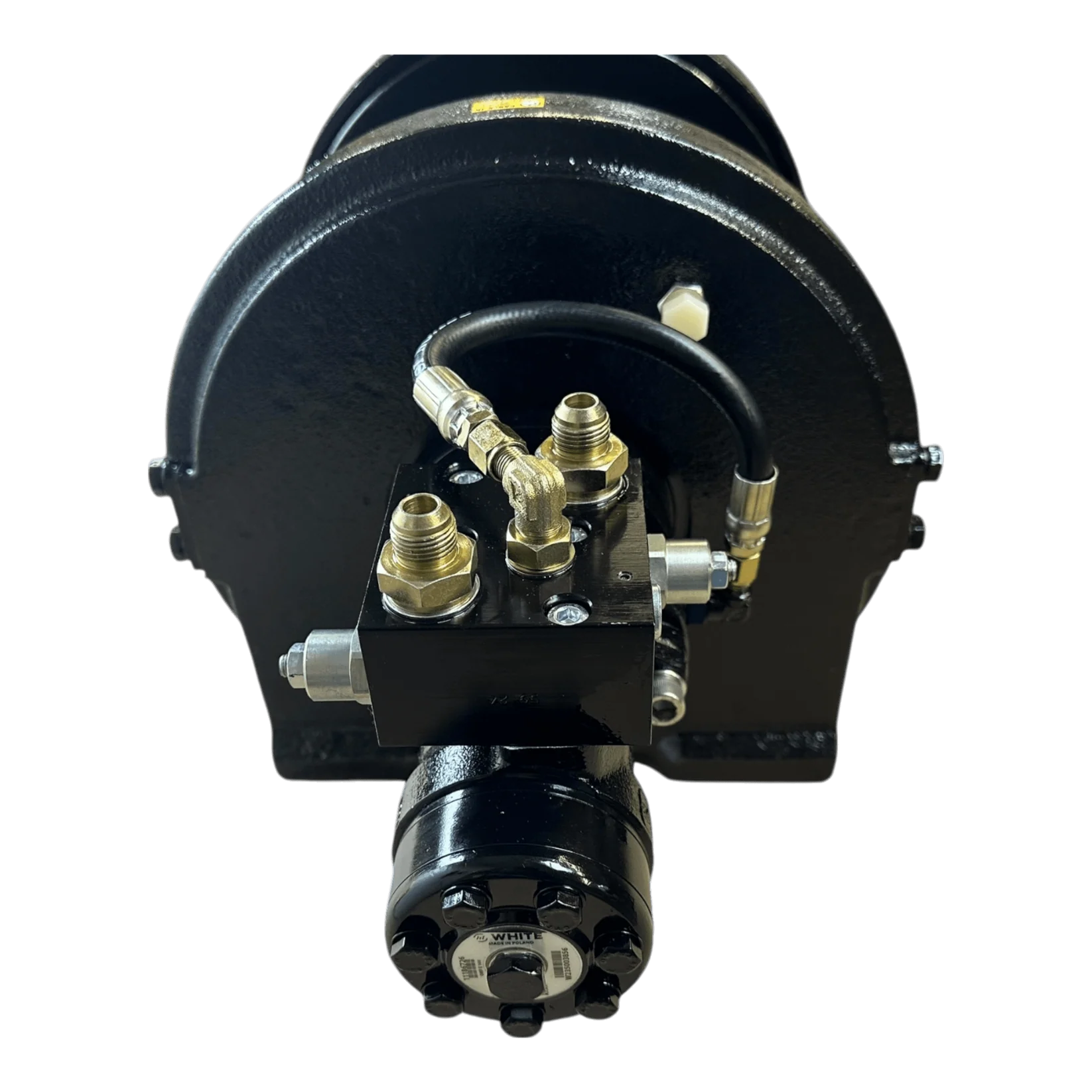

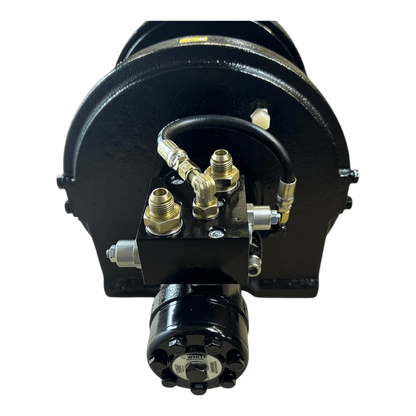

- Hydraulic drive motor provides smooth, steady pulling power under load
Applications: Ideal for recovery fleets, oilfield service, and industrial transport operations that demand high-capacity hydraulic performance and hands-on clutch control.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Multidisc Brake |
| CLUTCH TYPE | Output Shaft Disengaged |
| CONSTRUCTION | Aluminum Die Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 30:1 |
| GEAR TYPE | 2-Stage Planetary Gear |
| HYDRAULIC MOTOR | 9.5 in³ / rev |
| MAX CAPACITY (LBS.) | 20000 |
| MAX LINE SPEED | 23 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| OPERATIONAL PRESSURE (PSI) | 2175 |
| POWER SOURCE | Hydraulic |
PSHDH20000 Line Pull and Rope Layer
| Layer of Wire Rope | Pull by Layer (lbs.) | Total Rope on the Drum (ft.) | Line Speed (@ 15.9 gpm) (fpm) |
|---|---|---|---|
| 1st | 20,000 | 39 | 23 |
| 2nd | 17,017 | 89 | 27 |
| 3rd | 14,813 | 141 | 31 |
| 4th | 13,113 | 203 | 35 |
| 5th | 11,762 | 262 | 39 |
Spec Sheet: https://www.piercearrowinc.com/pages/docs/pshdh-20000-spec-sheet
1 Year Warranty
All Parts guaranteed free of Defects.
- Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
