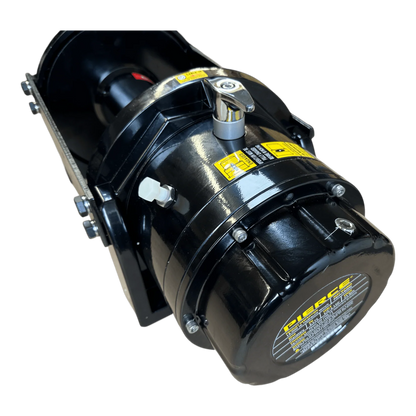

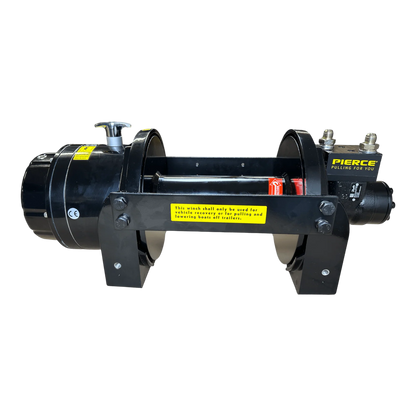

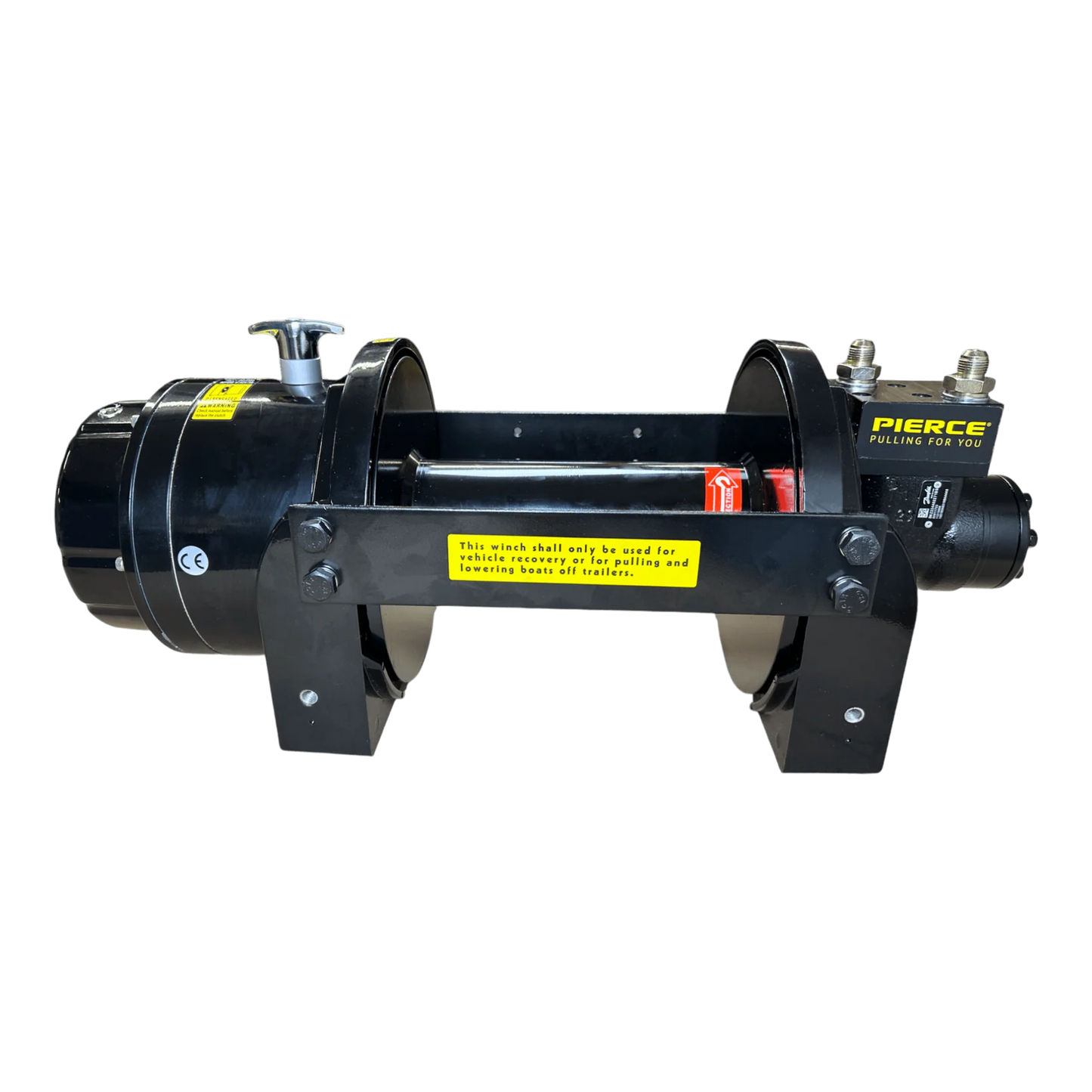

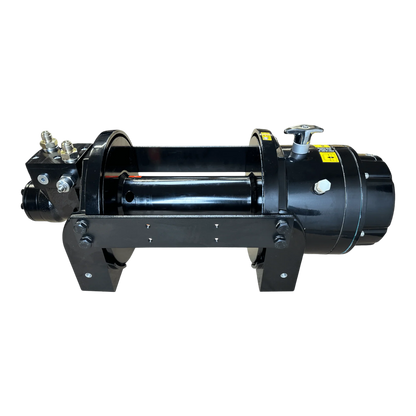

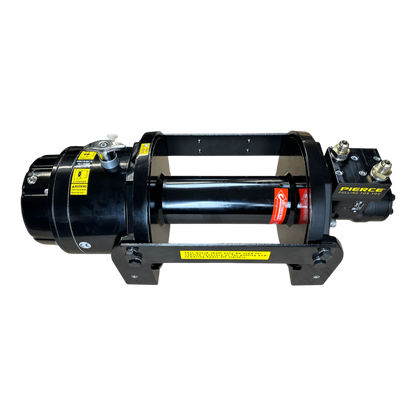

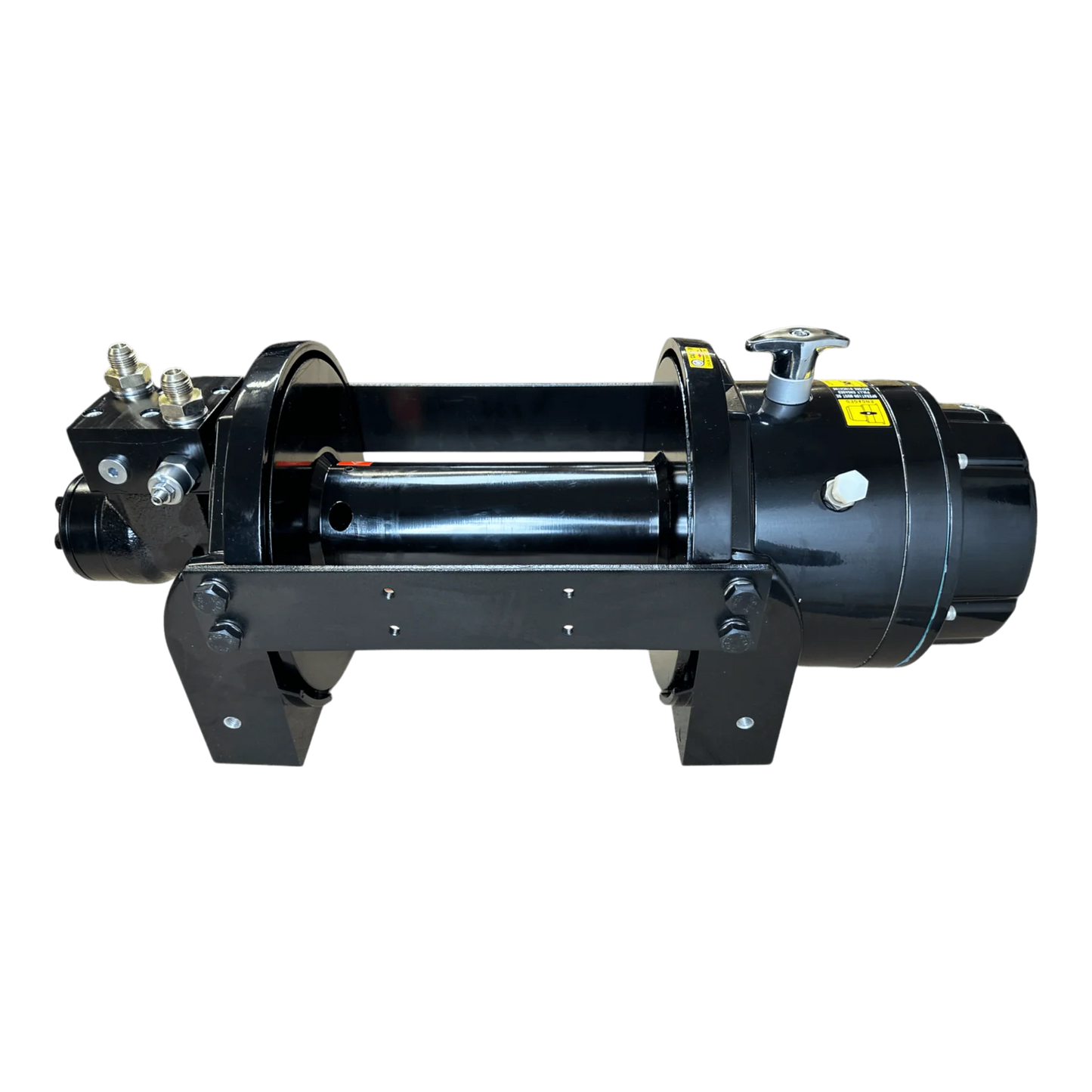

PIERCE 18,000 lb Hydraulic Recovery Winch
PIERCE 18,000 lb Hydraulic Recovery Winch
Couldn't load pickup availability
Low stock: 9 left
Heavy-Duty Hydraulic Winch with 18,000 lb Planetary Power

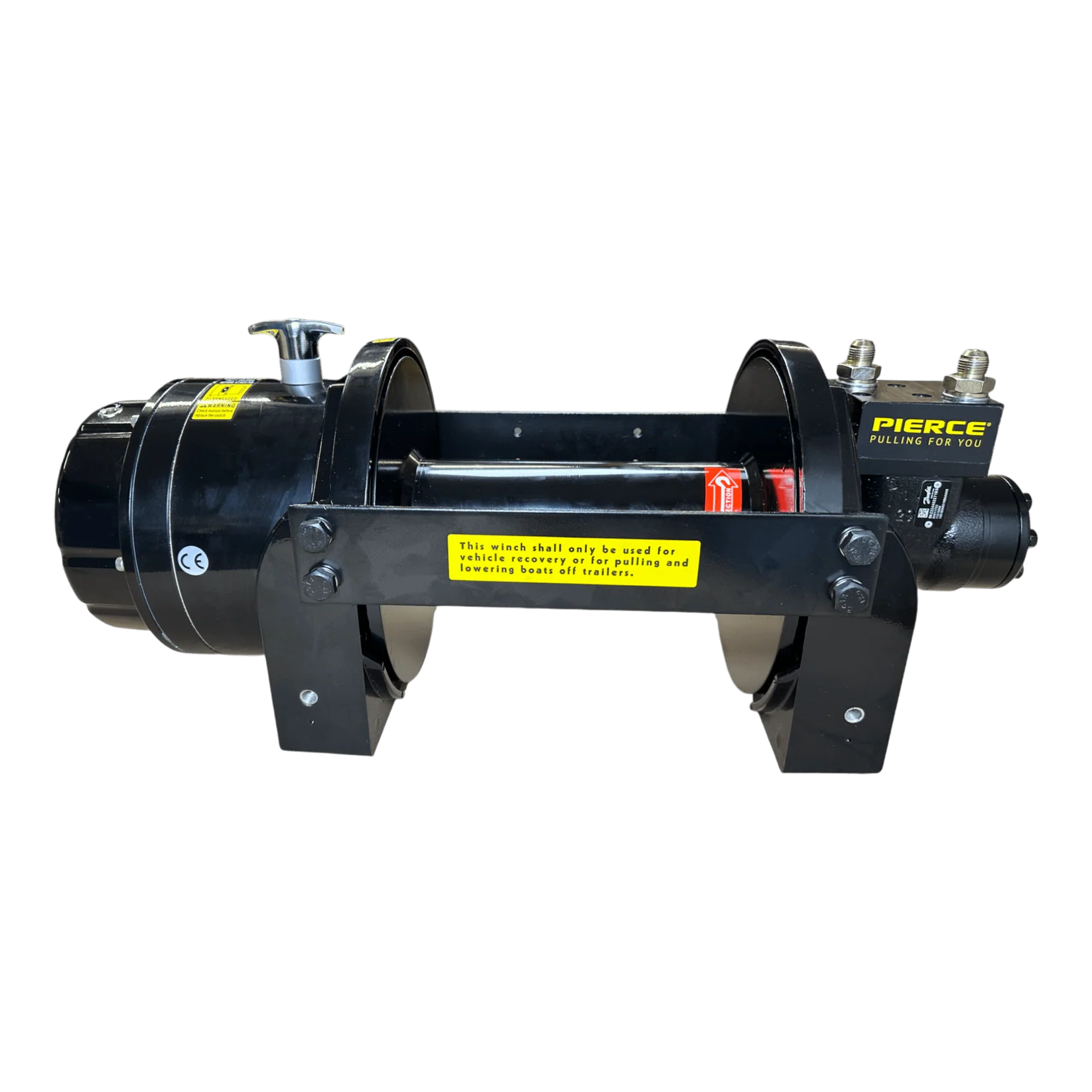

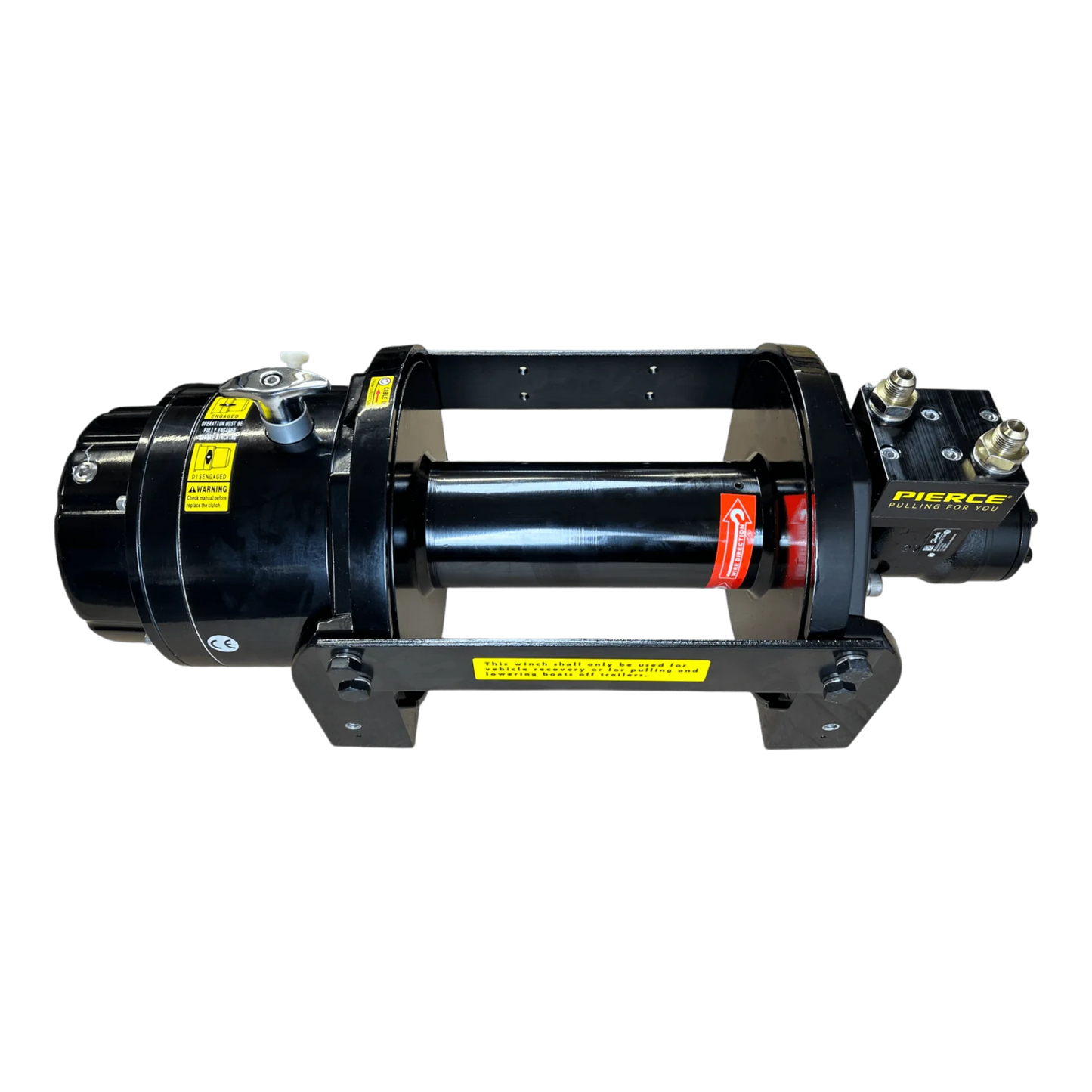

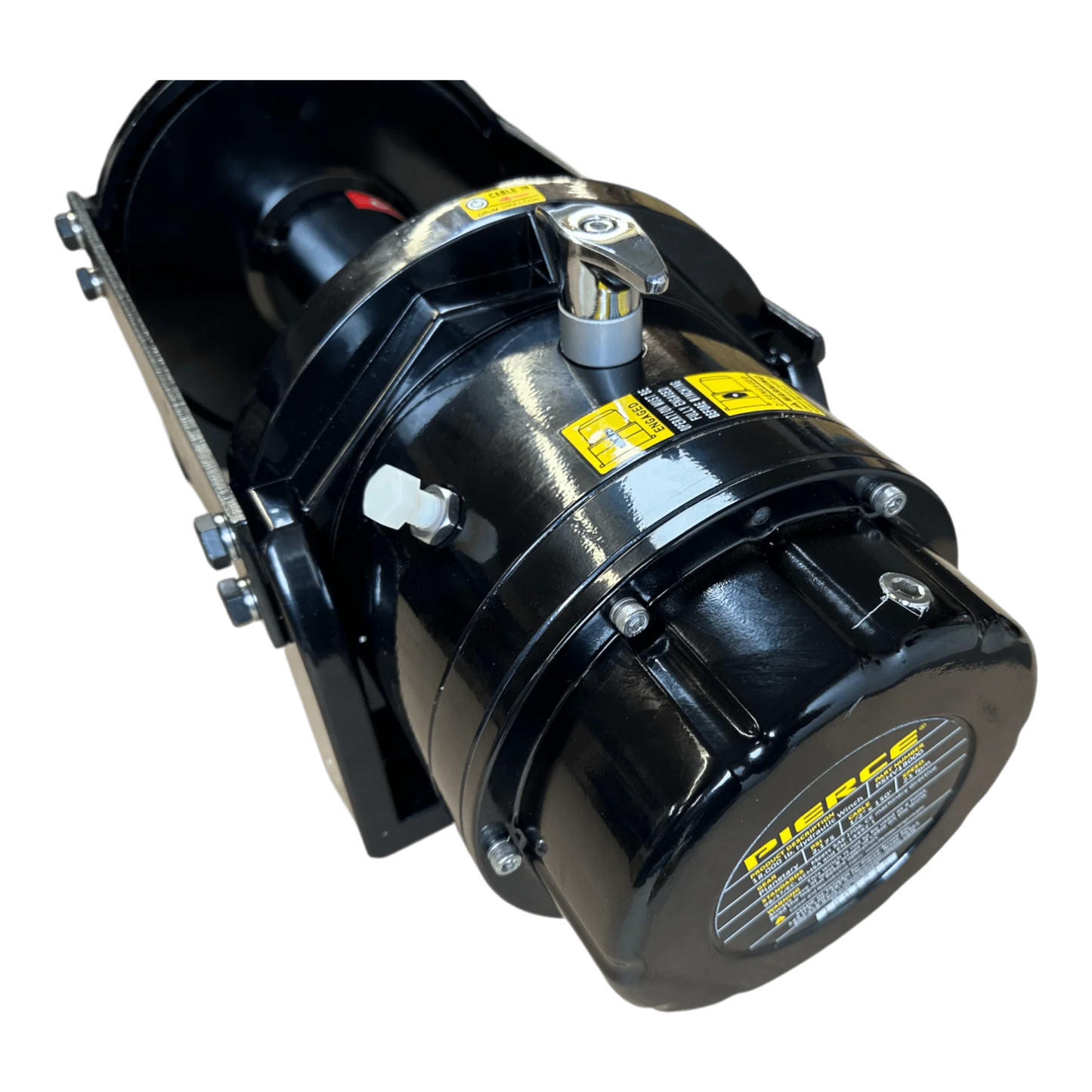

The PIERCE PSHV18000 Hydraulic Winch delivers exceptional pulling performance and long-term reliability for demanding recovery and industrial operations. Equipped with a heavy-duty three-stage planetary gear system, it provides smooth, efficient torque transfer and fast, controlled operation under load. The spring-applied multi-disc brake ensures precise, secure load holding, while the powerful hydraulic drive maintains steady performance in continuous-duty use. Built for professional operators, the PSHV18000 offers the strength, control, and dependability needed for tough recovery work.
- 18,000 lb hydraulic pulling capacity for heavy-duty recovery and towing
- Three-stage planetary gear system delivers efficient torque and smooth operation
- Spring-applied multi-disc brake ensures secure, reliable load control
- Hydraulic motor drive provides consistent power for continuous-duty operation
- Durable steel construction built for long-lasting professional use

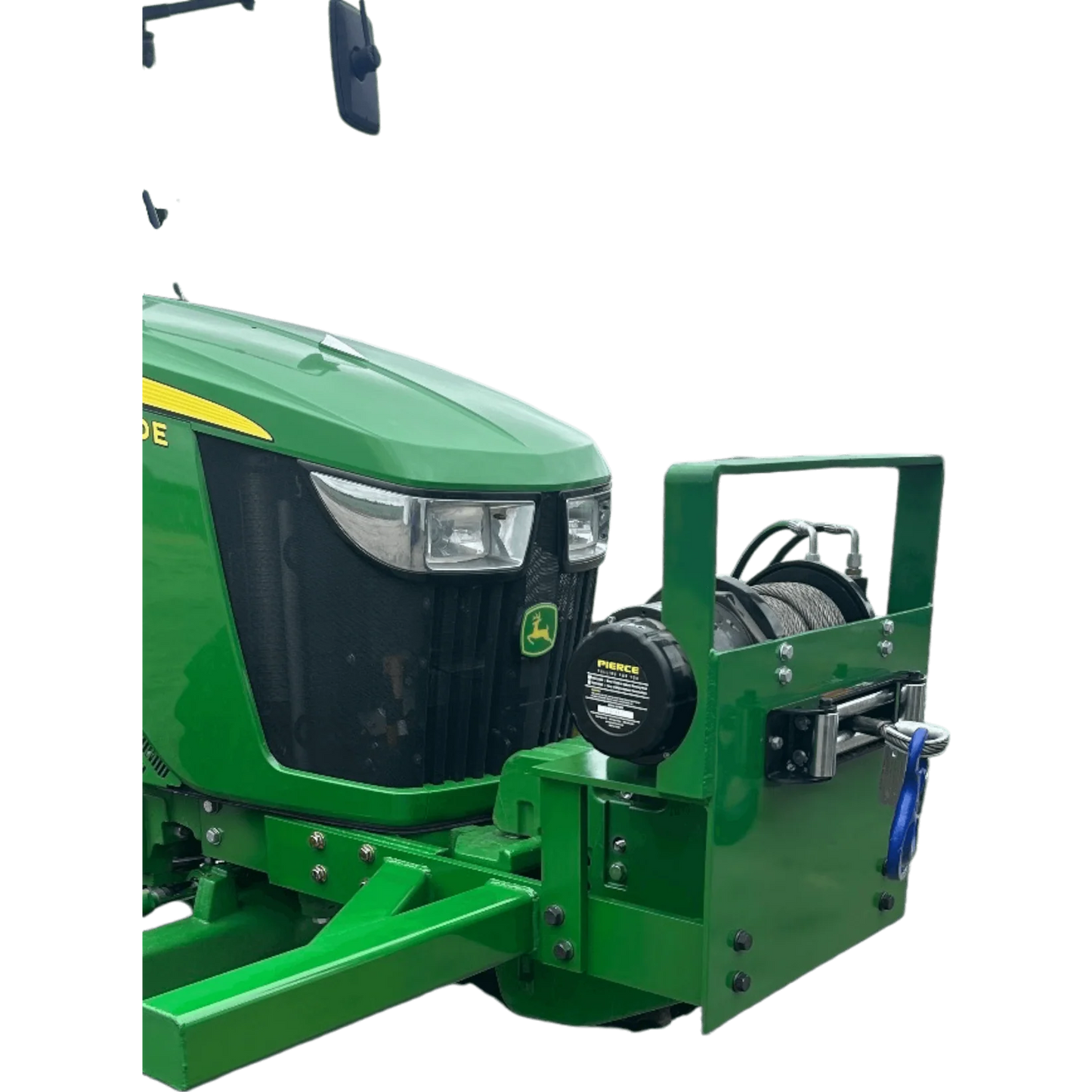

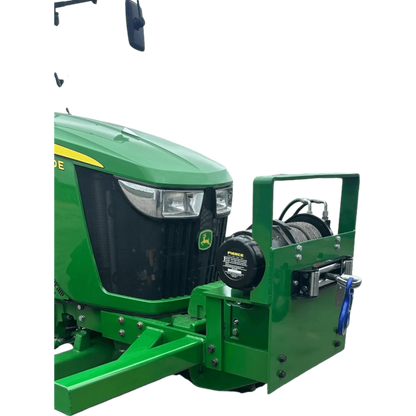

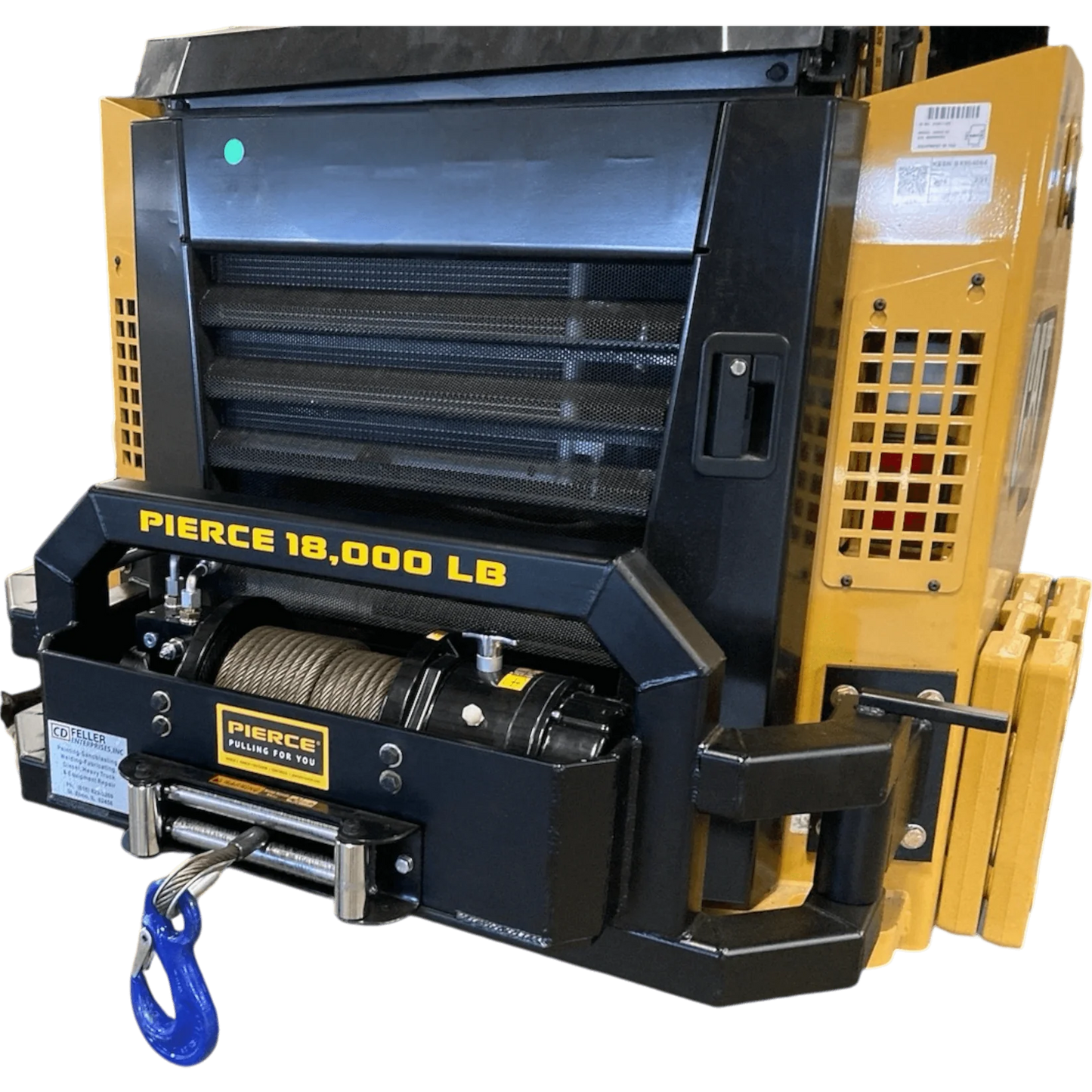

Applications: Ideal for recovery fleets, oilfield service, and industrial equipment where high-capacity hydraulic pulling power is required.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| CLUTCH TYPE | Rotating Ring Gear |
| CONSTRUCTION | Aluminum Die Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 19.4:1 |
| GEAR TYPE | 2-Stage Planetary Gear |

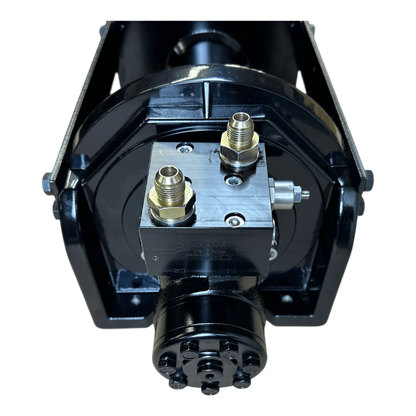

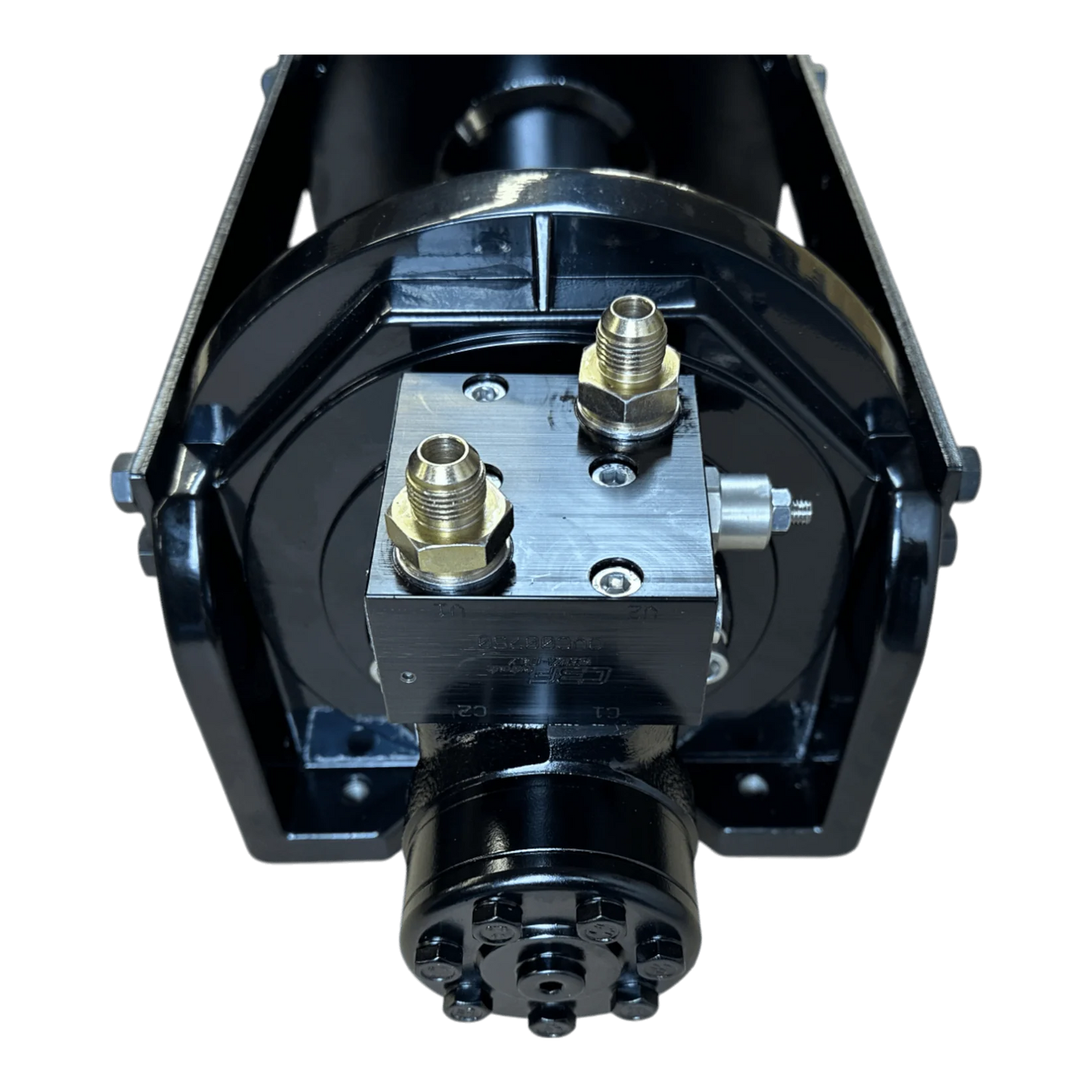

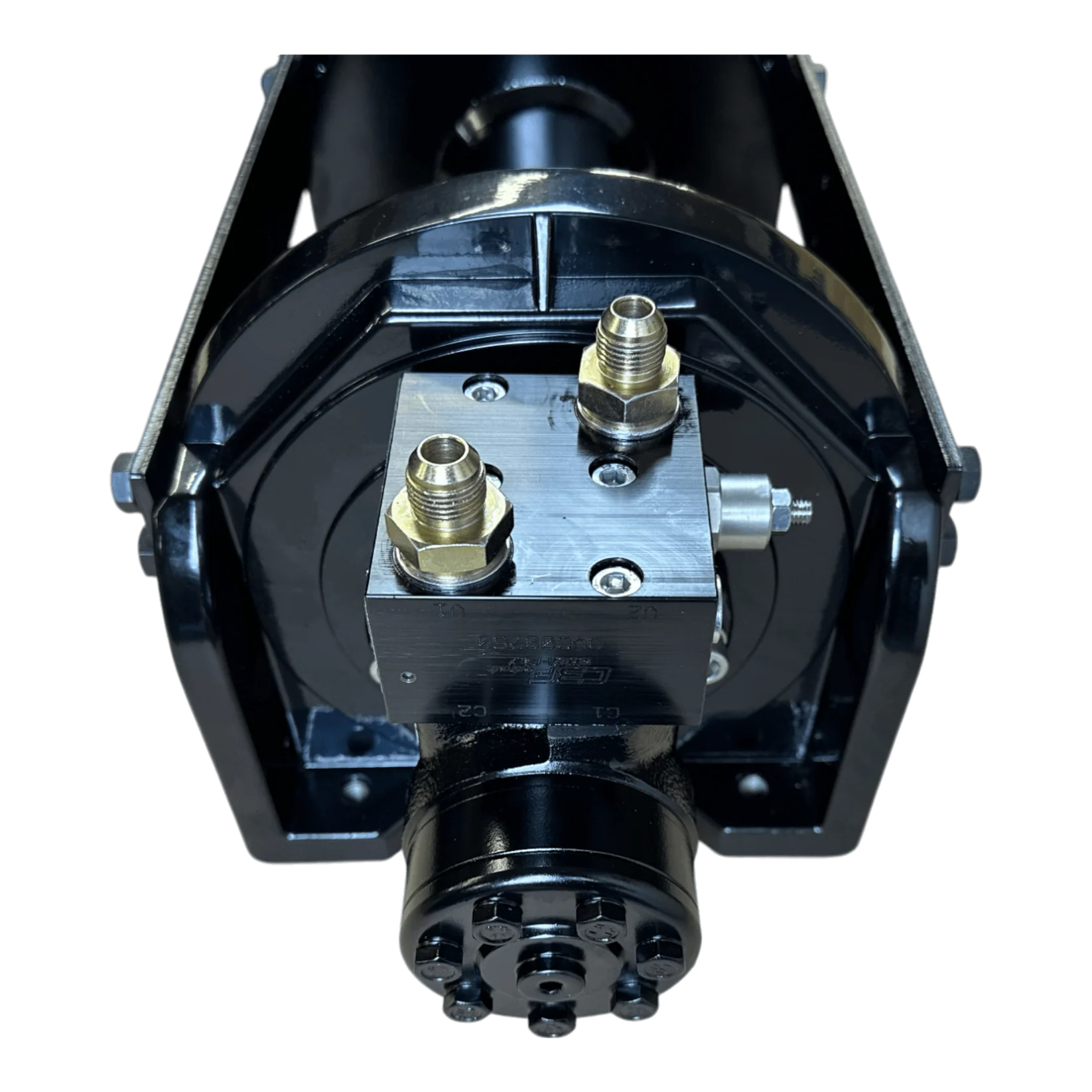

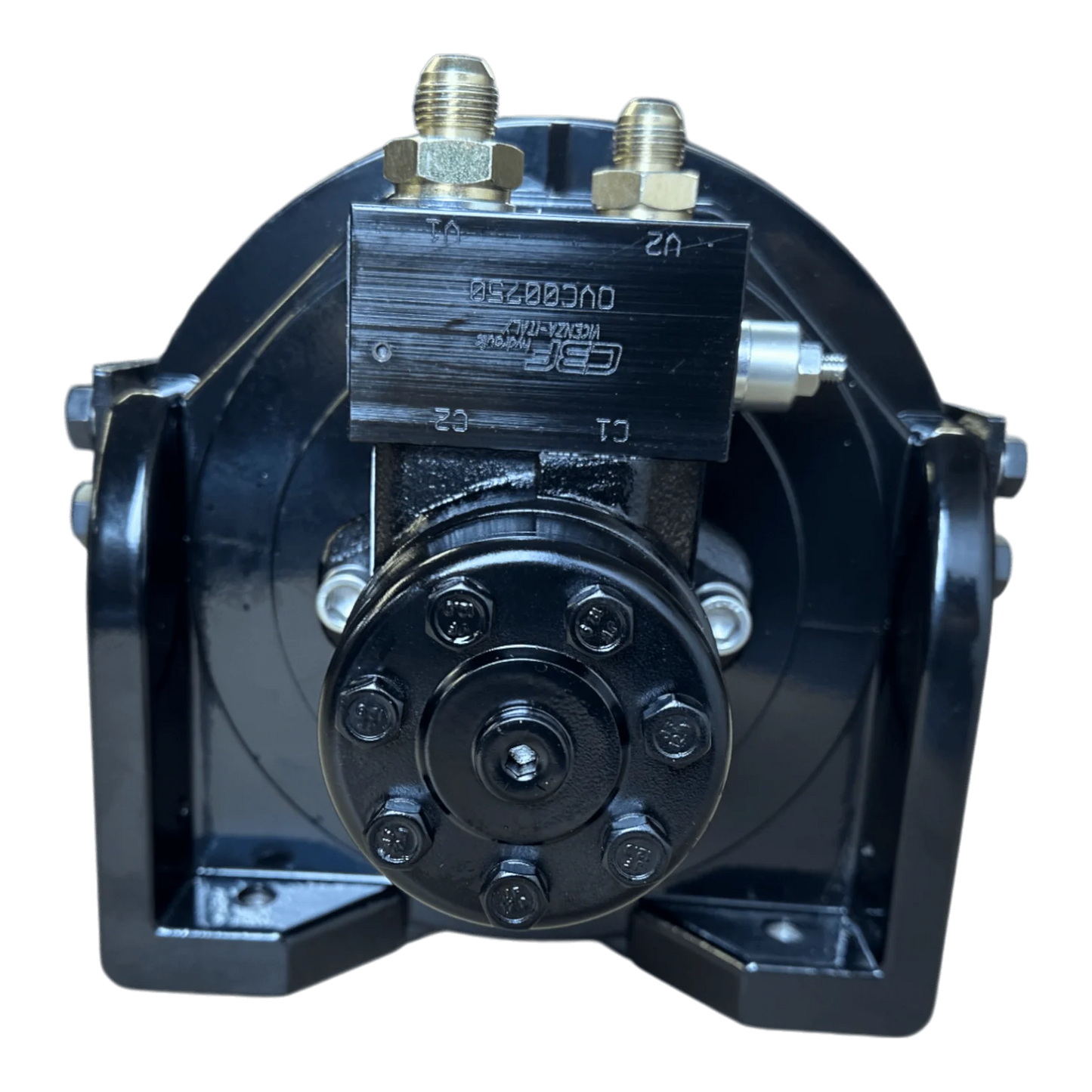

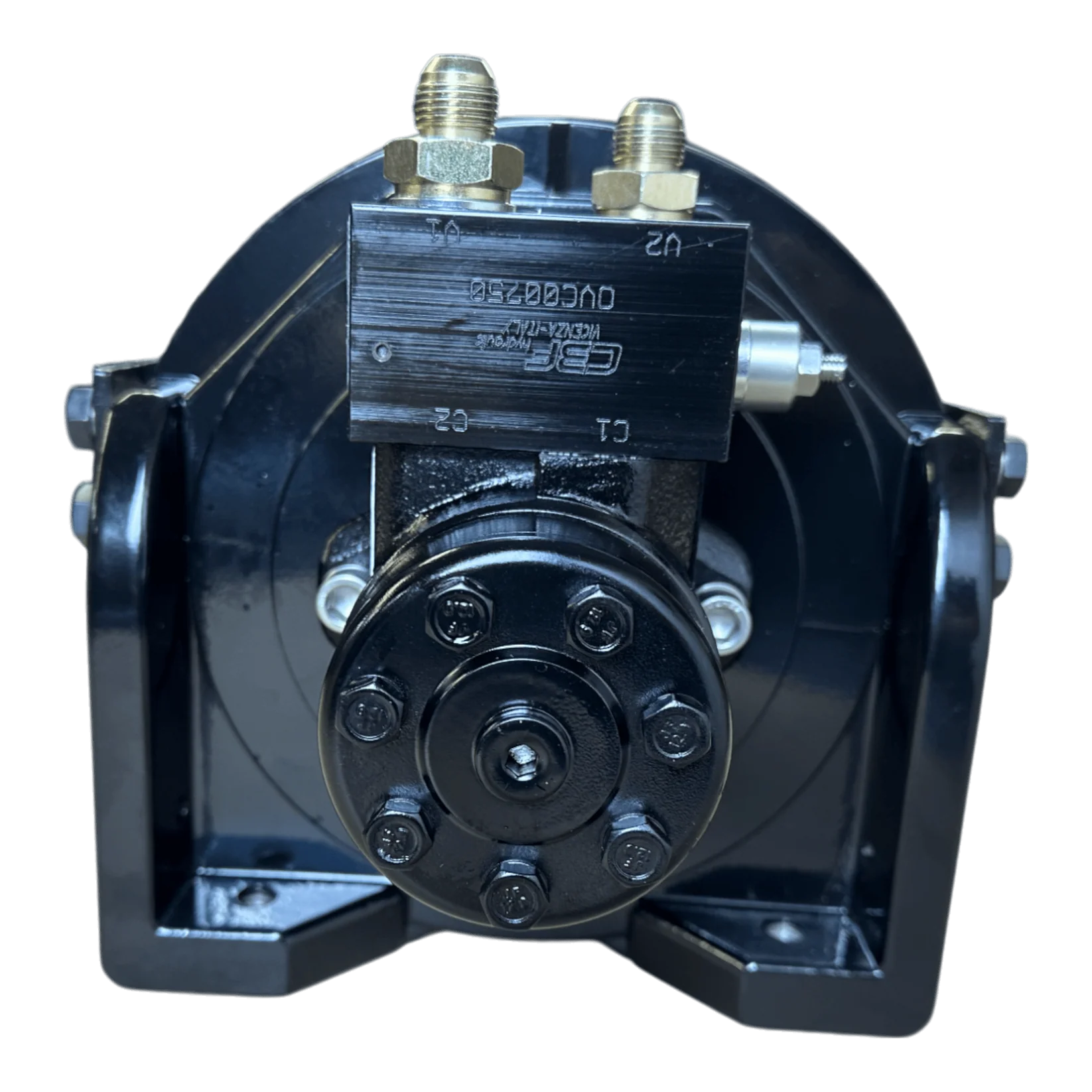

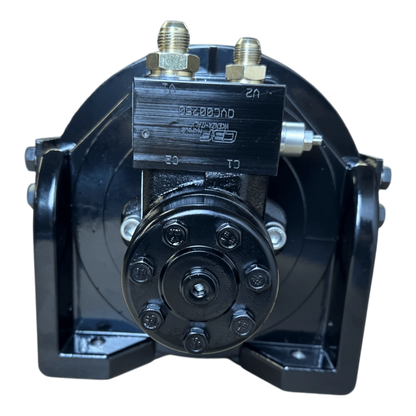

| HYDRAULIC MOTOR | 9.5 in³ / rev |
| MAX CAPACITY (LBS.) | 18000 |
| MAX LINE SPEED | 23 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| NMFC | 116440-01 |
| POWER SOURCE | Hydraulic |
| RECOMMENDED WIRE ROPE | ½" x 165' |
Manual: https://www.piercearrowinc.com/pages/docs/pshv-series-winch-manual
Mounting footprint: https://www.piercearrowinc.com/pages/docs/pshv-mounting-footprint
Spec Sheet: https://www.piercearrowinc.com/pages/docs/pshv-18000
1 Year Warranty
All Parts guaranteed free of Defects.
- Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
