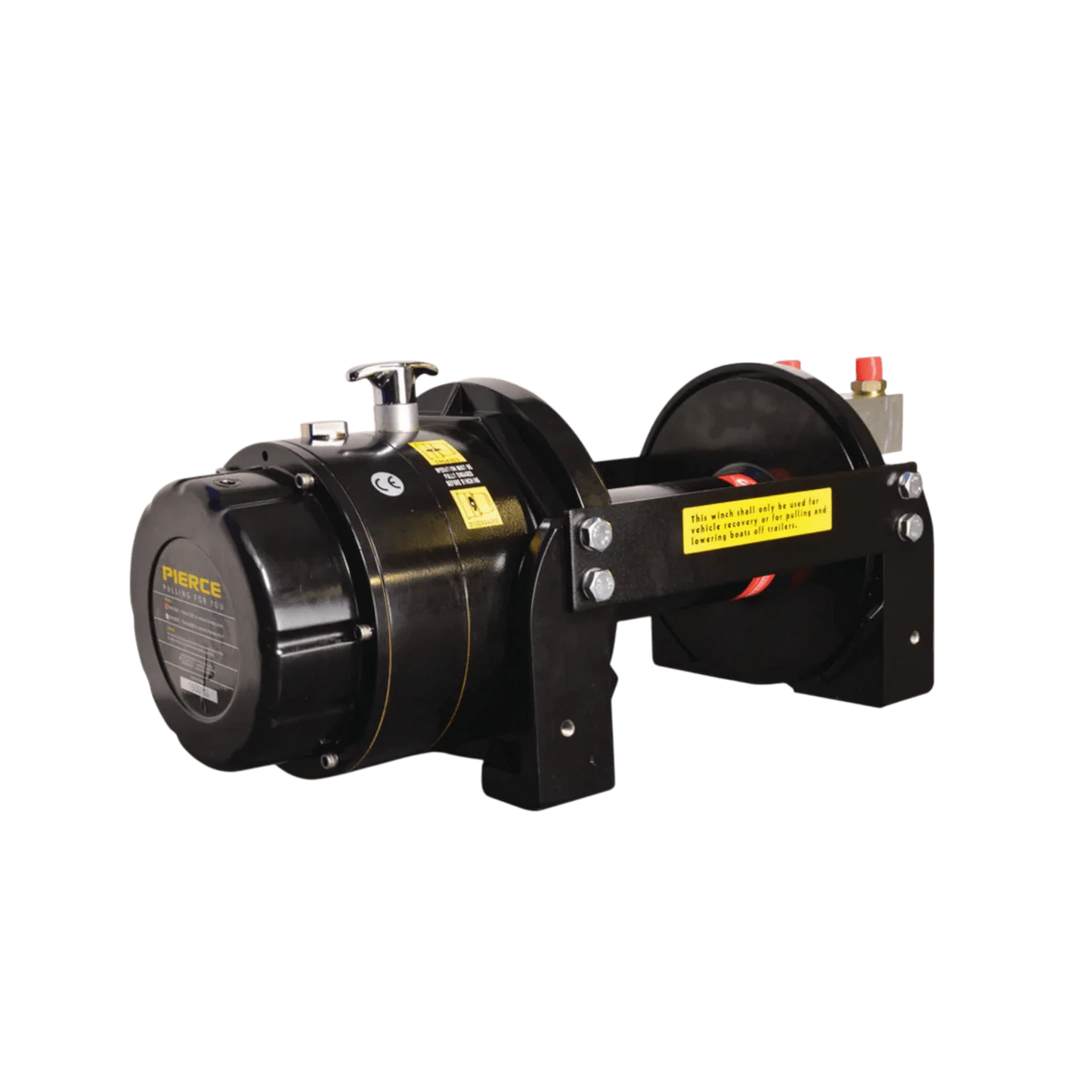

PIERCE 15,000 lb Hydraulic Recovery Winch
PIERCE 15,000 lb Hydraulic Recovery Winch
Couldn't load pickup availability
Low stock: 7 left
Hydraulic Power and Precision for 15,000 lb Recovery and Towing
The PIERCE PSHV15000 Hydraulic Winch delivers powerful, consistent pulling performance for heavy-duty recovery and industrial applications. Featuring a rugged three-stage planetary gear system, it provides smooth torque transfer and efficient operation under load. The spring-applied multi-disc brake ensures precise control and safe load holding, while the heavy-duty hydraulic motor is built for continuous-duty use in demanding conditions. Engineered for strength and reliability, the PSHV15000 is a trusted choice for operators who need dependable power day after day.
- 15,000 lb hydraulic pulling capacity for recovery and equipment applications
- Three-stage planetary gear system ensures smooth, efficient torque delivery
- Spring-applied multi-disc brake provides secure and consistent load control
- Hydraulic drive delivers steady power and reliable performance under load
- Heavy-duty steel construction built to withstand harsh work environments
Applications: Ideal for recovery vehicles, tow trucks, oilfield equipment, and industrial machinery requiring strong, reliable hydraulic pulling power.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Spring Applied Drag Brake Together with Over-Center Valve Supplied |
| CLUTCH TYPE | Rotating Ring Gear |
| CONSTRUCTION | Aluminum Die Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 19:4:1 |
| GEAR TYPE | 2-Stage Planetary Gear |
| HYDRAULIC MOTOR | 7.6 in³ / rev |
| MAX CAPACITY (LBS.) | 15000 |
| MAX LINE SPEED | 30 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| POWER SOURCE | Hydraulic |
| RECOMMENDED WIRE ROPE | ½" x 165' |
Manual: https://www.piercearrowinc.com/pages/docs/pshv-series-winch-manual
PSHV Mounting Footprint: https://www.piercearrowinc.com/pages/docs/pshv-mounting-footprint
Spec Sheet: https://www.piercearrowinc.com/pages/docs/pshv-15000-spec-sheet
1 Year Warranty
All Parts guaranteed free of Defects.
- Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
