Compact Electric Winch with Heavy-Duty Industrial Power. Pre-Order.

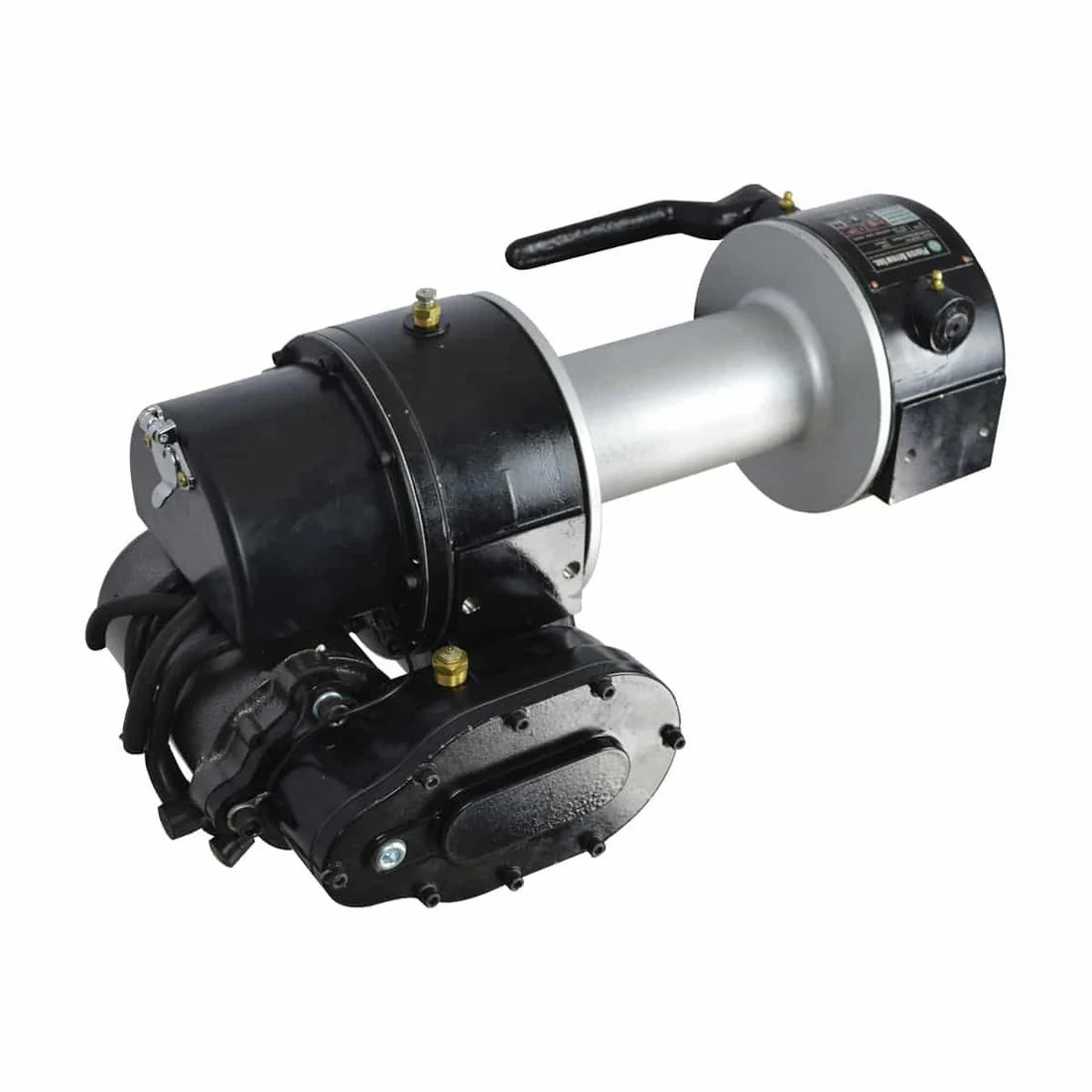

The PIERCE 12,500 lb Industrial Electric Winch – 8" Drum provides exceptional pulling strength in a compact design built for professional-grade performance. Powered by a 12V DC motor, it uses a durable three-stage planetary gear system to deliver smooth torque and reliable power transfer under heavy loads. The shorter 8" drum allows tighter installation while maintaining full pulling capacity, making it ideal for recovery trucks, trailers, and industrial machinery. Built with a sealed housing and automatic load-holding brake, this winch is designed for years of dependable service in demanding environments.
- 12,500 lb pulling capacity for recovery and industrial applications
- 8" drum provides compact fit without sacrificing performance
- 12V DC motor ensures consistent, controlled power delivery
- Three-stage planetary gear system offers smooth and efficient torque transfer
- Automatic load-holding brake provides safe and secure load control
Applications: Ideal for towing, recovery, and industrial equipment where space and power efficiency are critical.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 8 in. |
| GEAR RATIO | 728.5:1 |
| GEAR TYPE | Worm Gear |
| MAX AMPS | 400 |
| MAX CAPACITY (LBS.) | 12500 |
| MAX LINE SPEED | 9 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 12 Volts DC |
| POWER SOURCE | Electric, DC |
| RECOMMENDED BATTERY | 650 CCA |
| RECOMMENDED WIRE | 2 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 100 ft. |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Spec sheet: https://www.piercearrowinc.com/pages/docs/psw-654-mk-spec-sheet

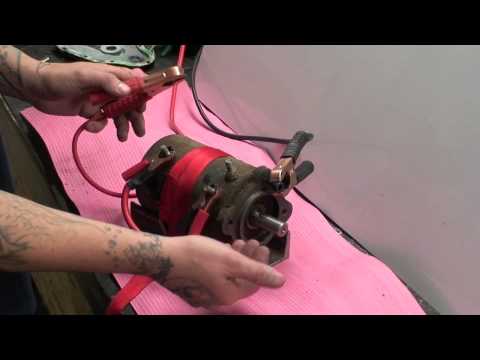

3 Post Motor Test: https://www.piercearrowinc.com/pages/docs/3-post-motor-test
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
