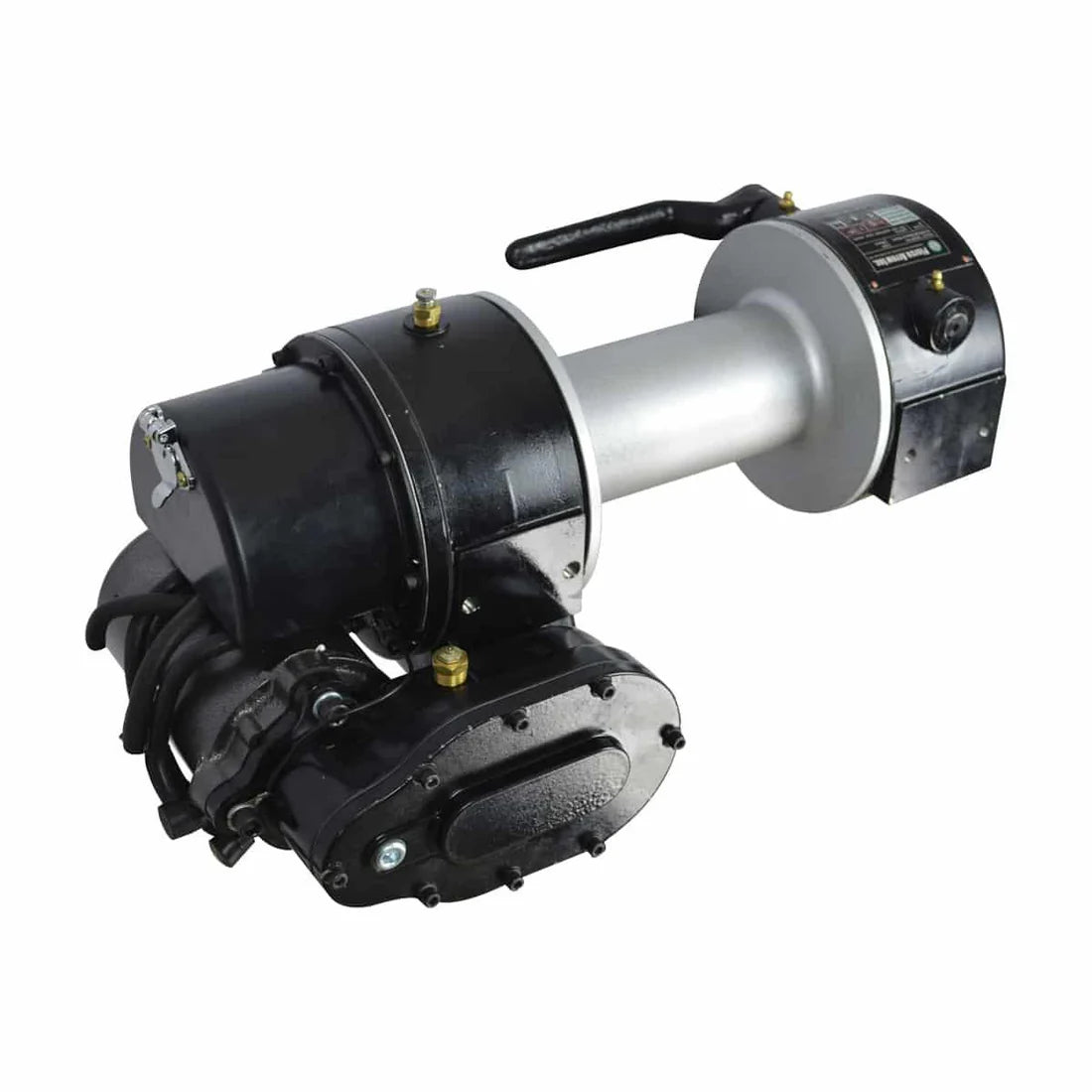

PIERCE 12,500 lbs. 11" Drum Industrial Electric Winch - Pre Order.
PIERCE 12,500 lbs. 11" Drum Industrial Electric Winch - Pre Order.
Couldn't load pickup availability
Low stock: 6 left
High-Capacity Electric Winch for Professional Industrial Use - Pre Order.
The PIERCE 12,500 lb Industrial Electric Winch – 11" Drum delivers serious pulling power and long cable reach for heavy-duty recovery and equipment handling. Powered by a 12V DC motor, it uses a robust three-stage planetary gear system to provide smooth, efficient torque under load. The larger 11" drum increases cable capacity for extended pulls, while the automatic load-holding brake ensures reliable control during operation. Designed for continuous-duty performance, this winch is trusted across towing, construction, and industrial applications where dependable electric strength is a must.
- 12,500 lb pulling capacity for recovery, towing, and industrial work
- 11" drum increases cable length for long-distance pulls
- 12V DC motor delivers consistent, controlled power under load
- Three-stage planetary gear system ensures smooth torque and durability
- Automatic load-holding brake provides safe and secure operation
Applications: Ideal for recovery trucks, industrial trailers, and equipment handling that demand strong, steady pulling power.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Worm Gear Brake |
| CLUTCH TYPE | Dog |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| DRUM SIZE | 3 ½ in. x 11 in. |
| GEAR RATIO | 728.5:1 |
| GEAR TYPE | Worm Gear |
| MAX AMPS | 400 |
| MAX CAPACITY (LBS.) | 12500 |
| MAX LINE SPEED | 9 fpm |
| MOTOR (HP) | 1.5 |
| OPERATING VOLTAGE | 12 Volts DC |
| POWER SOURCE | Electric, DC |
| RECOMMENDED BATTERY | 650 CCA |
| RECOMMENDED WIRE | 2 gauge |
| RECOMMENDED WIRE ROPE | ⅜ in. x 125 ft. |
Manual: https://www.piercearrowinc.com/pages/docs/psw-654-series-winch-manual
Spec Sheet: https://www.piercearrowinc.com/pages/docs/psw-654-mk-spec-sheet

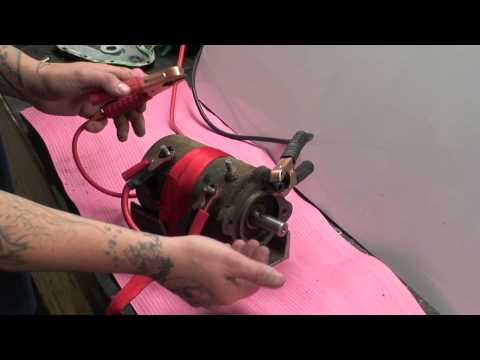

3 Post Motor Test: https://www.piercearrowinc.com/pages/docs/3-post-motor-test
Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
- Mechanical parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
- Warranty ensures that electrical components are free from defects.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
