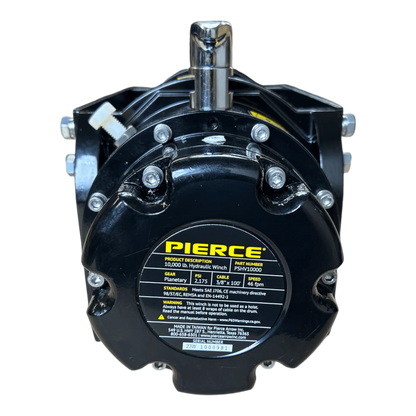

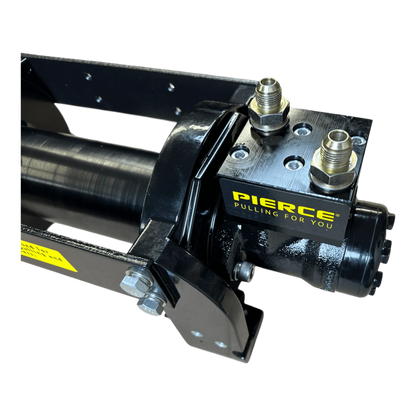

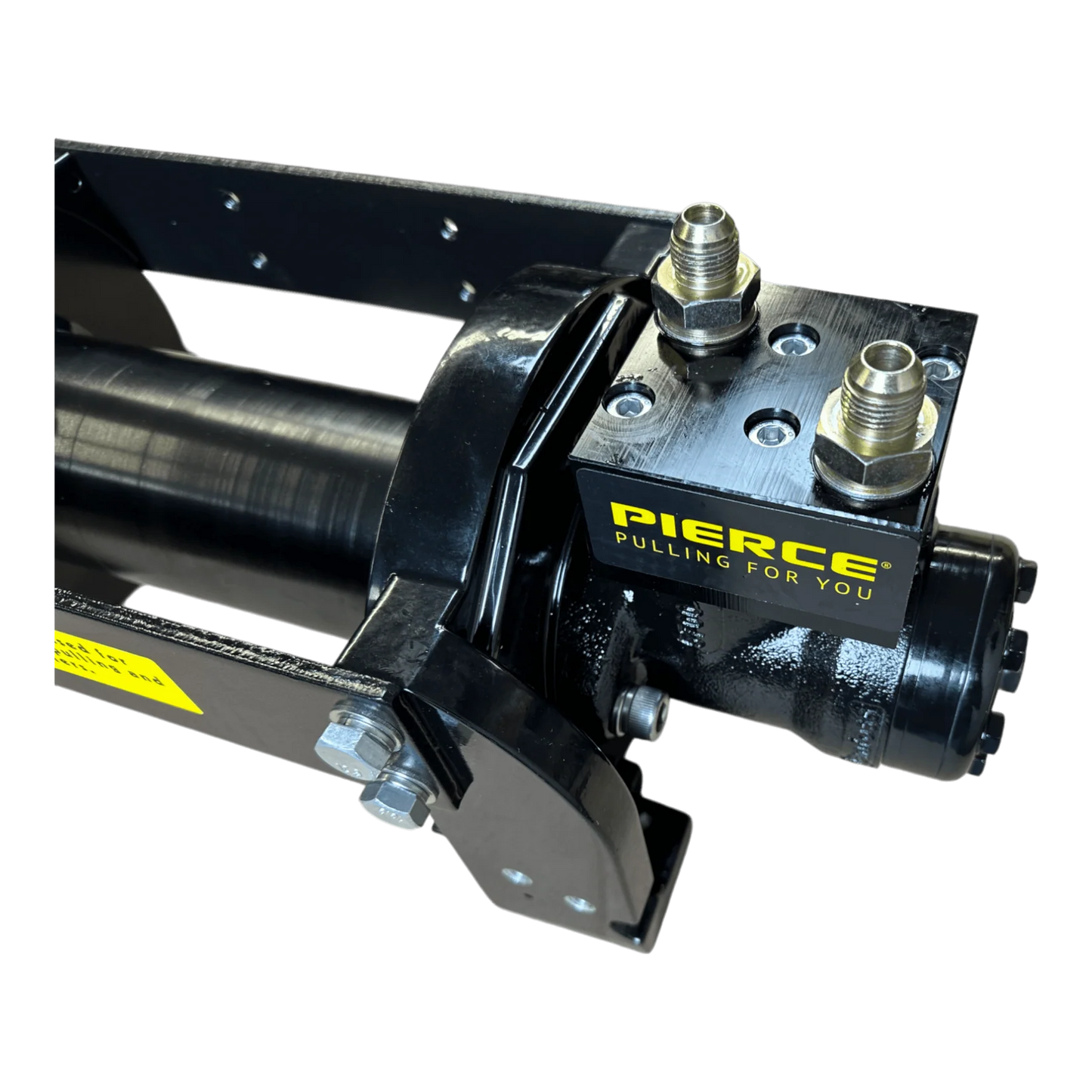

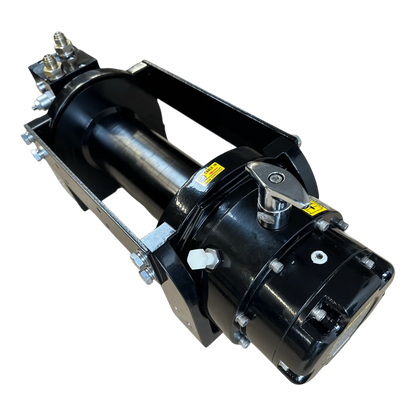

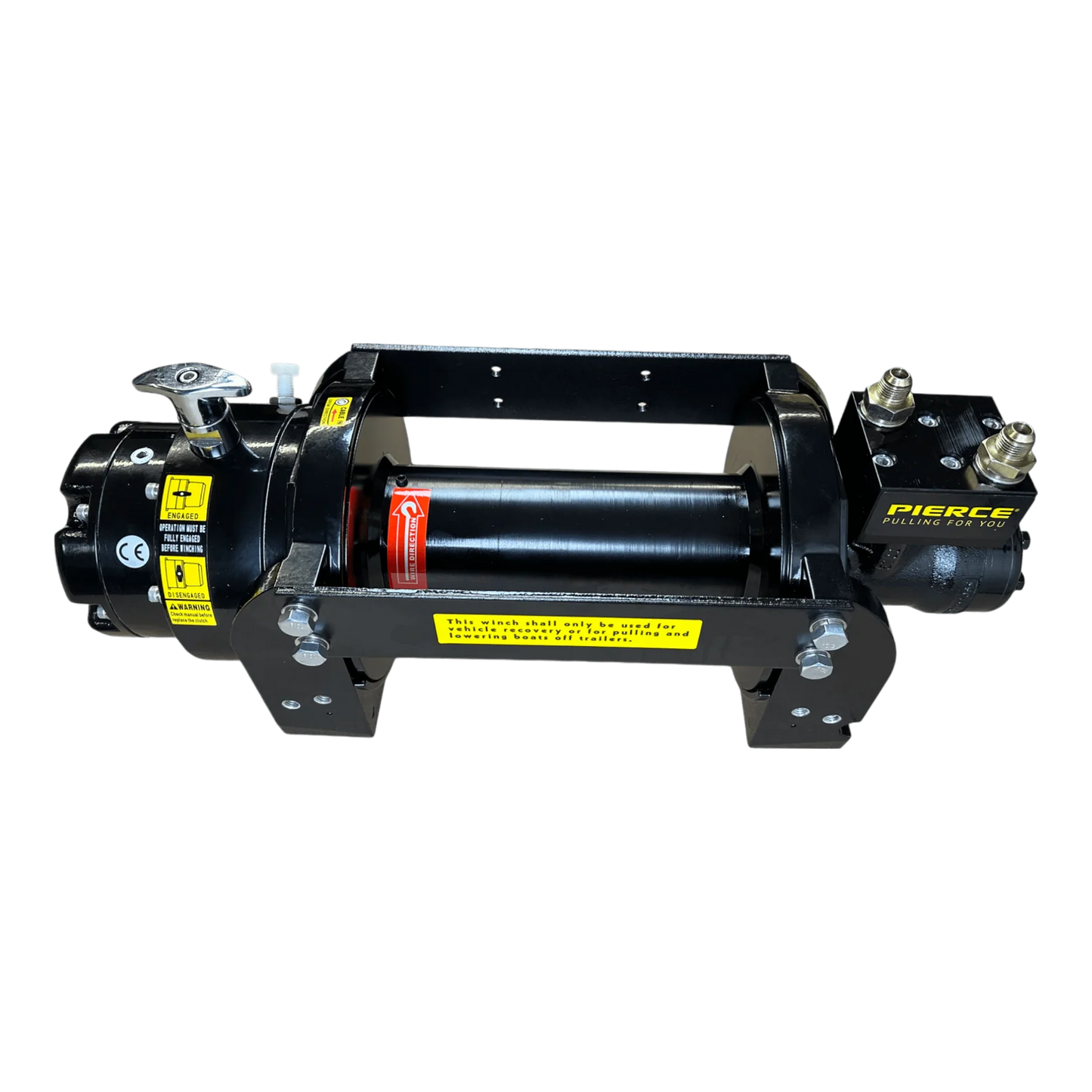

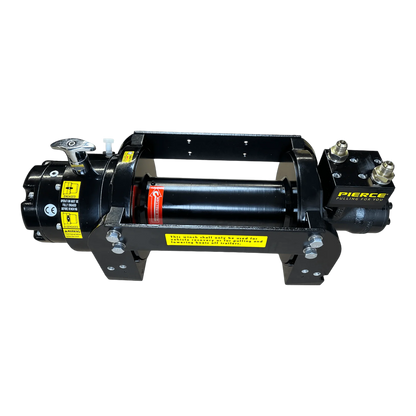

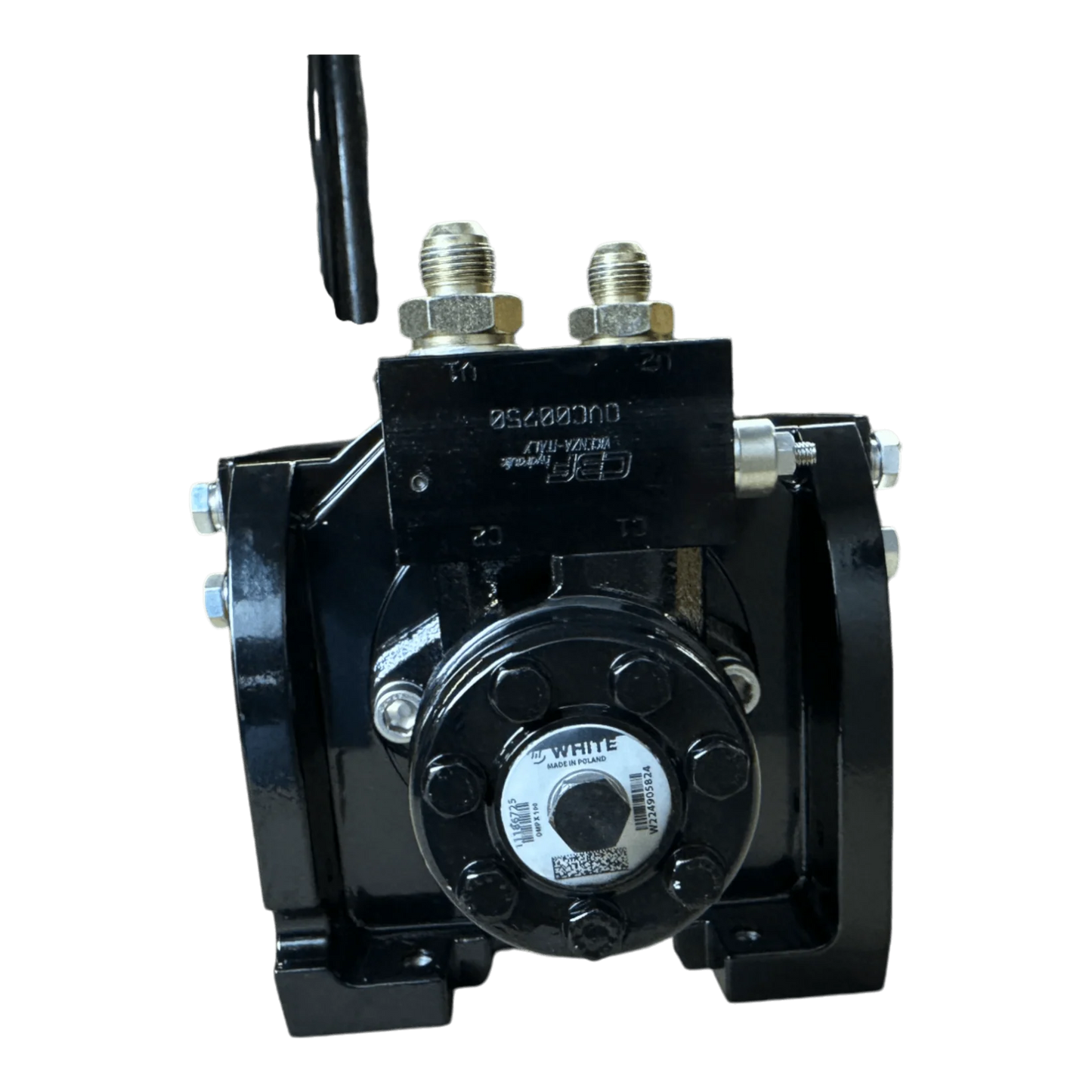

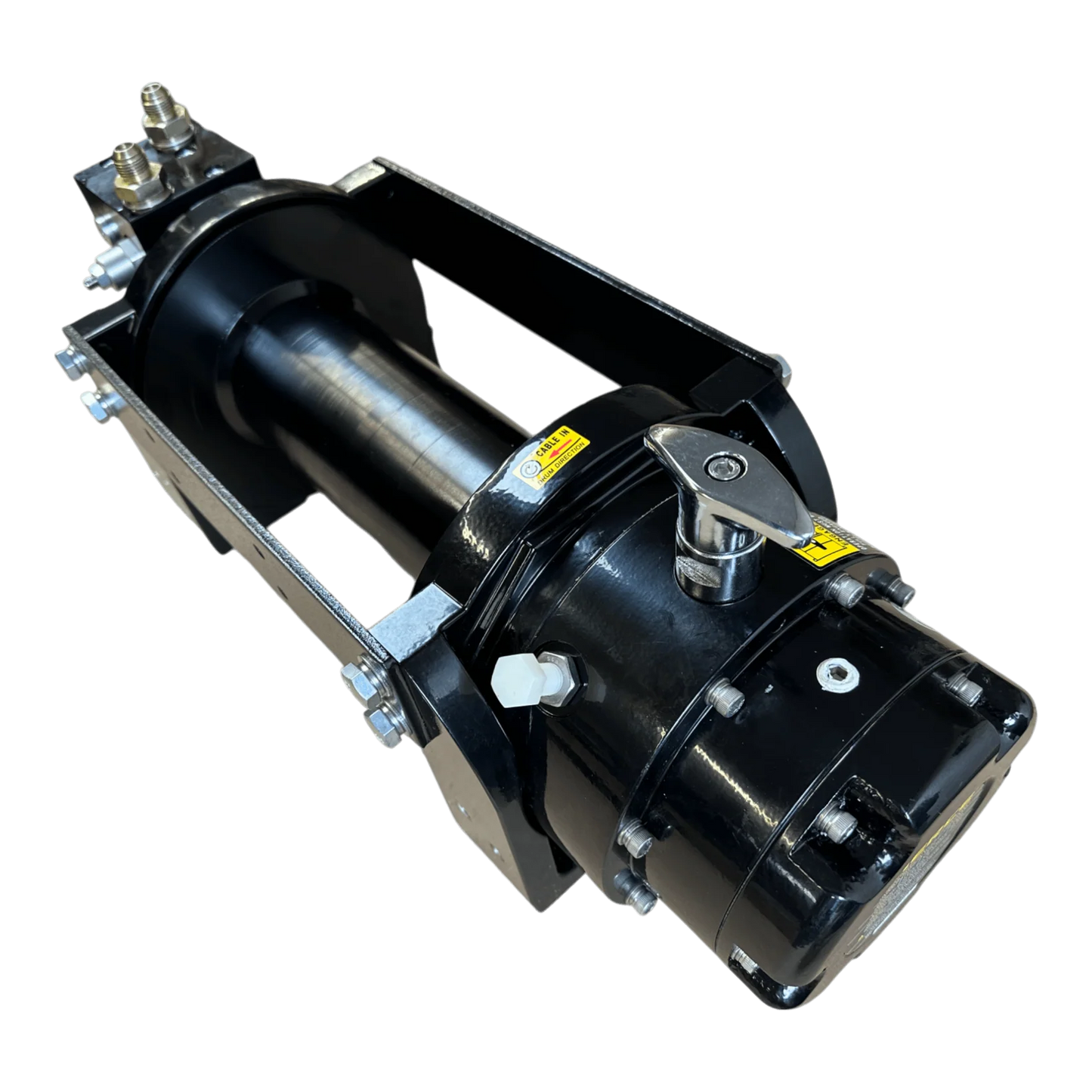

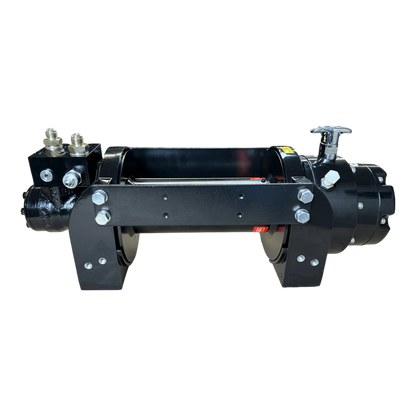

PIERCE 10,000 lb Hydraulic Recovery Winch
PIERCE 10,000 lb Hydraulic Recovery Winch
Couldn't load pickup availability
Low stock: 4 left

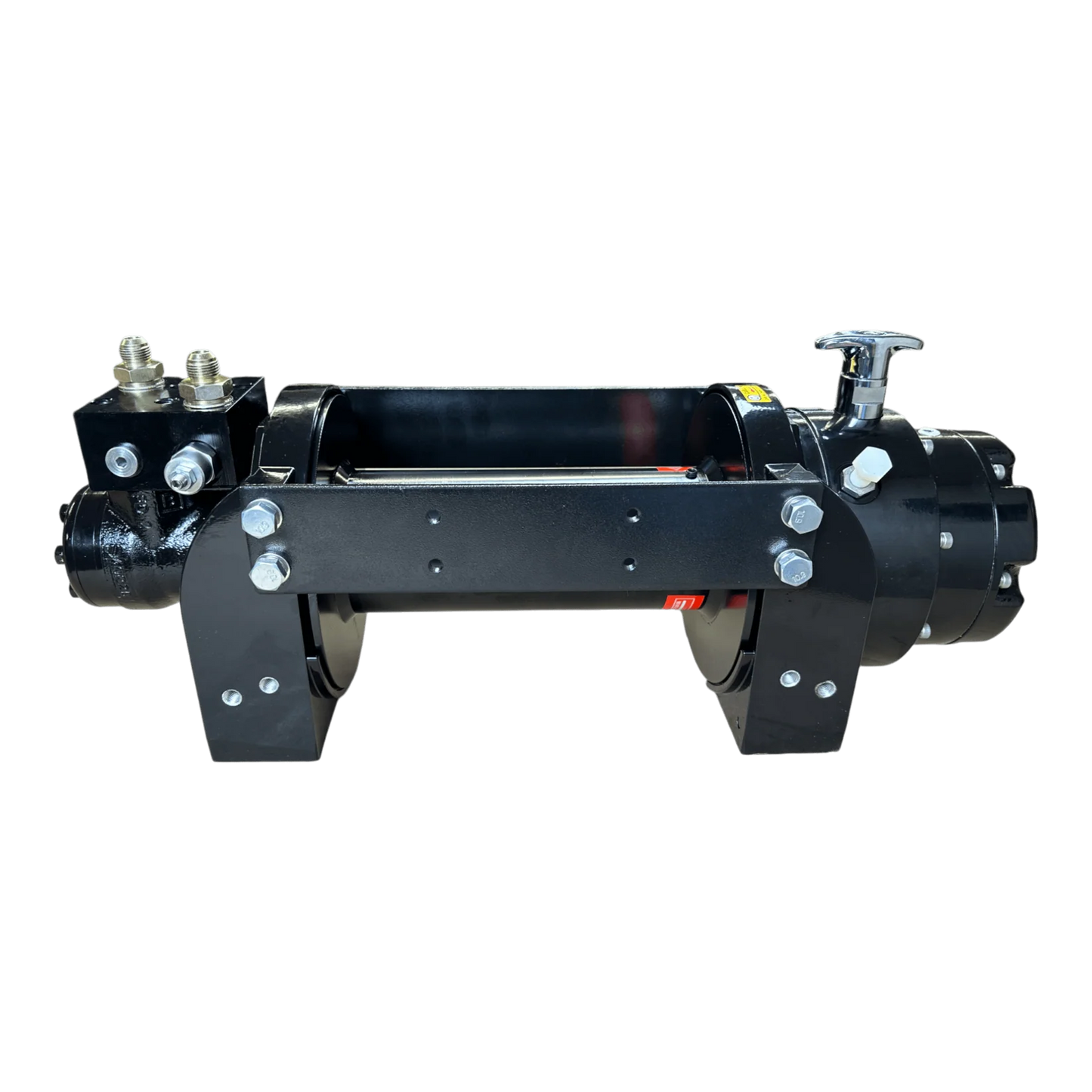

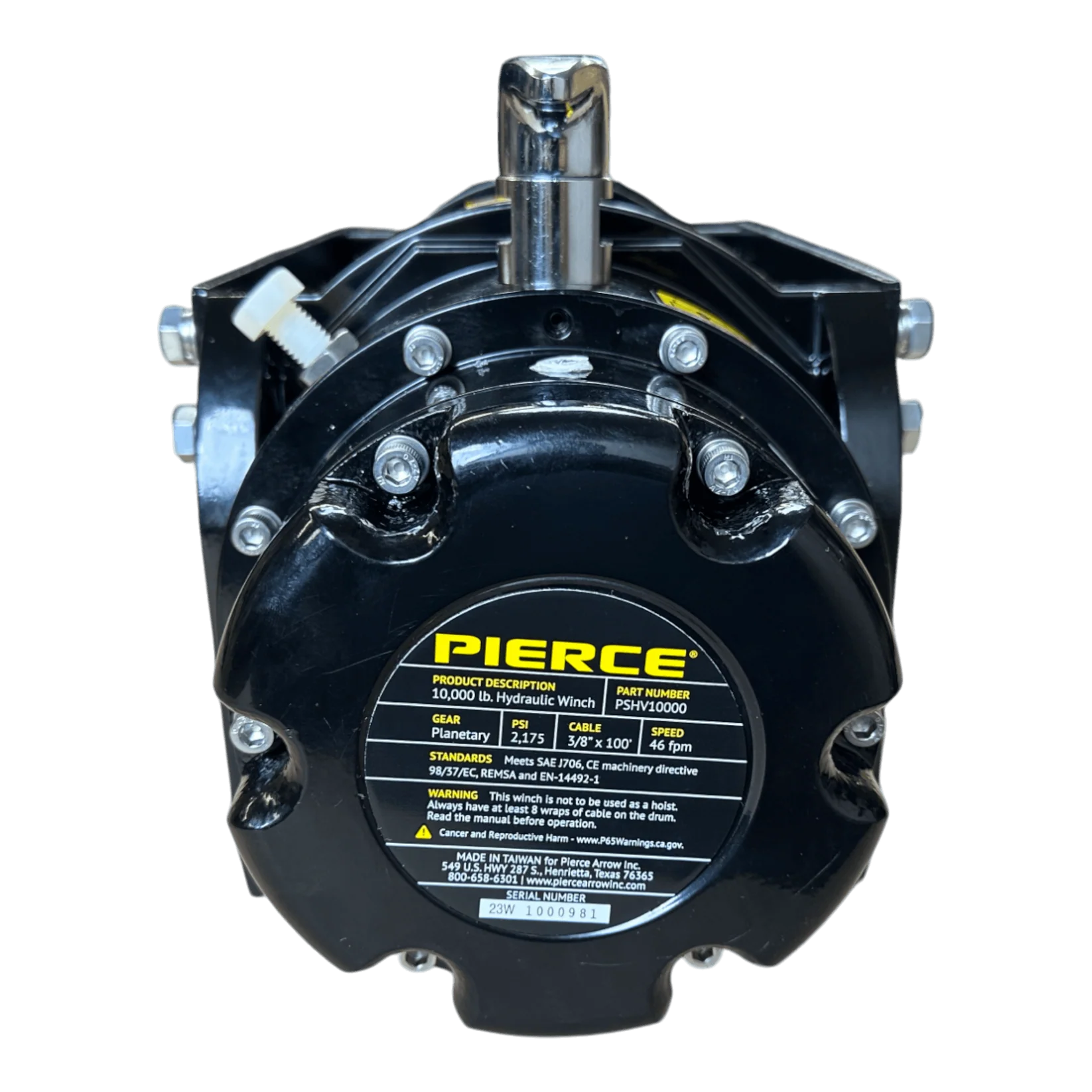

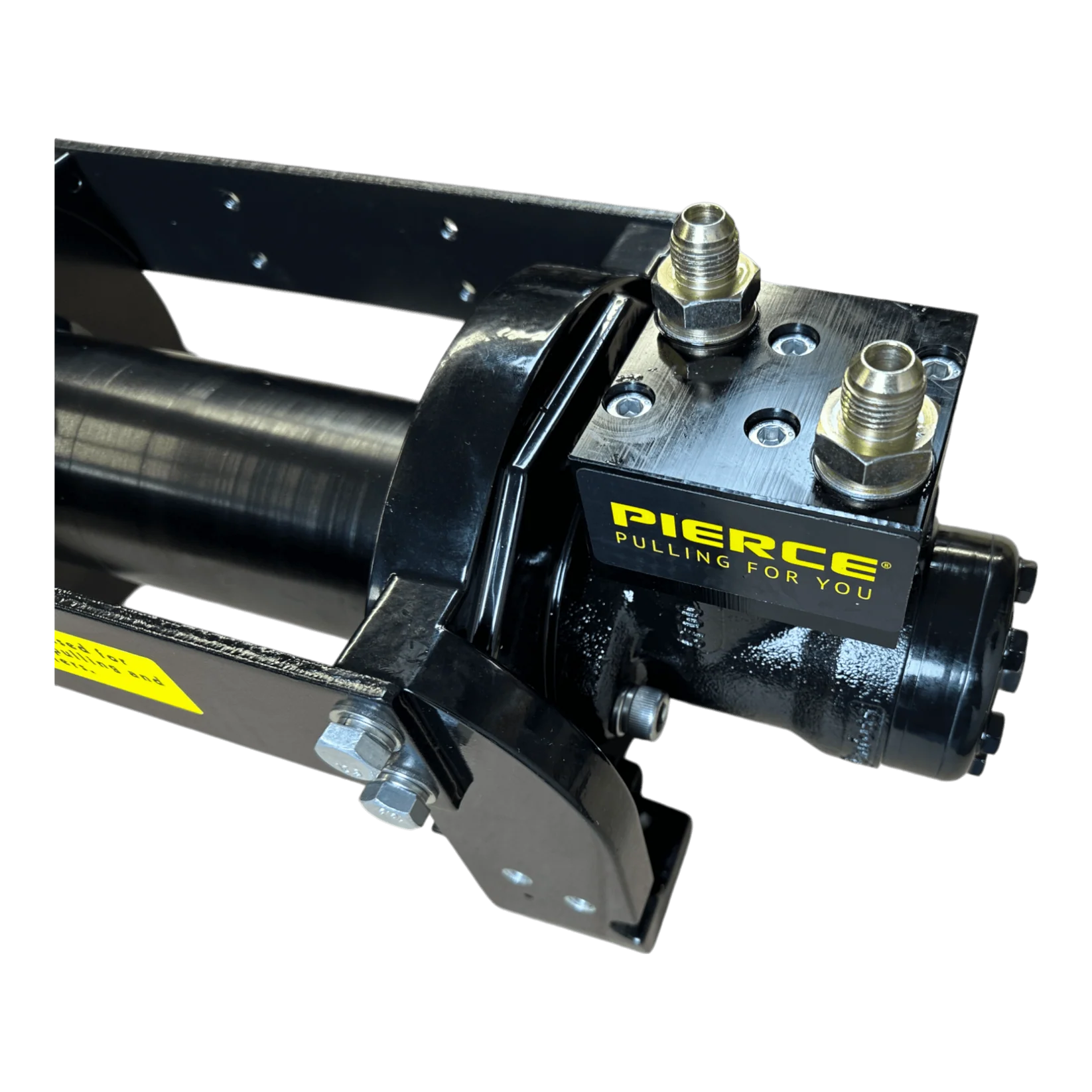

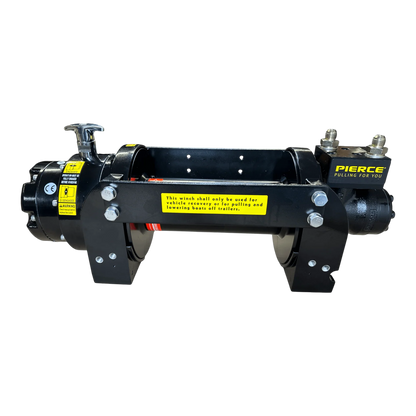

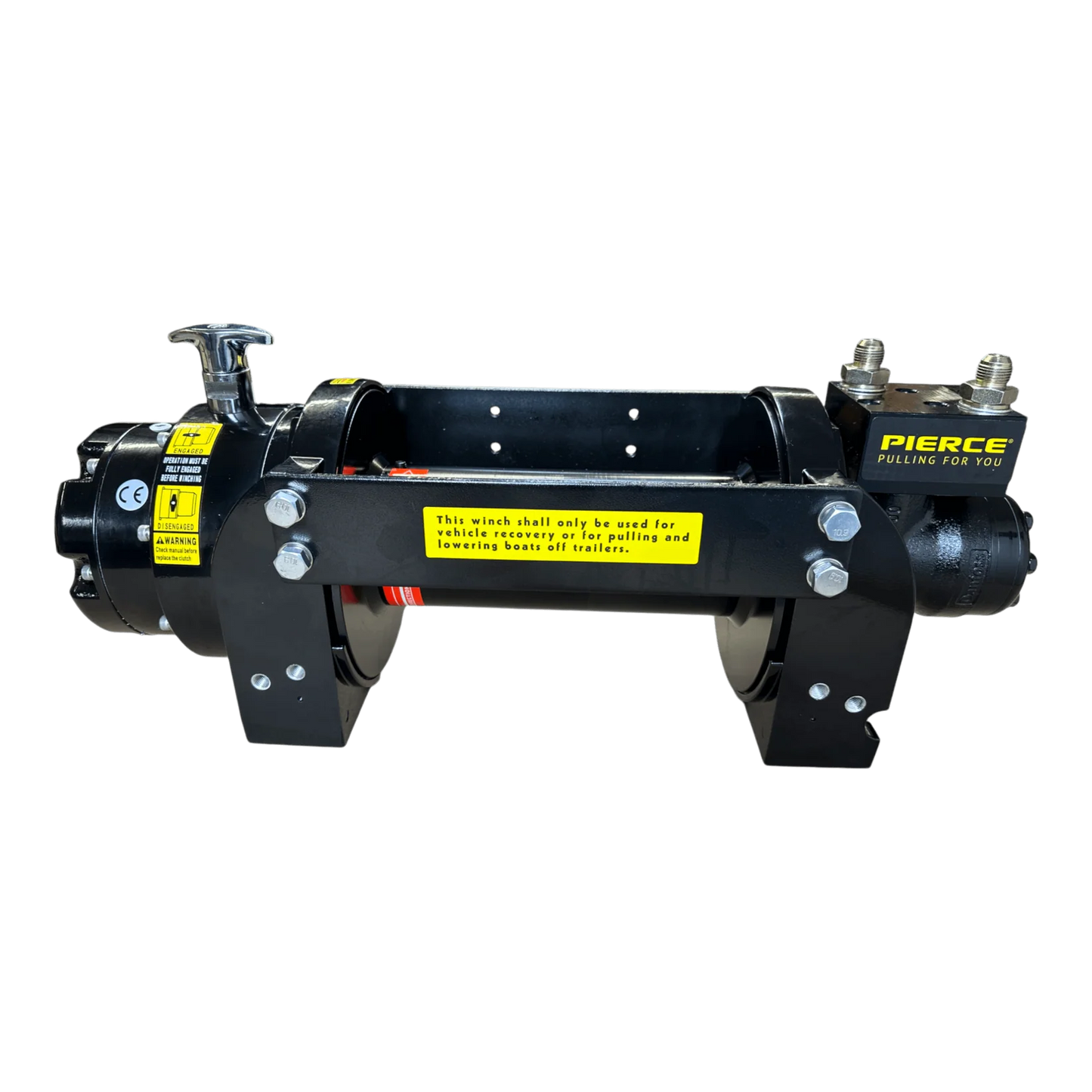

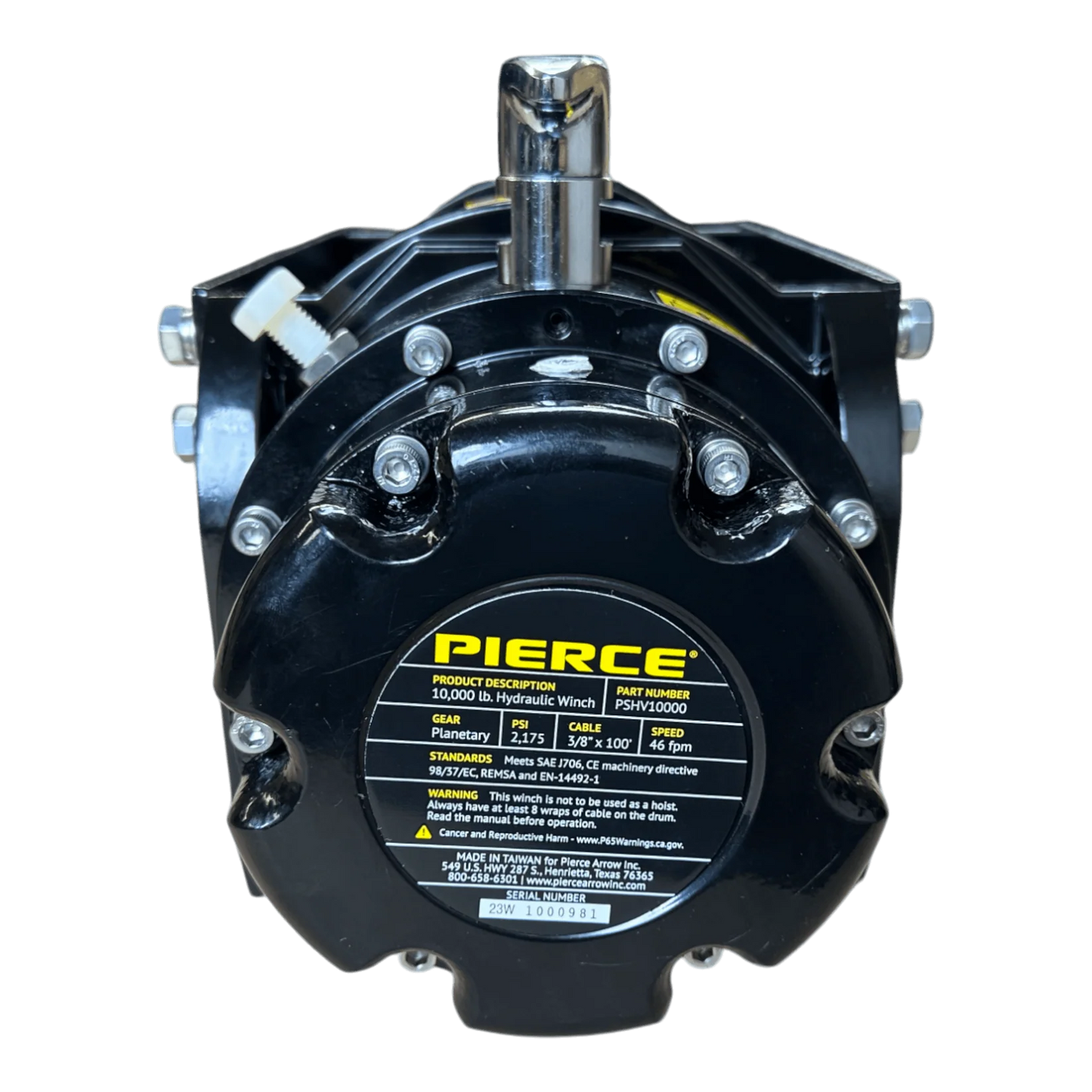

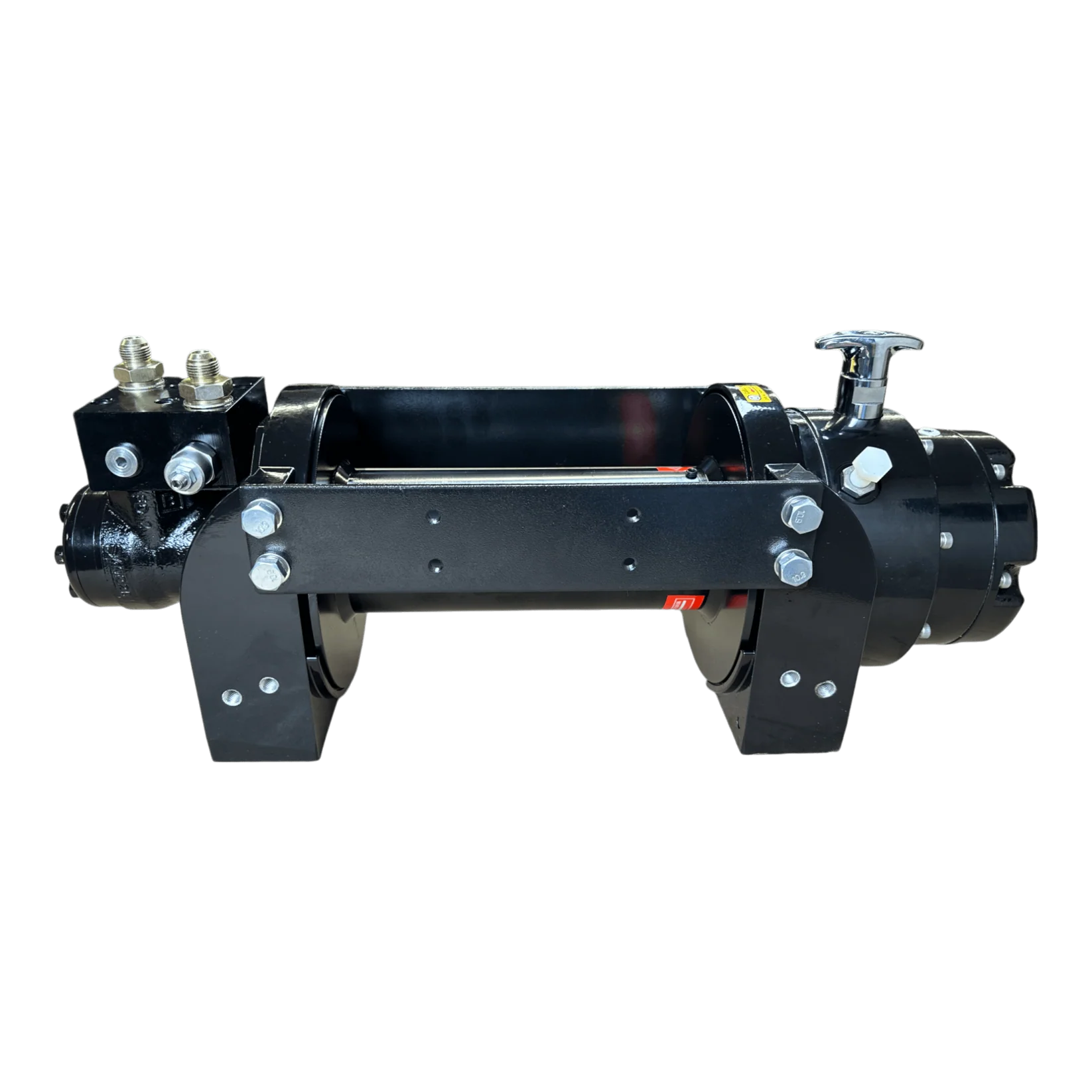

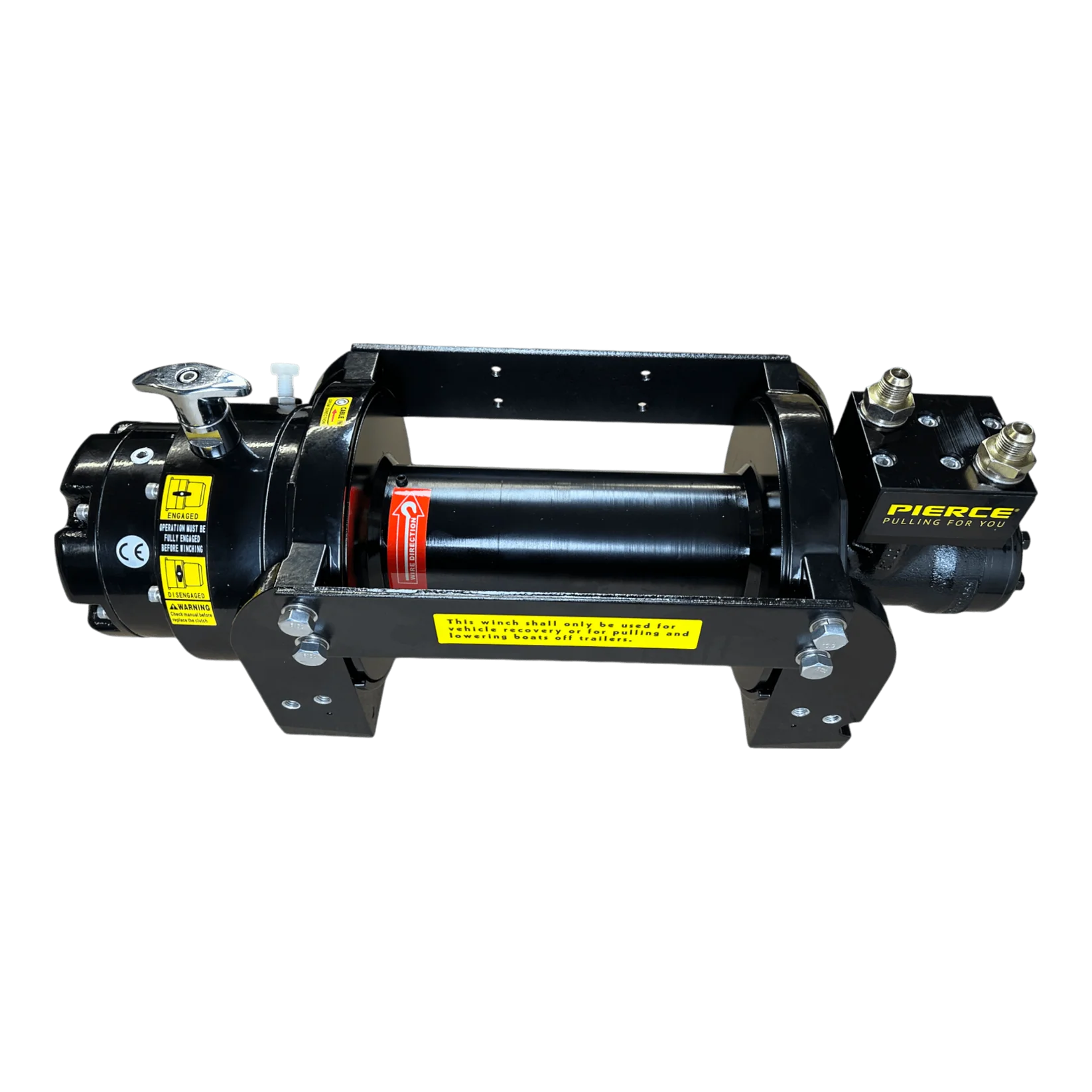

Hydraulic Winch for Smooth, Controlled 10,000 lb Pulling Power
The PIERCE PSHV10000 Hydraulic Winch provides dependable hydraulic performance for recovery, towing, and industrial use. Featuring a durable three-stage planetary gear system and a spring-applied multi-disc brake, it delivers smooth torque transfer and precise load control under heavy pulling conditions. Built for continuous-duty operation, this winch is designed to perform in harsh work environments where consistent power and reliability are essential.
- 10,000 lb hydraulic pulling capacity for towing and recovery applications
- Three-stage planetary gear system ensures efficient, steady torque delivery
- Spring-applied multi-disc brake provides safe and controlled load holding
- Hydraulic drive delivers smooth, reliable power for continuous-duty use
- Heavy-duty steel construction built to withstand harsh jobsite conditions
Applications: Ideal for recovery vehicles, oilfield equipment, and industrial machinery requiring steady hydraulic power and dependable load control.
⚠️ Never use a winch for lifting or moving people. Pulling and recovery use only.
Included:
| Specification | Details |
|---|---|
| BRAKE TYPE | Spring Applied Drag Brake together with Over-Center Valve Supplied |
| CLUTCH TYPE | Rotating Ring Gear |
| CONSTRUCTION | Aluminum Die Cast Housings with Steel Drum |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| GEAR RATIO | 16:1 |
| GEAR TYPE | 2-Stage Planetary Gear |

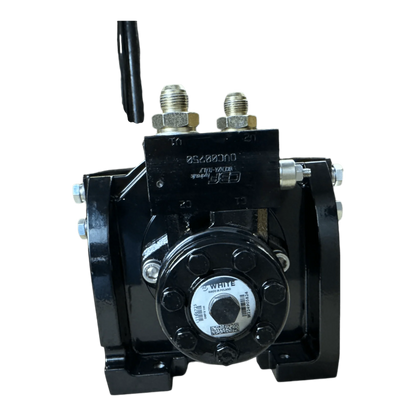

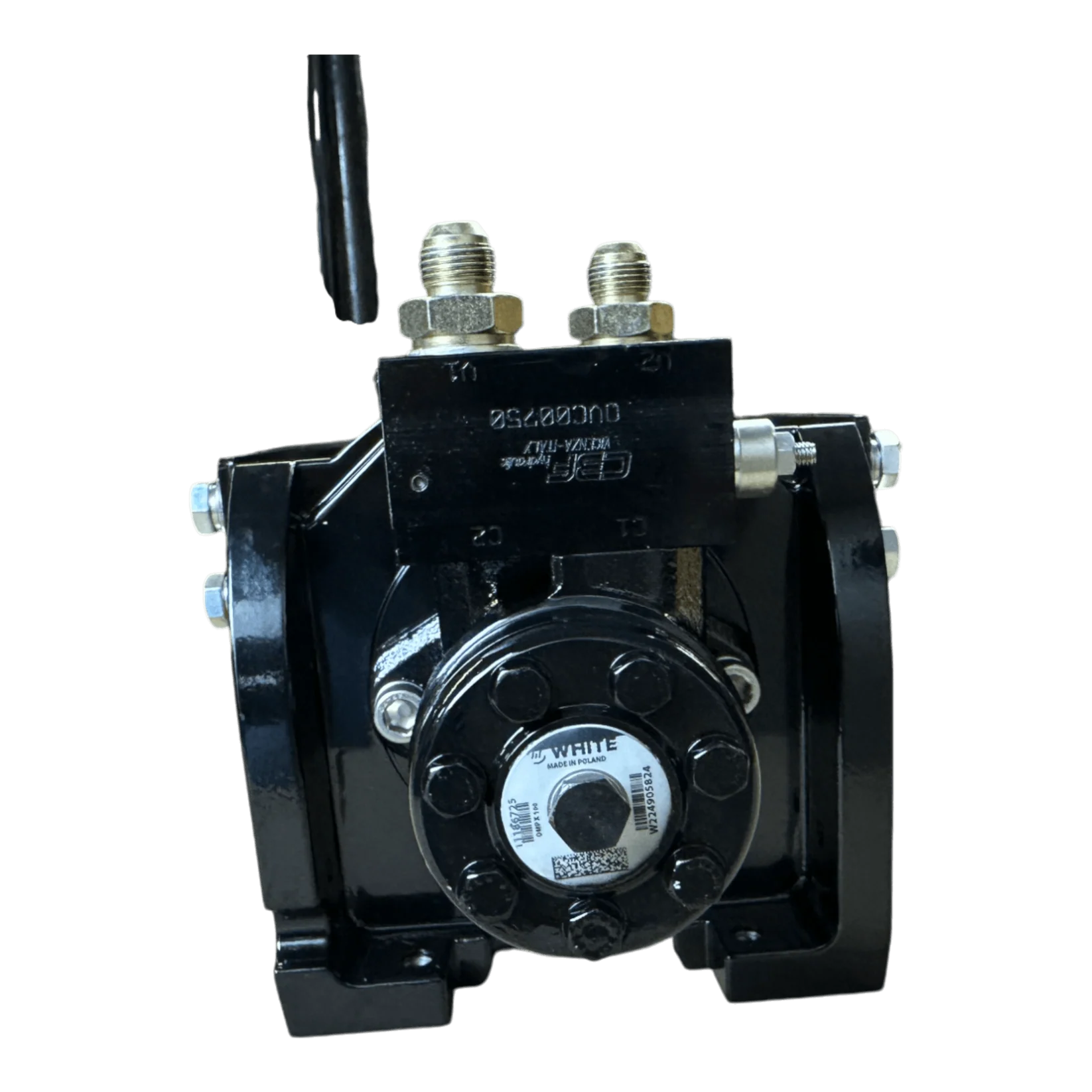

| HYDRAULIC MOTOR | 5.9 in³ / rev |
| MAX CAPACITY (LBS.) | 10000 |
| MAX LINE SPEED | 46 fpm @ 15.9 gpm |
| MAX OIL FLOW (GPM) | 15.9 |
| OPERATIONAL PRESSURE (PSI) | 2175 |
Manual: https://www.piercearrowinc.com/pages/docs/pshv-series-winch-manual
PSHV Mounting Footprint: https://www.piercearrowinc.com/pages/docs/pshv-mounting-footprint
PSHV10000 Spec Sheet: https://www.piercearrowinc.com/pages/docs/pshv-10000-spec-sheet
1 Year Warranty
All Parts guaranteed free of Defects.
- Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
- Parts will be replaced at the manufacturer's discretion.
- The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
- Does not include normal wear and tear, misuse, water damage or other forms of abuse.
- Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
- This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
- You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
- All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
- Email us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over email.
